A Johnson counter is a modified ring counter in which the output from the last flip flop is inverted and fed back as an input to the first. It is also called as Inverse Feedback COunter or Twisted Ring Counter. It is used in hardware logic design to create complicated Finite States Machine (FSM) eg: ASIC and FPGA design. It roughly consumes 80-100 mW of power and runs at a clock frequency of 36 MHz.
- Used as a synchronous decade counter or divider circuit.
- 3 stage Johnson counter is used as a 3 phase square wave generator with 1200 phase shift.
- Icarus Verilog is an implementation of the Verilog hardware description language.
- GTKWave is a fully featured GTK+ v1. 2 based wave viewer for Unix and Win32 which reads Ver Structural Verilog Compiler generated AET files as well as standard Verilog VCD/EVCD files and allows their viewing.
Open your terminal and type the following to install iverilog and GTKWave
$ sudo apt get update
$ sudo apt get install iverilog gtkwave
- To clone the repository and download the netlist files for simulation , enter the following commands in your terminal.
$ git clone https://github.com/AmanP-IIITB/iiitb_jc
$ cd iiitb_jc
- To simulate and run the verilog code , enter the following commands in your terminal.
$ iverilog -o iiitb_jc iiitb_jc.v iiitb_jc_tb.v
$ ./iiitb_jc
- To see the output waveform in gtkwave, enter the following commands in your terminal.
$ gtkwave iiitb_jc.vcd
Synthesis transforms the simple RTL design into a gate-level netlist with all the constraints as specified by the designer. In simple language, Synthesis is a process that converts the abstract form of design to a properly implemented chip in terms of logic gates.
Synthesis takes place in multiple steps:
- Converting RTL into simple logic gates.
- Mapping those gates to actual technology-dependent logic gates available in the technology libraries.
- Optimizing the mapped netlist keeping the constraints set by the designer intact.
It is a tool we use to convert out RTL design code to netlist. Yosys is the tool I've used in this project.
The commands to get the yosys is given belw:
git clone https://github.com/YosysHQ/yosys.git
make
sudo make install make test
Now you need to create a yosys_run.sh file , which is the yosys script file used to run the synthesis. The contents of the yosys_run file are given below:
read_liberty -lib lib/sky130_fd_sc_hd__tt_025C_1v80.lib
read_verilog iiitb_jc.v
synth -top iiitb_rv32i
dfflibmap -liberty lib/sky130_fd_sc_hd__tt_025C_1v80.lib
abc -liberty lib/sky130_fd_sc_hd__tt_025C_1v80.lib
clean
flatten
write_verilog -noattr iiitb_jc_synth.v
Now, in the terminal of your verilog files folder, run the following commands:
yosys
yosys -s yosys_run.sh
Now the synthesized netlist is written in "iiitb_jc_synth.v" file.
GLS is generating the simulation output by running test bench with netlist file generated from synthesis as design under test. Netlist is logically same as RTL code, therefore, same test bench can be used for it.We perform this to verify logical correctness of the design after synthesizing it. Also ensuring the timing of the design is met. Folllowing are the commands to run the GLS simulation:
iverilog -DFUNCTIONAL -DUNIT_DELAY=#1 ../verilog_model/primitives.v ../verilog_model/sky130_fd_sc_hd.v iiitb_jc_synth.v iiitb_jc_tb.v
./a.out
gtkwave iiitb_jc.vcd
The gtkwave output for the netlist should match the output waveform for the RTL design file. As netlist and design code have same set of inputs and outputs, we can use the same testbench and compare the waveforms.
The output waveform of the synthesized netlist are given below:
OpenLane is an automated RTL to GDSII flow based on several components including OpenROAD, Yosys, Magic, Netgen, CVC, SPEF-Extractor, CU-GR, Klayout and a number of custom scripts for design exploration and optimization. The flow performs full ASIC implementation steps from RTL all the way down to GDSII.
Find more details for OpenLane at https://github.com/The-OpenROAD-Project/OpenLane
$ apt install -y build-essential python3 python3-venv python3-pip
Docker installation process: https://docs.docker.com/engine/install/ubuntu/
goto home directory->
$ git clone https://github.com/The-OpenROAD-Project/OpenLane.git
$ cd OpenLane/
$ sudo make
To test the open lane
$ sudo make test
It takes approximate time of 5min to complete. After 43 steps, if it ended with saying Basic test passed then open lane installed succesfully.
Magic is a venerable VLSI layout tool, written in the 1980's at Berkeley by John Ousterhout, now famous primarily for writing the scripting interpreter language Tcl. Due largely in part to its liberal Berkeley open-source license, magic has remained popular with universities and small companies. The open-source license has allowed VLSI engineers with a bent toward programming to implement clever ideas and help magic stay abreast of fabrication technology. However, it is the well thought-out core algorithms which lend to magic the greatest part of its popularity. Magic is widely cited as being the easiest tool to use for circuit layout, even for people who ultimately rely on commercial tools for their product design flow.
Find more details of magic at http://opencircuitdesign.com/magic/index.html
Run following commands one by one to fulfill the system requirement.
$ sudo apt-get install m4
$ sudo apt-get install tcsh
$ sudo apt-get install csh
$ sudo apt-get install libx11-dev
$ sudo apt-get install tcl-dev tk-dev
$ sudo apt-get install libcairo2-dev
$ sudo apt-get install mesa-common-dev libglu1-mesa-dev
$ sudo apt-get install libncurses-dev
To install magic goto home directory
$ git clone https://github.com/RTimothyEdwards/magic
$ cd magic/
$ ./configure
$ sudo make
$ sudo make install
type magic terminal to check whether it installed succesfully or not. type exit to exit magic.

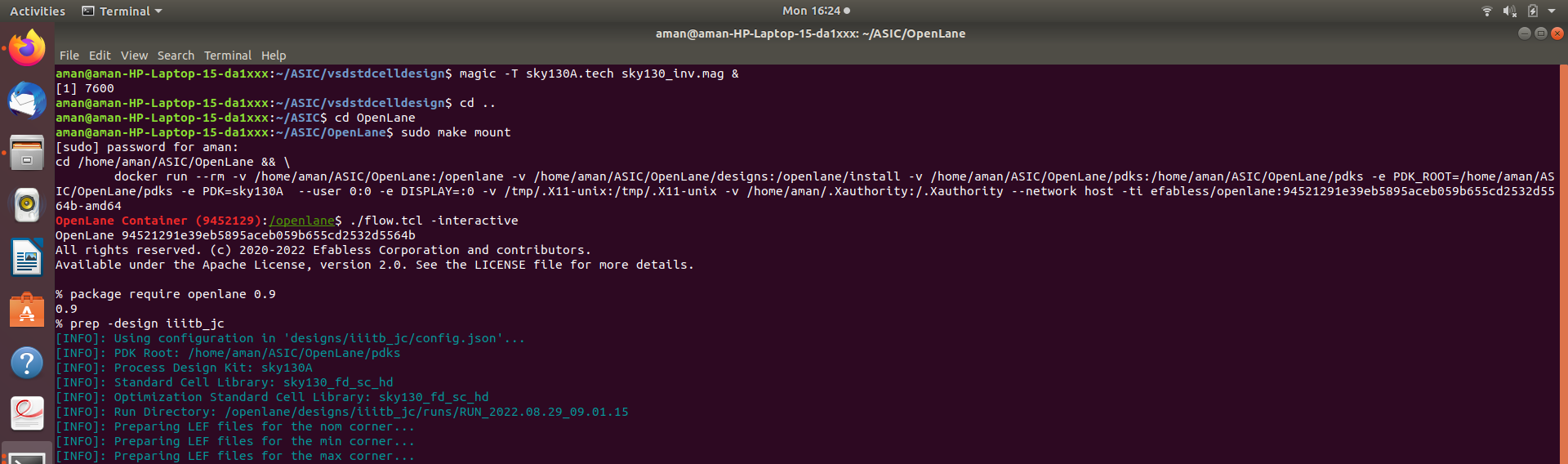

Openlane can be invoked using docker command followed by opening an interactive session. flow.tcl is a script that specifies details for openLANE flow.
docker
./flow.tcl -interactive
package require openlane 0.9
prep -design iiitb_jc
set lefs [glob $::env(DESIGN_DIR)/src/*.lef]
add_lefs -src $lefs
Synthesis is the process of creating a gate level description of the blocks that are described behaviorally in verilog and prepairing the complete design for the place and route process.
Write the command for synthesis:
After the synthesis the updated cells and flipflop count is given as (stat):
Flip Flop to standard cell ratio = (Number of flip-flops)/(Number of cells) = 8/116 = 0.0689
Floor plan determines the size of the design cell (or die), creates the boundary and core area, and creates wire tracks for placement of standard cells. It is also a process of positioning blocks or macros on the die.
To run the iiitb_jc floorplan in openLANE:
run_floorplan
Post the floorplan run, a .def file will have been created within the results/floorplan directory. We may review floorplan files by checking the floorplan.tcl. The system defaults will have been overriden by switches set in conifg.tcl and further overriden by switches set in sky130A_sky130_fd_sc_hd_config.tcl.

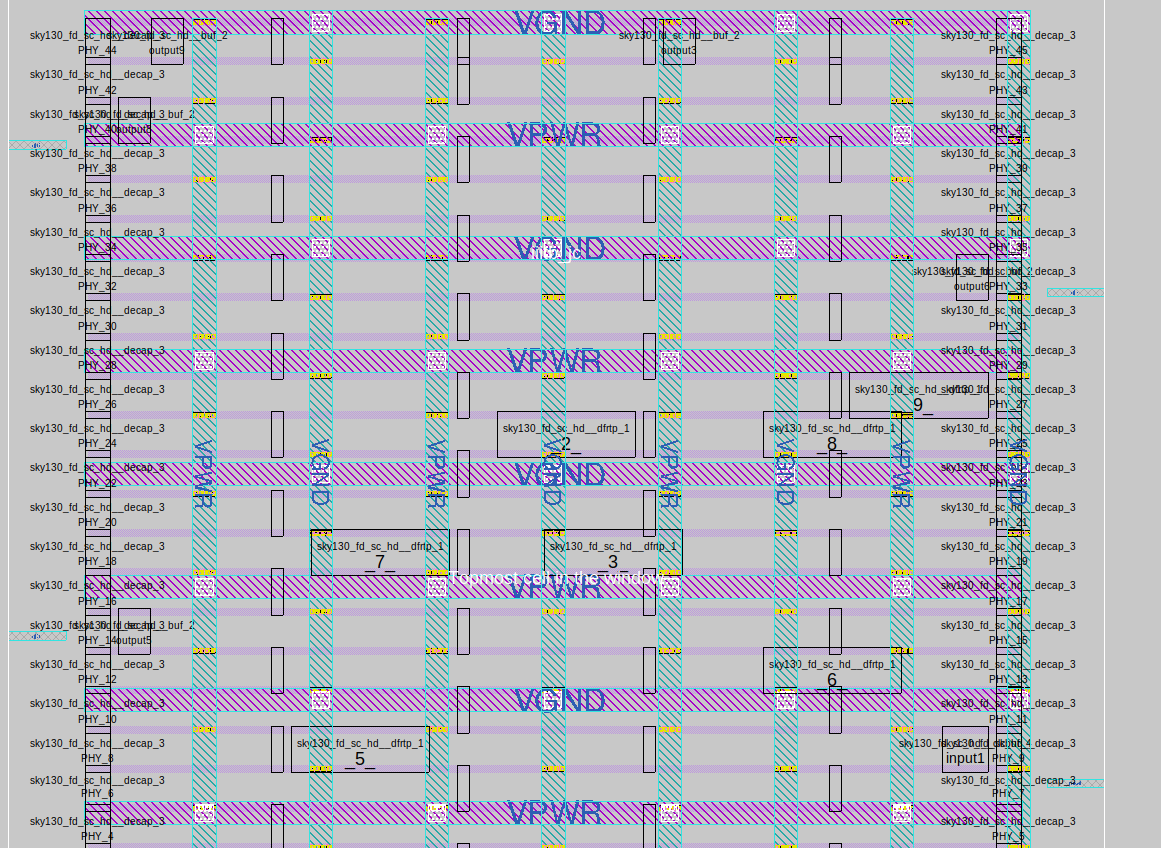

To view the floorplan, Magic is invoked after moving to the results/floorplan directory:
magic -T /home/aman/ASIC/OpenLane/pdks/sky130A/libs.tech/magic/sky130A.tech lef read ../../tmp/merged.max.lef read iiitb_jc.def
- One can zoom into Magic layout by selecting an area with left and right mouse click followed by pressing "z" key.
- Various components can be identified by using the what command in tkcon window after making a selection on the component.
- Zooming in also provides a view of decaps present in johnson's counter chip.
- The standard cell can be found at the bottom left corner.
Placement can be done in four phases:
I. Pre-placement optimization: In this process optimization happens before netlist is placed. In this process high-fan out nets are collapsed downsizing the cells.
II. In placement optimization: In this process logic is re-optimized according to the VR. Cell bypassing, cell moving, gate duplication, buffer insertion, etc. can be performed in this step.
III. Post Placement optimization: Netlist is optimized with ideal clocks before CTS. It can fix setup, hold violations. Optimization is done based on global routing.
IV. Post placement optimization after CTS optimization: Optimization is performed after the CTS optimization is done using propagated clock. It tries to preserve the clock skew.

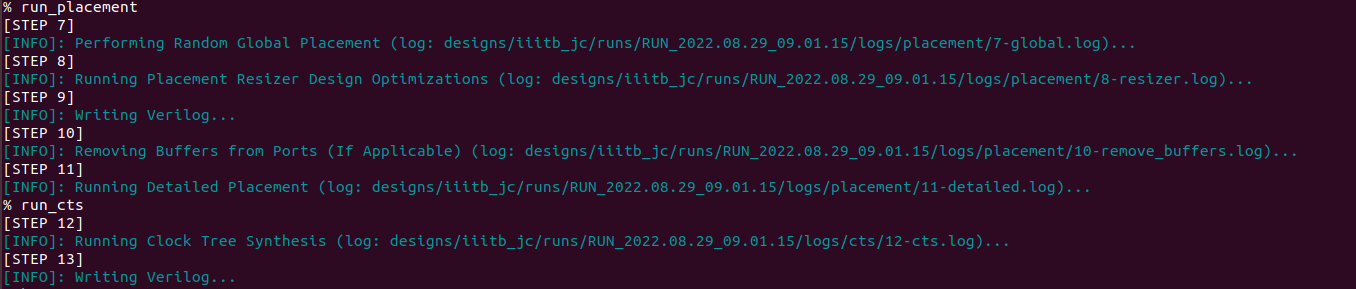

Command to run placement process:
run_placement
The objective of placement is the convergence of overflow value. If overflow value progressively reduces during the placement run it implies that the design will converge and placement will be successful. Post placement, the design can be viewed on magic within results/placement directory:
magic -T /home/aman/ASIC/OpenLane/pdks/sky130A/libs.tech/magic/sky130A.tech lef read ../../tmp/merged.max.lef read iiitb_jc.def
Placement results:

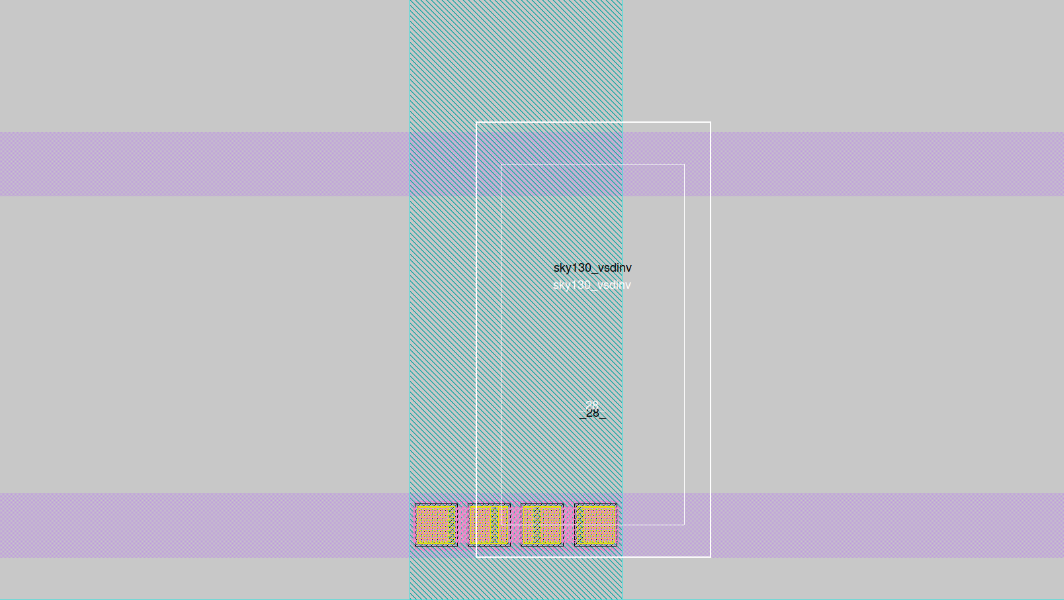

Located the explicitly added vsdinv inverter:
The purpose of building a clock tree is enable the clock input to reach every element and to ensure a zero clock skew. H-tree is a common methodology followed in CTS. Before attempting a CTS run in TritonCTS tool, if the slack was attempted to be reduced in previous run, the netlist may have gotten modified by cell replacement techniques. Therefore, the verilog file needs to be modified using the write_verilog command. Then, the synthesis, floorplan and placement is run again. To run CTS use the below command:
run_cts
The timing results after the CTS is as shwon:
The overall routing job is executed in three steps which are
-
Global Routing – In this stage, the whole design is first partitioned in small routing region into tiles/rectangles. Also, region to region paths are decided in a way to optimize the wire lengths and timing. This stage is actually the planning stage and no actual routing is done.
-
Track Assignment – In this stage, the routing tracks assigned by the global stage are replaced by the metal layers. Tracks are assigned in horizontal and vertical direction. If overlapping is occurred then rerouting is done.
-
Detailed Routing – Even if the metal layers are laid, the path may exists which can violate the setup and hold criteria In this stage, the critical paths are searched and fixed in many iterations until fixed.
Write the command to run routing:
run_routing
The results after the routing are:
The area of the desgin can be found using the "box" command in the magic window:
The power consumption in all aspect of the design is given as:
The performance of the desgin can be estimated from the below image:
The minimum slack is found between the flip-flops 3 and 4 ie 64.04. Therefore, frequency in GHz = 1/ (Clock period - min slack) = 1.041 GHz
