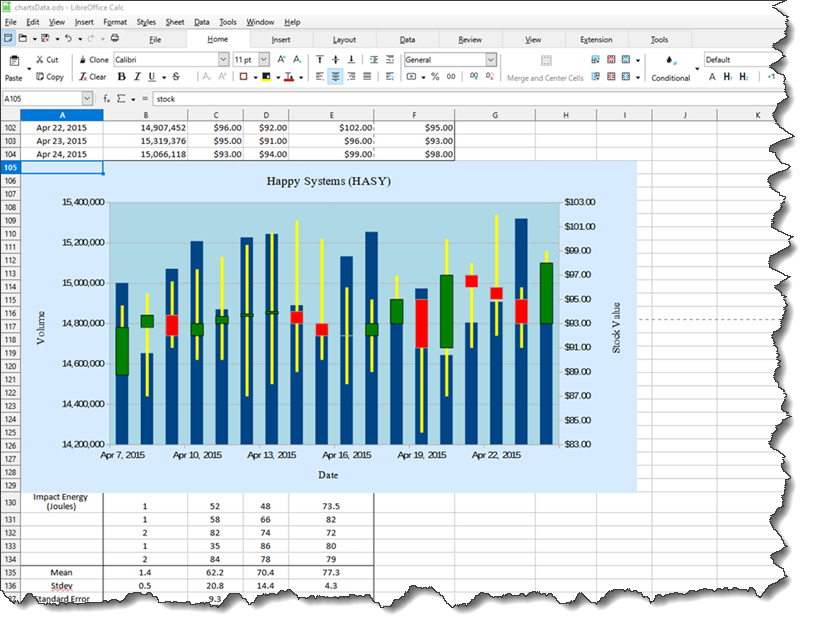

Demonstrates loading a spread sheet into Calc and dynamically inserting charts. There are a total of 17 different charts that can be dynamically created by this demo.
A message box is display once the document has been created asking if you want to close the document.
There is currently a bug in LibreOffice 7.4 that does not allow the Chart2 class to load.
The Chart2 has been tested with LibreOffice 7.3
The type of chart created is determined by the -k option.
Possible -k options are:
- area
- bar
- bubble_labeled
- col
- col_line
- col_multi
- donut
- happy_stock
- line
- lines
- net
- pie
- pie_3d
- scatter
- scatter_line_error
- scatter_line_log
- stock_prices
From current example folder.
python -m start -k happy_stockpython ./ex/auto/chart2/Chart_2_Views/start.py -k happy_stockpython .\ex\auto\chart2\Chart_2_Views\start.py -k happy_stock
