ANAVI Macro Pad 2 is an open source, custom programmable, tiny 2% mechanical keyboard/keypad. Each of the two keys allows you to reprogram and use it as macro keypad or even dedicated shortcut keys.
ANAVI Macro Pad 2 can be customized for multiple use cases across various industries. It is the perfect fit for copy and paste as well as video conferencing applications. You can easily turn the camera or microphone on or off. Various keymaps are available, including for Zoom, Jitsi, Skype, Microsoft Teams, Google Meet, and Git.
ANAVI Macro Pad 2 boosts your daily productivity by providing an amazing level of control with gorgeous light effects at your fingertips!
ANAVI Macro Pad 2 is an entirely open source project that combines open source hardware with free and open source software.
Only free and open source software tools like KiCad, OpenSCAD, and Inkscape were used to design ANAVI Macro Pad 2. Quantum Mechanical Keyboard (QMK) with V-USB is the default open source firmware. Source code and schematics are available on GitHub.
ANAVI Macro Pad 2 runs thanks to Microchip ATtiny85. This is a low-cost reliable 8-bit AVR RISC-based microcontroller. Although ATtiny85 is not as robust as ATmega32U4 or ATmega328P, the affordable price, reliability and small package makes ATtiny85 popular among both enthusiasts and professionals. ANAVI Macro Pad 2 uses the open source project V-USB that provides a software-only implementation of a low-speed USB device.
ANAVI Macro Pad 2 is made in Plovdiv, Bulgaria, EU and packaged in a eco-friendly recyclable cardboard box.
ANAVI Macro Pad 2 features:
- Keys: 2 Gateron red mechanical switches with 3 mm LED backlit and translucent keycaps
- CPU: Microchip ATtiny85
- Connectivity: microUSB
- Firmware: Quantum Mechanical Keyboard (QMK) open source firmware
- Compatibility: Windows, MacOS, and GNU/Linux support
- Dimensions: 40x38 mm (1.60x1.50 inches)
Further technical specifications are available at ANAVI Macro Pad 2 datasheet.
ANAVI Macro Pad 2 can be customized to fit multiple use cases across various industries: video conferencing software, video or audio editing, entertainment broadcasting, product and graphic design, gaming, engineering, programming, etc. It boosts your daily productivity by providing amazing level of control with gorgeous light effects on your fingertips!
Revision 1.0 of ANAVI Macro Pad 2 was used while writing this document. It is possible that it is outdated so it is always recommended to check the latest sources from the GitHub page of the board.
ANAVI Macro Pad 2 is shipped in a protective bag. The board must NOT be exposed to high electrostatic potentials. A grounding strap or similar protective device should be worn when handling the board. Avoid touching the component pins or any other metallic element.
In order to setup ANAVI Macro Pad 2 the following items are required:
- Computer
- USB to microUSB cable
Getting started with and assembled ANAVI Macro Pad 2 is easy. Just connect it to your Linux, Windows, or macOS computer, and use a browser to configure and load your keyswitch macro or shortcut settings.
ANAVI Macro Pad 2 relies on the Quantum Mechanical Keyboard (QMK) firmware, To configure and modify the keyboard layouts you can use QMK Configurator, an online graphical user interface that generates QMK firmware hex files directly in a web browser or use the source code. Connect ANAVI Macro Pad 2 to a computer with USB to microUSB cable to enter flash mode and upload the new firmware.
Furthermore, ANAVI Macro Pad 2 is powered by a Microchip ATtiny85 microcontroller, so it is possible to use as an Adafruit Trinket-compatible development board and upload Arduino sketches through Arduino IDE or PlatformIO.
NOTE: The maker kit is for advanced users and requires soldering skills. If you have a developer kit chip this chapter.
The maker kit provides the printed circuit board and an addressable LED strip. There are also some nice stickers. Other accessories have to be purchased separately. You can use any mechanical switches compatible with Cherry MX plate footprint and 3mm LEDs.
NOTE: With the maker kit you can also perform a hot-swap upgrade of ANAVI Macro 8. It requires a very specific procedure explained in this video. If you have in mind a hot-swap upgrade do not solder anything and have a look at the video.
For soldering and a standard assembly of the maker kit several tools are required: a soldering iron, a screwdriver, scissors, tweezers and a keycap puller might be also useful. It is also a good idea to stay safe and get a smoke absorber while soldering, for example ANAVI Fume Extractor.
Please have a look at the video and follow the steps below to assemble ANAVI Macro Pad 2 Maker Kit.
- Solder mechanical switches to the printed circuit board
Any mechanical switches compatible with Cherry MX plate or PCB footprint are suitable for ANAVI Macro Pad 2. The developer kit comes with Gateron red mechanical switches. The maker kits allows you to choose another brand, type and color.
Choosing the most appropriate switch for your needs is a matter of personal preference. There are many different brands and colors. For example, the blue mechanical switches are more noisy which could be sometimes fun but also annoying during daily work. The red switches are fast and not very noisy therefore they are often proffered by gamers.
There are two pins on each mechanical switch that must be soldered to the printed circuit board. That makes 4 pins in total for the 2 keys on ANAVI Macro Pad 2. The position of the each of the pins is very specific and you can easily recognize it. One of the pins for the signal coming from the Microchip ATtiny85 microcontroller, the other pin is for ground.
- Solder 3mm LED
This step is actually optional depending on the the type of the mechanical switch. Some mechanical switches may not have a hole in the plastic enclosure for a 3mm LED. For example, the Gateron red switches have a dedicated place specially for 3mm LEDs.
Each 3mm LED for through-hole soldering has 2 legs. The longer leg is the positive terminal, also known as anode. The shorter leg is negative and also known as cathode.
The shorter leg that indicates the negative terminal must go into the square hole of the PCB. ANAVI Macro Pad 2 has 2 mechanical switches therefore 2 LEDs are required. If you want you can use different color of the LEDs. You can even mix colors.
Once you are ready with these 2 steps your ANAVI Macro Pad 2 should looks just like a developer kit having all accessories soldered. Therefore the next steps are the same as for both the developer and the maker kit.

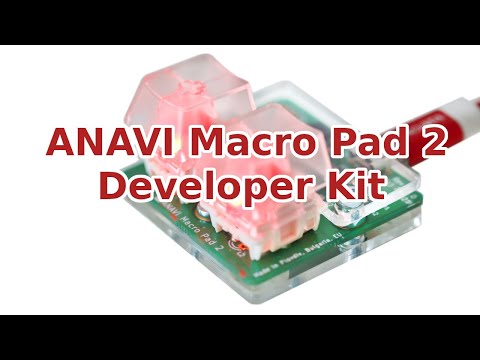

Please have a look at the video and follow the steps below to assemble ANAVI Macro Pad 2 Developer Kit. Although you can do it with your bare hands, simple tools like a screwdriver, tweezers and a keycap puller might be useful.
- Peel Off Protective Films from the Acrylic Enclosure
Peel off the protective films from both sides of the two laser cut transparent acrylic parts. The removal of the protective films is quite annoying but once you get rid of them, the acrylic enclosure will be crystal clear and fully transparent.
- Assemble the Top Acrylic Enclosure
Start with the top acrylic enclosure. Please note the it is not symmetric and make sure the position is correct according to the place of the C1 10uF capacitor.
The kit includes M2.5 screws, nuts and washers. Although you can assemble them with your bare hands a screw driver will be very handy.
Use the two longer screws for the two mounting holes near the microUSB connector.
- Assemble the Bottom Acrylic Enclosure
Use 6 nuts and 3 washers to attach the bottom acrylic enclosure to the printed circuit board. Use the shorter screw for the mounting hole between the two mechanical switches as it should hold only the bottom acrylic enclosure. Place 3 washers between the bottom acrylic enclosure and the last 3 nuts.
- Add Protective Pads
Stick the silicon protective pads to the bottom. There are 8 pads. Add two of them on top of each other to the 4 corners of the bottom acrylic plate.
- Stickers
This step is optional. Each kit includes a set of stickers. Feel free to add them to the translucent keycaps. You can do it with your bare hands or eventually with the help of tweezers.
You can place a sticker on the top or on the side of the keycap. If you like retro electronics you may find some similarities in this approach to the famous keyboard of the best selling personal computer of the 20th century Commodore 64.
ANAVI Macro Pad 2 is powered by the popular open source firmware QMK which allows you to create various layouts. You can make a keymap with 2 or more layouts. A sticker on the side of the keycap might be useful as a visual aid to indicate the additional function of the key.
- Add Keycaps
Place the translucent keycaps on the 2 mechanical switches of ANAVI Macro Pad 2. You can easily do this with your bare hands. It takes just a few seconds.
Please note that a keycap puller might be useful if you make a mistake and want to pull off a keycap and place it on another location.
- Turn On ANAVI Macro Pad 2
Gently plug USB to microUSB cable and connect ANAVI Macro Pad 2 to a personal computer. Please be careful with the microUSB connector, because a harsh bending of the USB cable may damage it.
ANAVI Macro Pad 2 relies on QMK firmware, Micronucleus bootloader and V-USB, an open source software-only implementation of a low-speed USB device for Atmel’s AVR® microcontrollers. There is 5 second boot delay during which the Microchip ATtiny85 microcontroller on ANAVI Macro Pad 2 can be reprogrammed.
Thanks to the QMK firmware, ANAVI Macro Pad 2 will be detected as human interface device and should work out of the box. Furthermore with QMK you have the freedom to fully customize each key.
Please note that a USB to microUSB cable is not included in any of the kits. Reuse a cable from an old electronic device or purchase a cable according to your taste. Make sure that the cable supports both power and data transfer over USB.
Out of the box ANAVI Macro Pad 2 comes with the popular open source firmware QMK. Several different keymaps are supported. For details how to build and flash QMK firmware on ANAVI Macro Pad 2 please have a look at the README.
Please note that on Fri Aug 6 2021 the support for all keyboards using Microchip ATtiny85, including ANAVI Macro Pad 2, was dropped from QMK due to the increased size of the firmware following the implementation of a features to process combos earlier and overlapping combos. Therefore support for ANAVI Macro Pad 2 is available in older versions, for example QMK firmware version 0.13.19.
The steps in this chapter may vary across different operating systems and versions of Linux distributions. If you are using Ubuntu 24.04, please follow the exact steps provided for this version.
- Install Micronucleus, an open source ATTiny usb bootloader with a strong emphasis on bootloader compactness. Follow the usage guidelines from the README as there are specific steps if you are using Windows 10.
On GNU/Linux distributions, for example Debian or Ubuntu, Micronucleus can be installed with the following commands:
sudo apt-get install libusb-dev git
git clone https://github.com/micronucleus/micronucleus.git
cd micronucleus/commandline/
sudo make installOn GNU/Linux distributions, you will need proper privileges to access the MCU. You can either use sudo when flashing firmware, or place these files in /etc/udev/rules.d/. Once added run the following:
sudo udevadm control --reload-rules
sudo udevadm trigger-
Download QMK firmware version 0.13.19, for example:
git clone -b 0.13.19 https://github.com/qmk/qmk_firmware.git qmk-01319
cd qmk-01319
git submodule update --init- Build QMK firmware for ANAVI Macro Pad 2 using the
defaultkeymap:
make anavi/macropad2:default
- Run one of the following commands to flash the firmware on ANAVI Macro Pad 2:
make anavi/macropad2:default:flashor alternatively with micronucleus:
micronucleus --run anavi_macropad2_default.hexNOTE: If you want to build another QMK keymap for ANAVI Macro Pad 2 replace default with its name. All existing keymaps are in directory keyboards/anavi/macropad2/keymaps/.
- Plug ANAVI Macro Pad 2 to the USB port and the flashing procedure should start
Ubuntu 24.04 LTS (Long-Term Support), released in April 2024, is a version of the popular Linux distribution by Canonical Ltd. As an LTS release, it offers five years of support, including security patches and updates until April 2029, ensuring stability and reliability for both desktop and server environments.
NOTE: Ubuntu has adopted the Python standards defined in PEP-668. These changes prevent pip packages from being installed globally by default. For simplicity, this tutorial provides a straightforward fix for the "externally-managed" error when installing QMK. Generally, using virtual environments is the recommended approach.
Follow the steps below to set up QMK for ANAVI Macro Pad 2 on Ubuntu 24.04 LTS:
- Install dependencies:
sudo apt-get install -y libusb-dev git
- Download, build and install micronucleus:
git clone https://github.com/micronucleus/micronucleus.git
cd micronucleus/commandline/
sudo make install
sudo udevadm control --reload-rules
sudo udevadm trigger
- Setup QMK
sudo apt install -y python3-pip
sudo rm /usr/lib/python3.12/EXTERNALLY-MANAGED
python3 -m pip install --user qmk
NOTE: Instead of removing EXTERNALLY-MANAGED consider the other options.
- Install QMK 0.13.19 (version that works with ANAVI Macro Pad 2):
cd ~
~/.local/bin/qmk setup -b 0.13.19
- Build QMK with default keymap for ANAVI Macro Pad 2:
cd ~/qmk_firmware/
make anavi/macropad2:default
- Flash firmware on ANAVI Macro Pad 2:
micronucleus --run anavi_macropad2_default.hex
ANAVI Macro Pad 2 utilizes the following pins on Microchip ATtiny85:
| Component | Pins |
|---|---|
| USB | PB3, PB4 |
| Mechanical Switches | PB0, PB2 |
| 3mm LEDs | PB1 |
| Date | Changes | Author |
|---|---|---|
| 06 May 2021 | Initial manual release | Leon Anavi |
| 24 May 2021 | Add a link to the datasheet | Leon Anavi |
| 22 Sep 2021 | Update notes about QMK firmware | Leon Anavi |
| 25 Oct 2021 | Update QMK notes | Leon Anavi |
| 05 Jul 2024 | Ubuntu 24.04 LTS exact steps | Leon Anavi |
| Revision | Notable changes |
|---|---|
| 1.0 | Stable version |
For more information please visit anavi.technology and our GitHub repositories. If you have any questions or enquiries please contact us through Facebook, Twitter or email.
