Blox-Net

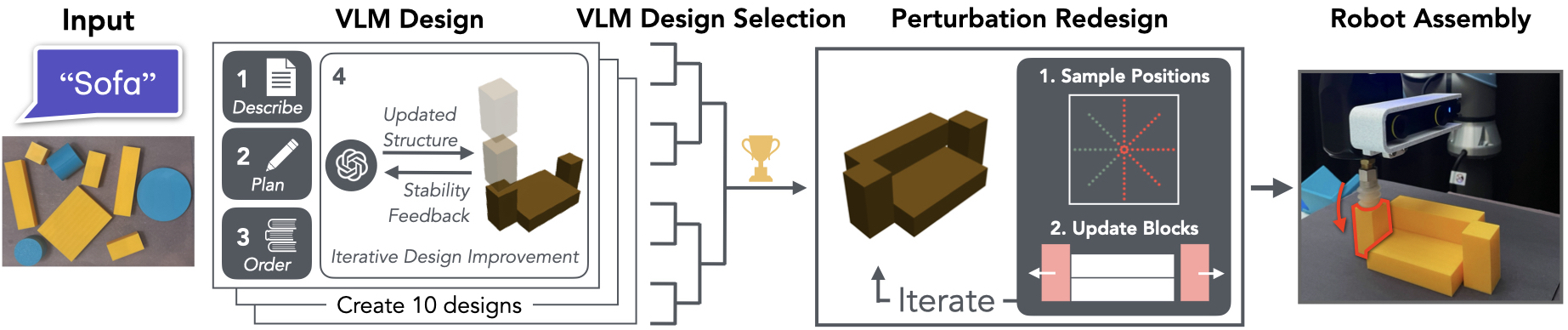

Generative Design-for-Robot-Assembly using VLM Supervision, Physics Simulation, and A Robot with Reset

[Project Page] [Paper]

Setup

Installation

conda create -n bloxnet -y python=3.10
conda activate bloxnet
git clone https://github.com/Apgoldberg1/blox-net-coderelease.git
cd blox-net-coderelease
pip install -e .

• Optionally, pip install pyvista to render generated structures using scripts/pretty_visualize.py

OpenAI API Key

Blox-Net uses the ChatGPT OpenAI API, create a file named .env in the root directory of the repository and include OPENAI_API_KEY=[your api key]

Running Blox-Net

Repository Structure

• scripts: runnable files for generating and rendering structures

• bloxnet: Core code for design generation. Queries ChatGPT and simulates block placements.

• perturbation_analysis: the implementation of the perturbation redesign pipeline, as discussed in the paper.

Generating Structures

To generate structures using Blox-Net's iterative prompting, run python scripts/full_pipeline.py. The structures in the structure_names list will be generated.

• WARNING: The max_workers parameter in full_pipeline.py and run_pipeline_single_obj_parallel.py might need to be adjusted on low memory systems

For example, to generate 15 designs of the Bridge structure with 10 workers, run

python3 scripts/run_pipeline_single_obj_parallel.py 'Bridge' --num_structures 15 --num_workers 10

10 versions of each structure are generated; structures and all prompts are saved in gpt_caching/{structure_name}, and the best assembly is selected by ChatGPT and saved in the best_assembly subdirectory. Inside each structure directory, PyBullet renders are saved and the subdirectories prompts, responses, and context include the VLM conversation history.

To perform perturbation redesign refer to scripts/perturb_objects.py. By default, perturbation redesign will be executed on the generation in the best_assembly subdirectory of each object.

To render structures as shown in the paper using PyVista, refer to scripts/pretty_visualize.py. By default, Blox-Net will take images of structures through PyBullet, but rendering with PyVista looks nicer.

Additional Generations

Bibtex

If you find Blox-Net useful, please cite our paper!

@inproceedings{goldberg2025bloxnet,
  title={Blox-Net: Generative Design-for-Robot-Assembly Using VLM Supervision, Physics Simulation, and a Robot with Reset},
  author={Andrew Goldberg and Kavish Kondap and Tianshuang Qiu and Zehan Ma and Letian Fu and Justin Kerr and Huang Huang and Kaiyuan Chen and Kuan Fang and Ken Goldberg},
  booktitle={Proceedings of the IEEE International Conference on Robotics and Automation (ICRA)},
  year={2025},
  url={https://arxiv.org/abs/2409.17126},
}
