PAGE1/2 select occurring 1 cycle early #656

Closed
tomcw opened this issue Jun 23, 2019 · 11 comments
Closed

PAGE1/2 select occurring 1 cycle early #656

tomcw opened this issue Jun 23, 2019 · 11 comments
Labels
bug
Milestone

Comments

@tomcw
Copy link
Contributor

@tomcw tomcw commented Jun 23, 2019

Now that #654 delays the GR/TEXT ($C050/C051) mode switch by 1 cycle, @Archange427 noticed that PAGE1/2 ($C054/55) is wrong:

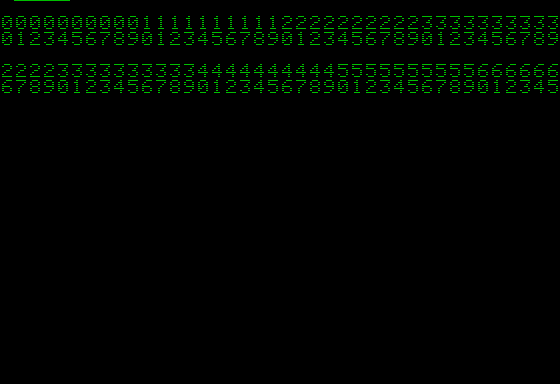

AppleWin 1.28.7.0:
test-line(AppleWin)

Real Apple IIe (PAL):
DSC00042

@tomcw tomcw added the bug label Jun 23, 2019
@tomcw

This comment has been minimized.

Copy link
Contributor Author

@tomcw tomcw commented Jun 23, 2019

Based on Sather's precise VBL sync (UTA2e, 3-26), I wrote 3 similar tests:

Each test does a "Sather precise VBL sync"; waits 17 (or 18 or 19) cycles, then:

  • line-0: LDA C055, LDA C054 (= 8 cycles)
  • delay 7*65-8 cycles = 447 cycles
  • line-7: LDA C050, LDA C051 (= 8 cycles)
  • delay 20280-(8+447+8) = 19817 cycles
    TOTAL = 20280 cycles

Test-1:

AppleWin-branch-GH648-50Hz

DSC00052

Test-2:

AppleWin-branch-GH648-50Hz

DSC00053

Test-3:

AppleWin-branch-GH648-50Hz

DSC00058

@tomcw

This comment has been minimized.

Copy link
Contributor Author

@tomcw tomcw commented Jun 23, 2019

So it appears that there's no delay for the PAGE1/PAGE2 switch!

Side-note: Is this the same behaviour on an Apple II+? And what about DGR/TEXT80? (eg. Ansi Story) And LORES/HIRES?


btw. that glitch (on line-7) switching from GR back to TEXT is explained in Don Lancaster's "Enhancing your Apple II & IIe, Volume 2", on page 221 it says:

"Glitches are far simpler to manage on the lIe. Just exit from text on a space and exit from LORES black, and all lIe glitches should be invisible."

And also see Volume 1, page 244:

"Usually, there is no problem in going from TEXT to HIRES, from HIRES to TEXT, from LORES to HIRES, or from HIRES to LORES. But you can get glitches on a TEXT to LORES or a LORES to TEXT transition. Here's the rule to stomp these glitches ..."

@tomcw

This comment has been minimized.

Copy link
Contributor Author

@tomcw tomcw commented Jun 23, 2019

Actually credit goes to @Archange427 for suggesting that PAGE1/PAGE2 doesn't have the 1 cycle delay, and for all his test dsk images & code he sent me to try and get to the bottom of this weird behaviour. Thanks!

@Archange427

This comment has been minimized.

Copy link

@Archange427 Archange427 commented Jun 23, 2019

Thank you @tomcw but you had to sort through all the emails I sent you filled with crazy ideas and unclear theories ;)
Very good job, as usual!

@sicklittlemonkey

This comment has been minimized.

Copy link
Contributor

@sicklittlemonkey sicklittlemonkey commented Jun 24, 2019

@tomcw tomcw changed the title PAGE1/2 select occurring 1 cycle late PAGE1/2 select occurring 1 cycle early Jun 24, 2019
@tomcw

This comment has been minimized.

Copy link
Contributor Author

@tomcw tomcw commented Jun 24, 2019

Hi Nick - my suspicion about this extra cycle for switching between TEXT and LORES is something funky going on with 7M and 14M clocks (maybe?).

  • LORES->TEXT: If you look at the images above for the LORES line, there are 3 cycles of 14M, and then the last one looks like 7M (ie. each pixel is 2x 14M pixels).
  • TEXT->LORES: If you look at the images here, the "*" is ~1.5 6502 cycles wide, and is TEXT80.

So maybe 1 extra cycle for 7M/14M change?

Anyway, I don't think emulation of this "glitch" is important, but clearly the timing of it is.

@tomcw

This comment has been minimized.

Copy link
Contributor Author

@tomcw tomcw commented Jun 28, 2019

Fixed in AppleWin 1.28.8.0 (here).

@tomcw tomcw closed this Jun 28, 2019
@tomcw tomcw added this to the 1.28.8 milestone Jun 28, 2019
@tomcw

This comment has been minimized.

Copy link
Contributor Author

@tomcw tomcw commented Sep 30, 2019

btw, I spoke to John Brooks last week, and he knew about this, and it was already implemented in his VidHD HDMI video card!

@sicklittlemonkey

This comment has been minimized.

Copy link
Contributor

@sicklittlemonkey sicklittlemonkey commented Oct 2, 2019

@tomcw

This comment has been minimized.

Copy link
Contributor Author

@tomcw tomcw commented Nov 16, 2019

Update:

There is no delay except TXTCLR, TXTSET, MIXEDCLR, MIXEDSET

@sosaria7 explains this here sosaria7/appleinpc#9 (comment).

tomcw added a commit that referenced this issue Nov 16, 2019
. 6502 interrupt delays 1 opcode when interrupt occurs on last cycle of opcode (#724).
. Only 1-cycle delay for VF_TEXT & VF_MIXED mode changes (#656).
NB. Mad Effect 1 still has a bit of flicker on Space Invader (left edge)
@tomcw

This comment has been minimized.

Copy link
Contributor Author

@tomcw tomcw commented Nov 18, 2019

This commit also fixes Deater's "Cycle-count Megademo" (here), where the vertical GR grey line shouldn't be visible between GR & HGR split video.
