diff --git a/docs/internals/StoredProcedureDesignDoc.md b/docs/internals/StoredProcedureDesignDoc.md
index 6fcb00e8a8..e5ac80f453 100644
--- a/docs/internals/StoredProcedureDesignDoc.md
+++ b/docs/internals/StoredProcedureDesignDoc.md
@@ -3,7 +3,7 @@
## Design/Spec Summary
### Entity Source Object Config
Currently, the `source` attribute is always a string. With the addition of stored procedure support and the next version of the JSON schema: [here](https://github.com/Azure/project-hawaii/blob/db619b4175719c83d540bc30ef5acc5faa6faa6d/playground/hawaii.draft-02.schema.json), the `source` attribute is now optionally an object with attributes like so:
-```
+```json
"type": {
"type": "string",
"enum": [ "table", "view", "stored-procedure" ],
@@ -33,18 +33,26 @@ Thus a stored procedure entity might look like:
}
```
parameters can either be fixed as above or passed at runtime through
-- query parameters for GET request
-- request body for POST, PUT, PATCH, DELETE
+- [REST] query parameters for GET request
+- [REST] request body for POST, PUT, PATCH, DELETE
+- [GRAPHQL] query field arguments in the request body of a GraphQL request
+```graphql
+{
+ GetBooks(param1:value, param2:value) {
+ }
+}
+```
> **Spec Interpretation**:
> - since not explicitly stated in the specification, request body for GET will be ignored altogether.
> - Parameter resolution will go as follows, from highest to lowest priority: request (query string or body) > config defaults > sql defaults
> - NOTE: sql defaults not so easy to infer for parameters, so we explicitly require all parameters to be provided either in the request or config in this first version.
+> - if the request doesn't contain the parameter values, default values from the config will be picked up.
### Stored Procedure Permissions
-Stored procedures have identical role/action permissions to any other entity. I.e. same familiar format:
-```
+Stored procedures have identical role/action permissions to any other entity. i.e. same familiar format:
+```json
"permissions": [
{
"role": "anonymous",
@@ -67,7 +75,7 @@ Justification **against** supporting all CRUD operations:
- Other solutions usually limit to `POST`: https://learn.microsoft.com/rest/api/cosmos-db/execute-a-stored-procedure
- [PostgREST](https://postgrest.org/en/stable/api.html#stored-procedures) support `POST` and `GET` if marked `IMMUTABLE` or `STABLE`
- Proposed permission:
-```
+```json
"permissions": [
{
"role": "anonymous",
@@ -81,7 +89,11 @@ Justification **against** supporting all CRUD operations:
```
Justification **for** allowing permission configuration for all CRUD operations:
- Davide: the "simplification" would complicate authorization with no real benefit. True in that the authorization logic would need to change conditioned on whether the entity source was a stored procedure.
-- Aniruddh: we should leave the responsibility for the developer to properly configure hawaii; it's not our fault if they configure against the API guidelines
+- Aniruddh: we should leave the responsibility for the developer to properly configure hawaii; it's not our fault if they configure against the API guidelines
+
+Users can provide only one CRUD operation for stored-procedure.
+CREATE/UPDATE/DELETE(CUD) action will create mutation operation, while READ will create a Query operation for GraphQL.
+Providing more than one (CRUD) operation would throw an error and the engine will fail to start during initialization.
**Conclusion**: we treat stored procedures as any other entity when it comes to CRUD support and role/action AuthZ.
## Implementation Overview
@@ -89,7 +101,7 @@ Justification **for** allowing permission configuration for all CRUD operations:
Implementation was segmented into 5 main sections:
### 1. Support in Config
-> ### `Entity.cs`
+### `Entity.cs`
> - Exposing the `DatabaseObjectSource` object rather than `source` being a simple string.
> - Stored procedures must be specified as "stored-procedure" source type
> - See [sample source config](#sample-source)
@@ -97,40 +109,41 @@ Implementation was segmented into 5 main sections:
### 2. Metadata Validation
-> ### `DatabaseObject.cs`
+### `DatabaseObject.cs`
> - Tables and views have metadata that does not apply to stored procedures, most notably Columns, Primary Keys, and Relationships.
-> - As such, we create a `StoredProcedureDefinition` class to hold procedure-relevant info - i.e. procedure parameter metadata.
+> - As such, we create a `StoredProcedureDefinition` class with base class as `SourceDefinition` to hold procedure-relevant info - i.e. procedure parameter metadata.
> - We also add an `ObjectType` attribute on a `DatabaseObject` for more robust checking of whether it represents a table, view, or stored procedure vs. just null-checking the `TableDefinition` and `StoredProcedureDefinition` attributes.
-> - The `StoredProcedureDefinition` class houses a Dictionary, `Parameters`, of strings to `ParameterDefinition`s, where the strings are procedure parameter names as defined in sql.
-> - `ParameterDefinition` class houses all useful parameter metadata, such as its data type in sql, corresponding CLR/.NET data type, whether it has a default value specified in config, and the default value config defines. It also holds parameter type (IN/OUT), but this isn't currently being used.
+> - The `StoredProcedureDefinition` class houses a Dictionary, `Parameters` which will contain the parameterName as Key and value will be the default param value and `SourceDefinition.Columns` will store the result set as Columns containing resultSet fieldName and ResultSet fieldType of the stored procedure result.
+> - `ParameterDefinition` class inside `DatabaseObject` class houses all useful parameter metadata, such as its data type in sql, corresponding CLR/.NET data type, whether it has a default value specified in config, and the default value config defines. It also holds parameter type (IN/OUT), but this isn't currently being used.
-> ### `SqlMetadataProvider.cs`
+### `SqlMetadataProvider.cs`
> - Problem: when we draw metadata from the database schema, we implicitly check if each entity specified in config exists in the database. Path: in `Startup.cs`, the `PerformOnConfigChangeAsync()` method invokes `InitializeAsync()` of the metadata provider bound at runtime, which then invokes `PopulateTableDefinitionForEntities()`. Several steps down the stack `FillSchemaForTableAsync()` is called, which performs a `SELECT * FROM {table_name}` for the given entity and adds the resulting `DataTable` object to the `EntitiesDataSet` class variable. Unfortunately, stored procedure metadata cannot be queried using the same syntax. As such, running the select statement on a stored procedure source name will cause a Sql exception to surface and result in runtime initialization failure.
-> - Instead, we introduce the `PopulateStoredProcedureDefinitionForEntities()` method, which iterates over only entites labeled as stored procedures to fill their metadata, and we simply skip over entities labeled as Stored Procedures in the `PopulateTableDefinitionForEntities()` method.
+> - Instead, we introduce the `PopulateStoredProcedureDefinitionForEntities()` method, which iterates over only entities labeled as stored procedures to fill their metadata, and we simply skip over entities labeled as Stored Procedures in the `PopulateTableDefinitionForEntities()` method.
> - We use the ADO.NET `GetSchemaAsync` method to retrieve procedure metadata and parameter metadata from the Procedures and Procedure Parameters collections respectively: https://learn.microsoft.com/dotnet/framework/data/adonet/sql-server-schema-collections. These collections are listed as SQL Server-specific, so this implementation might not be extensible to MySQL and Postgres.
> - In this case, we should just directly access the ANSI-standard information_schema and retrieve metadata using:
> - `SELECT * FROM INFORMATION_SCHEMA.ROUTINES WHERE SPECIFIC_NAME = {procedure_name}`
> - `SELECT * FROM INFORMATION_SCHEMA.PARAMETERS WHERE SPECIFIC_NAME = {procedure_name}`
> - Using metadata, we first verify procedures specified in config are present in the database. Then, we verify all parameters for each procedure specified in config are actually present in the database, otherwise we fail runtime initialization. We also verify that any parameters specified in config match the type retrieved from the parameter metadata.
> - TODO: more logic is needed for determining whether a value specified in config can be parsed into the metadata type. For example, providing a string in config might be parse-able into a datetime value, but right now it will be rejected. We should relax this constraint at runtime initialization and potentially fall back to request-time validation.
+> - Added the method `PopulateResultSetDefinitionsForStoredProcedureAsync()` which retrieves stored procedure metadata using SQL Server's `sys.dm_exec_describe_first_result_set_for_object` and then uses the result set column definitions from that metadata
-> ### `MsSqlMetadataProvider.cs`, `MySqlMetadataProvider.cs`, & `PostgreSqlMetadataProvider.cs`
+### `MsSqlMetadataProvider.cs`, `MySqlMetadataProvider.cs`, & `PostgreSqlMetadataProvider.cs`
> - Added overriden method to map Sql data type returned from metadata into the CLR/.NET type equivalent. Used/necessary for metadata parsing in `FillSchemaForStoredProcedureAsync()` in `SqlMetadataProvider`.
> - Left as TODOs in MySql and Postgres.
-### 3. Request Context + Validation
+### 3. REST Request Context + Validation
-> ### `RestRequestContext.cs`
+### `RestRequestContext.cs`
> - Since multiple derived classes are implementing/duplicating logic for populating their `FieldValuePairsInBody` dictionary with the Json request body, moved that logic into a method in this class, `PopulateFieldValuePairsInBody`.
> - Added `DispatchExecute(IQueryEngine)` and `DispatchExecute(IMutationEngine)` as virtual methods, as an implementation of the visitor pattern/double dispatch strategy. Helps prevent the sometimes-bad practice of downcasting in calling the overloaded `ExecuteAsync` methods in the query and mutation engines (between `FindRequestContext` and `StoredProcedureRequestContext` in the query engine, for example).
-> ### `StoredProcedureRequestContext.cs`
+### `StoredProcedureRequestContext.cs`
> - Since it was agreed not to change the Operation enum, as we are keeping the same general authorization logic, we need a way to conditionally split constructing and building the appropriate query structure in the query and mutation engine. The best way I found to do so was introduce a request context representing a stored procedure request for both Query and Mutation scenarios.
> - Populates the request body on construction.
> - Contains `PopulateResolvedParameters` method to populate its `ResolvedParameters` dictionary, which houses the final, resolved parameters that will be passed in constructing the sql query. Populates this dictionary with the query string or request body depending on the `OperationType` field. Should only be called after `ParsedQueryString` and/or `FieldValuePairsInBody` are appropriately populated.
@@ -138,7 +151,7 @@ Implementation was segmented into 5 main sections:
-> ### `RestService.cs`
+### `RestService.cs`
> - Condition in `ExecuteAsync` based on the database object type whether the entity type requested is a stored procedure.
> - If so, initialize a `StoredProcedureRequestContext`.
> - If we have a read operation, parse the query string into `ParsedQueryString`. Note: for stored procedures, ODataFilters do not apply for this iteration. As such, keys like `$filter` and `$select` will be treated as any other parameters. Request body is ignored, as we pass in `null` to constructor.
@@ -150,9 +163,54 @@ Implementation was segmented into 5 main sections:
> - there were missing parameters in the request and no default was found in config
> - Condition to avoid the `ColumnsPermissionsRequirement` AuthZ check, since specification hasn't defined what this would look like yet
-### 4. Structure + Query Building
+### 4. GraphQL Schema Generation
+
+### `GraphQLSchemaCreator.cs`
+> - Updated `GenerateSqlGraphQLObjects` method to allow it to process stored-procedure metadata retrieved from SQL Server.
+> - Create StoredProcedure GraphQL Object Types for use in the generated GraphQL schema.
+> - The return type of the generated GraphQL Query/Mutation is `List listName` where `listName` is the stored procedure name.
+
+### `SchemaConvertor.cs`
+> - Create the `objectTypeDefinitionNode` to represent the columns of the stored-procedure result. If the stored procedure does not return anything, the return type object (`objectTypeDefinitionNode`) will only have one field added named `results`.
+
+```graphql
+{StoredProcedureName(param1:value1, param2:value2): [StoredProcedureName!]}
+```
+
+### `QueryBuilder.cs` and `MutationBuilder.cs`
+> - If the stored-procedure entity in the runtime config defines a role permission allowing READ access, a GraphQL Query field is created to be included in the generated GraphQL schema.
+> #### Query
+> - `GraphQLStoredProcedureBuilder` contains the method called `GenerateStoredProcedureSchema` which gets called inside QueryBuilder class to create the GraphQL schema for our Stored Procedure.
+> - The method `GenerateStoredProcedureSchema` is similar to `GenerateByPKQuery`, where the only difference is that we will use procedure parameters instead of primary keys as arguments.
+> - Default values for procedure parameters will be sourced from the runtime config.
+> - For Example: here id represents param
+```graphql
+{
+ "Execute Stored-Procedure GetBook and get results from the database"
+ GetBook("parameters for GetBook stored-procedure" id: String = "1"): GetBook
+}
+```
+> #### Mutation
+> - If the stored-procedure entity in the runtime config defines a role permission allowing CREATE/UPDATE/DELETE access, a GraphQL Mutation field is created to be included in the generated GraphQL schema.
+> - MutationBuilder calls the method `GenerateStoredProcedureSchema` to create the GraphQL schema for our Stored Procedure.
+> - The method `GenerateStoredProcedureSchema` will be called by `AddMutationsForStoredProcedure` to add the generated stored procedure mutation field to the GraphQL schema when mutations are permitted by any of the stored procedures role permissions in the runtime config.
+> - Response for Mutation operation in stored-procedure will be an empty array.
+```graphql
+{
+ "Execute Stored-Procedure GetBook and get results from the database"
+ InsertBook("parameters for GetBook stored-procedure" name: String): String
+}
+```
+
+> ### Examples
+> Consider stored-procedure `GetBooks` and `GetBook`. the former has no param, while the later has one param, which not provided will pick the value from config.

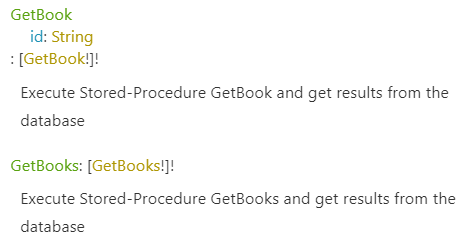

+> Below is the generated documentation from GraphQL
+!
+
+
+### 5. Structure + Query Building
-> ### `SqlExecuteStructure.cs`
+### `SqlExecuteStructure.cs`
> - Contains all needed info to build an `EXECUTE {stored_proc_name} {parameters}` query
> - Contains a dictionary, `ProcedureParameters`, mapping stored procedure parameter names to engine-generated parameterized values. I.e. keys are the user-defined procedure parameters (@id), and values are @param0, @param1...
> - Constructor populates `ProcedureParameters` dictionary and the base class's `Parameters` dictionary mapping parameterized values to the procedure parameter values. Confusing, I know.
@@ -160,17 +218,17 @@ Implementation was segmented into 5 main sections:
-> ### `MsSqlQueryBuilder.cs`
+### `MsSqlQueryBuilder.cs`
> - Added the `Build(SqlExecuteStructure)` that builds the query string for execute requests as `EXECUTE {schema_name}.{stored_proc_name} {parameters}`
> - Added `BuildProcedureParameterList` to build the list of parameters from the `ProcedureParameters` dictionary. The result of this method might look like `@id = @param0, @title = @param1`.
> - Found the naive string concatenation implementation faster than StringBuilder or Linq + string.Join
-> ### `MySqlQueryBuilder.cs` & `PostgresQueryBuilder.cs`
+### `MySqlQueryBuilder.cs` & `PostgresQueryBuilder.cs`
> - Added method stubs as TODOs for `Build(SqlExecuteStructure)`
-### 5. Query Execution + Result Formatting
+### 6. REST Query Execution + Result Formatting
### `SqlQueryEngine.cs`
> - Separated `ExecuteAsync(RestRequestContext)` into `ExecuteAsync(FindRequestContext)` and `ExecuteAsync(StoredProcedureRequestContext)`. Seems to be better practice than doing type checking and conditional downcasting.
@@ -189,6 +247,33 @@ Implementation was segmented into 5 main sections:
> - Insert request returns `201 Created` with **first result set** as json response. If none/empty result set, an empty array is returned. Discussion: prefer to instead return no json at all?
> - Update/upsert behaves same as insert but with `200 OK` response.
+### 7. GRAPHQL Query Execution + Result Formatting
+
+### `ResolverMiddleware.cs`, `SqlQueryEngine.cs`, and `SqlMutationEngine.cs`
+> - Call `ExecuteAsync` with `IMiddlewareContext` and `parameters`.
+> - We would have to convert `IMiddlewareContext` to `StoredProcedureRequestContext`, similar to how the `dispatchQuery` method in `RestService.cs` is doing. It converts `RestRequestContext` to `StoredProcedureRequestContext`.
+> - Then we can simply call `ExecuteAsync(StoredProcedureRequestContext context)` and return the parsed json request as String.
+
+### `SqlQueryEngine.cs` and `SqlMutationEngine.cs`
+> - `ExecuteListAsync` is called where we create an object of `SqlExecuteStructure` and calls `ExecuteAsync(SqlExecuteStructure)`.
+> - We format the result as list of JsonElement. If the user has no read permission, it will return an empty list.
+
+> ### Example

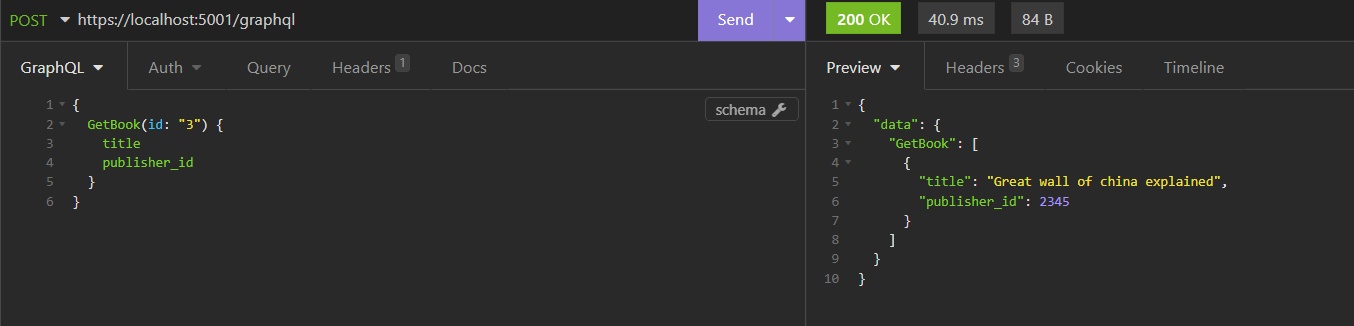

+> 1. Query With param as id
+>

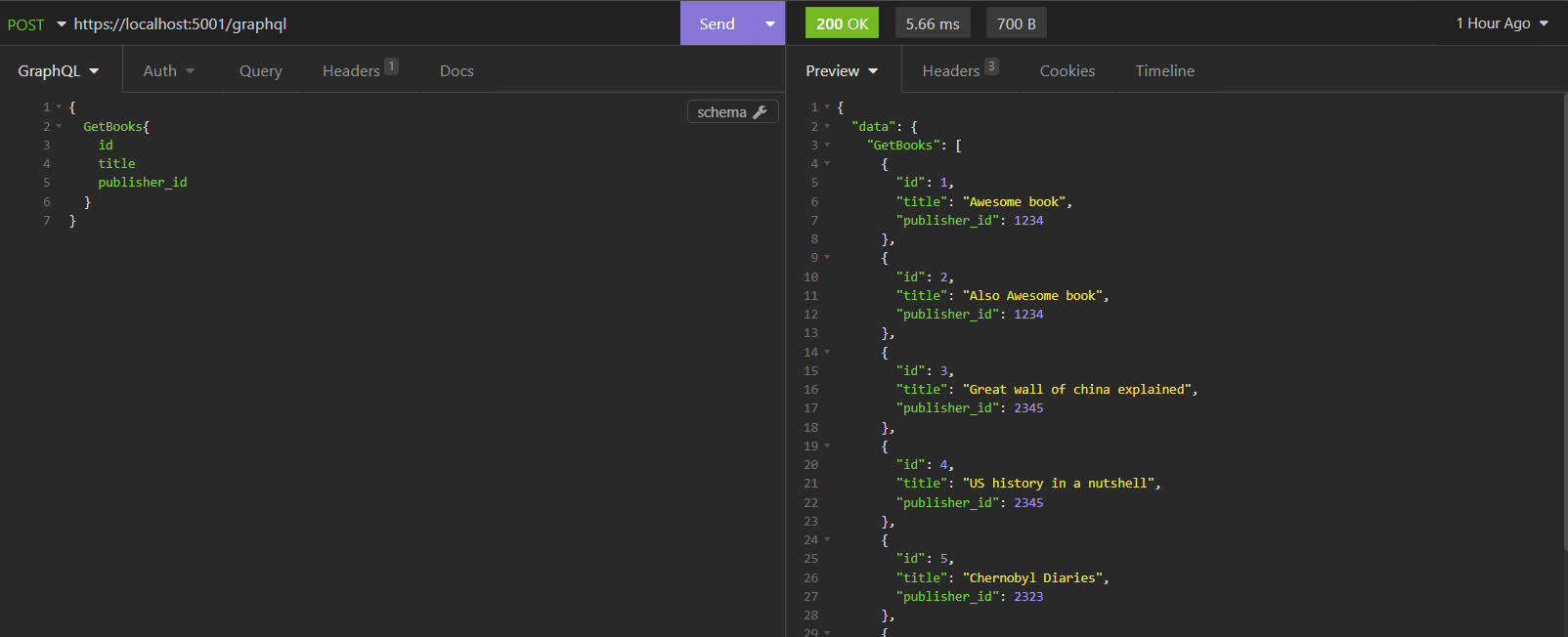

+> 2. Query No param
+>
+> 3. Insert (Mutation)
+>
+> 4. Count (Query)
+>
+> 5. Update(Mutation)
+>
+> 6. Delete(Mutation)
+>
+
+
+
## TODO
1. MySql/Postgres support - changes really should be minimal. Foundation is already laid, just may need minor updates to metadata and then obviously adding `Build` methods in respective query builders.
2. Ease up type checking of parameters specified in config. Try to parse them instead of just doing direct type equality check in `SqlMetadataProvider`.
