🎮 Wuthering Waves - Real-time Pick/Ban Lobby

License: MIT

Welcome! This is a fan-made, real-time web app simulating a "Pick/Ban" phase for Wuthering Waves. It allows friends or communities to add a fun drafting layer to custom challenges. Built with Vanilla JavaScript and a serverless AWS backend using WebSockets.

Note: This project was primarily developed using AI tools as an experiment by someone new to programming and AWS. See the Development Process & AI Usage section for transparency.

📑 Table of Contents

🖼️ App Screenshots

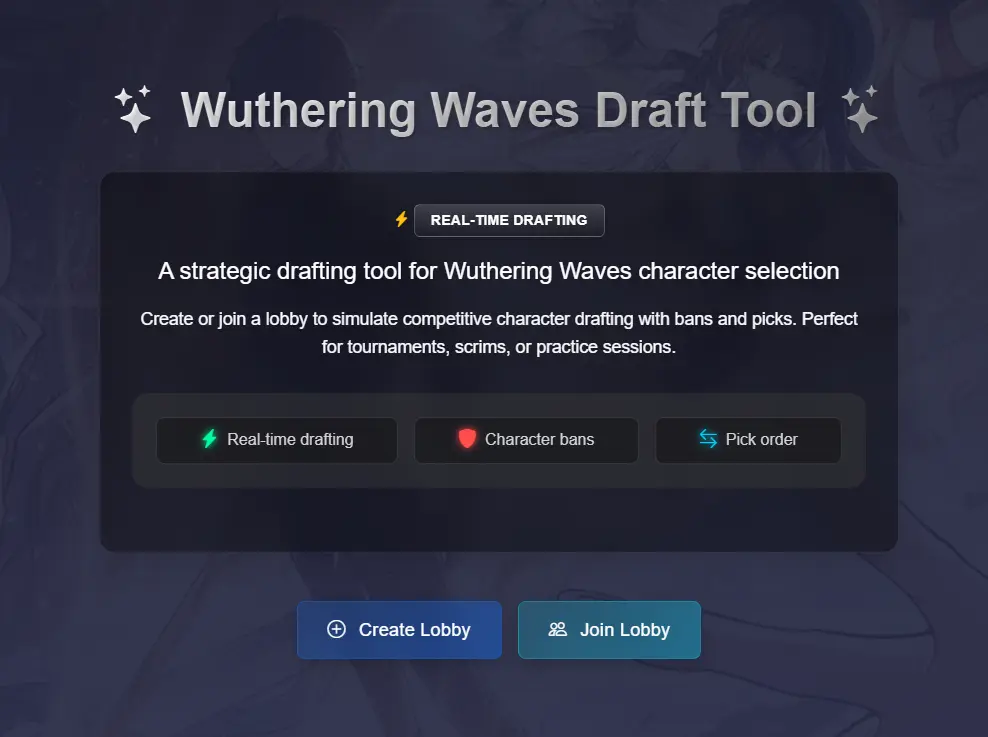

Welcome Screen
Welcome Screen

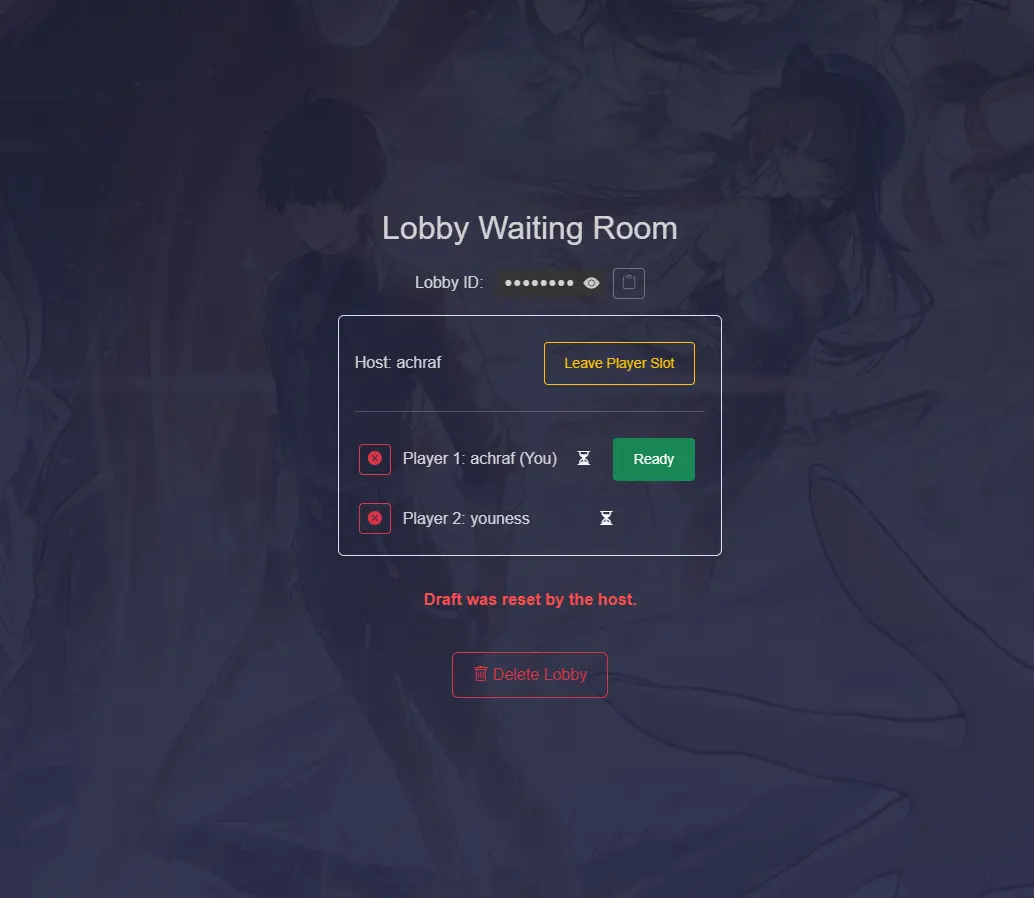

Waiting Room
Waiting Room
Draft Screen
Draft Screen

✨ Features

  • Real-time Lobby: Create/Join lobbies instantly via WebSockets.
  • Live Updates: See player joins, readiness, picks, bans, and timer changes immediately.
  • Organizer Role: Manage the lobby (create, delete, reset, join as player).
  • Ready Check: Simple ready-up system before starting.
  • Pick/Ban Sequence: Follows Ban1 -> Pick1 -> Ban2 -> Pick2.
  • Hybrid Turn Timer:
    • Backend sends turn expiry time (turnExpiresAt).
    • Frontend displays a countdown.
    • Frontend notifies backend on local timeout (turnTimeout).
  • Automatic Timeout Handling: Backend assigns random pick/ban if a player times out.
  • Character Filtering: Filter the grid by element.
  • Visual Cues: Highlights active turns, shows selections, timer status.
  • Connection Keep-Alive: Heartbeats maintain the WebSocket connection.
  • Improved Disconnect Handling: Server instantly knows when clients leave cleanly.
  • Auto-Cleanup: Old lobbies removed automatically via DynamoDB TTL.

🏗️ Architecture

This project uses a serverless AWS backend and a static Vanilla JS frontend.

graph TD
subgraph "User's Browser"
A["Frontend JS"]
end
subgraph "AWS CloudFront"
CF["CloudFront Distribution"]
end
subgraph "AWS S3"
S3["S3 Bucket (Static Files)"]
end
subgraph "AWS API Gateway"
APIGW["WebSocket API"]:::apiGWStyle
end
subgraph "AWS Lambda"
L_Connect["Lambda ($connect)"]:::lambdaStyle
L_Disconnect["Lambda ($disconnect)"]:::lambdaStyle
L_Default["Lambda ($default / actions, ping, timeout)"]:::lambdaStyle
end
subgraph "AWS DynamoDB"
DDB["DynamoDB Table"]:::dbStyle
end

A -- HTTPS Request --> CF;
CF -- Fetches Files --> S3;
S3 -- Serves Files --> CF;
CF -- Serves Files --> A;

A -- WebSocket --> APIGW;
APIGW -- Route: $connect --> L_Connect;
APIGW -- Route: $disconnect --> L_Disconnect;
APIGW -- Route: $default --> L_Default;

L_Connect -- Read/Write --> DDB;
L_Disconnect -- Read/Write --> DDB;
L_Default -- Read/Write --> DDB;

L_Default -- Sends Message via API GW Mgmt Endpoint --> APIGW;
APIGW -- Pushes Message --> A;

classDef apiGWStyle fill:#FF9900,stroke:#333,stroke-width:2px,color:#fff;
classDef lambdaStyle fill:#AE4DFF,stroke:#333,stroke-width:2px,color:#fff;
classDef dbStyle fill:#2777C7,stroke:#333,stroke-width:2px,color:#fff;
classDef s3Style fill:#D84B4B,stroke:#333,stroke-width:2px,color:#fff;
classDef cfStyle fill:#4AB0C1,stroke:#333,stroke-width:2px,color:#fff;
classDef clientStyle fill:#60BF65,stroke:#333,stroke-width:2px,color:#000;

class APIGW apiGWStyle;
class L_Connect,L_Disconnect,L_Default lambdaStyle;
class DDB dbStyle;
class S3 s3Style;
class CF cfStyle;
class A clientStyle;
Loading

Backend (AWS Serverless)

  • API Gateway (WebSocket API): Manages persistent client connections and routes messages ($connect, $disconnect, sendMessage, ping, etc.) to Lambda.
  • AWS Lambda (Python/Node.js): Handles the core logic triggered by WebSocket events:
    • Connection management ($connect, $disconnect).
    • Processing client actions (create, join, ready, pick, ban).
    • Calculating and sending turnExpiresAt timestamps.
    • Handling turnTimeout messages from clients.
    • Broadcasting state updates back to clients via API Gateway.
    • Responding to heartbeat ping messages.
  • DynamoDB: NoSQL database storing lobby state (players, picks, bans, game phase) and active connection IDs. Uses TTL for auto-cleanup.
  • S3: Hosts static frontend files (index.html, css, js, images) and resonators.json.
  • CloudFront: CDN for the frontend. Provides HTTPS (required for wss://), caching, and serves the site.
  • IAM: Manages permissions between AWS services.

Frontend (Vanilla JS)

  • HTML (index.html): Basic page structure.
  • CSS (styles.css): Styling, layout (Flexbox/Grid), dark theme.
  • JavaScript (script.js):
    • Manages WebSocket connection (new WebSocket('wss://...')).
    • Handles UI interactions.
    • Sends/Receives JSON messages over WebSocket.
    • Updates the DOM in real-time based on server messages.
    • Displays the countdown timer based on turnExpiresAt.
    • Sends turnTimeout message if local timer expires.
    • Sends periodic ping messages for heartbeat.
  • Data (resonators.json): Fetched on load, contains character details.

Communication Flow (Simplified)

  1. Client connects via WebSocket (wss://...).
  2. Client sends actions (JSON messages like {"action": "createLobby"}) via WebSocket.
  3. API Gateway routes message to Lambda.
  4. Lambda processes action, updates DynamoDB.
  5. Lambda sends state updates (JSON messages, including turnExpiresAt) back to relevant clients via API Gateway.
  6. Client receives message, updates UI instantly.
  7. Client sends periodic ping; Server responds (optional pong).
  8. Client sends turnTimeout if local timer expires. Backend handles it.
  9. Server receives $disconnect on connection close.

🤖 Development Process & AI Usage

This project was an experiment in AI-assisted development by a non-programmer.

  • AI Tools: Conversational AI (like Gemini) for planning & debugging; Code-focused AI (like Cursor) for implementation.
  • Process: Defined requirements -> Prompted AI -> Evaluated architecture/code -> Identified issues -> Guided AI through iterations & debugging -> Refactored from REST/polling to WebSockets with AI guidance.
  • Goal: Explore AI's capability to build a full-stack, real-time app for a novice.

🚀 Live Demo

Try it out here: Wuthering Waves Pick/Ban Lobby

🛠️ Setup & Deployment

Deployment involves setting up AWS services manually via the console.

Prerequisites

  • AWS Account & Console Access
  • Node.js or Python (for Lambda runtime)

Backend Deployment Steps

  1. DynamoDB: Create table (e.g., MyLobbyTable, partition key lobbyCode (String), enable TTL on ttl attribute).
  2. IAM Role (for Lambda): Create role with permissions for:
    • DynamoDB actions (GetItem, PutItem, UpdateItem, DeleteItem on your table).
    • S3 GetObject (if Lambda reads resonators.json).
    • CloudWatch Logs (CreateLogGroup, CreateLogStream, PutLogEvents).
    • API Gateway Management API (execute-api:ManageConnections on your WebSocket API ARN).
  3. Lambda Functions: Create functions for WebSocket routes ($connect, $disconnect, $default, sendMessage, ping, turnTimeout). Assign the IAM role. Configure Environment Variables (see below).
  4. API Gateway (WebSocket API):
    • Create WebSocket API.
    • Define Route Keys matching your Lambda functions.
    • Integrate routes with corresponding Lambda functions.
    • Deploy API to a stage (e.g., dev). Note the WebSocket URL (wss://...) and API endpoint (https://...).
  5. Permissions Check: Ensure Lambda role allows execute-api:ManageConnections.

Frontend Deployment (S3 & CloudFront)

  1. S3 Bucket: Create/use bucket, enable static website hosting.
  2. Upload Files: Upload index.html, styles.css, script.js, resonators.json, images/. Grant public read access (or use CloudFront OAI).
  3. Update JS: Set websocketUrl in script.js to your API Gateway WebSocket URL (wss://...). Re-upload.
  4. CloudFront Distribution:
    • Create/use distribution pointing to S3 origin.
    • Set Default Root Object: index.html.
    • Configure WebSocket Caching: Forward necessary headers (use Managed-WebSocketOptimized policy or configure manually: Origin, Sec-WebSocket-*).
    • Ensure HTTPS is enabled.

Configuration

  • script.js:
    • websocketUrl: Your API Gateway WebSocket URL (wss://...).
  • Lambda Environment Variables:
    • TABLE_NAME: Your DynamoDB table name.
    • WEBSOCKET_ENDPOINT: API Gateway Management API endpoint (https://{api-id}.execute-api.{region}.amazonaws.com/{stage}).
    • S3_BUCKET_NAME / S3_FILE_KEY: If Lambda reads resonators.json.

▶️ Usage

  1. Go to the CloudFront URL.
  2. Organizer: Enter name -> "Create New Lobby".
  3. Share the Lobby Code.
  4. (Optional) Organizer clicks "Join as Player".
  5. Player 2: Enter name & Lobby Code -> "Join Lobby".
  6. When both are in -> "Ready Check" phase. Click "Ready".
  7. Pick/Ban starts automatically. Follow prompts and click characters during your turn.
  8. Controls: Use "Reset Lobby", "Delete Lobby", or "Leave Lobby" as needed.

⚠️ Known Issues & Limitations

  • Scalability: API Gateway WebSocket has connection limits (check AWS docs).
  • Complexity: Managing state across Lambda functions for WebSockets can be tricky.
  • Cost: Constant connections incur costs (API Gateway connection minutes).
  • Mobile UI: CSS needs further refinement for small screens.
  • Timer Sync: Minor visual timer discrepancies possible due to network latency.

🌱 Future Improvements

  • Optimize backend logic.
  • Improve error handling/connection recovery.
  • Enhance mobile layout.
  • Allow customization (timers, pick/ban counts).
  • Add spectator mode.

👋 Contributing

As an AI-assisted project by a non-programmer, direct code contributions aren't the focus. However, feedback, ideas, and bug reports are highly appreciated! Please open an issue on GitHub.

📜 License

MIT License: https://opensource.org/licenses/MIT

🙏 Acknowledgements

  • Wuthering Waves by Kuro Games.
  • AI Tools (e.g., Gemini, Cursor AI) for development assistance.
