Improve CGAL basic viewer

[jingyangcarl]

Jing Yang's GSoC 2020 Submission

Supervisor: @gdamiand
Github Page: https://github.com/jingyangcarl
Personal Website: https://jingyangcarl.com/

Overview

The submission includes two features: clipping plane feature and web-viewer feature.

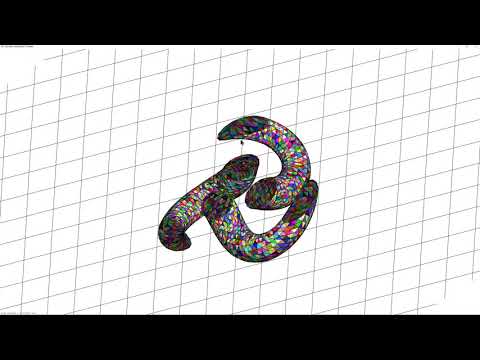

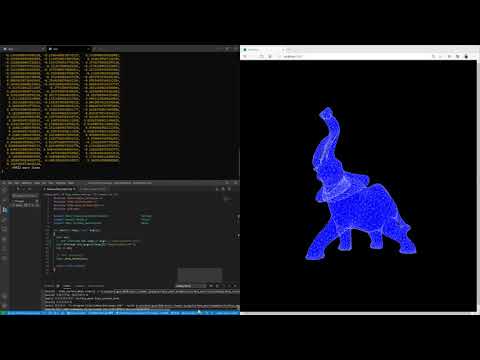

Clipping Plane Project	Web Viewer Project

Commit log

Clipping Plane

CGAL/cgal-public-dev@4e642f1ad4 disable clipping plane in opengl 3.0
CGAL/cgal-public-dev@59911d1676 add compatibility shader
CGAL/cgal-public-dev@d672031c36 adjust logic for color output
CGAL/cgal-public-dev@d5c6c8971b re-declare attribute variables as uniform
CGAL/cgal-public-dev@17e14bb40b update
CGAL/cgal-public-dev@45dc247de9 Update key logic; disable clipping plane in 2D mode; de-activate clipping plane operation when clipping plane is off
CGAL/cgal-public-dev@e7a3e7ae9d update key logic
CGAL/cgal-public-dev@06d1a43fae update
CGAL/cgal-public-dev@92594bc8e4 clean code and added comments
CGAL/cgal-public-dev@682d31b22d add alt+c to toggle clipping plane rendering
CGAL/cgal-public-dev@0c2b6a8212 apply size factor to clipping plane translation
CGAL/cgal-public-dev@5d2178c811 adjust clipping plane size
CGAL/cgal-public-dev@4bcdb0b75f make rendering compatible to mono mode and color mode for faces, edges, and vertices
CGAL/cgal-public-dev@1e00f812fd clean code
CGAL/cgal-public-dev@84b35d3d2c apply clipping mode to vertices rendering
CGAL/cgal-public-dev@3c978c543c disable initial clipping plane and add description when enabled clipping plane
CGAL/cgal-public-dev@85e433ec9d add clipping to wireframe mode
CGAL/cgal-public-dev@0c2c14afb9 add another clipping mode for not rendering faces outside the clipping plane
CGAL/cgal-public-dev@d59ab3fc11 clean code
CGAL/cgal-public-dev@44c2b1358e make the real clipping plane adaptive to the mesh size
CGAL/cgal-public-dev@479155f7d0 add wheel event to control transparency
CGAL/cgal-public-dev@48dbf5677d change key binding to rotate and translate clipping plane and add description
CGAL/cgal-public-dev@8447045ea2 add description
CGAL/cgal-public-dev@bc5c2e2411 add translation
CGAL/cgal-public-dev@775a8fbbe0 debug
CGAL/cgal-public-dev@5b2b022467 add corresponding rotation for clipping plane in fragment shader
CGAL/cgal-public-dev@7fc9885fe0 able to rotate real clipping plane
CGAL/cgal-public-dev@b4ce4af509 draw real clipping plane at xoy plane
CGAL/cgal-public-dev@20fbee6e31 clean comments
CGAL/cgal-public-dev@dd9b1a23b0 change clipping plane from a const variable in shader to an attribute value
CGAL/cgal-public-dev@5549aae482 add d parameter to clipping plane and update shader
CGAL/cgal-public-dev@1b53109e50 try to render clipping plane
CGAL/cgal-public-dev@0a7d98ae1a add menu description
CGAL/cgal-public-dev@3db2c0e809 add key function to toggle clipping plane rendering mode
CGAL/cgal-public-dev@f175052d75 add variable to toggle clipping plane
CGAL/cgal-public-dev@96d602a0df clean up debug code
CGAL/cgal-public-dev@06c0a7f72b debug for transparent surfaces
CGAL/cgal-public-dev@e8f2b9a1c4 define macro instead of using magic numbers
CGAL/cgal-public-dev@81e8d5dddb VAO_MONO_FACES render can be possibly removed, since VAO_COLORED_FACES implements the save functions, need to be discussed
CGAL/cgal-public-dev@df3239df1c simplify shader and add comments
CGAL/cgal-public-dev@c79f1ca405 use lambda function to simplify code
CGAL/cgal-public-dev@5716df9ae0 implement one render pipeline to render both solid and transparent mesh
CGAL/cgal-public-dev@860c79eb72 add rendering mode for solid mesh
CGAL/cgal-public-dev@bbad2d5605 successfully pass rendering mode into shaders
CGAL/cgal-public-dev@e688a55d77 disable redundant face drawing
CGAL/cgal-public-dev@7b052cfed7 render bug
CGAL/cgal-public-dev@a97c7c69b9 discard faces outside the clipping is one possible solution
CGAL/cgal-public-dev@219d7e2af4 Debug for the non-working situation when toggle other render model
CGAL/cgal-public-dev@537525401e modified original alpha channel rendering to enable normal alpha blending
CGAL/cgal-public-dev@560e97d63c clipping plane on ambient and specular
CGAL/cgal-public-dev@10f6c466a8 Merge remote-tracking branch 'refs/remotes/cgal-public-dev/gsoc2020-basic-viewer-jyang' into gsoc2020-basic-viewer-jyang
CGAL/cgal-public-dev@2207b5105d update render formula for accuracy
CGAL/cgal-public-dev@53c7c5b747 clipping plane feature on alpha channel, but the current alpha blending will be disabled when switch render mode, need to be fixed
CGAL/cgal-public-dev@3b2b648450 clipping plane feature on blue channel only
CGAL/cgal-public-dev@b446a25c61 Update cmake
CGAL/cgal-public-dev@5ccec340ee edit shaders to enable clipping along clipping plane
CGAL/cgal-public-dev@57a68fdf2b add vertical clipping plane
CGAL/cgal-public-dev@e9dfef38ac add add object3D class to clipping plane demo
CGAL/cgal-public-dev@6a2b6145b5 enable alpha blending
CGAL/cgal-public-dev@a0acf94169 enable phong shading with clipping plane on
CGAL/cgal-public-dev@872c483584 split by a virtual clipping plane
CGAL/cgal-public-dev@cd45b9202d Merge branch 'gsoc2020-basic-viewer-jyang' of github.com:CGAL/cgal-public-dev into gsoc2020-basic-viewer-jyang
CGAL/cgal-public-dev@c709018d97 Add phong shading and view matrix
CGAL/cgal-public-dev@ed2489684c Add CMakelists
CGAL/cgal-public-dev@efdabf179a able to render a red cube
CGAL/cgal-public-dev@21c226aa3e clean up
CGAL/cgal-public-dev@b6f0a71377 init a demo for shader
CGAL/cgal-public-dev@d238fc112c update gitignore
CGAL/cgal-public-dev@38f16d827e add gitignore to ingore Visual Studio Code produced files

Web Viewer

CGAL/cgal-public-dev@31f8a6aed3 update
CGAL/cgal-public-dev@f828cb4c3d clean up
CGAL/cgal-public-dev@0ac93690c8 able to draw edges
CGAL/cgal-public-dev@ecef5589c7 able to render the mesh in any size
CGAL/cgal-public-dev@73b51cf771 try rendering face
CGAL/cgal-public-dev@f2682f04d7 update
CGAL/cgal-public-dev@a41fdc927a able to render larger data
CGAL/cgal-public-dev@aa0e8e3a63 the branch is able to render vertices, but the limitation of tcp packeet is 64K, which is 65535 bytes and need to be considered for larger mesh
CGAL/cgal-public-dev@669333d47d merge socket connection to branch from demo
CGAL/cgal-public-dev@68c38ad2c7 able to render lines
CGAL/cgal-public-dev@142536a33f able to render triangles
CGAL/cgal-public-dev@661854ebb9 clean
CGAL/cgal-public-dev@c136513db2 able to render point cloud from c++
CGAL/cgal-public-dev@811922a385 add reaction to default geometry
CGAL/cgal-public-dev@b5c5d40e5f Express backend is able to receive message from React frontend
CGAL/cgal-public-dev@5dbb73d913 clean code
CGAL/cgal-public-dev@e8ef0cc75d c++ application is able to send message to frontend via backend
CGAL/cgal-public-dev@d5a0d0820b React Frontend is able to receive message from Express backend
CGAL/cgal-public-dev@00ddb7f009 clean code and improve output
CGAL/cgal-public-dev@b11bad646b react frontend is able to connect express backend
CGAL/cgal-public-dev@eaa19d9358 clean
CGAL/cgal-public-dev@f4e7221031 clients is able to recieve the response from the server
CGAL/cgal-public-dev@c15d0d7122 the client is able to send message and the server is able to receive the message
CGAL/cgal-public-dev@ce1e111bad server is able to recognize the connection
CGAL/cgal-public-dev@8c3e5928ce the client app is able to connet the server.
CGAL/cgal-public-dev@1564cce755 add socket.io to the backend
CGAL/cgal-public-dev@bf5c7bbe7a add backend server
CGAL/cgal-public-dev@747b5f4944 small modification
CGAL/cgal-public-dev@23f76ba54d Initialize three widget
CGAL/cgal-public-dev@27cd7644d3 react app initialization
CGAL/cgal-public-dev@6d541e5441 update gitignore

[sloriot]

@jingyangcarl if you have some time left and @gdamiand agrees having a function to draw a straight skeleton would be nice :)

[afabri]

@jingyangcarl if you have some time left and @gdamiand agrees having a function to draw a straight skeleton would be nice :)

I started it here

[jingyangcarl]

@jingyangcarl if you have some time left and @gdamiand agrees having a function to draw a straight skeleton would be nice :)

Maybe we can discuss it a little if necessary? I'm a little confused here

[afabri]

I have written the draw() function for the Straight_skeleton_2, but just quick and dirty. It would make sense to draw the contour and biscetor edges in different colors. I didn't change the line width, and have no idea how if this is necessary when one has a huge data set....

[gdamiand]

Thanks @afabri for this new viewer. Since gsoc end is today, it is too late for @jingyangcarl, but it seems you almost finish it. We can work together to finish it if you want.
About the line width, it is not possible to change it (for now) with the basic viewer. It could be a nice feature...
