Add mutation/trait groups, trait blacklisting, and NPC mutation templates

[SpencerMichaels]

This PR expands the trait/mutation specification for characters to allow complex random trait generation like what can already be done with item groups, while retaining backwards compatibility with the old system. It also lets modders create NPC classes that spawn with predetermined semi-random mutations. I originally designed this to aid in creating better NPC classes for some mutant-related NPC quests I'm working on adding, and I think this could be a big help to modders working on NPCs.

I've been writing C++ and playing Cataclysm for quite some time, but this is my first major contribution to CDDA. I've done my best to follow the existing code/comment style, but I am not too familiar with the codebase as a whole yet, so let me know if there's anything I should change or refactor.

Highlights

Trait groups

Previously, when specifying an NPC class's traits, one could only do so through a format like this:

{
    "type" : "npc_class",
    ... more fields here ...
    "traits" : [
        [ "GOODHEARING", 100 ],
        [ "STRONGBACK", 60 ]
    ]
}

This is not very flexible, however. Consider, for instance, a case where a modder wants to make an NPC that has Genetically Unstable 2/3rds of the time, and Genetic Chaos 1/3 of the time — but never both at once. With the old system, this is not possible. With this new system, you can do this:

{
    "type" : "npc_class",
    ... more fields here ...
    "subtype": "distribution",
    "entries" : [
        [ "trait": "CHAOTIC", prob: 1 ],
        [ "trait": "UNSTABLE", prob: 2 ]
    ]
}

What if you want to give the same set of mutations to multiple NPCs, or choose between multiple sets of mutations at random? You can define a trait_group — whose syntax is quite similar to an item_group — and nest arbitrarily complicated invocations of collections and distributions. Collections will choose whether or not to add a trait based on its probability considered in insolation. Distributions will chose one of their traits based on the weights of all the traits summed together. For instance, the example group below is a collection containing a trait and a distribution, with the distribution containing two traits. It will always generate trait OUTDOORSMAN, and half of the time will generate either GOODCARDIO (2/3rds chance) or GOODHEARING (1/3rd chance).

  {
    "type" : "trait_group",
    "id" : "outdoorsman_distribution",
    "subtype": "collection",
    "entries": [
        { "trait": "OUTDOORSMAN" },
        { "distribution" : [
            { "trait": "GOODCARDIO", "prob": 60 },
            { "trait": "GOODHEARING", "prob": 30 }
        ], "prob": 50}
    ]
  },

Trait blacklisting

In addition to the above, I also added blacklisting capability, like so:

  {
    "type": "TRAIT_BLACKLIST",
    "traits": [
        "BADKNEES"
    ]
  }

If an entry like this is loaded, (a) the character creation menu will not show Bad Knees (b) players and NPCs cannot mutate Bad Knees and (b) Bad Knees will be removed from any trait groups that contain it.

Mutation rounds

I added a new tag, mutation_rounds, to NPC class templates. This allows you to cause the generated NPC to have mutated along one or more mutation categories an arbitrary number of times. This means that if, say, you want an Insect mutant NPC, you don't have to use the above functionality to manually write out probabilities for each trait, you can make use of the existing mutation system to make him undergo several rounds of MUTCAT_INSECT mutations before spawn.

You can specify mutation rounds in two ways; both use the RNG distribution objects like, for instance, the bonus_str field. The first is a shortcut for general mutations (like what you'd get from drinking regular mutagen).

    {
        "type" : "npc_class",
        ... more fields here ...
        "mutation_rounds" : { "rng" : [ 1, 3 ] }
    },

The second lets you specify any number of categories. In this example, our NPC always undergoes 1 ANY mutation, as well as 2d3 INSECT mutations before spawn.

    {
        "type" : "npc_class",
        ... more fields here ...
        "mutation_rounds" : [
            [ "MUTCAT_ANY", { "constant" : 1 } ],
            [ "MUTCAT_INSECT", { "rng" : [ 2, 3 ] } ]
        ]
    },

Taken together with the trait groups, you can use the groups to generate NPCs with certain fixed traits and then mutate them to push them further along that semirandom mutation path.

Full changes list

• Add a trait_group JSON object type that is formatted much like an item_group, allowing modders to group traits together under an identifier, as well as to use collections and distributions to perform choices like "one of a set" and "either-or" between mutations.
• Add a TRAIT_BLACKLIST JSON object type that allows blacklisting traits/mutations. Any blacklisted trait will disappear from the character creation menu and never result from either mutations or trait group instantiation.
• Add Trait_Groups_Test and Mutant_NPCs mods that I used to test JSON object processing and NPC spawns. If preferred, I can remove them before the PR is merged, but I will leave them for now in case anyone wants to test.
• Add a Test trait group entry to the debug menu that allows the user to generate 100 sample rounds of a trait group and see how many of each trait come out of it (again, quite like Test item group).
• Add a mutation_rounds NPC class tag that allows modders to spawn pre-mutated NPCs without using the trait group system manually. This allows organic progress down arbitrary mutation paths.

Two complete sets of example JSON files, covering all the added functionality, can be found in /data/mods/Trait_Groups_Test and /data/mods/Mutant_NPCs.

Screenshots and Examples

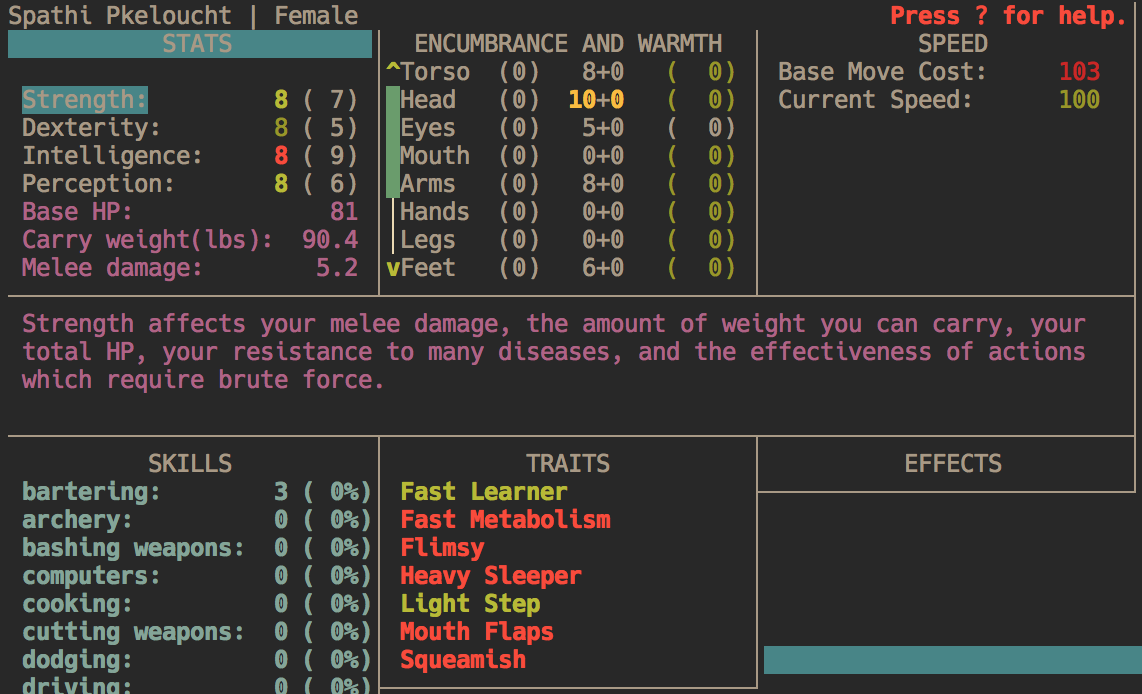

This is the result of a simple roll of 100% genetically unstable and 50% genetic chaos

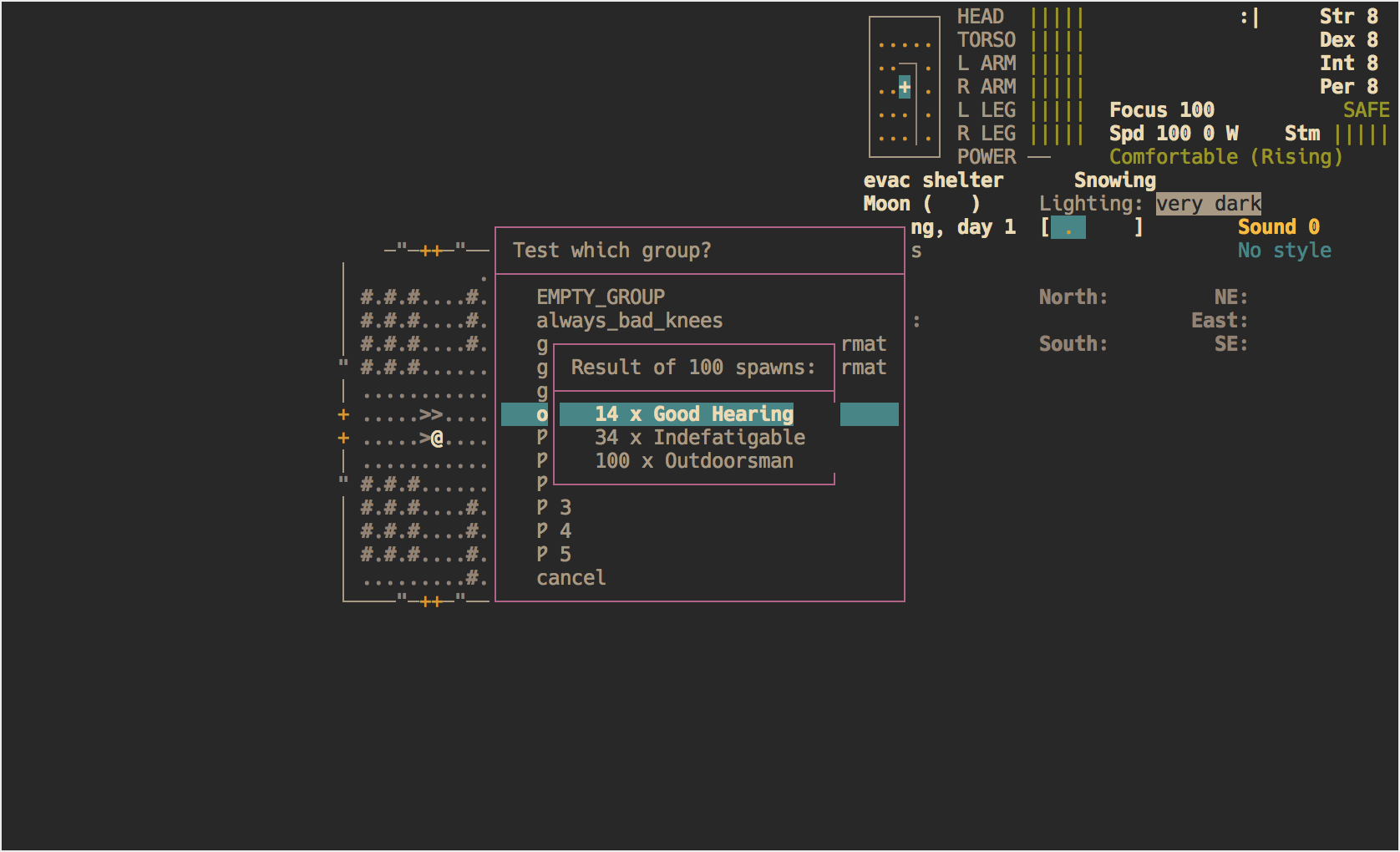

This is the result of the outdoorsman_distribution trait group example above.

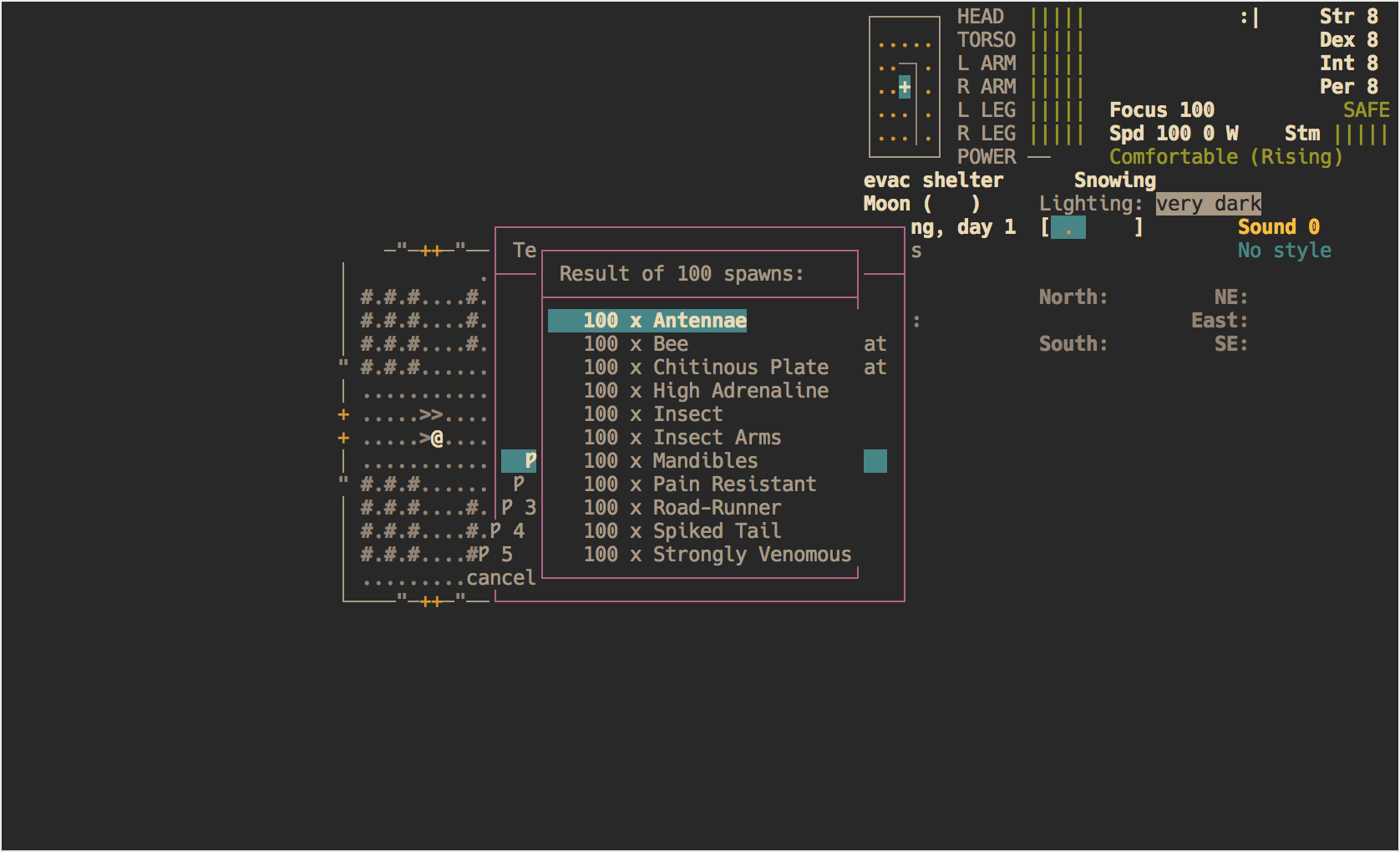

This is the group automatically generated by the traits entry in NC_APIS (see json/npcs/classes.json:394), the bee mutant NPC class.

This is an NPC mutated at spawn via the MUTCAT_INSECT category example above. (He also spawned with some starting traits, which I added under the traits tag.)

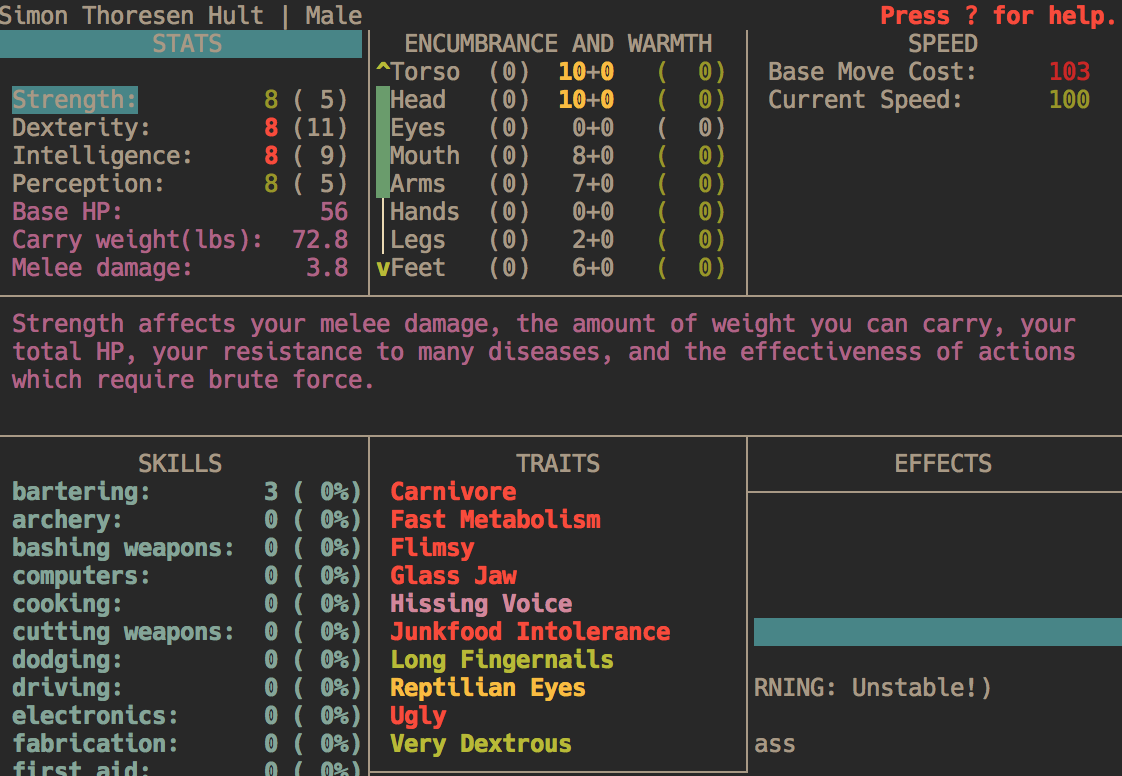

This is an NPC mutated at spawn with 10 rounds of MUTCAT_RAPTOR.

[BevapDin]

This should be a string_id of some kind. Item groups use raw std::string because they have not yet been changed to use string_id, but string_id is preferable as provides a common interface and more type safety.

[BevapDin]

Should probably be inside the namespace, as it is mostly used inside of that namespace.

[BevapDin]

This function, for example, can be provided via the string_id interface. Instead of group_is_defined(somegroup), one can write somegroup.is_valid().

[BevapDin]

You can write = default; instead of the empty function body. It's sometimes more efficient. And there are some semantic differences, generally default is not worse than a default, but potentially better.

[BevapDin]

override is missing here (some compilers can warn you about this). And you don't need to add virtual to a function that overrides (it is redundant). But our style guide does not force any style.

[BevapDin]

Than just delete them (add = delete;) instead of making them private. The code in "item_group.h" is old, so it doesn't use features from C++11, new code like this should use them where appropriate.

[BevapDin]

The brackets are unnecessary. Also applies at many other places.

[douglasdennis]

This is a bit of stylistic feedback isn't it? Is this something covered in a style guide regarding brackets for single statement blocks?

[kevingranade]

I think he means the parentheses around creator, ( creator )->probability;, brackets are mandatory.

[SpencerMichaels]

This is the style that I saw frequently in item_factory.cpp and item_group.cpp, I thought it was kind of weird too. I'll fix those in the new PR I split off from this.

[BevapDin]

Gotcha. Why are you returning a vector<string> while the function declaration says it's returning a vector<Trait_group_tag>? This would not happen with string_id.

[BevapDin]

Ugh. Raw owning pointers? Please don't do this. If you absolutely need pointers, wrap them in a smart pointer class (for example unique_ptr). Do you actually need a pointer here? Note that the values in a std::map have stable addresses, inserting or removing entries does not affect the address of the remaining values.

[BevapDin]

I'm nitpicking now. This could be done in one line, without the id variable: insert( trait_id( next_string() ) ).

[BevapDin]

This functionality already exists: trait_id::is_valid() does it.

[BevapDin]

This is inefficient, the map is searched twice, once via count and a second time via operator[]. Typically this functionality is implemented by calling find(key) and comparing the result to end(), see for example Item_factory::find_template.

[BevapDin]

You don't nee this variable, you can iterate over the result of the function cal directly for( ... : traits_from() ).

[BevapDin]

This should probably be an error as well. We can't really continue with an invalid type, we don't know what is meant.

[BevapDin]

This should not be raw pointers. This should be smart pointers.

[BevapDin]

Well, isn't that what the condition above already says? What else should the return value true of mutation_branch::trait_is_blacklisted mean? Why add a comment for this obvious behaviour?

[kevingranade]

Typo, "several"

[kevingranade]

This all looks like features we want, the only concern is if NPCs don't know how to behave with certain mutations, but since it's opt-in with a mod that's not a major issue.

Top level comment, this PR is too big, it needs to be broken up so we can properly review the pieces, but posting the whole shebang can be good for getting an overview so no harm done.

I'd suggest:

1. trait blacklist.
2. trait groups. Maaaybe split this into the initial probability thing then the full groups support, but it looks like thise are really the same feature, so only do it if it's pretty easy.
3. your mod. This ones a shoe-in other than sanity checking that it works.

[SpencerMichaels]

@BevapDin Thanks for the review! I hadn't realized the item_factory and item_group code I was looking at was pre-C++11 — I am fairly familiar with common C++11 idioms but since I didn't see them in the code I was looking at I didn't use them often. I just made basically all the changes you suggested, with the possible exception of the trait_groups map, which I changed from raw pointers to shared_ptrs, but couldn't remove the pointer element entirely because Trait_group is an abstract class so I can't do references.

@kevingranade Sure, that makes sense. I will leave this PR open for now in case people want to review it further, but I'll submit separate PRs for the different features in a moment. I think it should be fairly trivial to split the mutation_rounds into a separate category. For my mod, I originally just wrote it to test these features, so there's not much in it, but I can add some more things to it (e.g. NPC classes for all the mutation branches) so it's more interesting in gameplay.

[SpencerMichaels]

I am closing this in favor of #22494, #22495 and #22496, which together have the same content. I will put out more complete mod in fourth PR shortly.

[kevingranade]

This example isn't quite right, it looks more like:

"mutagen_rounds": [
  [ "MUTCAT_ANY", { "constant": 1 } ],
  [ "MUTCAT_INSECT", { "rng": [1, 3] }
]

[SpencerMichaels]

Good catch, thanks. Fixed in #22494 .
