Ui fixes

[KorGgenT]

Summary

SUMMARY: Features "finish UI panel features and fix some visual problems"

Purpose of change

the feature was incomplete. i wanted to fix the rest of them.
Closes #28813
Fixes #28890
Fixes #29059

Describe the solution

• Center view based on sidebar
• fix border on monster list view
• add option to add spacers between panels
• log expands to unused space
• fix Perception display string in classic mode

[ZhilkinSerg]

View center is in the center of the screen, not on the player.

[KorGgenT]

so far i don't know what part of the code draws that cursor. i only hope i can find it soon.

[OzoneH3]

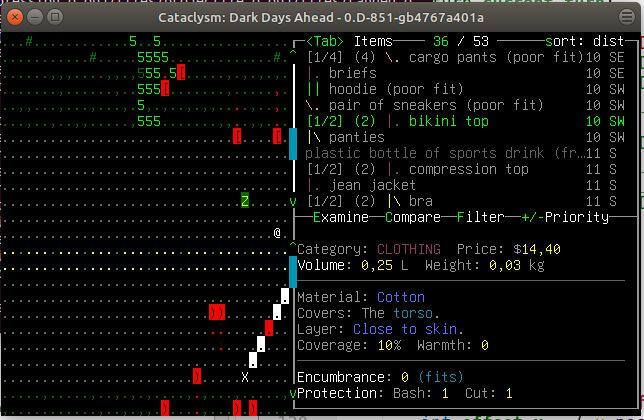

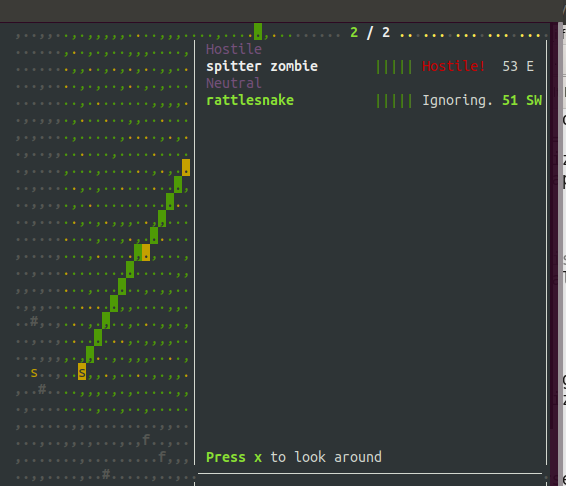

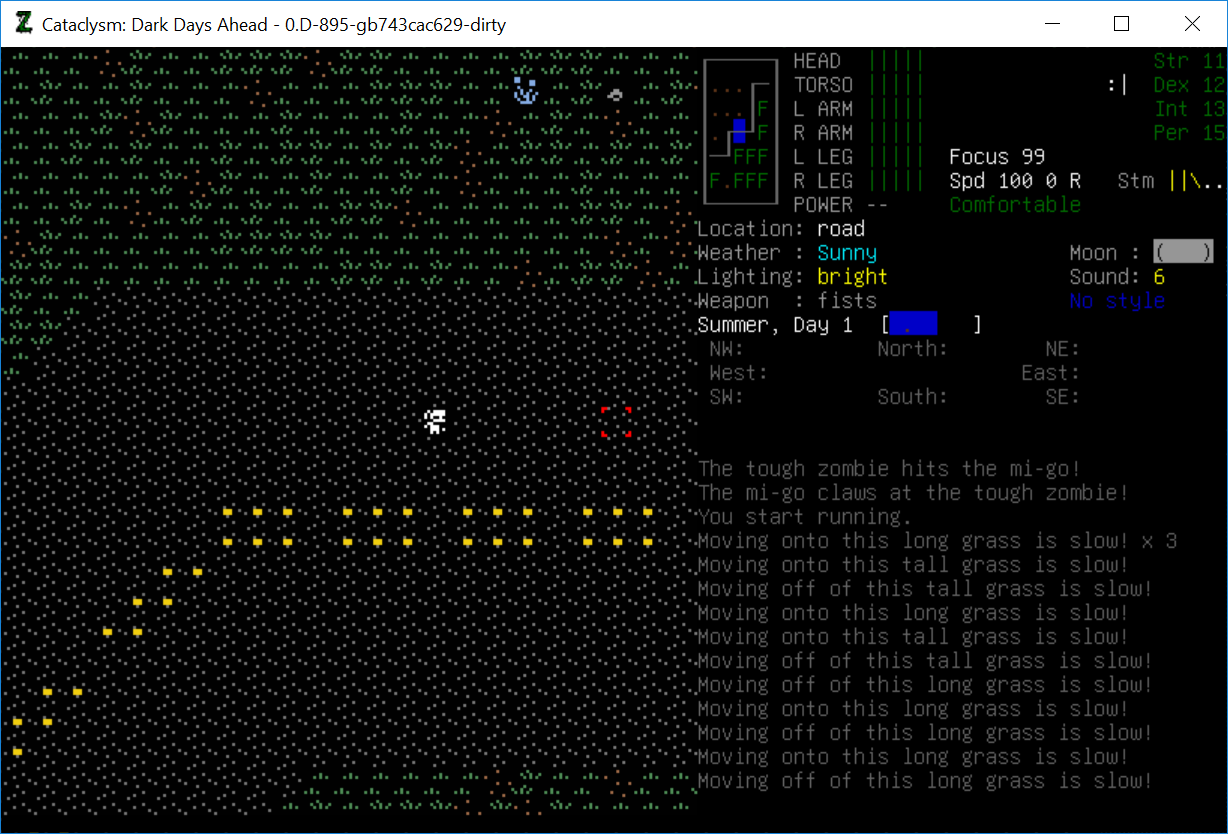

Item/Monster Tab problems:

Curses:

• Item/Monster Tab Trail drawing not working correctly
• View still not centered.
• Rain is clearing the @ character symbol.

[tinukedaya]

If you can, please also check the #28890 #28914 #28915 and #28916

[kevingranade]

This pull request has been mentioned on Cataclysm: Dark Days Ahead. There might be relevant details there:

https://discourse.cataclysmdda.org/t/yall-messed-up-the-interface/19310/8

[anonym]

@KorGgenT, let me first say I already love the new possibilities with the panel manager! Great work! I was appalled to see the ignorant reactions on reddit etc, so I thought you might want to hear that some of understand where this is going and appreciate your contribution. 👍

So I've tested this branch since I was really looking forward to commit f22d2ee, but noticed that it introduces a regression: whenever I perform and action, the "Look around" square is drawn for a short time around the absolute middle square (i.e. where the character would be without this commit). Looking at the code one wouldn't expect this, but I assume there are more places where the code makes assumptions about the "center" that isn't true any more.

I wonder, is it intentional that the game view (i.e. the tiles) extends "under" the side bar? Perhaps you want to allow players to make minimal panels and thus see more? I was just thinking that if we limited the game view so it stopped where the side bar begins (when it is shown) then those assumptions about the "center" I talked about would become true again and you can stop playing whack-a-mole adding correcting offsets all over the code base like f22d2ee. Of course, I haven't looked into any of this in detail, so I might be completely off.

[kevingranade]

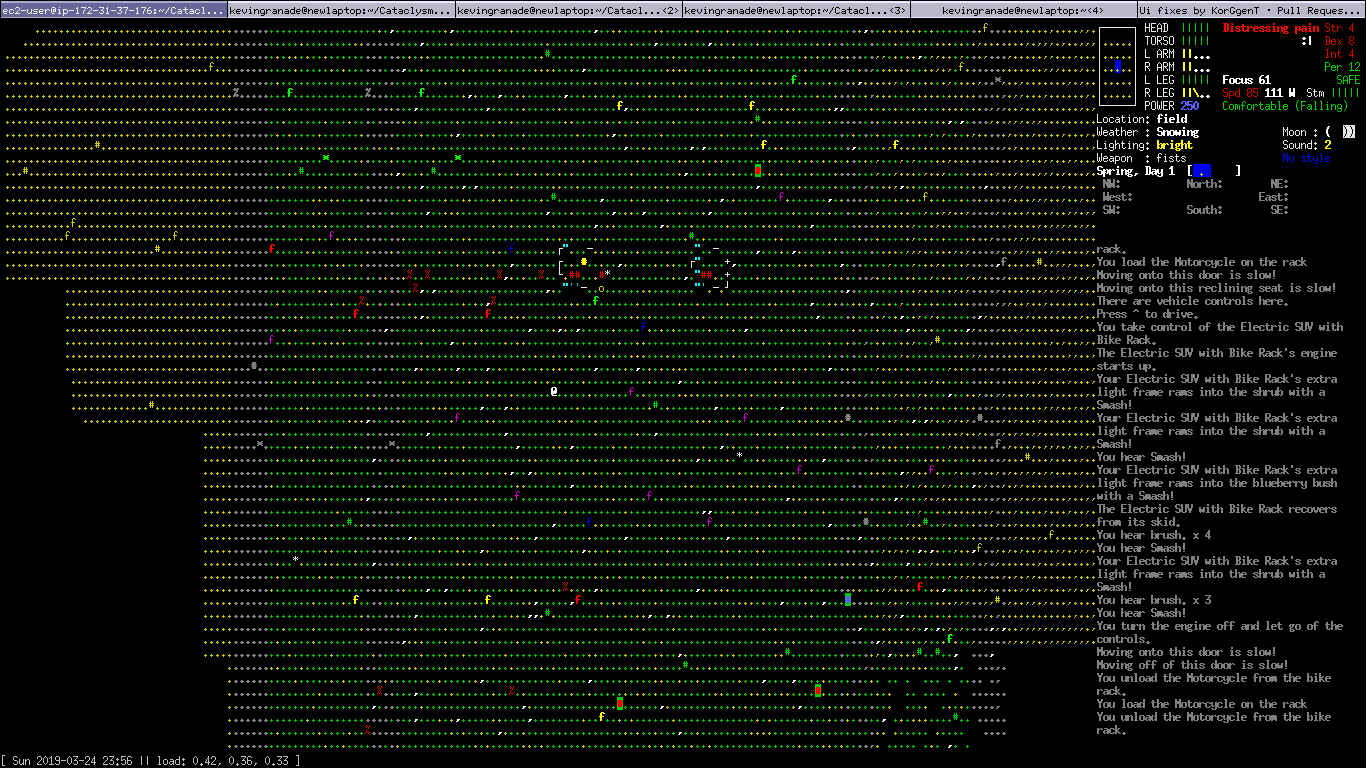

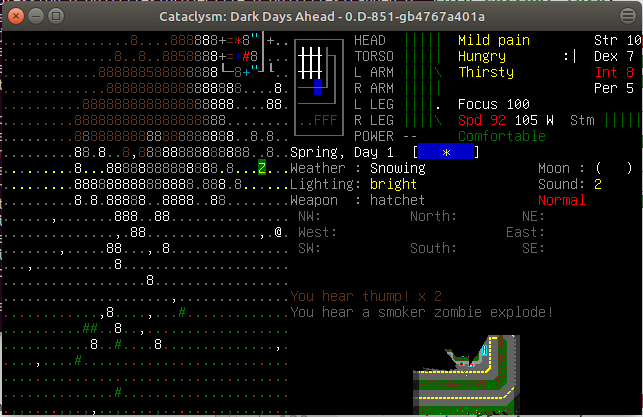

IDK if it happens on tiles yet, but on curses the rain animation causes most of the map to shift to one side by a large number of characters.

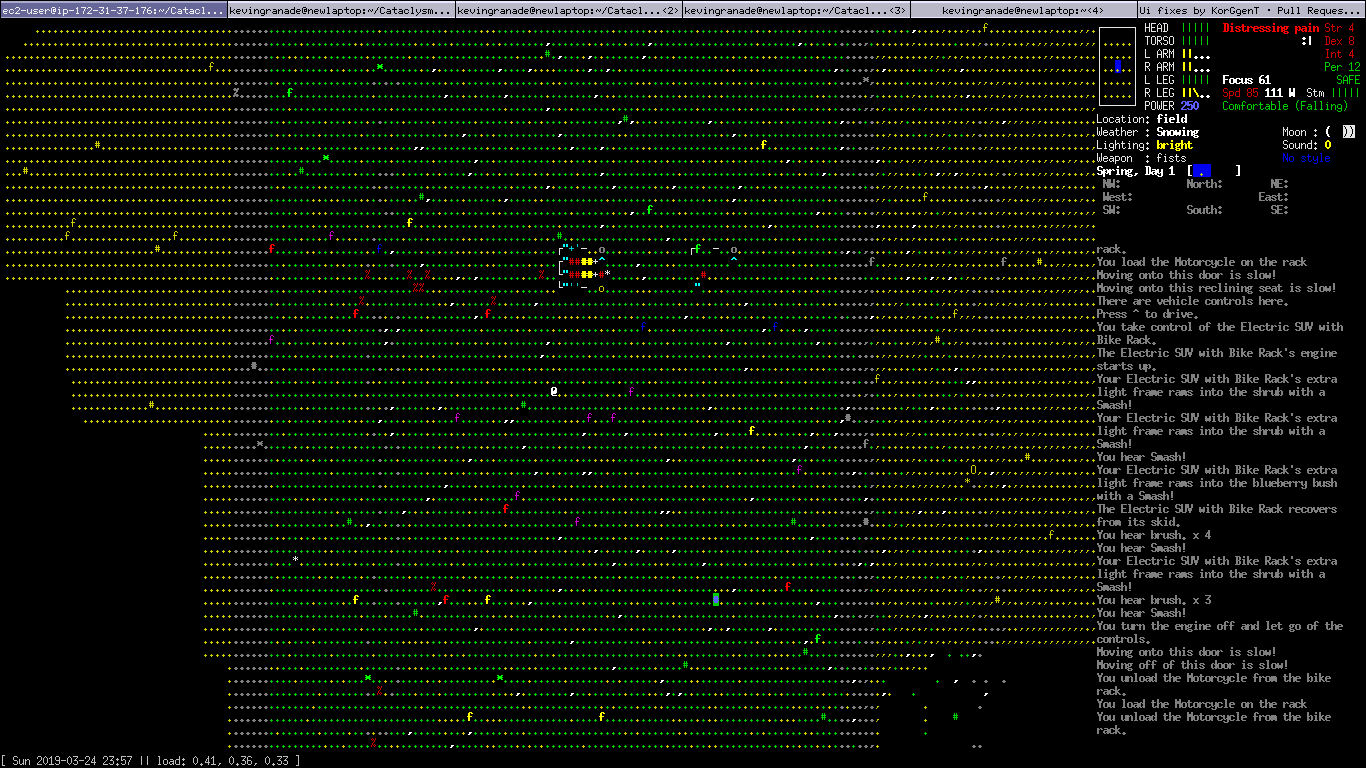

Mostly before it happens:

In an intermediate state:

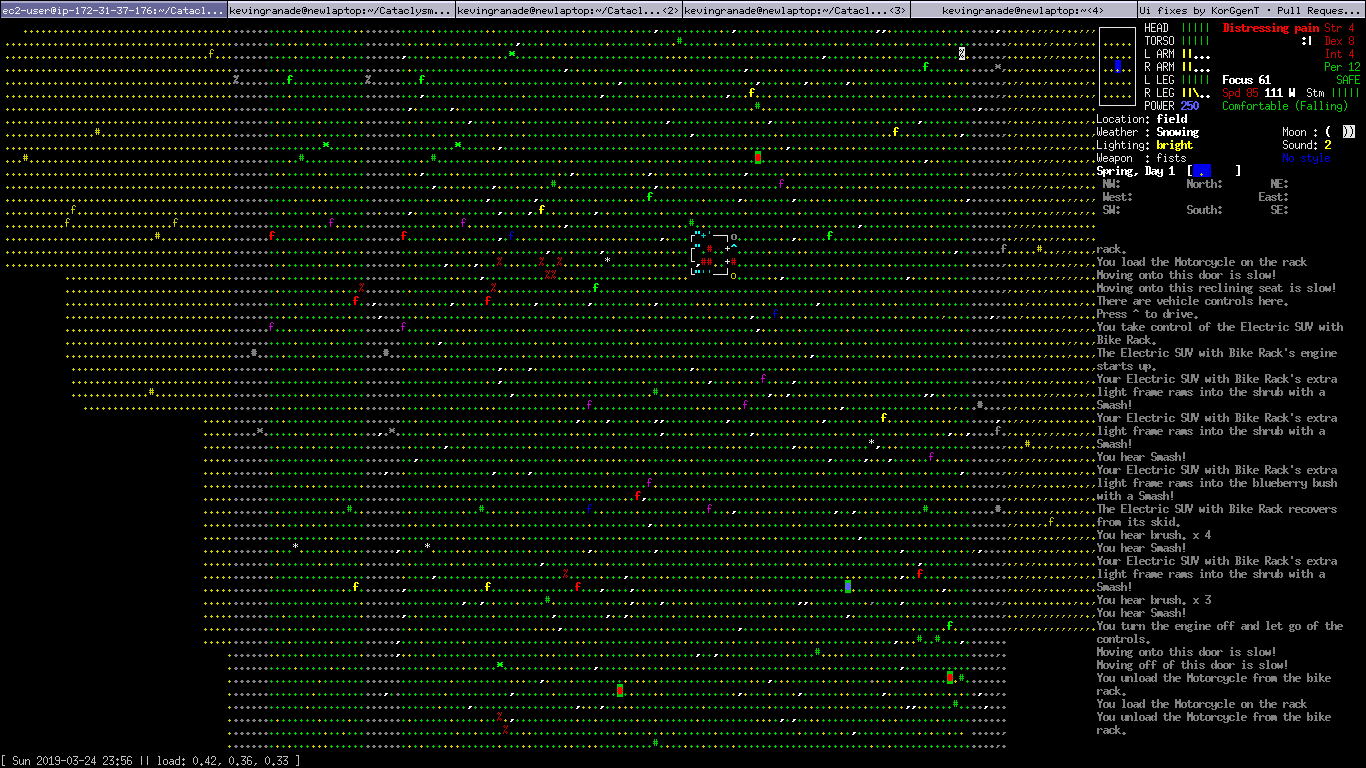

After it hash shifted the whole map:

[kevingranade]

This pull request has been mentioned on Cataclysm: Dark Days Ahead. There might be relevant details there:

https://discourse.cataclysmdda.org/t/interface-issues/19394/2

[ZhilkinSerg]

so far i don't know what part of the code draws that cursor. i only hope i can find it soon.

This code draws this cursor:

Cataclysm-DDA/src/cata_tiles.cpp

Lines 1224 to 1229 in 2bf28ea

	} else if( g->u.posx() + g->u.view_offset.x != g->ter_view_x ||
	g->u.posy() + g->u.view_offset.y != g->ter_view_y ) {
	// check to see if player is located at ter
	draw_from_id_string( "cursor", C_NONE, empty_string,
	{g->ter_view_x, g->ter_view_y, center.z}, 0, 0, LL_LIT, false );
	}

And a bit of info:

X:POS+OFF (66+1 = 67) != TERVIEW (73); DELTA = -6
X:POS+OFF (66+1 = 67) != TERVIEW (73); DELTA = -6
X:POS+OFF (66+10 = 76) != TERVIEW (82); DELTA = -6
X:POS+OFF (66+11 = 77) != TERVIEW (83); DELTA = -6
X:POS+OFF (66+12 = 78) != TERVIEW (84); DELTA = -6
X:POS+OFF (66+12 = 78) != TERVIEW (84); DELTA = -6
X:POS+OFF (66+2 = 68) != TERVIEW (74); DELTA = -6
X:POS+OFF (66+3 = 69) != TERVIEW (75); DELTA = -6
X:POS+OFF (66+4 = 70) != TERVIEW (76); DELTA = -6
X:POS+OFF (66+5 = 71) != TERVIEW (77); DELTA = -6
X:POS+OFF (66+6 = 72) != TERVIEW (78); DELTA = -6
X:POS+OFF (66+7 = 73) != TERVIEW (79); DELTA = -6
X:POS+OFF (66+8 = 74) != TERVIEW (80); DELTA = -6
X:POS+OFF (66+9 = 75) != TERVIEW (81); DELTA = -6
X:POS+OFF (66-0 = 66) != TERVIEW (72); DELTA = -6
X:POS+OFF (66-0 = 66) != TERVIEW (72); DELTA = -6
X:POS+OFF (66-0 = 66) != TERVIEW (72); DELTA = -6
X:POS+OFF (66-0 = 66) != TERVIEW (72); DELTA = -6
X:POS+OFF (66-0 = 66) != TERVIEW (72); DELTA = -6
X:POS+OFF (66-0 = 66) != TERVIEW (72); DELTA = -6
X:POS+OFF (66-0 = 66) != TERVIEW (72); DELTA = -6
X:POS+OFF (66-0 = 66) != TERVIEW (72); DELTA = -6
X:POS+OFF (66-0 = 66) != TERVIEW (72); DELTA = -6
X:POS+OFF (66-0 = 66) != TERVIEW (72); DELTA = -6
X:POS+OFF (66-0 = 66) != TERVIEW (72); DELTA = -6
X:POS+OFF (66-0 = 66) != TERVIEW (72); DELTA = -6
X:POS+OFF (66-0 = 66) != TERVIEW (72); DELTA = -6
X:POS+OFF (66-1 = 65) != TERVIEW (71); DELTA = -6
X:POS+OFF (66-1 = 65) != TERVIEW (71); DELTA = -6
X:POS+OFF (66-1 = 65) != TERVIEW (71); DELTA = -6
X:POS+OFF (66-10 = 56) != TERVIEW (62); DELTA = -6
X:POS+OFF (66-10 = 56) != TERVIEW (62); DELTA = -6
X:POS+OFF (66-11 = 55) != TERVIEW (61); DELTA = -6
X:POS+OFF (66-11 = 55) != TERVIEW (61); DELTA = -6
X:POS+OFF (66-12 = 54) != TERVIEW (60); DELTA = -6
X:POS+OFF (66-12 = 54) != TERVIEW (60); DELTA = -6
X:POS+OFF (66-13 = 53) != TERVIEW (59); DELTA = -6
X:POS+OFF (66-13 = 53) != TERVIEW (59); DELTA = -6
X:POS+OFF (66-14 = 52) != TERVIEW (58); DELTA = -6
X:POS+OFF (66-14 = 52) != TERVIEW (58); DELTA = -6
X:POS+OFF (66-15 = 51) != TERVIEW (57); DELTA = -6
X:POS+OFF (66-15 = 51) != TERVIEW (57); DELTA = -6
X:POS+OFF (66-16 = 50) != TERVIEW (56); DELTA = -6
X:POS+OFF (66-16 = 50) != TERVIEW (56); DELTA = -6
X:POS+OFF (66-17 = 49) != TERVIEW (55); DELTA = -6
X:POS+OFF (66-17 = 49) != TERVIEW (55); DELTA = -6
X:POS+OFF (66-18 = 48) != TERVIEW (54); DELTA = -6
X:POS+OFF (66-18 = 48) != TERVIEW (54); DELTA = -6
X:POS+OFF (66-19 = 47) != TERVIEW (53); DELTA = -6
X:POS+OFF (66-19 = 47) != TERVIEW (53); DELTA = -6
X:POS+OFF (66-2 = 64) != TERVIEW (70); DELTA = -6
X:POS+OFF (66-2 = 64) != TERVIEW (70); DELTA = -6
X:POS+OFF (66-20 = 46) != TERVIEW (52); DELTA = -6
X:POS+OFF (66-20 = 46) != TERVIEW (52); DELTA = -6
X:POS+OFF (66-21 = 45) != TERVIEW (51); DELTA = -6
X:POS+OFF (66-21 = 45) != TERVIEW (51); DELTA = -6
X:POS+OFF (66-22 = 44) != TERVIEW (50); DELTA = -6
X:POS+OFF (66-22 = 44) != TERVIEW (50); DELTA = -6
X:POS+OFF (66-23 = 43) != TERVIEW (49); DELTA = -6
X:POS+OFF (66-23 = 43) != TERVIEW (49); DELTA = -6
X:POS+OFF (66-24 = 42) != TERVIEW (48); DELTA = -6
X:POS+OFF (66-24 = 42) != TERVIEW (48); DELTA = -6
X:POS+OFF (66-25 = 41) != TERVIEW (47); DELTA = -6
X:POS+OFF (66-25 = 41) != TERVIEW (47); DELTA = -6
X:POS+OFF (66-26 = 40) != TERVIEW (46); DELTA = -6
X:POS+OFF (66-26 = 40) != TERVIEW (46); DELTA = -6
X:POS+OFF (66-27 = 39) != TERVIEW (45); DELTA = -6
X:POS+OFF (66-27 = 39) != TERVIEW (45); DELTA = -6
X:POS+OFF (66-28 = 38) != TERVIEW (44); DELTA = -6
X:POS+OFF (66-28 = 38) != TERVIEW (44); DELTA = -6
X:POS+OFF (66-29 = 37) != TERVIEW (43); DELTA = -6
X:POS+OFF (66-29 = 37) != TERVIEW (43); DELTA = -6
X:POS+OFF (66-3 = 63) != TERVIEW (69); DELTA = -6
X:POS+OFF (66-3 = 63) != TERVIEW (69); DELTA = -6
X:POS+OFF (66-30 = 36) != TERVIEW (42); DELTA = -6
X:POS+OFF (66-4 = 62) != TERVIEW (68); DELTA = -6
X:POS+OFF (66-4 = 62) != TERVIEW (68); DELTA = -6
X:POS+OFF (66-5 = 61) != TERVIEW (67); DELTA = -6
X:POS+OFF (66-5 = 61) != TERVIEW (67); DELTA = -6
X:POS+OFF (66-6 = 60) != TERVIEW (66); DELTA = -6
X:POS+OFF (66-6 = 60) != TERVIEW (66); DELTA = -6
X:POS+OFF (66-7 = 59) != TERVIEW (65); DELTA = -6
X:POS+OFF (66-7 = 59) != TERVIEW (65); DELTA = -6
X:POS+OFF (66-8 = 58) != TERVIEW (64); DELTA = -6
X:POS+OFF (66-8 = 58) != TERVIEW (64); DELTA = -6
X:POS+OFF (66-9 = 57) != TERVIEW (63); DELTA = -6
X:POS+OFF (66-9 = 57) != TERVIEW (63); DELTA = -6

received with this debug code:

    DebugLog( D_INFO, DC_ALL ) << "X:POS+OFF (" << g->u.posx() << ( g->u.view_offset.x > 0 ? "+" : "-" )
                               << abs( g->u.view_offset.x ) << " = "
                               << g->u.posx() + g->u.view_offset.x << ")"
                               << ( g->u.posx() + g->u.view_offset.x != g->ter_view_x ? " != " : " == " )
                               << "TERVIEW (" << g->ter_view_x  << ")"
                               << "; DELTA = " << g->u.posx() + g->u.view_offset.x - g->ter_view_x;

Apparently value of delta (i.e. -6) is a function of sidebar width, tile width and zoom factor (probably window size too), so maybe you just need to include sidebar width in the checks too.

[ZhilkinSerg]

Cursor now appears on player character when moving or waiting:

[OzoneH3]

• Player centering in curses works now.

Had to add #if (defined TILES || defined _WIN32 || defined WINDOWS) to

void to_map_font_dimension( int &w, int &h );
void from_map_font_dimension( int &w, int &h );
void to_overmap_font_dimension( int &w, int &h );
void reinitialize_framebuffer();

functions in game.cpp to make it compile.

List items:
The 'X' from draw_trail_to_square is to the right of the item:

Rain dose not artifact anymore but is not raining on the left side by the amount of the offset:

List monsters:
Cursor is off by one when switching to 'x look around' on monster.

[KorGgenT]

• Player centering in curses works now.

Had to add #if (defined TILES || defined _WIN32 || defined WINDOWS) to

void to_map_font_dimension( int &w, int &h );
void from_map_font_dimension( int &w, int &h );
void to_overmap_font_dimension( int &w, int &h );
void reinitialize_framebuffer();

functions in game.cpp to make it compile.

i was hoping the #if was going to do just that in sdltiles.cpp. you were having issues compiling it? i didn't particularly want to add the #if to every line in game.cpp those functions were defined; do you have any thoughts as to the correct way to get this to work with the header file?

[OzoneH3]

The issues come from game.cpp.
On the linux terminal version sdltiles dose not get included.
Gorgon has the same problem.

[KorGgenT]

then do i need to rename the header file? if it's not including even if i'm telling it to, no wonder i'm having problems

[OzoneH3]

You will have to put the prototypes and non tiles functions which return nothing somewhere else, where both console and tiles can find them (not too sure where best through).

[kevingranade]

Honestly this can wait if it checks out otherwise, but I see bullet trails from NPCs shooting at things being drawn with an offset. Somewhere in animation.cpp perhaps.
Also SCT and hit animations.

[ZhilkinSerg]

Honestly this can wait if it checks out otherwise, but I see bullet trails from NPCs shooting at things being drawn with an offset. Somewhere in animation.cpp perhaps.
Also SCT and hit animations.

Probably the same issue that was affecting snow/rain animation?

[kevingranade]

Bullet trails working, SCT messages still offset.
I don't think that's important enough to block this, I'll open an issue if I merge this before it's fixed.

[kevingranade]

Is it intentional that in compact view the minimap does not draw a border? It has one, but it looks like it's blanks.

[Tharn]

The issue with the 'view' cursor being drawn when it shouldn't is still there, albeit difficult to reproduce. I made the view cursor appear next to my character by switching windows and coming back to CDDA. I may have clicked on the screen as well.

It drew the cursor 1 tile to the left of my player character.
