renderer: fix infuriating grey line #287

Merged
merged 1 commit into from Feb 10, 2020
Merged

Conversation

@illwieckz
Copy link
Member

illwieckz commented Feb 9, 2020

Maybe I'm a wizard, then.

I've noticed that if the bug is not in SSAO neither FXAA code, using both makes worst artifacts than only one of those. I also noticed that ticking FXAA on and off (the later not requiring an engine restart), I was seeing the screen being more streched with on than off, in real time.

Here is with and without fxaa (while ssao is enabled):

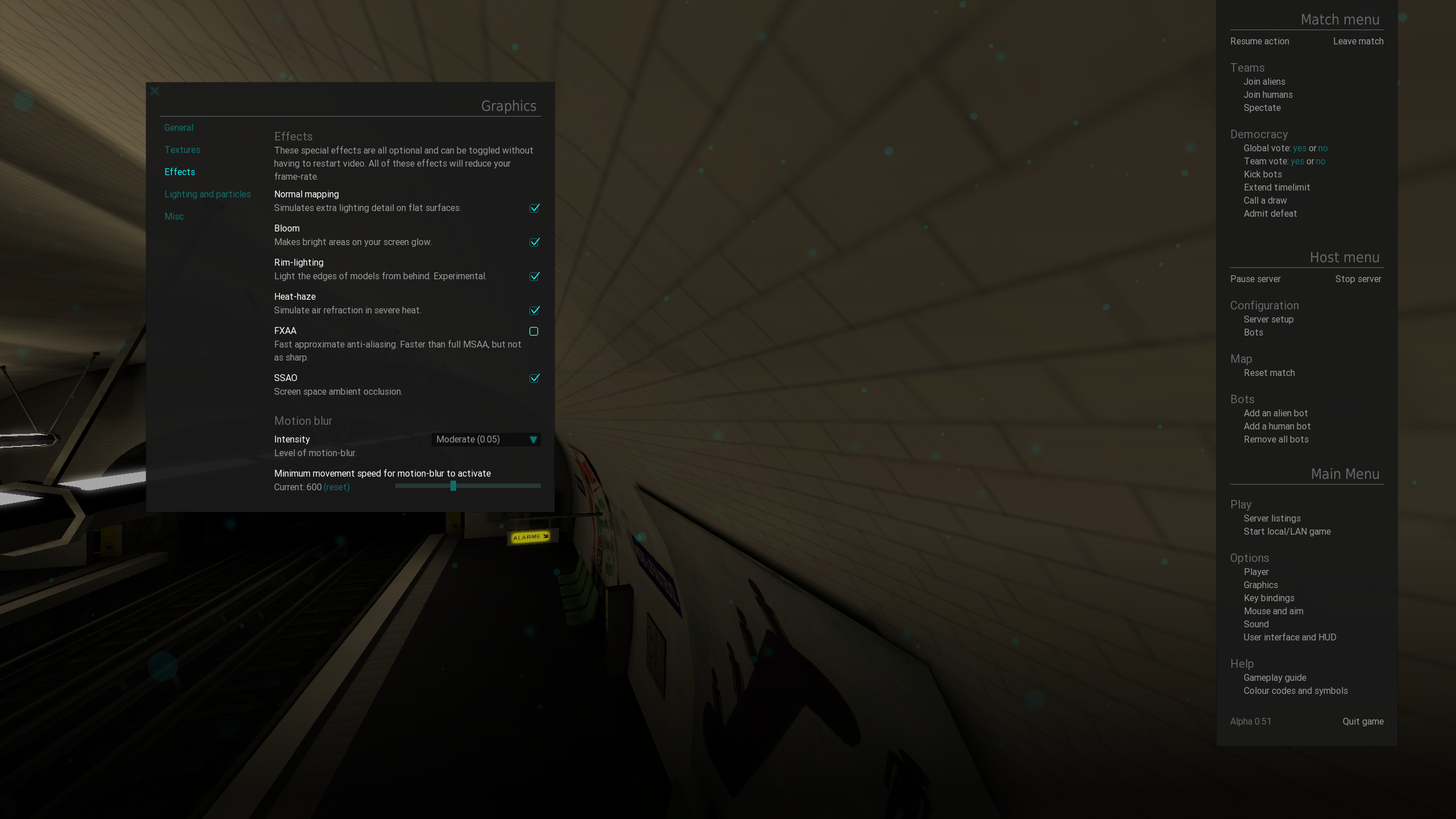

with ssao, without fxaa

with ssao, with fxaa

Those screenshots can also be seen there with a nice slider.

So, I've noticed that the only common code in both shaders was something like that:

gl_FragCoord.st * r_FBufScale;

Which is the computation for the pixel size.

I then thought: “maybe those floats in r_FBufScale (a vec2) have rounding errors”, I then modified them in shader the arbitrary way and I was able to produce garbage based on vertical and horizontal lines the same way:

garbage with lines

I then thought: “wait, those floats are passed from c++ to glsl, those floats are just the quotient of 1 by ints, we can pass them as int instead and translate multiplication by division”, I tried, it seems to work.

So, this is expected to fix Unvanquished/Unvanquished#858

On my side it does:

no more boggy lines

@illwieckz illwieckz mentioned this pull request Feb 9, 2020
@illwieckz

This comment has been minimized.

Copy link
Member Author

illwieckz commented Feb 9, 2020

@DolceTriade the bug was almost 15 years old:

https://sourceforge.net/p/xreal/svn/462

added various post process effects
Sat Oct 1 15:31:01 2005 +0000

@DolceTriade

This comment has been minimized.

Copy link
Contributor

DolceTriade commented Feb 9, 2020

Ha! Nice find!

@slipher

This comment has been minimized.

Copy link
Member

slipher commented Feb 10, 2020

How can this be so important? The max error of a float is 30 parts per billion. It's hard to see how this could make a difference.

@illwieckz

This comment has been minimized.

Copy link
Member Author

illwieckz commented Feb 10, 2020

@slipher, the big difference I see is that when this float is set as a define, it is not copied from CPU memory to GPU memory, but stringified by some Str::Format then parsed by the glsl renderer. There is high chance to see a truncation there.

In this case the bug was probably hidden until 2008, when those floats were converted from uniforms to defines:

https://sourceforge.net/p/xreal/svn/1963

u_FBufScale -> r_FBufScale
u_NPOTScale -> r_NPOTScale
Tue Jan 8 17:26:35 2008 +0000

Also, 1/1024 is rational (.0009765625 × 1024 = 1) so vertical line may not occur on 1024×768 screen (very common resolution in 2005, still very present in 2008) while 1/1920 seems to not be (.00052083333333333333 × 1920 ≈ .99999999999999999360), the 1920×1080 (or multiple of it) resolution usage growing since like never.

And in any way, the shortest Str::Format truncates, the faster the bug may occur.

@illwieckz illwieckz changed the title renderer: attempt to fix infuriating grey line renderer: fix infuriating grey line Feb 10, 2020
@illwieckz illwieckz force-pushed the illwieckz:greyline branch 2 times, most recently from 0b237d2 to 65768df Feb 10, 2020
@illwieckz illwieckz merged commit 0e1f11c into DaemonEngine:master Feb 10, 2020
0 of 2 checks passed
0 of 2 checks passed
continuous-integration/appveyor/pr Waiting for AppVeyor build to complete
Details
continuous-integration/travis-ci/pr The Travis CI build is in progress
Details
@illwieckz

This comment has been minimized.

Copy link
Member Author

illwieckz commented Feb 10, 2020

This also fixed the heatHaze edge bug:

heatHaze edge bug

This was a bug that I don't remember having noticed while playing at 1920×1080, but this bug started to be noticeable at 2560×1440 and became very obvious and annoying at 3840×2160.

I'm not able to reproduce it anymore.

@illwieckz

This comment has been minimized.

Copy link
Member Author

illwieckz commented Feb 10, 2020

This also fixed the fog offset issue I talked about in Unvanquished/Unvanquished#799 (comment) .

etmain on Daemon

etmain on Daemon

@DolceTriade

This comment has been minimized.

Copy link
Contributor

DolceTriade commented Feb 10, 2020

Dang, big impact fix!
