Simulating a 2D Hovering SpaceX Grasshopper with a Thrust Vector Control) engine.
Python
Fetching latest commit…
Cannot retrieve the latest commit at this time.
Permalink
Failed to load latest commit information.
data/themes
pgu
.gitattributes
.gitignore
README.md
framework.py
pygame_framework.py
pygame_gui.py
settings.py
test_grasshopper.py

README.md

2D Hovering Rocket with TVC (Thrust Vector Control) engine.

Visuals

The system is controlled by 3 PD controllers.

The first controls throttle based on altitude. The second controls TVC angle based on orientation. The third modifies TVC angle based on lateral drift.

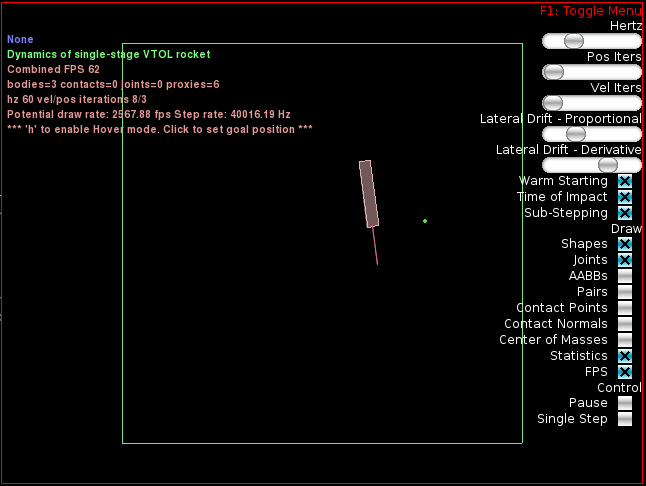

The rocket is modelled as a simple 5.5x33m box massing 10 tons, with a maximum thrust of 500 kN. A blue line shows the force in the normal direction. Thrust is shown as a red line, which is in the direction dictated by the TVC controllers. Components

Pressing 'i' for info returns PID values:

    PID Values:
       lateral drift : PID(1.5,0,5.25)
            altitude : PID(0.3,0,0.67)
            attitude : PID(0.4,0,0.2)
