MSE Benchmark v1.1

The MSE (Material Sciences and Engineering) benchmark was created by Engy Nasr during her Master's Thesis in Computer Science at the Albert-Ludwigs-Universität Freiburg: Evaluation of Automatic Ontology Matching for Materials Sciences and Engineering (2020).

This GitHub repository serves for management and further development of the benchmark as well as for evaluation of matching systems in OAEI campaigns.

The MSE Benchmark was used as MSE track to evaluate ontology matching systems in the OAEI campaign 2023:

Table of Content

The MSE Benchmark v1 consists of three MSE test cases each including two ontologies, a manual reference alignment for every test case and MSE-related background knowledge ontologies:

  • Test Cases

    • First Test Case:
      • Source Ontology (O1)
      • Target Ontology (O2)
      • Manual Reference Alignment (R)
    • Second Test Case:
      • Source Ontology (O1)
      • Target Ontology (O2)
      • Manual Reference Alignment (R)
    • Third Test Case:
      • Source Ontology (O1)
      • Target Ontology (O2)
      • Manual Reference Alignment (R)

  • Resources (Background Knowledge Ontologies)

    • Periodic Table Dictionary
    • EMMO (European Materials Modelling Ontology)
    • Other resources were used like WordNet which can be found on their Github repo.

The MSE benchmark consists of three test cases. The ontologies chosen do not target very specialized disciplines of the MSE domain, e.g. ceramics. They are designed to be general to the MSE domain. Being from a similar level of specialization, they should be matched to each other and used for the evaluation of the ontology matchers.

A test case consists of two OWL-ontologies chosen from these MSE ontologies:

  • MaterialInformation ontology created by Toshihiro Ashino
    • The ontology is not openly available, however, it was provided upon request.
    • The ontology is not based on an upper level ontology, which makes the ontology not easily interoperable with other MSE ontologies.
    • The ontology is also divided into smaller ontologies (partitions).
    • The partitions are Environment, Geometry, Material Information, Manufacturing Process, Property, Substance, Unit Dimension, Structure, Equation and Physical Constant.
    • The full ontology consists of 545 classes, 98 properties (relations) and 411 individuals (instances of the classes).

  • MatOnto available on GitHub
    • The cloned ontology's files are RDF data, saved in Turtle (.ttl) format.
    • The files are converted from Turtle format into RDF/XML, (.OWL).
    • The ontology is based on the upper level ontology, the BFO.
    • The full ontology consists of 847 classes, 96 properties (relations) and 131 individuals (instances of the classes).

  • EMMO (European Materials Modelling Ontology) v1.0.0-alpha2, available on Github
    • EMMO is a MSE ontology still in development.
    • This version is downloaded on November 2020.
    • EMMO is an upper and mid level ontology.
    • EMMO adapts the BFO in its creation, accordingly classes are similar to the BFO but modified.
    • The full ontology consists of 451 classes, 35 properties (relations) and 0 individuals (instances of the classes).

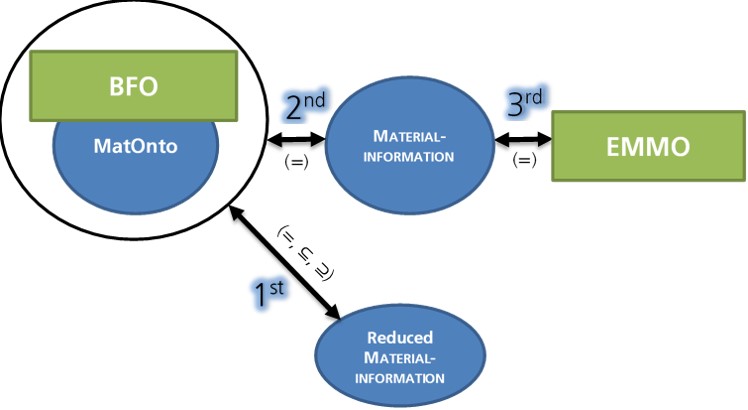

Summary of the three test cases compositions, created from above mentioned MSE ontologies, such that the green rectangles show the upper level ontologies EMMO and the BFO and the blue circles show the domain specific ontologies. The 1st test case is between a reduced subset of MaterialInformation ontology and the complete MatOnto (BFO + MatOnto). The 2nd test case is between the complete MaterialInformation ontology and the complete MatOnto (BFO + MatOnto). Finally, the 3rd test case is between the EMMO upper level ontology and the complete MaterialInformation ontology.

1st Test Case: MatOnto - Reduced MaterialInformation

  • This test case is designed to demonstrate the behavior of the ontology matchers upon two domain specific MSE ontologies. It is designed small in terms of the number of entities to be able to evaluate and discuss ontology matchers on the expected possible logical relations (e.g., =, ⊆, ⊇, ⊥) that would be the best practice to have as alignments between the two ontologies’ classes, enabling an easier interoperable merging afterwards.
  • The test case is designed to discuss how each matcher implicitly shows more logical relations and how to improve each matcher result.

2nd Test Case: MaterialInformation - MatOnto

  • This test case is a bigger scale version of the 1st test case in terms of the number entities, but not in terms of the variety of logical relations, it only consists of the equivalence (=) logical relation.
  • Both of the ontologies included in the test case are domain specific ontologies, MatOnto bases on the BFO as its upper level ontology. However, MaterialInformation has no base in terms of upper level ontology.
  • This test case is a typical practice if two MSE domain ontologies are decided to be merged in one ontology to see how far the ontology matchers will get alignments of ontologies’ classes of the same domain, and how the ontology matchers will help in improving interoperability between these two ontologies due to the difference of usage of the formal ontologies.

3rd Test Case: EMMO - MaterialInformation

  • This test case is designed for a case in which a domain ontology has to be merged to an upper level ontology in order to maximize the cross-domain interoperability of this domain ontology.
  • To do so, the most commonly known upper level ontology in the domain ontology's domain is chosen, and then merged to it.
  • Accordingly, a matching should be done first between the domain ontology and the upper level ontology chosen. The EMMO is chosen as an upper level ontology, since EMMO is mainly designed for the MSE domain.

The second part of the MSE benchmark is the manual reference alignment, which are the expected result from the test cases’ alignment. They are compared to the result of the ontology matchers. For every test case, a manual reference alignment is created.

  • Singulars and plurals are equivalently matched (e.g. water = waters).
  • Only classes correspondances are included (No properties or individuals alignment).

1st Test Case:

Includes all possible types of logical relations (correspondences) between ontologies’ classes, subclass (⊆) , superclass (⊇) and equivalence (=).

2nd Test Case:

Include only the equivalence (=) logical relation (correspondences) between the ontologies’ classes.

3rd Test Case:

Include only the equivalence (=) logical relation (correspondences) between the ontologies’ classes.

The background knowledge ontology act as resources (semantic bridge), a midway in the matching process between the two input ontologies. If a class from the first ontology is not lexically aligned (String Matching) to another class from the second ontology, but they are defined to be synonymous of each other in the background kwowledge ontology, then they will be aligned together as equivalent based on the knowledge provided by the background knowledge ontology.

Periodic Table Dictionary:

  • The dictionary is created using Protege, saved as an ontology (.OWL) file to represent a specific case that was spot out from the test cases creation.
  • It includes all elements of the periodic table, and in the same class of each element the (rdf:label) includes the element’s abbreviation.


  • The ontology is also chosen as a background knowledge ontology since it incorporates a rich hierarchy and is designed for multiscale materials modelling.
  • In consequence, the importance of the choice of the corresponding background knowledge ontology for each ontology matching process can be discussed.


MSE Track for evaluating ontology matching tools
