VisualScripting With DlibFaceLandmarkDetector Example

Overview

Environment

• Unity 2021.3.28f1
• Dlib FaceLandmarkDetector 1.3.4+
• OpenCV for Unity 2.5.5+
• Visual Scripting 1.8.0

Setup

1. Download the latest release unitypackage. VisualScriptingWithDlibFaceLandmarkDetectorExample.unitypackage
2. Create a new project.
3. Import the OpenCVForUnity.
4. Import the DlibFaceLandmarkDetector.
   • Select MenuItem[Tools/OpenCV for Unity/Open Setup Tools].
   • Click the [Move StreamingAssets Folder] button.
   • Click the [Import OpenCV Example Package] button.
5. Import the VisualScriptingWithOpenCVForUnityExample.unitypackage.
6. Replace "Assets/VisualScriptingWithDlibFaceLandmarkDetectorExample/VisualScriptingSettings.asset" to "ProjectSettings/VisualScriptingSettings.asset".
7. Project Settings > Visual Scripting > Regenerate Units

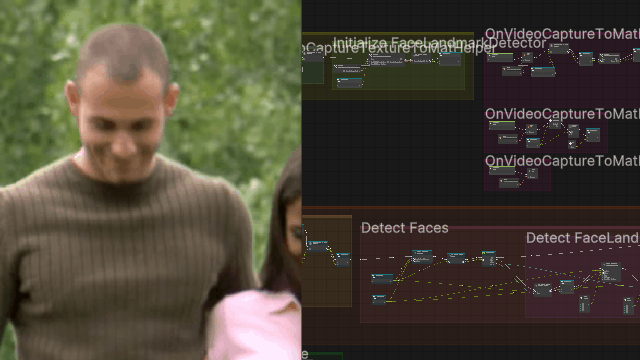

ScreenShot
