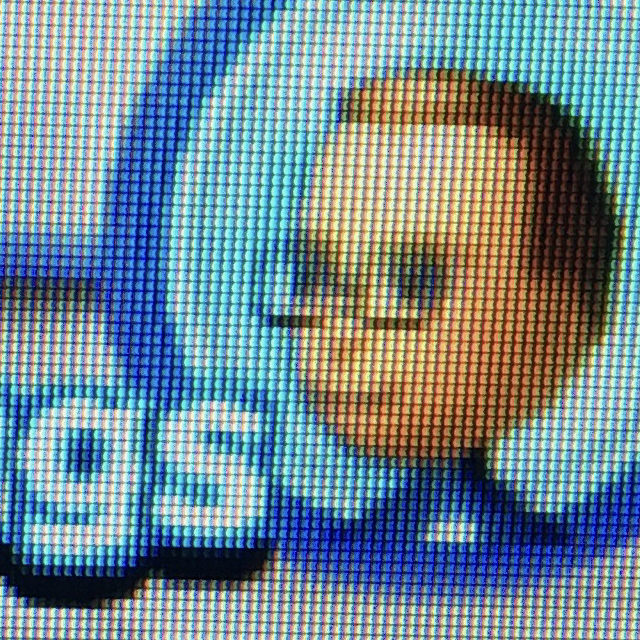

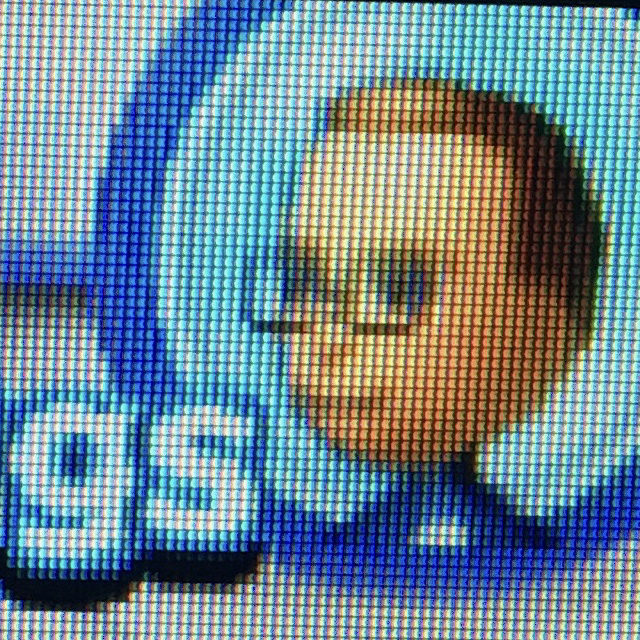

Fix enhanced definition video quality on Wii.

  • Loading branch information...
Extrems committed Apr 10, 2019
1 parent 15795a3 commit 941d687e271fada68c359bbed98bed1fbb454448
Showing with 29 additions and 14 deletions.
  1. +29 −14 libogc/video.c
@@ -2774,7 +2774,8 @@ static const struct _timing {
static u32 vdacFlagRegion;
static u32 i2cIdentFirst = 0;
static u32 i2cIdentFlag = 1;
static u32 oldTvStatus = 0x03e7;
static u32 oldViMode = 0x03e7;
static u32 oldTvMode = 0x03e7;
static u32 oldDtvStatus = 0x03e7;
static vu32* const _i2cReg = (u32*)0xCD800000;
#endif
@@ -3544,6 +3545,11 @@ static void __VIWriteI2CRegisterBuf(u8 reg, int size, u8 *data)
udelay(2);
}

static void __VISetOverSampling(u8 enable)
{
__VIWriteI2CRegister8(0x65, enable);
}

static void __VISetVolume(u8 left, u8 right)
{
__VIWriteI2CRegister16(0x71, (left<<8)|right);
@@ -3581,18 +3587,21 @@ static void __VISetupEncoder(void)
0x00
};

u8 dtv, tv;
u8 dtv, tvmode, vimode;

tv = VIDEO_GetCurrentTvMode();
vimode = VIDEO_GetCurrentViMode();
tvmode = VIDEO_GetCurrentTvMode();
dtv = VIDEO_HaveComponentCable();
oldDtvStatus = dtv;

// SetRevolutionModeSimple

memset(macrobuf, 0, 0x1a);

__VIWriteI2CRegister8(0x6a, 1);
__VIWriteI2CRegister8(0x65, 1);

if(vimode&VI_CLOCK_54MHZ) __VISetOverSampling(3);
else __VISetOverSampling(1);

__VISetYUVSEL(dtv);
__VIWriteI2CRegister8(0x00, 0);
__VISetVolume(0x8e, 0x8e);
@@ -3613,10 +3622,8 @@ static void __VISetupEncoder(void)

__VIWriteI2CRegister8(0x04, 1);

if(tv==VI_EURGB60) __VISetFilterEURGB60(1);
if(tvmode==VI_EURGB60) __VISetFilterEURGB60(1);
else __VISetFilterEURGB60(0);
oldTvStatus = tv;

}
#endif

@@ -3730,7 +3737,7 @@ static inline void __VIGetCurrentPosition(s32 *px,s32 *py)
static void __VIRetraceHandler(u32 nIrq,frame_context *pCtx)
{
#if defined(HW_RVL)
u8 dtv, tv;
u8 dtv, tvmode, vimode;
#endif
u32 ret = 0;
u32 intr;
@@ -3779,16 +3786,24 @@ static void __VIRetraceHandler(u32 nIrq,frame_context *pCtx)
}
}
#if defined(HW_RVL)
tv = VIDEO_GetCurrentTvMode();
vimode = VIDEO_GetCurrentViMode();
tvmode = VIDEO_GetCurrentTvMode();
dtv = VIDEO_HaveComponentCable();
if(dtv!=oldDtvStatus || tv!=oldTvStatus) __VISetYUVSEL(dtv);

if(vimode!=oldViMode) {
if(vimode&VI_CLOCK_54MHZ) __VISetOverSampling(3);
else __VISetOverSampling(1);
}
oldViMode = vimode;

if(dtv!=oldDtvStatus || tvmode!=oldTvMode) __VISetYUVSEL(dtv);
oldDtvStatus = dtv;

if(tv!=oldTvStatus) {
if(tv==VI_EURGB60) __VISetFilterEURGB60(1);
if(tvmode!=oldTvMode) {
if(tvmode==VI_EURGB60) __VISetFilterEURGB60(1);
else __VISetFilterEURGB60(0);
}
oldTvStatus = tv;
oldTvMode = tvmode;
#endif
if(postRetraceCB)
postRetraceCB(retraceCount);
