FMCHUB.COM edited this page Jul 25, 2017 · 12 revisions

Single Width FMC Template with Low-Pin Count (LPC) connector - Commercial Grade Mounting

This repository is managed by FMCHUB. It provides templates for printed circuit boards (PCB) according to ANSI/VITA 57 FPGA Mezzanine Card (FMC) Standard with Altium Designer.

Content

1. General information

The commercial grade form factor of an FMC is typically an air cooled module with no thermal interfaces. Such an FMC module has up to three different regions, which are specified as follows ([PDF] FMC single width regions): FMC Single width regions

A printed circuit board (PCB) with all three regions looks as follows: FMC single width template with regions 1, 2, and 3

The templates use Lib_Altium for ANSI/VITA 57 FMC modules from FMCHUB

2. PCB templates:

2.1 FMC Template (Commercial grade, LPC) with Region 2

FMC Template, Commercial grade, LPC, Region 2

FMC Template, Commercial grade, LPC, Region 2

[PDF] FMC Template (Commercial grade, LPC) with Region 2 - PCB Prints

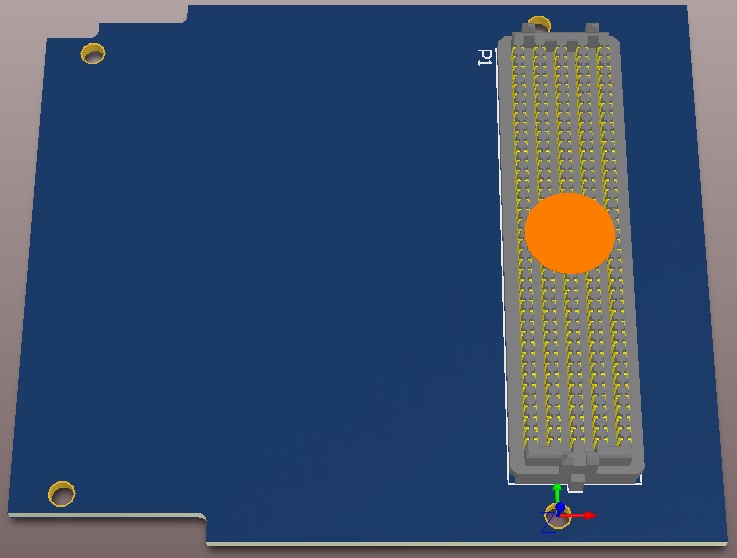

2.2 FMC Template (Commercial grade, LPC) with Region 2 3

FMC Template, Commercial grade, LPC, Region 2 3

FMC Template, Commercial grade, LPC, Region 2 3

[PDF] FMC Template (Commercial grade, LPC) with Region 2 3 - PCB Prints

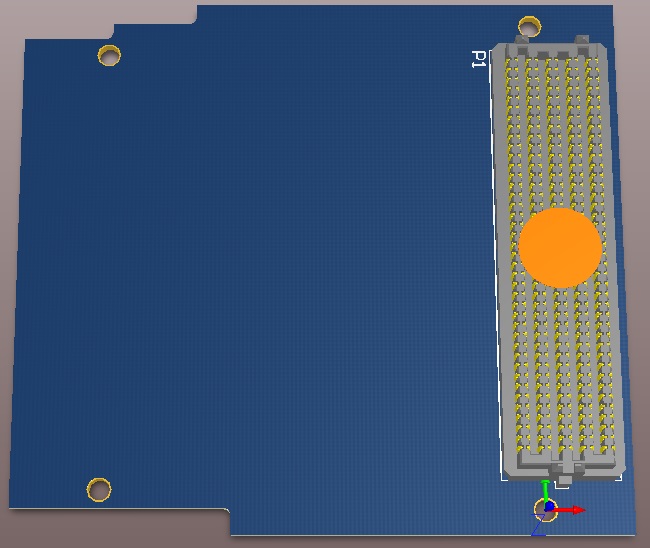

2.3 FMC Template (Commercial grade, LPC) with Region 1 2

FMC Template, Commercial grade, LPC, Region 1 2

FMC Template, Commercial grade, LPC, Region 1 2

[PDF] FMC Template (Commercial grade, LPC) with Region 1 2 - PCB Prints

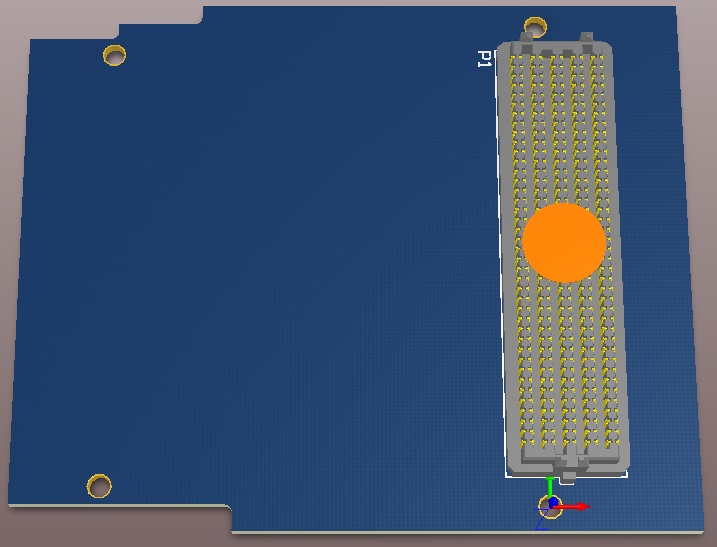

2.4 Region 1 2 3

FMC Template, Commercial grade, LPC, Region 1 2 3

FMC Template, Commercial grade, LPC, Region 1 2 3

[PDF] FMC Template (Commercial grade, LPC) with Region 1 2 3 - PCB Prints
