Share your setups

[FelixKratz]

I am very interested in what you create with sketchybar, and would enjoy to see some of your setups. Share them below and consider linking your dotfiles, such that others can use your setup as a starting point for their configuration.

[neutonfoo]

May 2024 Update

Just tested and this bar still works! I went ahead and updated my dotfiles to use the latest Nerd Fonts. I'm using JetBrainsMono Nerd Font, which you can get here, and you will also need jq which you can install with Homebrew.

I appreciate everyone who has tried my config out and all the kind comments :)

---

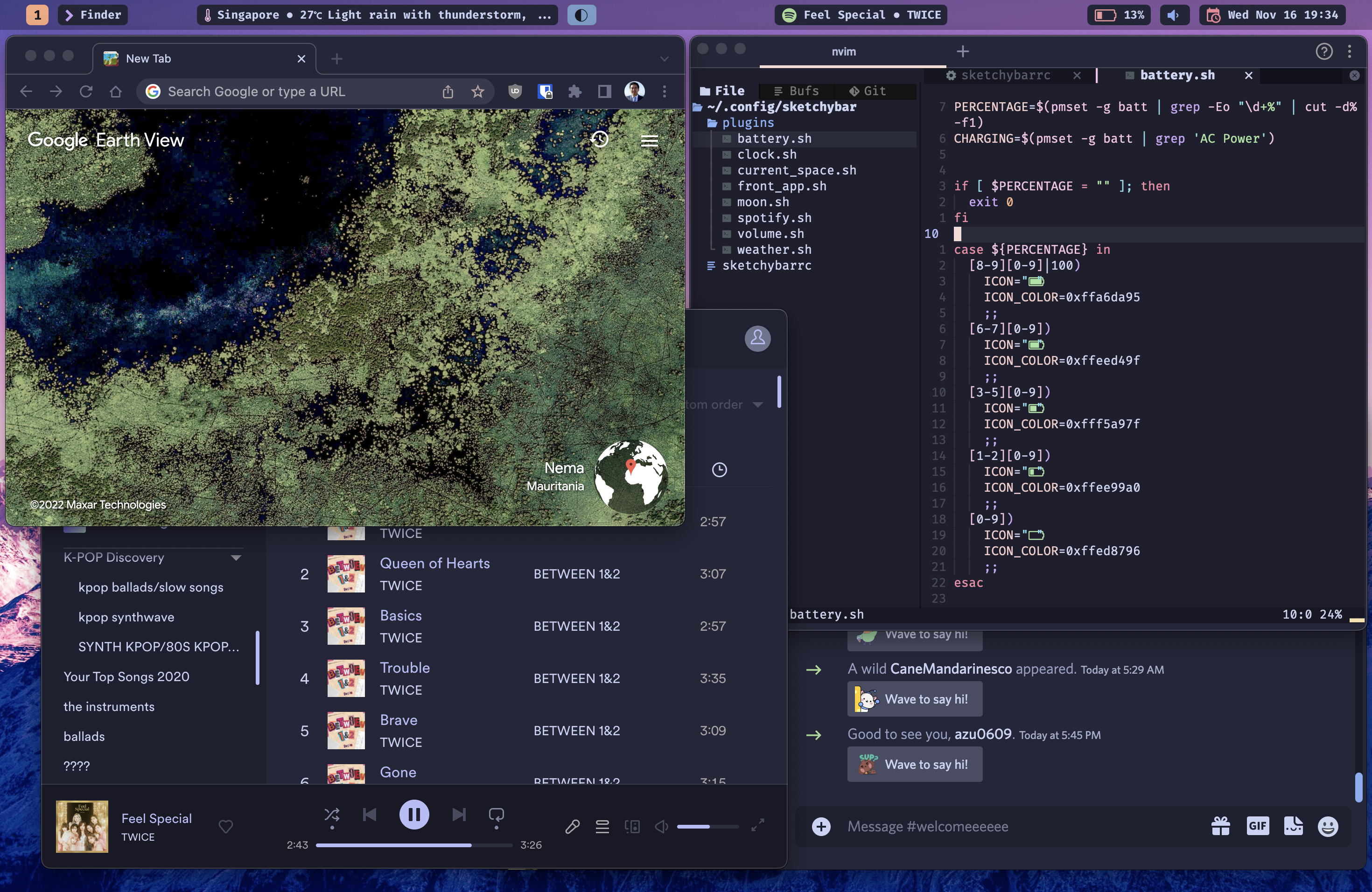

My minimalist catppuccin macchiato setup! Everything from Google Chrome, Discord, Spotify, Terminal and now my bar!

The empty space in the middle is where my MacBook Air's notch is, with the moon phase to the left, and the current Spotify song to the right (can be clicked to pause). The lollipop can be clicked to move to the next track. There's some padding on the sides of the bar because FaceTime adds an orange dot to the top right coner of the screen during a call.

My configs can be found in my dotfiles repo https://github.com/neutonfoo/dotfiles.

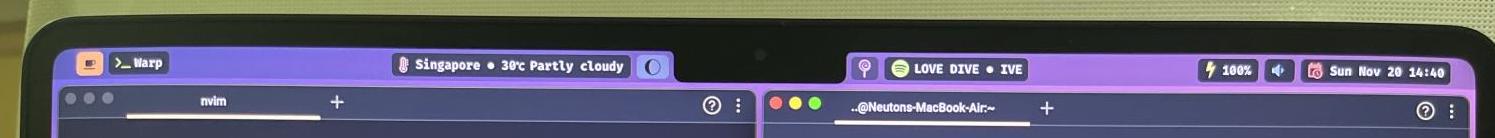

With the notch:

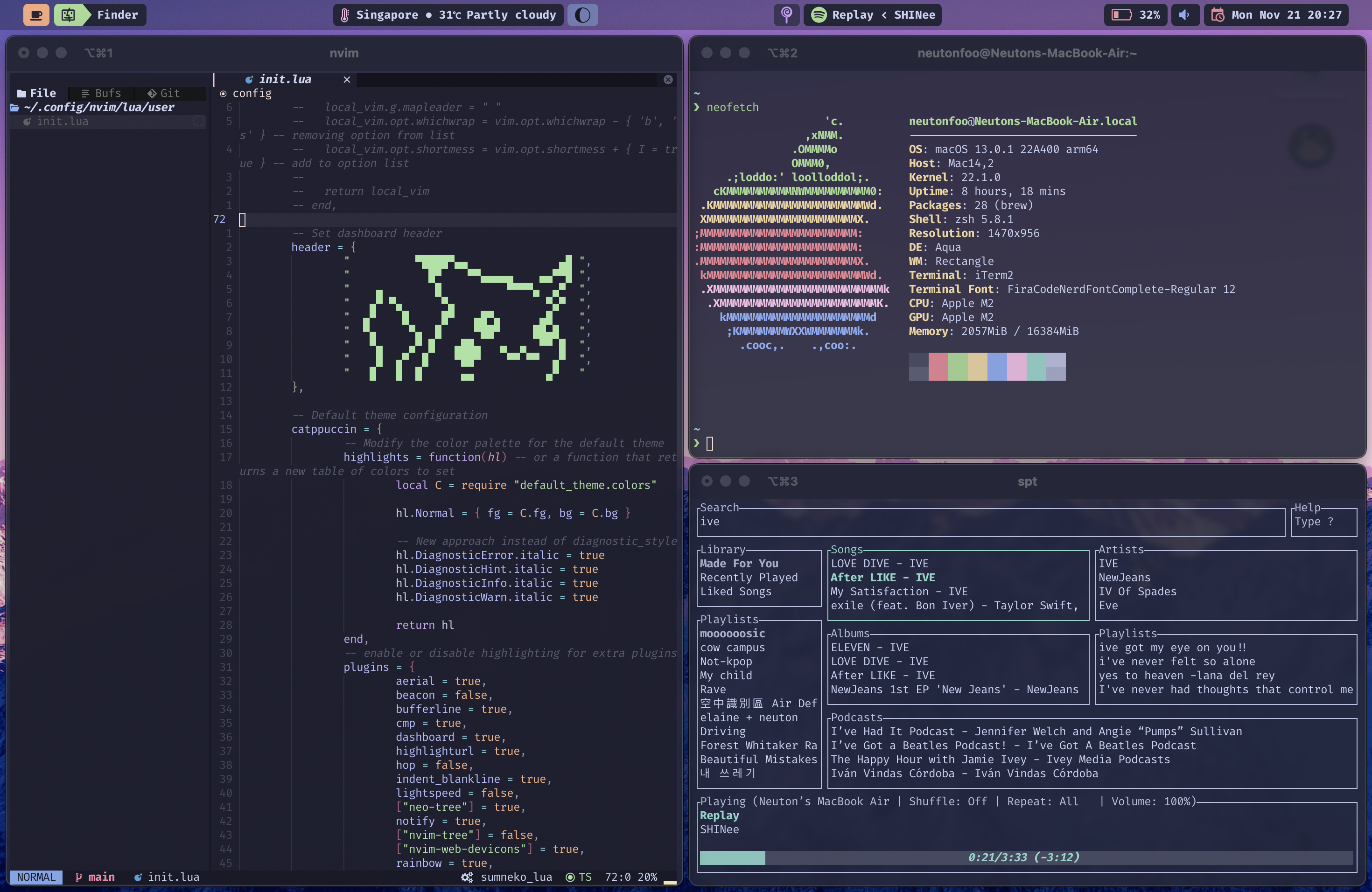

Everything Catppuccin:

[juliogc]

@patillacode Unfortunately, I left Sketchybar and dumped all my config files but I still remember that the panel was built using the following:

• Popup menu for the panel displaying all configs
• Slider and a few osascript to make it change volume level
• deweller/switchaudio-osx to list and change my output devices

[patillacode]

Ok, thanks!

[TmLev]

@juliogc why did you leave it?

[juliogc]

@juliogc why did you leave it?

@TmLev I would say that's because it made me realize that I use the top bar more than I thought, and having to rewrite basic system functionality, combined with the time I spent learning and creating my own config (I'm not just a copy-paster), hasn't paid off

[neutonfoo]

@juliogc Same, it was also especially hard to revisit and maintain after a while of not looking at it. At some point I realized it was also a little silly having two toolbars as I use the native app ones pretty frequently.

[FelixKratz]

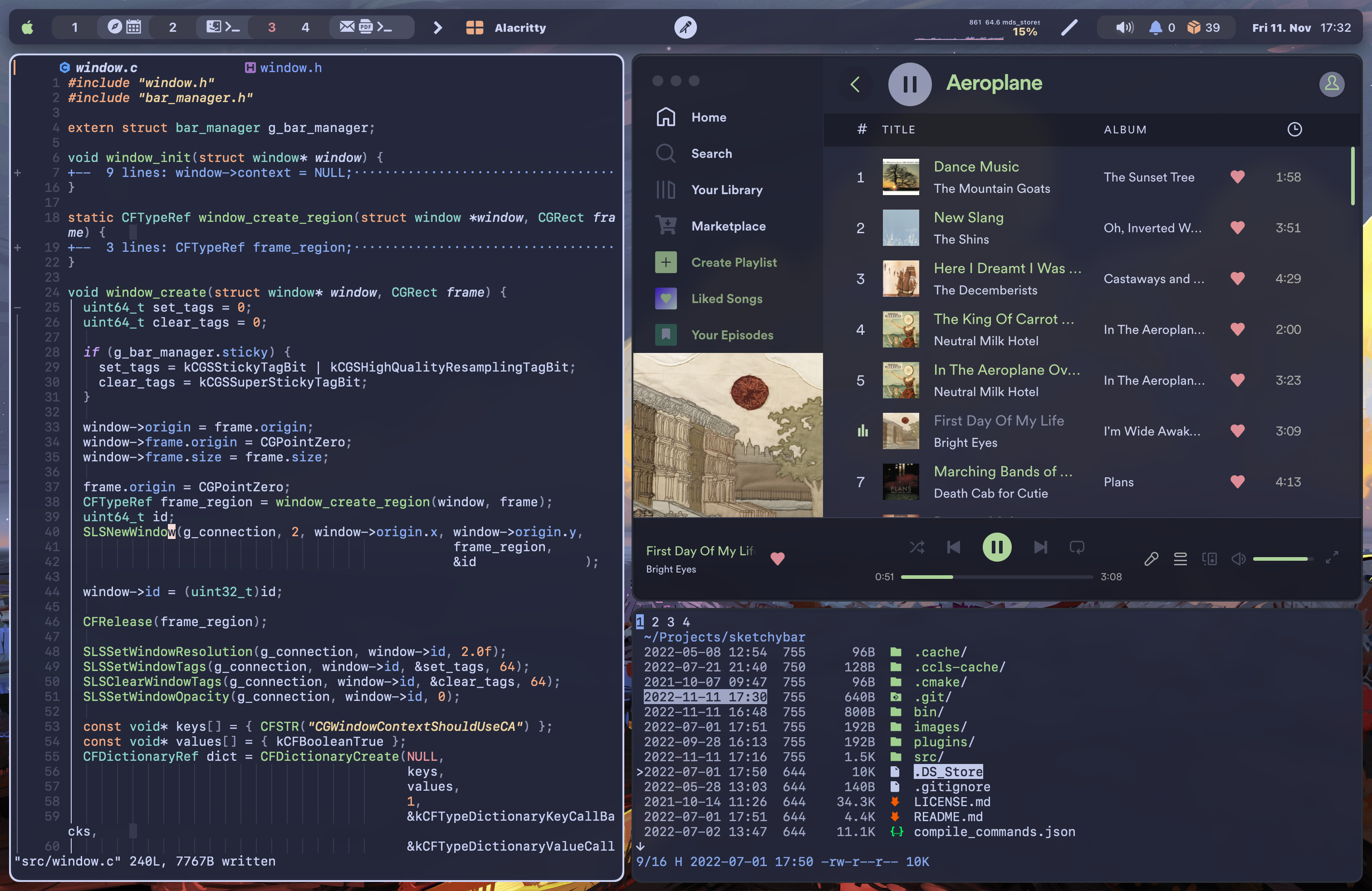

Slight redesign with some new features:

• I am using the excellent sketchybar-app-font to display the active applications in the spaces. The active space animates their active applications to disappear:

Screen.Recording.2022-11-11.at.17.56.09.mov

• Left clicking a space will focus it, right clicking a space will destroy that space; clicking in the separator (>) will create a new space (all using yabai SIP disabled)

• Mousing over the music icon in the center gives a small spotify player widget with player controls:

• The volume icon on the right side can be clicked to toggle mute and animates volume changes:

Screen.Recording.2022-11-11.at.17.58.19.mov

• The volume icon on the right side can be right-clicked to show and select the audio output device:


• The bell can be hovered to view github notifications

• Clicking the date/time toggles a "zen" mode, hiding all distracting items in the bar:

Dotfiles for this setup: https://github.com/FelixKratz/dotfiles/tree/e6288b3f4220ca1ac64a68e60fced2d4c3e3e20b

[hjm79]

I'm attempting to replace the Spotify icon with the album cover, but I'm encountering an issue.

Original section:

spotify_anchor=(
script="$PLUGIN_DIR/spotify.sh"
click_script="$POPUP_SCRIPT"
popup.horizontal=on
popup.align=center
popup.height=150
icon=􁁒
icon.font="$FONT:Regular:25.0"
label.drawing=off
drawing=off
y_offset=2
)

Modified section:

COVER="/tmp/cover.jpg"

spotify_anchor=(
script="$PLUGIN_DIR/spotify.sh"
click_script="$POPUP_SCRIPT"
popup.horizontal=on
popup.align=center
popup.height=150
background.image="$COVER"
background.image.drawing=on
background.drawing=on
background.image.scale=0.08
background.image.corner_radius=20
shadow=on
label.drawing=off
icon.drawing=off
drawing=off
y_offset=-2
)

I've made the changes as indicated above, but the album cover doesn't seem to update. Could you please advise on how to correctly replace the Spotify icon with the album cover?

[alphaGengar]

@hjm79
any chance you figured this out?

[alphaGengar]

@hjm79
I got a fix working, but it's pretty glitchy still and takes a bit to update
In plugins/spotify.sh in the update() function, you have to add this

--set spotify.anchor background.image="/tmp/cover.jpg" background.color=0x00000000

[kennedyshead]

I would like to change front_app to {Appname > title} (Working on an sketchybar / yabai / nb integrated browser and need to have some crumbs).
Had it working, but wanted to update and 💥 Lua and c no more bash :D

I can probably figure it out, but my C skills are a bit behind (been 7yrs)

[yeah-mr-white]

if there anyone else who's using sketchybar (exactly like this theme), could it be possible to get your dotfiles?

[ssate]

My Nord themed setup.

This is still very much a wip and there are some things I want to change but as it is slowly coming together I figured I would share it :-)

[prgres]

Could share your dot files?

[Ethnical]

Hello there could you share your dot files for the bar she is nice! :)

[schulzf]

how do you get rid of the window shadows?

[nikth0]

https://github.com/ssate/dotfiles

[danscheer]

Very nice! Im almost there, but i dont get the window border-radius to 0. How did you make it?

[oxgr]

I've been really digging the experimental position=left feature. The extra vertical space gets very handy.

I mostly have one app per space and this screenshot is just for the rice. Top five icons are main spaces, bottom four are open workspaces, not showing a secret tenth space where I hide my toggle terminal hehe. Icons are dimmed when there are no windows. The little dot next to the space icon is a lil indicator for a yabai stack since I always forget where I have them.

Not shown is a diy pomodoro timer that pops up under the clock on a shortcut. Apps shown are most commonly used ones: lf, lazygit, nvim, bottom, Firefox, Obsidian.

Color palette is loosely based on a the Square iTerm theme which interestingly sets a saturated magenta for normal green. Otherwise the few bright colours are reserved for highlights since I have the attention span of a kitten.

Posting rc in comment...

[cobcobs]

@oxgr I would also love to see the plugin scripts :)

[andynameistaken]

@oxgr could you share dotfiles?

[21J3phy]

@oxgr can you slide dotfiles🙏🏾

[FormalSnake]

the entire dotfiles?

[ariccb]

sketchybarrc

CONFIG_DIR="$HOME/.config/sketchybar"

. "$CONFIG_DIR/globals.sh"

. "$CONFIG_DIR/items.sh"



sketchybar --bar "${SB_BAR[@]}" --default "${SB_DEFAULT[@]}"

sketchybar --add event window_change



###### Top ######



sb_clock left

sb_pomodoro left

sb_separator left 14 14

sb_date left

sb_separator left 20 16

sb_spaces left



###### Btm ######



sb_wifi right

sb_battery right

sb_volume right

sb_separator right 12 12



##################



sketchybar --update

items.sh

#!/bin/bash



CONFIG_DIR="$HOME/.config/sketchybar"

. "$CONFIG_DIR/globals.sh"



sb_separator() {

	sepName="sep$RANDOM"

	sketchybar \

		--add item "$sepName" "$1" \

		--set "$sepName" \

		\

		label="───────" \

		padding_left="$2" \

		padding_right="$3" \

		icon.drawing=off \

		label.font.size=9.0 \

		label.color="$OX_DIM"

}



sb_clock() {

	sketchybar \

		--add item clock "$1" \

		--set clock \

		\

		update_freq=10 \

		label.font.size=14.0 \

		icon= \

		icon.drawing=off \

		script="$PLUGIN_DIR/clock.sh"

}



sb_pomodoro() {

	sketchybar \

		--add item pomodoro "$1" \

		--set pomodoro \

		\

		update_freq=1 \

		label.font.size=14.0 \

		label.highlight_color="$OX_ORG" \

		label.highlight=off \

		icon= \

		icon.drawing=off \

		updates="when_shown" \

		drawing=off \

		script="$PLUGIN_DIR/pomodoro.sh"

}



sb_date() {

	sketchybar \

		--add item day "$1" --set day update_freq=120 icon.drawing=off padding_right=4 label="$(date '+%a')" \

		--add item date "$1" --set date update_freq=120 icon.drawing=off padding_right=4 label="$(date '+%d' | sed s/^0//)" \

		--add item month "$1" --set month update_freq=120 icon.drawing=off padding_right=4 label="$(date '+%b')"

}



sb_spaces() {

	for i in "${!SPACE_ICONS[@]}"; do

		sid=$((i + 1))



		sketchybar \

			--add space space.$sid "$1" \

			--subscribe space.$sid window_change \

			--set space.$sid \

			\

			associated_space=$sid \

			icon="$i" \

			icon="${SPACE_ICONS[i]}" \

			icon.font.size=14 \

			label="·" \

			label.drawing=off \

			script="$PLUGIN_DIR/space.sh" \

			click_script="yabai -m space --focus $sid"



		if [[ $sid == 5 ]]; then sb_separator left 14 14; fi

	done

}



sb_wifi() {

	sketchybar \

		--add item wifi "$1" \

		--subscribe wifi wifi_change \

		--set wifi \

		\

		script="$PLUGIN_DIR/wifi.sh" \

		icon=􀙇 \

		label.color=$OX_DIM

}



sb_battery() {

	sketchybar \

		--add item battery "$1" \

		--subscribe battery system_woke power_source_change \

		--set battery \

		\

		script="$PLUGIN_DIR/battery.sh" \

		update_freq=120 \

		label.color=$OX_DIM

}



sb_volume() {

	sketchybar \

		--add item volume "$1" \

		--subscribe volume volume_change \

		--set volume \

		\

		script="$PLUGIN_DIR/volume.sh" \

		label.color=$OX_DIM

}

globals.sh

#!/bin/bash



export PLUGIN_DIR="$HOME/.config/sketchybar/plugins"

export OX_BG="0xff24202c"

export OX_FG="0xfff4cde9"

export OX_DIM="0xff6f5a71"

export OX_MG="0xffad7fa8"

export OX_ORG="0xfff99286"

export SPACE_ICONS=("􀊴" "􀌃" "􀨁" "􀢅" "􀰬" "􀧶" "􁸅" "􀟆" "􁷯")



export SB_BAR=(

  position=left

  height=60

  sticky=on

  topmost=on

  shadow=on

  y_offset=10

  margin=10

  padding_left=16

  padding_right=16

  color="$OX_BG"

  border_color="$OX_DIM"

  border_width=1

  corner_radius=10

  font_smoothing=on

)



export SB_DEFAULT=(

  icon.font.family="SF Pro"

  icon.font.style="Regular"

  icon.font.size=12

  icon.color="$OX_DIM"

  label.font="Source Code Pro"

  label.font.style="Regular"

  label.font.size=13

  label.color="$OX_MG"

  padding_left=10

  padding_right=10

  icon.padding_right=4

  icon.highlight_color="$OX_MG"

)

Any chance you could share the other plugin files? This looks amazing!

[alex-jerechinsky]

Loving sketchybar so far.

[IoannisTM]

dotfiles? please?

[zfhxi]

very nice, could you provide your dotfiles?

[csolje]

Very nice, could you provide to dotfiles please?

[master3590]

Very nice, could you provide to dotfiles please? Thank you

[kleviss]

looks like OP wants to keep this only for themselves :(((

[Pe8er]

Trying to make the bar fit visually with MacOs. Finally managed to get yabai to do what I want + having too much fun with Arc browser:

dotfiles

[DomizianoScarcelli]

Thanks for sharing the dotfiles, I was trying to figure out how to put the clock in a vertical layout!

[nova577metaverse]

hi, i try to using your dotfiles, it's almost working, but i can't fix the icon.

[lycheeje11y]

which icon? Most likely, you need to install a nerd font.

[MrJarnould]

@Pe8er I think you're storing your weather api key in plain text in plugins/weather.sh.

[Manas8803]

Where can I find Arc icon for my sketchybar?

[SxC97]

Another Nord-Themed setup. Lots of work to do to completely switch over to Sketchybar from previous solutions, but I’m quite happy with how things are turning out!

All relevant file can be found on my dotfiles repo

[ut0mt8]

Very nice.

[FelixKratz]

Wow, it is amazing to see such a beautiful design made with sketchybar. I lack the artistic talent to create something like this myself, so I will definitely have a look at your dotfiles!

[SxC97]

Thank you for the kind words! I spent most of this weekend taking a break from porting plugins and working on cleaning up my code. I also lack any kind of artistic ability so I just looked up some polybar themes and colored them with the basic nord colors. I use rofi/polybar/bspwm on linux and I’m just so happy I can get a similar set up on macOS with alfred/sketchybar/yabai!

Sketchybar is significantly more powerful than I had assumed at first glance, I’m definitely going to spend some more time writing plugins and making the bar more responsive to mouse events in the near future!

[marsjane]

can I know how to install this Furacode Nerd font? I cannot find it in the brew font cask list

[Ducky6944]

New Setup

[donRehan]

How did you remove title and resize buttons from the browser ?

[milxzy]

I would love to see the dot files! Dope setup!

[JGStyle]

is this a firefox browser in the bottom left corner and if yes, how did you change it to look like that

[john-json]

is this a firefox browser in the bottom left corner and if yes, how did you change it to look like that

I guess that is Arc browser

[deniserdogan]

how did you make the border radius 0 in browser?

[itaysharir]

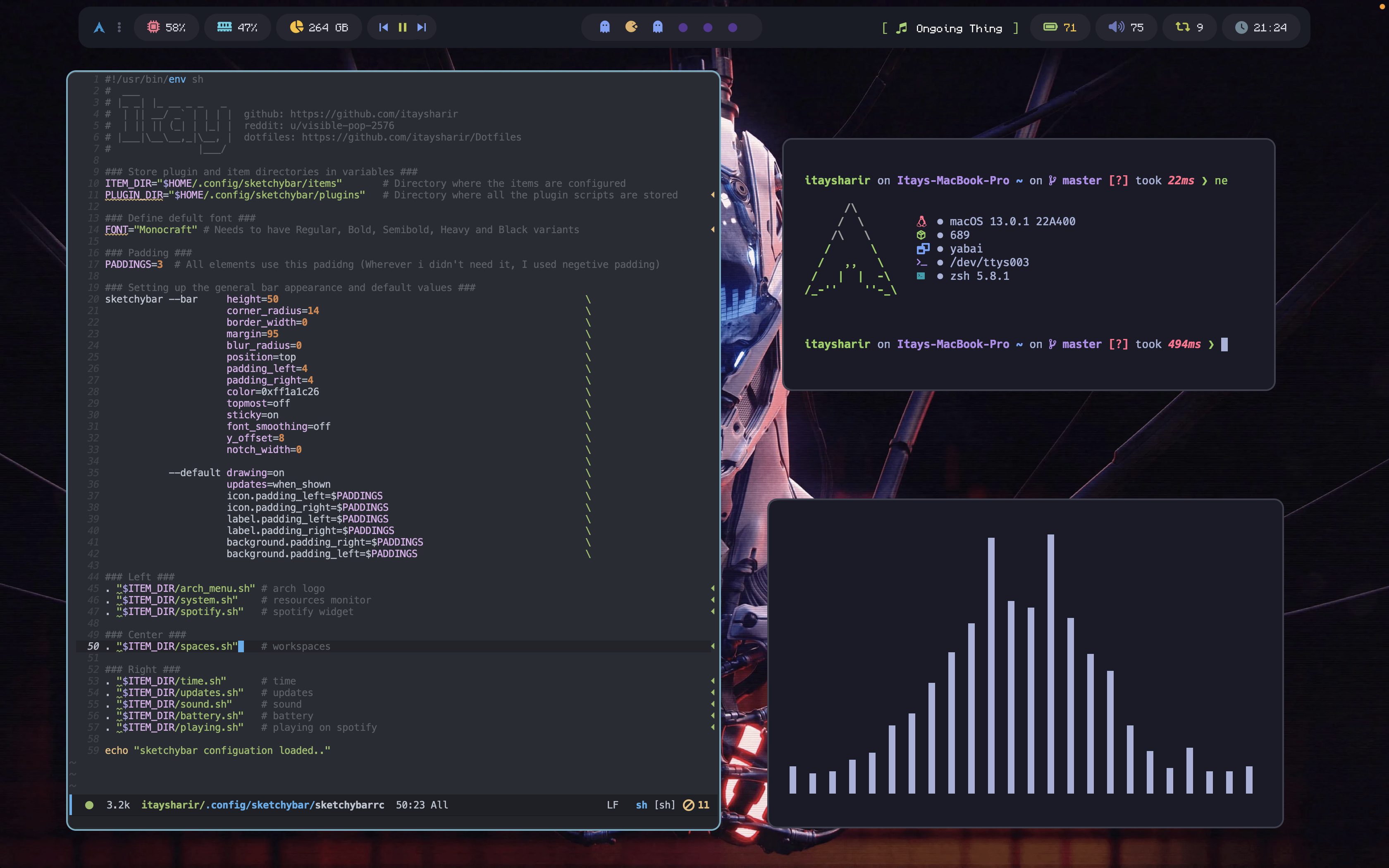

Really proud of this one.

Dots: https://github.com/itaysharir/Dotfiles

[jay0ma]

How did you get dmenu working on macos?

[BR00l]

How did you get dmenu working on macos?

He literally has instructions in his github.

[boycce]

pacman soo cool

[shahmilav]

Minimal native-looking setup

dots

Just started using SketchyBar, loving it so far. This setup is close to the default while still being pretty and functional.

Light Mode

Dark Mode

Features

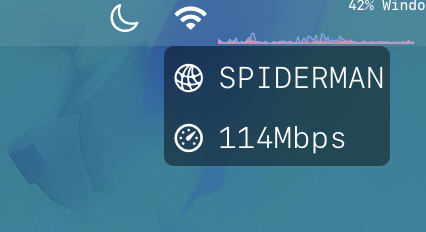

• WiFi dropdown shows speed and SSID

• macOS Appearance toggle
• CPU graph
• Native SF Symbols for icons

Caveats

Uses SF Symbols

brew install --cask sf-symbols

[dvrkoo]

this was actually pretty nice don't you mind sharing dots?

[UnsolvedCypher]

See here: https://github.com/shahmilav/carbonfiber-dots/tree/0f4068b7d9208d87a218c5fd3b6dce736fcc1db1/sketchybar

[devnoname120]

@shahmilav Did you add more features since then? It’s the only light theme I could find :)

[shahmilav]

Unfortunately no. I stopped using sketchybar a while ago in favor of the default macOS menu bar.

It shouldn't be that hard to add any however, I basically just worked off of the default example at the time.

[xrce]

My current setup

[chloekwok711]

i love this! can u share ur dotfiles?

[xrce]

Sorry for a late reply, it's on here

[Black0S]

Amazing ❤️

[FelixKratz]

This is my first ever fully lua driven config. I really think there is so much potential in using lua for the configuration of the bar, because the communication no longer happens through fork->exec->mach but only through mach messages, completely cutting out the (large) fork->exec overhead. The lua module for sketchybar is available here SbarLua.

The menus on the left side can be swapped with space indicators with the small toggle (or via a shortcut by calling sketchybar --trigger swap_menus_and_spaces). The menus are clickable and present the correct menus from the default macOS bar.

Dotfiles (only works with sketchybar-v2.21.0+): https://github.com/FelixKratz/dotfiles/tree/0619040a8eebbf9896c5ce4fc9d312270426ed8f

[khaneliman]

That said, I wasn't sure what theme is being used. I looked at some of the canned ones, but I couldn't find this theme.

https://github.com/catppuccin/btop

How do I change the color of the Topbar?

It's SbarLua, so I don't know.

Basically it just converts lua tables to the commands you should be used to in bash when you set properties via cli. So you can read the sketchybar documentation and find the property you are looking for and make a table for it.

https://github.com/FelixKratz/dotfiles/blob/0619040a8eebbf9896c5ce4fc9d312270426ed8f/.config/sketchybar/bar.lua

https://felixkratz.github.io/SketchyBar/config/bar

[mikalcallahan]

+1 for Silverstein

[hjm79]

Thank you. I changed the color.

[albertilagan]

@FelixKratz Do you have a working version of your old setup using lua? or is there limitation?

[tatarurzvn]

Yo @FelixKratz ! Any chance you could add a memory usage chart like the CPU one? 👀

[CriticalElement]

was inspired by @RemyIsCool and (mostly) recreated their config because they didn't have a working link to it

the overall color palette is almost default and is still a work-in-progress, but i wanted to share this as people would probably be wanting to use the amazing config that they created, so here are the dotfiles!

it supports the switching spaces & focused app title animations:

Screen.Recording.2024-08-25.at.12.36.46.AM.mov

[Tnixc]

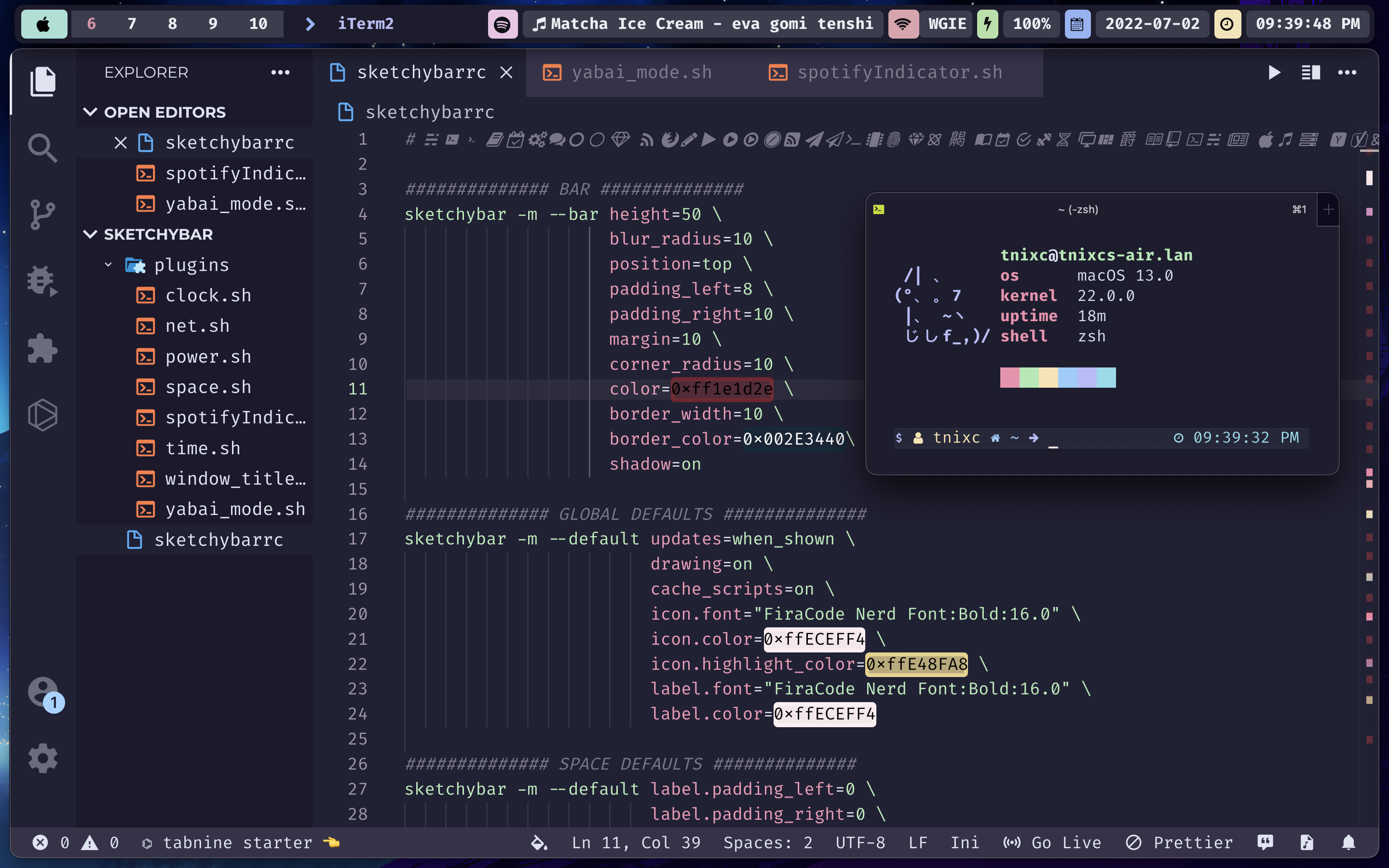

Simple Catppuccin

Everything can be found on my dots

[pocco81]

Hey @FelixKratz! Just wanted to let you know that everyone's been praising your work on the Catppuccin discord server.

Keep it up!

[DakshG07]

I can verify this statement.

- Dukk

[BlueFalconHD]

Verified

• blue

[ab2-c]

love it!!! sadly it doesn't work with a notch (crii) I''ll try to mess with the config files to move the spotify to the left/right (i have no experience with css whatsovever wish me luck). Also, the wifi name doesn't display correctly for me

[ab2-c]

turns out, moving the spotify element to the left was pretty easy since the revised script from @FelixKratz allowed me to just enter sketchybarrc and change the spotify icon and spotify name element to left instead of center and that worked. sadly i couldn't figure out the wifi

[RemyIsCool]

My minimalist gruvbox-themed setup

Animation for window title changing - clicking on the desktop shows nothing, because no windows are focused.

Screen.Recording.2024-05-05.at.5.34.37.PM.mov

Animation for switching spaces

Untitled.mov

Dotfiles: https://github.com/RemyIsCool/gruvbox-rice

[realhackcraft]

This is really cool! The link is broken though. I would love to see your configs and use them.

[realhackcraft]

@FelixKratz I love this so much that I want to recreate it (and publish the dotfile). I have a question for you:

How does the animation for switching spaces work? I can't figure out how I would overlay the dot and move it.

Screen.Recording.2024-07-26.at.18.35.38.mov

[kfernandez31]

@RemyIsCool very nice, could you provide a working link to your dots?

[CriticalElement]

@realhackcraft @kfernandez31 not sure if you guys still want / need the dots, but i recreated this config here

[reidark]

Here's the result after some exploration. Very simple, it's exactly what I needed.

Config:

• Dotfiles
• VS Code Theme

[jakmaz]

clean and simple, love it!

[yessetmurat]

[jasper-clarke]

@yessetmurat
Looks awesome!
Do you have any dots for it?

[yessetmurat]

https://github.com/yessetmurat/dotfiles_mac

[philipp-bliznuk]

Somewhat minimalistic setup. Quite a few things personal for me, but feel free to use it for inspiration.

dotfiles

[tang-hi]

A light theme inspired from https://github.com/neutonfoo/dotfiles

[ikelvinwoo]

May I ask how to set the menubar without icon to be transparent?

[d3george]

dotfiles

[lyricsandscriptds]

Hello! I'm a beginner here and I would like to ask if this setup is possible for this app? If yes, could you guys help me achieve it? I'm just a high school student that's why I need a simple layout with the visual design of Mac.

Thank you so much for helping this boi out!

[xrce]

I'm not used to do some call but you can contact me at telegram: xrcev

[lyricsandscriptds]

Alright thank you! I have messaged you already :)))

[cxa]

This is my setup, sketchybarrc is here: https://gist.github.com/cxa/a404cbf396b5b58ead2f8c83c86cd014
For the special corners on most left and right, you need to checkout my fork at https://github.com/cxa/SketchyBar and compile yourself, and make a alcovebar symlink.

[flawnn]

This is my setup, `sketchybarrc` is here: [gist.github.com/cxa/a404cbf396b5b58ead2f8c83c86cd014](https://gist.github.com/cxa/a404cbf396b5b58ead2f8c83c86cd014) For the special corners on most left and right, you need to checkout my fork at [gist.github.com/cxa/a404cbf396b5b58ead2f8c83c86cd014](https://gist.github.com/cxa/a404cbf396b5b58ead2f8c83c86cd014) and compile yourself, and make a `alcovebar` symlink.

What is alcovebar and what fork?

[ChihGodlee]

corners

不能用，软连接创建到哪

[haydenrou]

[Pe8er]

Fantastic color palette! Can you share it?

[haydenrou]

It's mainly rose-pine, but here are my dotfiles: https://github.com/haydenrou/dotfiles

[m3hu1]

Minimal Catppuccin. Inspired by a post in this thread, forgot which one.

[m3hu1]

If you're talking about me, sure here is the zip file: sketchybar.zip

I have to structure a lot of things before I push my dotfiles to a repo so I have shared a gdrive link instead.

[veduudev]

thank you so much!

[m3hu1]

thank you so much!

:D

[grapefizz]

Dotfiles comming anytime soon?

[CatPaulKatze]

Hey @m3hu1!
Do you have any updated version of your Sketchybar, because the configuration that you shared doesn't work anymore.
Only the Network and Media / Spotify thing doesn't work.

[AsexyLordRevan]

My transparent catppuccin setup. Based on @FelixKratz 's original bar

The space numbers are a custom font, with numbers that go up to 8

sketchybar config : https://github.com/AsexyLordRevan/sketchybar

[navilan]

Here is my WIP setup loosely based on Tokyo Night. Built on top of @FelixKratz 's dotfiles and everything shared here (Thank you 💯). Some tweaks:

1. SKHD modes with key help replacing the window title when necessary
2. Music status with spotify-tui status (wip)
3. network horizontal pop up with ip

Overall very pleased with how much sketchy bar offers in terms of flexibility and power. Great!!

sketchyl.mov

[sasha-id]

For terminal I use zinit, here's .zshrc
zshrc.txt

[zerochae]

repo: https://github.com/zerochae/sketchybar-gray

[AjayShanker-geek]

@parkervandyk Hey mate, to my knowledge some of terminals(I use alacritty) allows it through its config file. Think it would be great to open a new discussion so people could share their steps. For instance, I managed to do it for my VSCodium.

Edit:
It will be also cleaner for others to reference rather over this discussion page

[hbthen3rd]

@parkervandyk I've been very selective when it comes to which applications are shown on my setup screenshots because you only hide the titlebar on certain applications:

• iTerm2:
  • Open Preferences > Profiles > Window > Style: select "No Title Bar"
• Firefox:
  • Add this to userChrome.css:

    .titlebar-buttonbox-container {
      display: none;
    }

• VSCode / VSCode Insiders / VSCodium:
  • Install Apc Customize UI++
  • Allow VSCode / VSCode Insiders / VSCodium to modify itself:

    sudo chown -R $(whoami) $(which code)
    # For VSCode
    sudo chown -R $(whoami) /Applications/Visual Studio Code.app/Contents/Resources/app/out
    # For VSCode Insiders
    sudo chown -R $(whoami) /Applications/Visual Studio Code - Insiders.app/Contents/Resources/app/out
    # For VSCodium
    sudo chown -R $(whoami) /Applications/VSCodium.app/Contents/Resources/app/out

  • Add this to settings.json:

    "window.titleBarStyle": "native",
    "apc.electron": {
        "frame": false
    }

  • Open Command Palette by pressing Cmd + Shift + P > enter Enable Apc extension > hit Return
  • Quit and restart VSCode / VSCode Insiders / VSCodium

[parkervandyk]

Thank you!

[qns7]

[devnoname120]

Do you still use yabai? I was using Übersicht (simple-bar) until yesterday in addition to macOS’s menu bar and now SketchyBar because Übersicht is buggy af

…

On Aug 2, 2025 at 00:24 +0200, Milav Shah ***@***.***>, wrote: Unfortunately no. I stopped using sketchybar a while ago in favor of the default macOS menu bar. — Reply to this email directly, view it on GitHub, or unsubscribe. You are receiving this because you commented.Message ID: ***@***.***>

[shahmilav]

Also no, rectangle was more simple and intuitive for me.
