[FEM] add new filter to display iso contours - #8462

Merged
donovaly merged 1 commit into
FreeCAD:masterfrom
donovaly:FEM-Isocontours
Feb 13, 2023
Merged

[FEM] add new filter to display iso contours#8462
donovaly merged 1 commit into
FreeCAD:masterfrom
donovaly:FEM-Isocontours

Conversation

@donovaly

@donovaly donovaly commented Feb 12, 2023

Copy link
Copy Markdown
Member
  • very valuable to display for example electromagnetic field lines

This also works for 3D.

Here is a good file to play if anybody is interested:
MagneticHorseshoe.zip

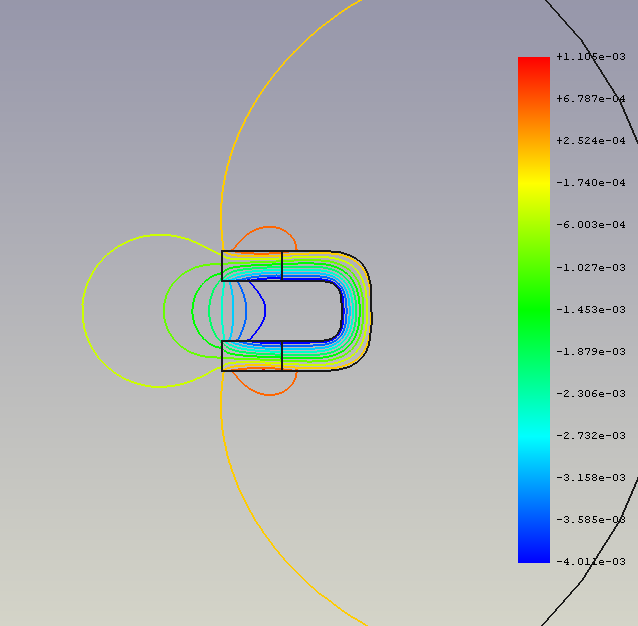

Here is a screenshot how it looks in 2D:
FreeCAD_LRLlKFApy0
Field lines of the electric potential of a magnetic horseshoe

FreeCAD_aVNtCzg4Ds

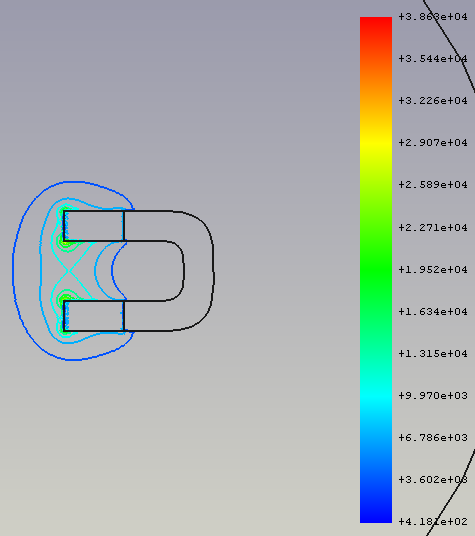

The same horseshoe, but the magnetic field strength magnitude

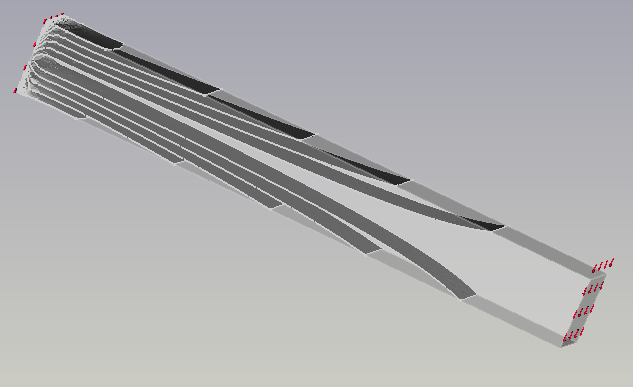

and here in 3D:
FreeCAD_FbLdue3BS3
Iso-surfaces of the principal stress in a cantilever beam that is bent. The contour coloring is turned off (pipeline provides this feature.).

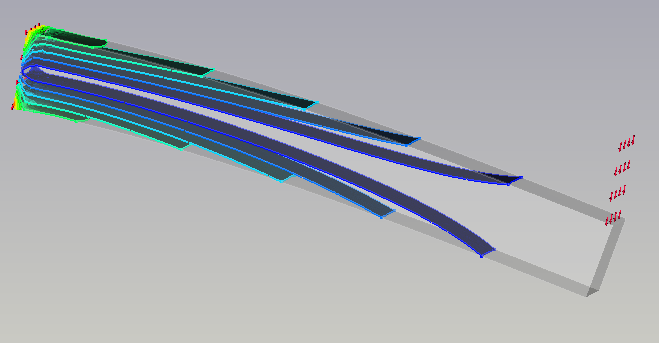

The filter can of course be combined with other filters. Here an example in a warp filter:
FreeCAD_0FaG3gQo5t

@github-actions github-actions Bot added the Mod: FEM Related to the FEM Workbench label Feb 12, 2023
@freecadci

Copy link
Copy Markdown

pipeline status for feature branch PR_8462. Pipeline 775312299 was triggered at 429cfe1. All CI branches and pipelines.

@luzpaz luzpaz added the Type: Feature FR for improvements or new features label Feb 12, 2023
@freecadci

Copy link
Copy Markdown

pipeline status for feature branch PR_8462. Pipeline 775363919 was triggered at 58e5b49. All CI branches and pipelines.

- very valuable to display for example electromagnetic field lines
@freecadci

Copy link
Copy Markdown

pipeline status for feature branch PR_8462. Pipeline 776070860 was triggered at 2f7e12b. All CI branches and pipelines.

@donovaly
donovaly merged commit fa780e8 into FreeCAD:master Feb 13, 2023
@donovaly
donovaly deleted the FEM-Isocontours branch February 13, 2023 15:56
