Allow colorbar length and/or width to be given in percentages #5775

New issue

Have a question about this project? Sign up for a free GitHub account to open an issue and contact its maintainers and the community.

Sign up for GitHub

By clicking “Sign up for GitHub”, you agree to our terms of service and privacy statement. We’ll occasionally send you account related emails.

Already on GitHub? Sign in to your account

Jump to bottom
Merged
PaulWessel merged 9 commits into from
Sep 17, 2021
Merged

Allow colorbar length and/or width to be given in percentages #5775

PaulWessel merged 9 commits into from
Sep 17, 2021

Conversation

@PaulWessel
Copy link
Member

@PaulWessel PaulWessel commented Sep 17, 2021 •
edited
Loading

If either of these are given in percentages then their values replace the default percentage values of 80% and 5% for length and width, respectively. I have added this information to the usage and documentation, and added a test script that tries various combination of percentages and actual dimensions:

gmt begin scale_percent ps
        gmt makecpt -Cturbo -T0/10
        gmt basemap -R0/10/0/10 -JX15c -B
        gmt colorbar -DJTC+w40%/15% -B
        gmt colorbar -DJML+w9c/5% -B
        gmt colorbar -DJMR+w80%/0.6c -B
        gmt colorbar -DJBC+w70% -B
gmt end show

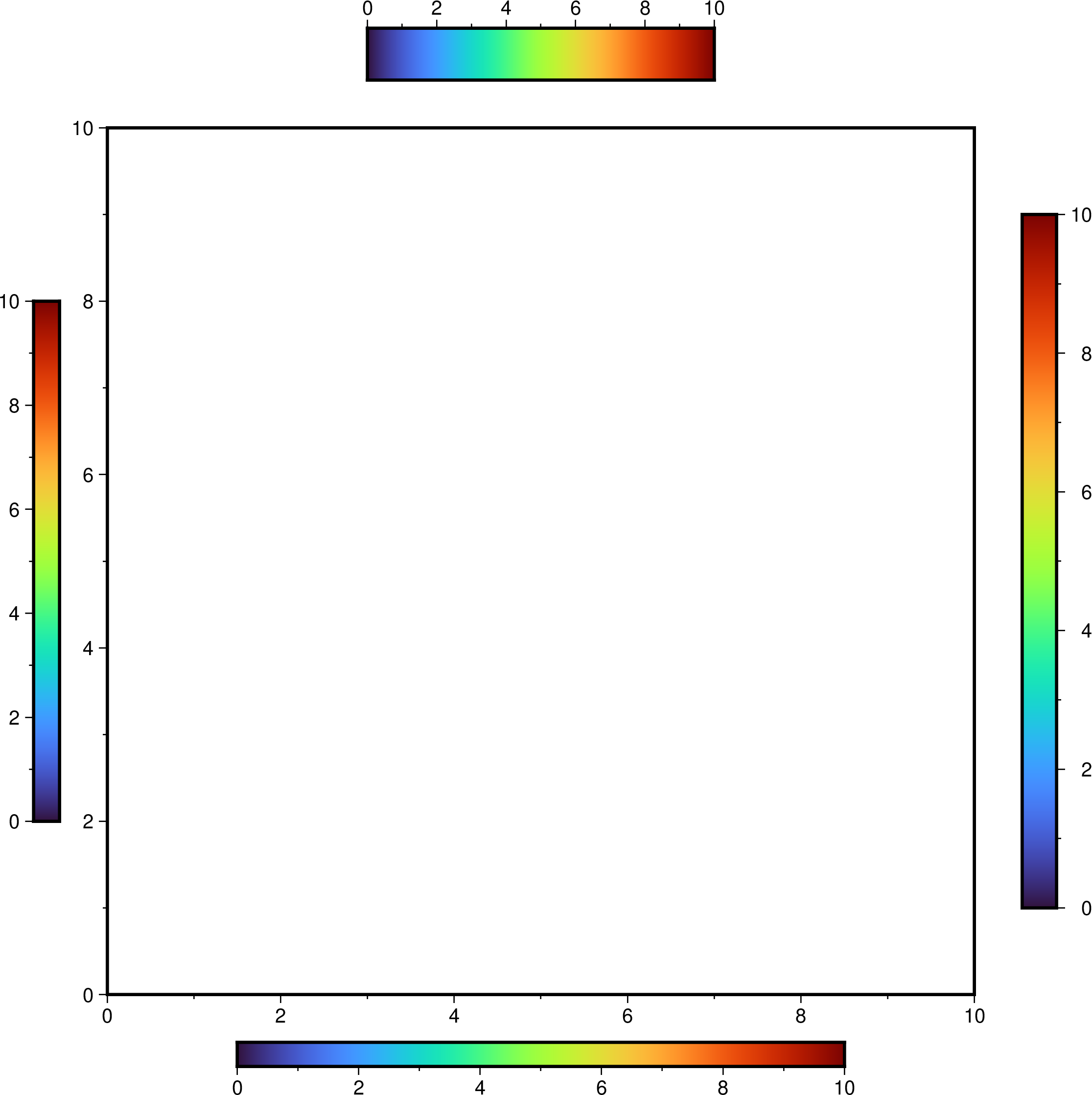

which yields

scale_percent

Closes #5771.

@PaulWessel
Allow colorbar length and/or width to be given in percentages
6295c04
If either of these has percentages then the value replace the default percentages values of 80% and 5% for length and width, respectively.
@PaulWessel
Update scale_percent.ps
b117bf4
@PaulWessel
WIP Allow colorbar dimensions to be given in percentages
8957882
This replaces the default values of 80% and 4% for length and width, respectively.
@PaulWessel PaulWessel self-assigned this Sep 17, 2021
@PaulWessel PaulWessel added the enhancement Improving an existing feature label Sep 17, 2021
@Esteban82
Copy link
Member

Esteban82 commented Sep 17, 2021

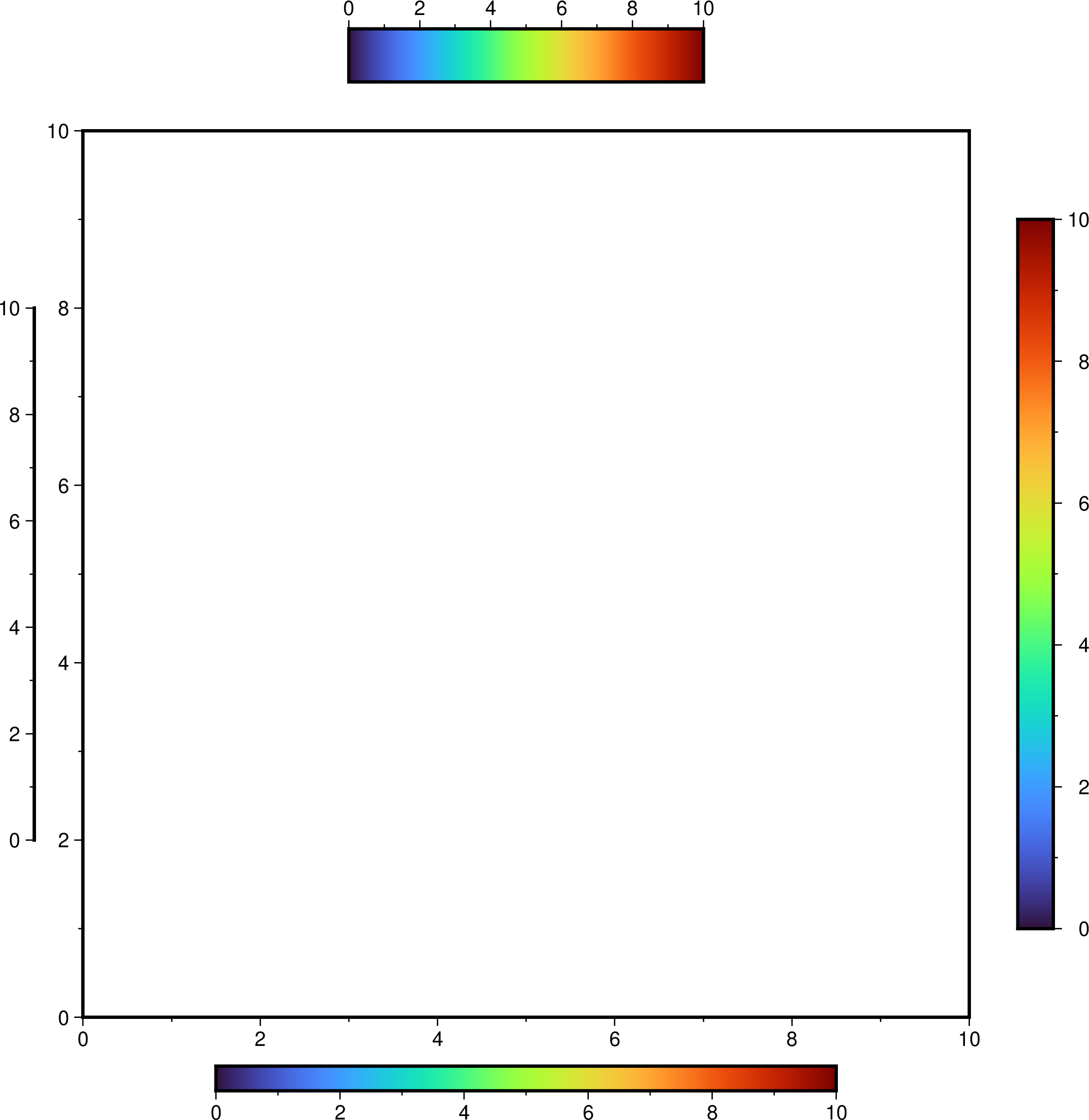

I have a problem with gmt colorbar -DJML+w9c/5% -B

scale_percent

@Esteban82
Copy link
Member

Esteban82 commented Sep 17, 2021

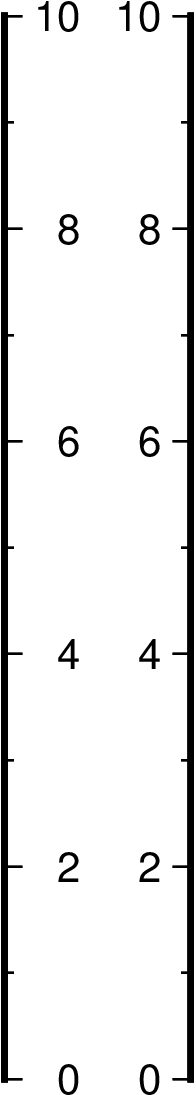

I get the same width with 1% or 100%.

gmt begin scale_percent png
        gmt makecpt -Cturbo -T0/10
        gmt basemap -R0/10/0/10 -JX2/10c
        gmt colorbar -DjML+w9c/1% -B
        gmt colorbar -DjMR+w9c/100% -B
gmt end show

scale_percent

@PaulWessel
Copy link
Member Author

PaulWessel commented Sep 17, 2021

Strange that I dont get that. So it happens when the first (length) argument is a dimension and the second (width) is a percentage? Is that the only combination that fails?

@Esteban82
Copy link
Member

Esteban82 commented Sep 17, 2021

Yes, only that combination.

@PaulWessel
Copy link
Member Author

PaulWessel commented Sep 17, 2021

I am testing anim08 on the tempfile_fix branch so it will take an hour before I can switch...

@PaulWessel
Copy link
Member Author

PaulWessel commented Sep 17, 2021

OK, should be better now - please try again.

Esteban82
Esteban82 approved these changes Sep 17, 2021
View reviewed changes
Copy link
Member

@Esteban82 Esteban82 left a comment

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Now it works.

@maxrjones maxrjones added the add-changelog Add PR to the changelog label Sep 17, 2021
maxrjones
maxrjones approved these changes Sep 17, 2021
View reviewed changes
Copy link
Member

@maxrjones maxrjones left a comment

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Very nice!

@PaulWessel
Update doc/rst/source/colorbar.rst
933fa02
Co-authored-by: Meghan Jones <meghanj@alum.mit.edu>
@PaulWessel PaulWessel merged commit c2b5bae into master Sep 17, 2021
@PaulWessel PaulWessel deleted the percent-handling branch September 17, 2021 18:33
