Time-aware, algorithm driven shadows for icons.
JavaScript CSS HTML
Latest commit fd4f607 May 24, 2015 @Gigacore Update README.md
Permalink
Failed to load latest commit information.
demo allow access to demo over secure protocols Feb 6, 2015
sample-assets added 512px placeholder sprite Nov 23, 2014
README.md Update README.md May 24, 2015
fourshadows.js 0.1 Nov 24, 2014

README.md

Four Shadows

Design Meets Code.

An approach to replace conventional 5 o'clock shadow for iconography with intelliegent time-aware, algorithm driven shadows using simple sprites. The direction of shadow changes according to the time of the day and based on the direction of the 'hour hand' of an analog clock. This results in natural and enriched user experience on the web.

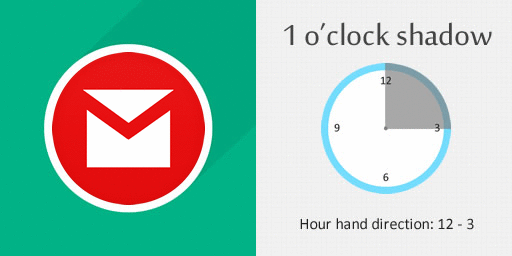

Screenshot

Design Concept

It is a simple concept derived from the evolution where time was once read looking into the direction of the shadow cast from a pole and inspired by the latest iconography trend of long 5 o'clock shadows. Design must no longer be static. It needs to relate to real-world entity that humans are accustomed to over centuries. </enoughsaid>

Setup

1. Include jQuery and fourshadows.js into your html file.
2. Place as many icons you need in your HTML with filename in data-icon attribute:
    <div class="fs-icon-l fs-cast" data-icon="filename.png"></div>
3. Using sample or the placeholder sprite that's provided in the package, create new ones. Ensure the direction of shadows cast as per the sample and to be placed in same order.
4. Point to the directory where image assets are stored in fourshadows.js settings.
5. Include this in your CSS file:
    .fs-icon-l {width: 512px; height: 512px;}
    .fs-icon-m {width: 256px; height: 256px;}
    .fs-icon-s {width: 128px; height: 128px;}
    .fs-icon-xs {width: 64px; height: 64px;}

Customizations

Change settings as per requirement in fourshadows.js.
    fourShadows.settings = {
        dimension   : 512,
        defaultTime : 5,
        $el         : $('div.fs-cast'),
        iconsPath   : 'icons/'
    }
Icon sizes

Use the class accordingly in the markup:

  • .fs-icon-l - 512 x 512
  • .fs-icon-m - 256 x 256
  • .fs-icon-s - 128 x 128
  • .fs-icon-xs - 64 x 64

These dimensions can be altered any time. But it would also require you to change properties in CSS for corresponding classes.

Performance

The script is written with performance in mind. And it weighs < 2 KB, under 30 lines excluding comments. I recommend using minified version for your production site.

Demo

http://gigacore.github.io/demos/fs/

Work(s) inspired by FourShadows.js

box-sciagraphy - https://www.npmjs.com/package/box-sciagraphy

Future Improvements

This project is an intital draft of an idea that sparked. Feel free to pitch in your ideas, suggestions to improve, comment, critique, debate on the use of the plugin etc. The code is open source, hence you are most welcome to fork / to come up with derivative work, having better idea / design concepts. Cheers!

License

The MIT License (MIT)

Copyright (c) 2014 Santhosh Sundar
