Preventing index size/time input to hide rotation strategy dropdown. #4826

Merged
merged 2 commits into from Jun 27, 2018

Conversation

Projects
None yet
3 participants
@dennisoelkers
Member

dennisoelkers commented Jun 8, 2018

Description

Motivation and Context

Before this change, other elements (namely react-bootstrap input
components with addons) overlapped with Select inputs due to a higher
z-index of the first.

This change is increasing the z-index of the Select/react-select
menu to 3 (react-bootstrap input addons are on 2) to prevent this.

Fixes #4769.

Should be backported to 2.4.

How Has This Been Tested?

Screenshots (if appropriate):

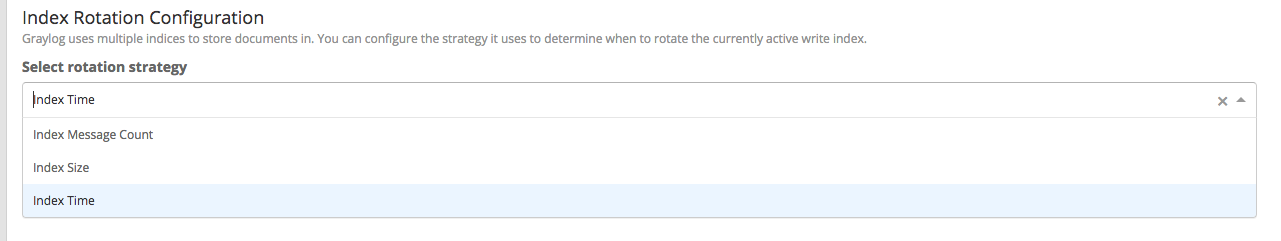

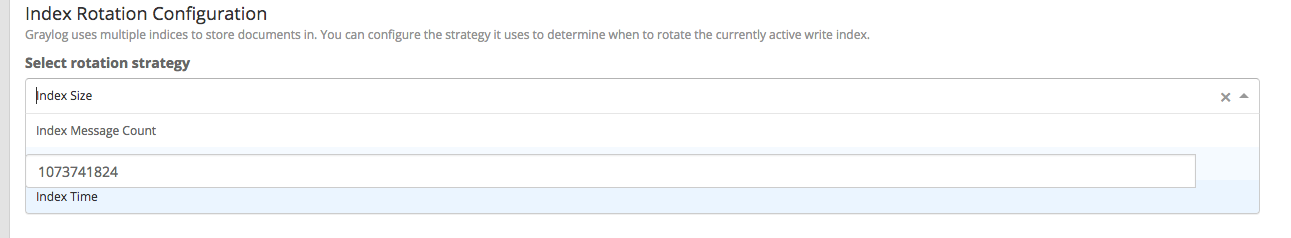

Before:
screen shot 2018-06-08 at 10 22 14
screen shot 2018-06-08 at 10 22 25

After:
screen shot 2018-06-08 at 10 22 57
screen shot 2018-06-08 at 10 23 05

Types of changes

  • Bug fix (non-breaking change which fixes an issue)
  • New feature (non-breaking change which adds functionality)
  • Breaking change (fix or feature that would cause existing functionality to change)

Checklist:

  • My code follows the code style of this project.
  • My change requires a change to the documentation.
  • I have updated the documentation accordingly.
  • I have read the CONTRIBUTING document.
  • I have added tests to cover my changes.
  • All new and existing tests passed.

@dennisoelkers dennisoelkers added this to the 3.0.0 milestone Jun 8, 2018

@bernd

This comment has been minimized.

Member

bernd commented Jun 8, 2018

@dennisoelkers I am pretty sure that this worked at some point. No idea why it broke.

This looks like a fix for the index settings only. Is there a way to fix this in a more generic way? I guess this will happen in other places as well.

@dennisoelkers

This comment has been minimized.

Member

dennisoelkers commented Jun 11, 2018

Is there a way to fix this in a more generic way?

Maybe, maybe not. This happens only when two things are combined:

a) a react-select input
b) a react-bootstrap input with an addon below a)

To "fix" it in a general way, we would have to normalize the z-index of b) to 0 globally. I would not do that right now, because we have only a single form where it broke, and I am sure it has been set to 2 in react-bootstrap for a reason.

@edmundoa

This comment has been minimized.

Member

edmundoa commented Jun 12, 2018

I was looking into a similar issue that @bernd found in #4828, and investigating a bit I found the culprit of this behaviour, which is a change in react-select: JedWatson/react-select@b0bc3e3#diff-895b3c670e6ebd76e91dbce59ff14fdb

I think using a low z-index value by default in the library makes sense, so I think the best way we can solve this issue is increasing the react-select's z-index in our component, as they suggest there. In that way we can set a higher value than the one used by react-bootstrap or ace editor, ensuring the option list will appear above other inputs.

Increasing z-index of `Select` component to overlay other elements.
Before this change, other elements (namely react-bootstrap input
components with addons) overlapped with `Select` inputs due to a higher
`z-index` of the first.

This change is increasing the `z-index` of the `Select`/`react-select`
menu to `3` (react-bootstrap input addons are on `2`) to prevent this.

Fixes #4769.

@dennisoelkers dennisoelkers force-pushed the issue-4769 branch from 1c09907 to 06beb2c Jun 12, 2018

@dennisoelkers

This comment has been minimized.

Member

dennisoelkers commented Jun 12, 2018

I reimplemented it by increasing the z-index for the react-select/Select menu.

@edmundoa edmundoa self-requested a review Jun 12, 2018

:local(.increaseZIndex) .Select-menu-outer {
z-index: 3;

This comment has been minimized.

@edmundoa

edmundoa Jun 12, 2018

Member

This is unfortunately not good enough to make the options appear on top of the ace gutter, which has a z-index of 4. Could you increase the value a bit more, please? In the end I don't think increasing it is a problem, since opening the select options should be displayed on top of other elements in all cases I can think of.

This comment has been minimized.

@dennisoelkers

dennisoelkers Jun 25, 2018

Member

Hm, I tested that in the extended search UI which uses a Select component next to an Ace input as well and 3 was enough for that. Where do you encounter the problem in the UI, so I can verify the problem/the fix?

This comment has been minimized.

@dennisoelkers

dennisoelkers Jun 25, 2018

Member

Ah, that one does not use the gutter, which explains why it works there. :)

Increase z index of `Select` component's menu to 5.
This change is increasing the z-index of the dropdown menu of a `Select`
component even more, so it is on top of the gutter of an Ace editor
component.

@edmundoa edmundoa merged commit 3981686 into master Jun 27, 2018

4 of 5 checks passed

ci-web-linter Jenkins build graylog-pr-linter-check 2558 has failed
Details
continuous-integration/travis-ci/pr The Travis CI build passed
Details
continuous-integration/travis-ci/push The Travis CI build passed
Details
graylog-project/pr Jenkins build graylog-project-pr-snapshot 1479 has succeeded
Details
license/cla Contributor License Agreement is signed.
Details

@edmundoa edmundoa deleted the issue-4769 branch Jun 27, 2018

bernd added a commit that referenced this pull request Jun 28, 2018

Preventing index size/time input to hide rotation strategy dropdown. (#…
…4826)

* Increasing z-index of `Select` component to overlay other elements.

Before this change, other elements (namely react-bootstrap input
components with addons) overlapped with `Select` inputs due to a higher
`z-index` of the first.

This change is increasing the `z-index` of the `Select`/`react-select`
menu to `3` (react-bootstrap input addons are on `2`) to prevent this.

Fixes #4769.

* Increase z index of `Select` component's menu to 5.

This change is increasing the z-index of the dropdown menu of a `Select`
component even more, so it is on top of the gutter of an Ace editor
component.

(cherry picked from commit 3981686)

edmundoa added a commit that referenced this pull request Jun 28, 2018

Preventing index size/time input to hide rotation strategy dropdown. (#…
…4826) (#4880)

* Increasing z-index of `Select` component to overlay other elements.

Before this change, other elements (namely react-bootstrap input
components with addons) overlapped with `Select` inputs due to a higher
`z-index` of the first.

This change is increasing the `z-index` of the `Select`/`react-select`
menu to `3` (react-bootstrap input addons are on `2`) to prevent this.

Fixes #4769.

* Increase z index of `Select` component's menu to 5.

This change is increasing the z-index of the dropdown menu of a `Select`
component even more, so it is on top of the gutter of an Ace editor
component.

(cherry picked from commit 3981686)
