README.md

HEPData Explore

HEPData Explore is a data retrieval and visualization tool for high energy physics.

Data tables from scholarly publishing recorded in HEPData.net are fed into an index that makes it possible to retrieve subsets according to user defined criteria and visualize them in the application.

HEPData Explore can put together several tables in a same plot — even if they belong to different publications, as long as they share a pair of variables.

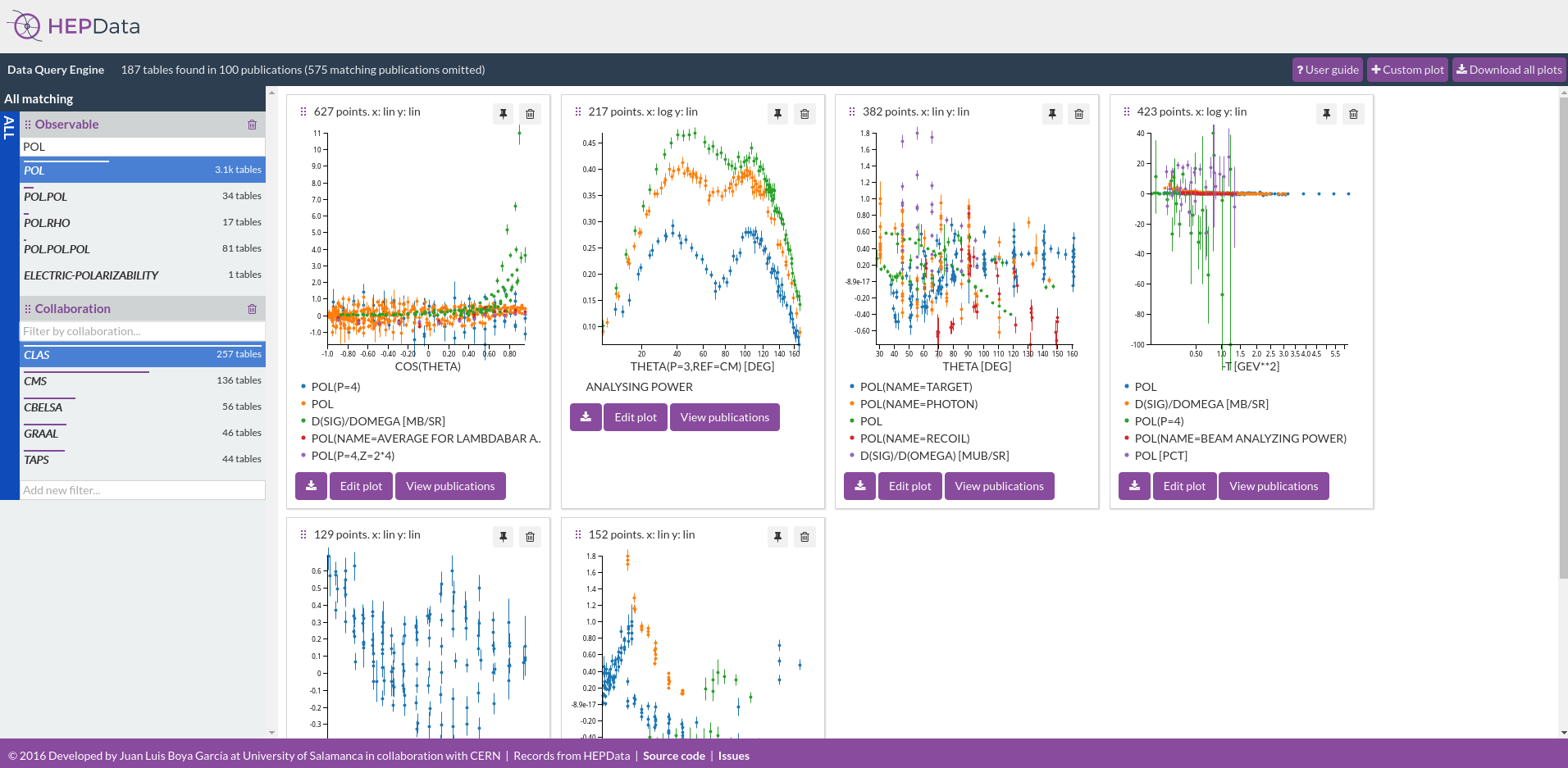

Screenshot

Links

How to run (for developers)

You need Python3.3+, node.js, a Bash shell, and an installation of ElasticSearch. In order to make HEPData Explore work you need to set up the following components:

ElasticSearch

An ElasticSearch must be running in port localhost, port 9200, unless otherwise set in frontend/app/config.ts.

Downloading the data sets

Use the script provided in this repository to download the full data sets from HEPData archives:

https://github.com/HEPData/hepdata-retriever

Data aggregator

The directory server-aggregator contains the application to load data into the index. Use the provided requirements.txt to install its dependencies, e.g:

pip install -r requirements.txt

Using a virtualenv is highly recommended.

In addition to the data sets downloaded with the previous tool, in order to fetch the publication.json files needed to index some fields (e.g. collaboration, publication title), you must run the provided download_publication_metadata.py script, passing it the directory of the data files, e.g:

python download_publication_metadata.py /hepdata/data

This only needs to be run once, even between reindex operations.

In order to index publications, use the run_aggregator.py launcher with the add command, passing it a list of publication directories that need to be added or updated. In order to index all of them you can use shell glob:

python run_aggregator.py add /hepdata/data/*/*

The kv-server

The key-value server is used to persist application states, allowing users to save and share their work.

In order to run it, install its requirements and run:

python kv-server/kv-server.py run-server --db-url sqlite:////hepdata/kv-server.db \
 --enable-cors --host 0.0.0.0

Note: CORS is only needed in development, in order to have the application work from a port instead of requiring a proxy server like nginx. CORS should not be enabled in production for this application.

The frontend application

The frontend directory contains the source code of the user interface, developed in TypeScript. In order to build it run the following commands:

# Install the dependencies (including the TypeScript compiler)
npm install
node_modules/typescript/bin/tsc

A development server with remote reload is included, run it with the following command:

node ./browsersync.js

Automatically a new port should be assigned automatically to the application and the browser will open the page.

You can use the provided browsersync-reload.sh script as a task in your code editor to reload the browser after compilation is complete, e.g:

node_modules/typescript/bin/tsc && ./browsersync-reload.sh

Foreman

Optionally, once you have set up everything, you can use foreman to start all the dependencies in parallel the next time with a single command.

foreman start

See the bundled Procfile as an example.

About the project

HEPData Explore is being developed by Alicia Boya García at University of Salamanca in collaboration with CERN.

This project is supervised by the HEPData team.
