Official code and data repository of [DeepTOF: Web-based Long-term Spine Treatment Outcome Forecasting]. Please star, watch, and fork DeepTOF for the active updates!
Run DeepTOF
python main_transformer_harv.py
Result 1: real data (revision of Table 5 in orginal paper), the values in parentheses represent the relative performance decrease.
| Variants | BP | PF |
|---|---|---|
| DeepTOF | 0.4596 | 0.4890 |
| DeepTOF w/o C | -0.0215 (-4.7%) | -0.0246 (-5%) |
| DeepTOF w/o M | -0.0294 (-6.4%) | -0.0118 (-2.4%) |
| DeepTOF w/o S | -0.0188 (-4.1%) | -0.0147 (-3%) |
| DeepTOF w/o M,S | -0.0290 (-6.3%) | -0.0294 (-6%) |
| DeepTOF w/o C,S | -0.0222 (-4.8%) | -0.0041 (-0.8%) |
| DeepTOF w/o C,M | -0.0225 (-4.9%) | -0.0281 (-5.7%) |
| DeepTOF w/o C,M,S | -0.0280 (-6.1%) | -0.0365 (-7.5%) |
Simulated data: In our study, we utilized a real-world dataset Spine Patient Outcomes Research Trial (SPORT) and it is hard to to generate hypothetical data using a simulator. In order to increase the difficulty of the task, we intentionally scaled up the challenges, including data bias, data noise, and non-compliance. To induce data bias, we applied distinct Gaussian noise to the surgical and nonoperative groups. For data noise, we added Gaussian noise to the labels. As for non-compliance, we masked a portion of the non-empty labels according to a predefined proportion to increase the quantity of missing values. Based on these modifications, we designed three scenarios with incrementally increasing difficulty.
We acknowledge that these modifications were made to deliberately create more challenging scenarios in our experiments. We believe that these adjustments better reflect the major challenges in spine TOF. It is important to note that these simulated data are solely used to verify the contribution of our proposed models and cannot be used to represent a real patient sample.
Task 1: Surgical group: Gaussian noise added with parameters N(0.5, 0.1), Nonoperative group: Gaussian noise added with parameters N(0, 0.1), Labels: Gaussian noise added with parameters N(0, 0.1), Mask ratio: 10%
| Variants | BP | PF |
|---|---|---|
| DeepTOF | 0.4394 | 0.4798 |
| DeepTOF w/o C | -0.0219 (-5%) | -0.0372 (-7.8%) |
| DeepTOF w/o M | -0.0370 (-8.4%) | -0.0207 (-4.3%) |
| DeepTOF w/o S | -0.0261 (-5.9%) | -0.0339 (-7.1%) |
| DeepTOF w/o M,S | -0.0366 (-8.3%) | -0.0321 (-6.7%) |
| DeepTOF w/o C,S | -0.0231 (-5.3%) | -0.0446 (-9.3%) |
| DeepTOF w/o C,M | -0.0475 (-10.8%) | -0.0530 (-11%) |
| DeepTOF w/o C,M,S | -0.0489 (-11.1%) | -0.0597 (-12.4%) |
Task 2: Surgical group: Gaussian noise added with parameters N(0.6, 0.2), Nonoperative group: Gaussian noise added with parameters N(0, 0.1), Labels: Gaussian noise added with parameters N(0, 0.2), Mask ratio: 20%
| Variants | BP | PF |
|---|---|---|
| DeepTOF | 0.4312 | 0.4751 |
| DeepTOF w/o C | -0.0263 (-6.1%) | -0.0399 (-8.4%) |
| DeepTOF w/o M | -0.0396 (-9.2%) | -0.0427 (-9%) |
| DeepTOF w/o S | -0.0241 (-5.6%) | -0.0341 (-7.2%) |
| DeepTOF w/o M,S | -0.0441 (-10.2%) | -0.0429 (-9%) |
| DeepTOF w/o C,S | -0.0318 (-7.4%) | -0.0437 (-9.2%) |
| DeepTOF w/o C,M | -0.0520 (-12.1%) | -0.0568 (-12%) |
| DeepTOF w/o C,M,S | -0.0532 (-12.3%) | -0.0642 (-13.5%) |
Task 3: Surgical group: Gaussian noise added with parameters N(0.7, 0.3), Nonoperative group: Gaussian noise added with parameters N(0, 0.1), Labels: Gaussian noise added with parameters N(0, 0.3), Mask ratio: 30%
| Variants | BP | PF |
|---|---|---|
| DeepTOF | 0.4284 | 0.4724 |
| DeepTOF w/o C | -0.0389 (-9.1%) | -0.0423 (-9%) |
| DeepTOF w/o M | -0.0600 (-14%) | -0.0471 (-10%) |
| DeepTOF w/o S | -0.0592 (-13.8%) | -0.0553 (-11.7%) |
| DeepTOF w/o M,S | -0.0442 (-10.3%) | -0.0586 (-12.4%) |
| DeepTOF w/o C,S | -0.0493 (-11.5%) | -0.0534 (-11.3%) |
| DeepTOF w/o C,M | -0.0654 (-15.3%) | -0.0475 (-10.1%) |
| DeepTOF w/o C,M,S | -0.0634 (-14.8%) | -0.0684 (-14.5%) |
Result 3.1, Average representation distance between treated and untreated group by DeepTOF w/ counterfactual modeling, average difference: 0.3623.
| FIELD1 | surgical | nonsurgical |
|---|---|---|
| 0 | 12.8983 | 13.0026 |
| 1 | 13.3972 | 13.2094 |
| 2 | 11.9706 | 11.8053 |
| 3 | 9.9960 | 10.3158 |
| 4 | 10.8122 | 11.1825 |
| 5 | 11.1622 | 10.8628 |
| 6 | 11.9716 | 12.0424 |
| 7 | 11.5357 | 11.6998 |
| 8 | 10.7058 | 10.7424 |
| 9 | 10.8505 | 11.1801 |
| 10 | 10.3774 | 10.6389 |
| 11 | 14.2044 | 13.4578 |
| 12 | 14.0589 | 14.8989 |
| 13 | 11.2666 | 11.1015 |
| 14 | 11.6532 | 11.1093 |
| 15 | 12.4525 | 12.0294 |
| 16 | 11.0256 | 11.3695 |
| 17 | 15.2408 | 16.0530 |
| 18 | 16.0615 | 16.9596 |
| 19 | 11.2941 | 11.1299 |
Result 3.2, Average representation distance between treated and untreated group by DeepTOF w/o counterfactual modeling, average difference: 1.7109.
| FIELD1 | surgical | nonsurgical |
|---|---|---|
| 0 | 10.00980568 | 12.61927032 |
| 1 | 15.52026272 | 13.17067242 |
| 2 | 12.64957428 | 11.47766495 |
| 3 | 9.049478531 | 12.61666679 |
| 4 | 10.06480026 | 10.71032619 |
| 5 | 10.63503933 | 10.31456947 |
| 6 | 10.71271515 | 11.7099123 |
| 7 | 11.17810726 | 11.27660179 |
| 8 | 9.635328293 | 13.75091648 |
| 9 | 10.29611492 | 10.76837063 |
| 10 | 9.479779243 | 12.77809525 |
| 11 | 14.18276501 | 13.43580818 |
| 12 | 11.95788288 | 14.79267788 |
| 13 | 10.87122345 | 10.67739296 |
| 14 | 13.81731033 | 10.46208763 |
| 15 | 12.42627811 | 10.94762802 |
| 16 | 10.13836193 | 10.51164341 |
| 17 | 14.98858833 | 15.77536869 |
| 18 | 15.15091705 | 17.04966736 |
| 19 | 13.21783066 | 10.31321049 |

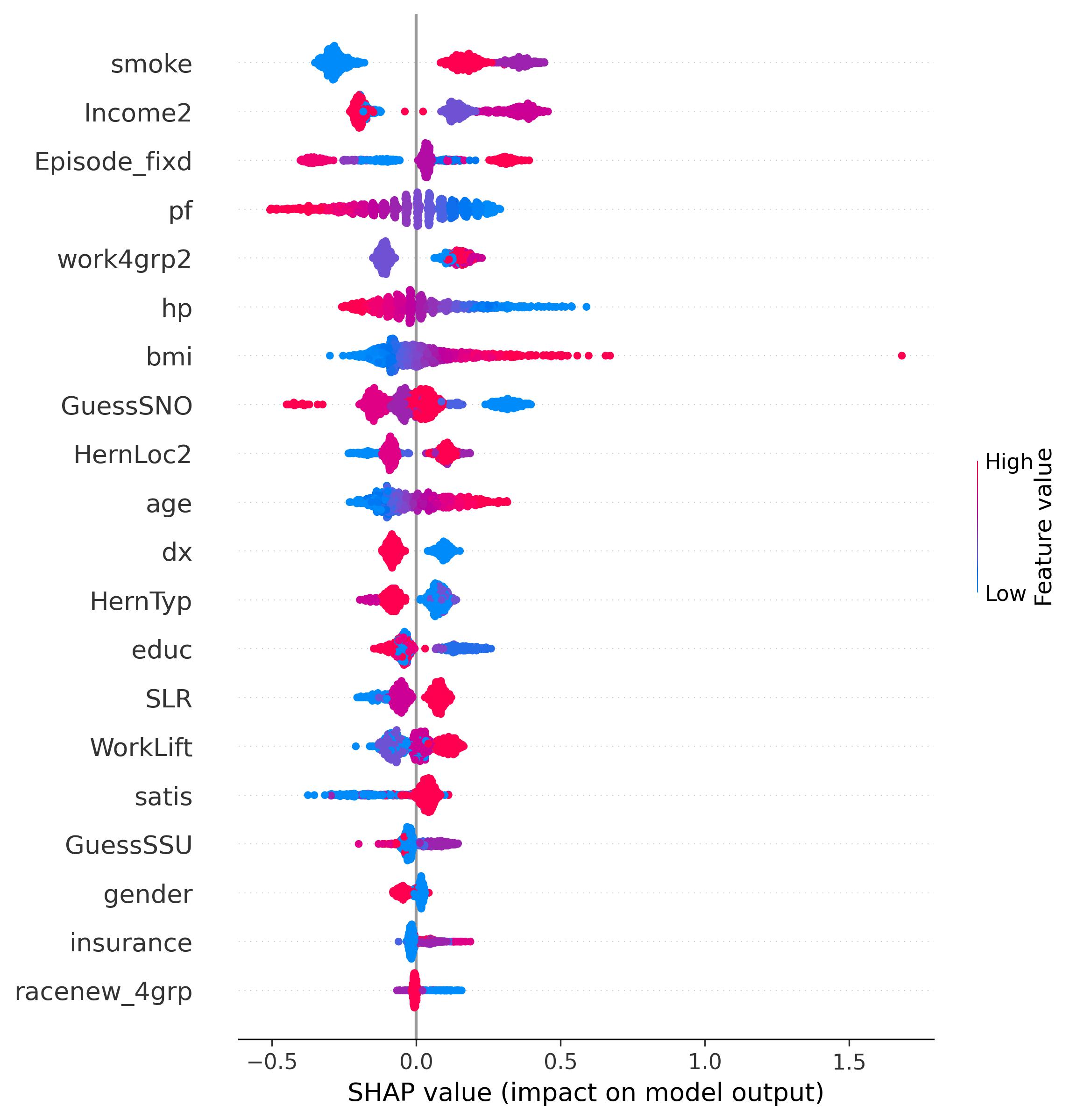

Each scatter point represents the SHAP value of a single sample. The color of the scatter points represents the value of the corresponding feature for that sample. Red points indicate higher feature values, while blue points indicate lower feature values, with the intensity of the color indicating the magnitude of the feature value. Since SHAP value provides feature importance for a specific model prediction, we only present one of our outcomes here. For the full predictions explainations, please kindly refer to the file DeepTOF/feature importance.
| M=20 | M=20 | M=30 | M=30 | M=40 | M=40 | M=50 | M=50 | M=60 | M=60 | M=70 | M=70 | Full | Full | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | BP | PF | BP | PF | BP | PF | BP | PF | BP | PF | BP | PF | BP | PF |
| Lasso | 0.3407 | 0.3224 | 0.3515 | 0.3360 | 0.3407 | 0.3224 | 0.3400 | 0.3258 | 0.3361 | 0.3203 | 0.3345 | 0.3186 | 0.3343 | 0.3186 |
| SVR | 0.3510 | 0.3273 | 0.3641 | 0.3522 | 0.3485 | 0.3309 | 0.3438 | 0.3310 | 0.3401 | 0.3247 | 0.3374 | 0.3237 | 0.3350 | 0.3214 |
| K-NN | 0.3731 | 0.3593 | 0.3838 | 0.3820 | 0.3738 | 0.3662 | 0.3692 | 0.3673 | 0.3697 | 0.3665 | 0.3658 | 0.3654 | 0.3678 | 0.3652 |
| RandomForest | 0.3390 | 0.3172 | 0.3508 | 0.3312 | 0.3389 | 0.3178 | 0.3357 | 0.3214 | 0.3339 | 0.3160 | 0.3316 | 0.3157 | 0.3313 | 0.3161 |
| LightGBM | 0.3440 | 0.3290 | 0.3515 | 0.3401 | 0.3443 | 0.3294 | 0.3431 | 0.3323 | 0.3389 | 0.3275 | 0.3377 | 0.3262 | 0.3383 | 0.3255 |
| ResNet | 0.3272 | 0.3046 | 0.3395 | 0.3239 | 0.3268 | 0.3082 | 0.3262 | 0.3120 | 0.3223 | 0.3060 | 0.3218 | 0.3057 | 0.3230 | 0.3098 |
| DeepTOF | 0.3098 | 0.2632 | 0.2945 | 0.2757 | 0.3043 | 0.2736 | 0.2845 | 0.2816 | 0.2977 | 0.2860 | 0.2947 | 0.2653 | 0.3012 | 0.2765 |
Comparison of all models' predictive performance in terms of Bodily Pain (BP) and Physical Function (PF) with a different number of features. Feature selector was co-trained with DeepTOF to select a different number of features (i.e. M is set to 20, 30, 40, 50, 60 and 70, here, full represents 131 features). Using M features as input, the results show the comparison of all models' performance in terms of NRMSE. For each method, NRMSE scores averaged over surgical and nonoperative treatment are reported (lower is better). The reported performance is averaged over 10 independent runs. The best results are highlighted in bold.
