Issue with table comment on TokuDB #196

Closed
sirber opened this Issue Mar 16, 2018 · 15 comments

Comments

Projects
None yet
2 participants
@sirber
Copy link

sirber commented Mar 16, 2018

Steps to reproduce this issue

  1. Add a comment on a tokudb table
  2. Save
  3. Reload table
  4. Then I get... [my comment]' compression='tokudb_zlib

Current behavior

compression= is added to the comment view in heidisql

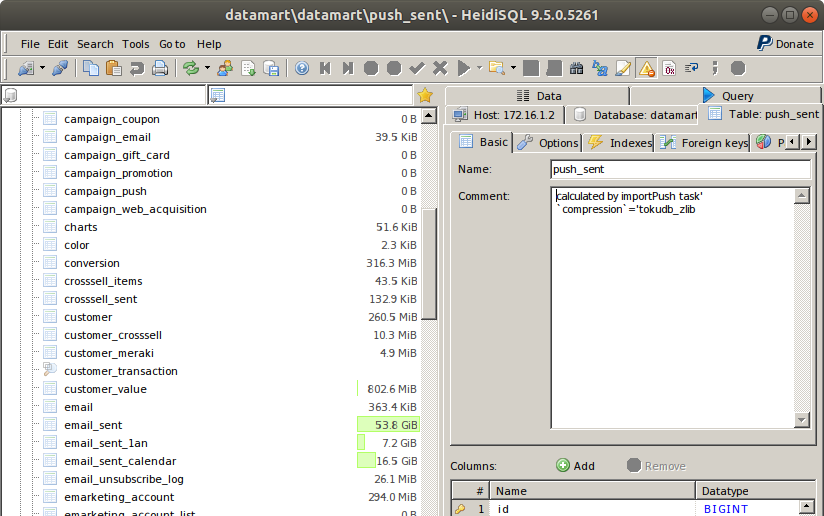

screenshot from 2018-03-16 13-12-26

Expected behavior

only seeing my comment

Environment

  • HeidiSQL version:
    latest nightly
  • Database system and version:
    mariadb 10.1.x
  • Operating system:
    ubuntu 17.10 w/ wine
@ansgarbecker

This comment has been minimized.

Copy link
Collaborator

ansgarbecker commented Mar 17, 2018

Weird. Please provide the result of SHOW CREATE TABLE push_sent here, so I can probably reproduce that.

@sirber

This comment has been minimized.

Copy link
Author

sirber commented Mar 17, 2018

heidi gives me:

CREATE TABLE push_sent (
id BIGINT(20) UNSIGNED NOT NULL AUTO_INCREMENT COMMENT 'pour le datamart seulement',
push_notification_id INT(10) UNSIGNED NOT NULL,
mobile_app_token_id INT(10) UNSIGNED NOT NULL,
read_on DATETIME NULL DEFAULT NULL,
language ENUM('fr','en') NULL DEFAULT NULL,
PRIMARY KEY (id),
UNIQUE INDEX push_token_idx (mobile_app_token_id, push_notification_id),
INDEX push_sent_read_on_IDX (read_on) USING BTREE
)
COMMENT='calculated by importPush task' compression='tokudb_zlib'
COLLATE='latin1_swedish_ci'
ENGINE=TokuDB
AUTO_INCREMENT=1800253979

a create table would look like:
CREATE TABLE t_zlib (
x int(11) DEFAULT NULL,
y int(11) DEFAULT NULL
) ENGINE=TokuDB DEFAULT CHARSET=latin1 compression=tokudb_zlib

@ansgarbecker

This comment has been minimized.

Copy link
Collaborator

ansgarbecker commented Jan 3, 2019

Sorry for the delay. I have just tested that on a MariaDB 10.0.25, while I don't have a tokudb server available. I guess the issue should be the same with an InnoDB table, but I can't reproduce that now.

Please re-check with the current Heidi build.

@sirber

This comment has been minimized.

Copy link
Author

sirber commented Jan 3, 2019

HeidiSQL: 9.5.0.5382

Percona MySLQ 5.6.x

CREATE TABLE `push_sent` (
	`push_notification_id` INT(10) UNSIGNED NOT NULL,
	`mobile_app_token_id` INT(10) UNSIGNED NOT NULL,
	`read_on` DATETIME NULL DEFAULT NULL,
	`language` ENUM('fr','en') NULL DEFAULT NULL,
	UNIQUE INDEX `push_token_idx` (`mobile_app_token_id`, `push_notification_id`),
	INDEX `push_sent_read_on_IDX` (`read_on`) USING BTREE
)
COMMENT='calculated by importPush task'
COLLATE='latin1_swedish_ci'
ENGINE=TokuDB
ROW_FORMAT=
;

MariaDB 10.0.x:

CREATE TABLE `push_sent` (
	`push_notification_id` INT(10) UNSIGNED NOT NULL,
	`mobile_app_token_id` INT(10) UNSIGNED NOT NULL,
	`read_on` DATETIME NULL DEFAULT NULL,
	`language` ENUM('fr','en') NULL DEFAULT NULL,
	UNIQUE INDEX `push_token_idx` (`mobile_app_token_id`, `push_notification_id`),
	INDEX `push_sent_read_on_IDX` (`read_on`) USING BTREE
)
COMMENT='calculated by importPush task\' `compression`=\'tokudb_zlib'
COLLATE='latin1_swedish_ci'
ENGINE=TokuDB
;
@sirber

This comment has been minimized.

Copy link
Author

sirber commented Jan 3, 2019

"compression" is not handled, while "row_format" is.

@ansgarbecker

This comment has been minimized.

Copy link
Collaborator

ansgarbecker commented Jan 3, 2019

Hm, I don't know where you got the MariaDB command from, but it has escaped quotes ' which are normally part of the string itself. So the "compression=..." is part of the comment. Maybe you already overwrote that table?

@sirber

This comment has been minimized.

Copy link
Author

sirber commented Jan 3, 2019

ALTER TABLE `push_sent`
	COMMENT='calculated by importPush task';

comment back at "calculated by importPush task' compression='tokudb_zlib" in heidisql.

@sirber

This comment has been minimized.

Copy link
Author

sirber commented Jan 3, 2019

You need a linux server to be able to use tokudb. it doesn't work on windows (nor in windows linux subsystem).

@ansgarbecker

This comment has been minimized.

Copy link
Collaborator

ansgarbecker commented Jan 3, 2019

When you fire SHOW TABLE STATUS LIKE 'push_sent', does the "Comment" contain the compression clause?

I have no TokuDB, and am not able to set up one, so I will need your exact input here.

@sirber

This comment has been minimized.

Copy link
Author

sirber commented Jan 3, 2019

"Name"	"Engine"	"Version"	"Row_format"	"Rows"	"Avg_row_length"	"Data_length"	"Max_data_length"	"Index_length"	"Data_free"	"Auto_increment"	"Create_time"	"Update_time"	"Check_time"	"Collation"	"Checksum"	"Create_options"	"Comment"
"push_sent"	"TokuDB"	"10"	"Fixed"	"274828"	"18"	"4946904"	"9223372036854775807"	"1747608"	"18446744073705728004"	NULL	"2019-01-03 13:31:31"	"2019-01-03 13:31:42"	NULL	"latin1_swedish_ci"	NULL	"`compression`='tokudb_zlib'"	"calculated by importPush task"

comment is clean

@ansgarbecker

This comment has been minimized.

Copy link
Collaborator

ansgarbecker commented Jan 3, 2019

I have the impression that SHOW CREATE TABLE includes that compression= clause in the COMMENT=... clause, while SHOW TABLE STATUS does not do that. Your above CREATE query from MariaDB says so. If you could verify that once again, I would try to fix that by auto-removing the compression clause from the comment clause.

@sirber

This comment has been minimized.

Copy link
Author

sirber commented Jan 3, 2019

if I go by commandline:

| push_sent | CREATE TABLE `push_sent` (
  `push_notification_id` int(10) unsigned NOT NULL,
  `mobile_app_token_id` int(10) unsigned NOT NULL,
  `read_on` datetime DEFAULT NULL,
  `language` enum('fr','en') DEFAULT NULL,
  UNIQUE KEY `push_token_idx` (`mobile_app_token_id`,`push_notification_id`),
  KEY `push_sent_read_on_IDX` (`read_on`) USING BTREE
) ENGINE=TokuDB DEFAULT CHARSET=latin1 COMMENT='calculated by importPush task' `compression`='tokudb_zlib' |

looks like a parse error by HeidiSQL.

in my previous post
"Create_options" = "compression='tokudb_zlib'"
"Comment" = "calculated by importPush task"

@ansgarbecker

This comment has been minimized.

Copy link
Collaborator

ansgarbecker commented Jan 3, 2019

Yes, that's quite inconsistent.

I guess I need to set up a server myself, or access that by myself, so I can analyze that.

@sirber

This comment has been minimized.

Copy link
Author

sirber commented Jan 3, 2019

I don't see the inconsistence since the SHOW CREATE TABLE and SHOW TABLE STATUS shows that the 'compression' flag is not in the comment section.

ansgarbecker added a commit that referenced this issue Mar 10, 2019

Issue #196: Prefer to take comment from SHOW TABLE STATUS result, to …
…support single quotes without including some "compression" option on TokuDB
@ansgarbecker

This comment has been minimized.

Copy link
Collaborator

ansgarbecker commented Mar 10, 2019

This compression clause should be out of the comment in the next HeidiSQL build. Reason was a loose .* in a regular expression, going over the closing single quote of the table comment, up to the closing single quote for "compression".

I only don't have a field for editing create options like that "compression" clause. Probably because it's a rare case and noone asked for it yet. I have to create such a field, and I suppose it can contain other strings apart from "compression", so it may be a good idea to just have plain text in it. Please file another issue if you'd like to see these create options in a new field.

@ansgarbecker ansgarbecker added bug and removed needs-info labels Mar 10, 2019

@ansgarbecker ansgarbecker added this to the v10.2 milestone Mar 10, 2019
