Primary key showing the key mixed from another table with same name on diferent schema on postgres #842

Closed
KohlerCia opened this issue Jan 7, 2020 · 5 comments

Comments

@KohlerCia
Copy link

@KohlerCia KohlerCia commented Jan 7, 2020

Firts: Sorry for some type errors, English is not my main language.

Steps to reproduce this issue

  1. Step 1;
    Create 2 schemas with diferent names like 'laboratorio' and 'ppcp'
  2. Step 2;
    Create 1 table named as 'ordemservico03' on schema 'laboratorio' with the columns 'codord', 'codamo'
    Set the columns 'codord' and 'codamo' as primary key.
  3. Step 3;
    Create 1 table named as 'ordemservico03' on schema 'ppcp' with the columns 'codord', 'seqord', 'pecpro', 'quipro'
    Set the columns 'codord' and 'seqord' as primary key

Current behavior

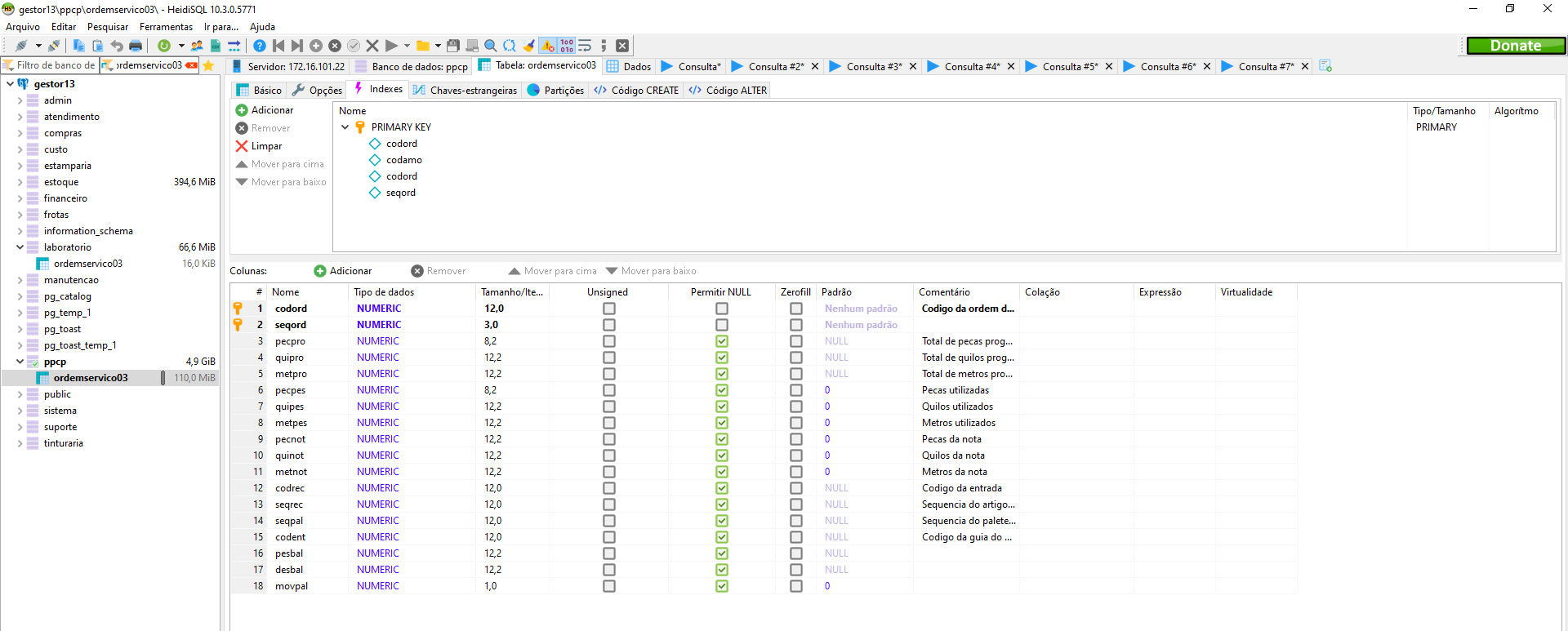

1 - On the 'indexes' view on each table the primary key show the columns 'codord', 'codamo', 'codord', 'seqord' as show on the pictures below.
ppcp_ordemservico03
laboratorio_ordemservico03

2 - I cant change the columns values on the records on this tables manualy, because show the error: Selected columns don't contain a sufficient set of key columns to allow editing. Please select primary or unique key columns, or ajust all columns.
error

Is possible to change the values with the sql editor .

Expected behavior

Should show only the primary key on each table selected on the schema, and should be possible to change the values directly on the table.

Possible solution

I believe the heidi is not geting the current schema of the selected table to get the primary key.

Environment

  • HeidiSQL version:10.3.0.5771
  • Database system and version:postgre 10.11.0
  • Operating system:windows 10
@ansgarbecker

This comment has been minimized.

Copy link
Collaborator

@ansgarbecker ansgarbecker commented Jan 19, 2020

Could you please update HeidiSQL to the latest build and retry?
I refactored a big part of the abstraction layer where columns and keys are retrieved. And I just could not reproduce the issue here, so maybe it's already fixed.

@KohlerCia

This comment has been minimized.

Copy link
Author

@KohlerCia KohlerCia commented Jan 20, 2020

Hi.

The problem persists.
I downloaded and installed the compilation 5837.

Im using heidy for 2 or 3 years now and i remember having this problem for a long time. but along the road, in one of the compilation this issue was fixed, but after that the problem came back.
I can't remember in what compilation this issue was fixed but i belived was 1 or 2 compilations before the color change on the column, like when the value on the column is the same in 2 or more rows the values got a yellow background color.

Can you point me out what version/compilation was added this color? so i can download and test.
Id i found the right compilation when this issue was fixed you can compare the codes so it will be easy to find.

@ansgarbecker

This comment has been minimized.

Copy link
Collaborator

@ansgarbecker ansgarbecker commented Jan 20, 2020

That field color commit could be 7e28c51

However, I just found Heidi's internal query for retrieving table indexes on PG (the one starting with WITH ndx_list AS...) has no "schema='currentschema'" clause. Similar to what I found in #859 btw. So, HeidiSQL mixes indexes of two equally named tables in different schemata.

Maybe you can help out and fix that SQL query so it contains a schema clause?

@KohlerCia

This comment has been minimized.

Copy link
Author

@KohlerCia KohlerCia commented Jan 21, 2020

hi.

I got the code and review the sql.

i added this 2 lines

AND pg_class.relnamespace = pg_namespace.oid
AND pg_namespace.nspname = current_schema

and added the table on from

FROM pg_index, pg_class, pg_namespace

on the sql below and it should work i believe.

KeyQuery := GetResults('WITH ndx_list AS ('+
' SELECT pg_index.indexrelid, pg_class.oid'+
' FROM pg_index, pg_class, pg_namespace'+
' WHERE pg_class.relname = '+EscapeString(Table.Name)+
' AND pg_class.oid = pg_index.indrelid'+
' AND pg_class.relnamespace = pg_namespace.oid'+
' AND pg_namespace.nspname = current_schema'+
' ),'+
' ndx_cols AS ('+
' SELECT pg_class.relname, UNNEST(i.indkey) AS col_ndx,'+
' CASE i.indisprimary WHEN true THEN '+EscapeString('PRIMARY')+' ELSE CASE i.indisunique ``WHEN true THEN '+EscapeString('UNIQUE')+' ELSE '+EscapeString('KEY')+' END END AS ``CONSTRAINT_TYPE,'+
' pg_class.oid'+
' FROM pg_class'+
' JOIN pg_index i ON (pg_class.oid = i.indexrelid)'+
' JOIN ndx_list ON (pg_class.oid = ndx_list.indexrelid)'+
' )'+
'SELECT ndx_cols.relname AS CONSTRAINT_NAME, ndx_cols.CONSTRAINT_TYPE, a.attname AS COLUMN_NAME '+
'FROM pg_attribute a '+
'JOIN ndx_cols ON (a.attnum = ndx_cols.col_ndx) '+
'JOIN ndx_list ON (ndx_list.oid = a.attrelid AND ndx_list.indexrelid = ndx_cols.oid)'
);

Executing this sql on the heidi when im on the schema brings only the keys for the table on that schema. before those 2 lines it will bring all keys with same table name on diferent schemas.

Edited: also just adding this line should work
AND pg_table_is_visible(pg_class.oid)

I hope this will help.

@ansgarbecker

This comment has been minimized.

Copy link
Collaborator

@ansgarbecker ansgarbecker commented Jan 21, 2020

Thank you for your help! I overtook that pg_table_is_visible() clause, and already saw this works for me correctly.
