Defeat air-gapped systems by exfiltrating data using Apple Find My network.
The project comprises:

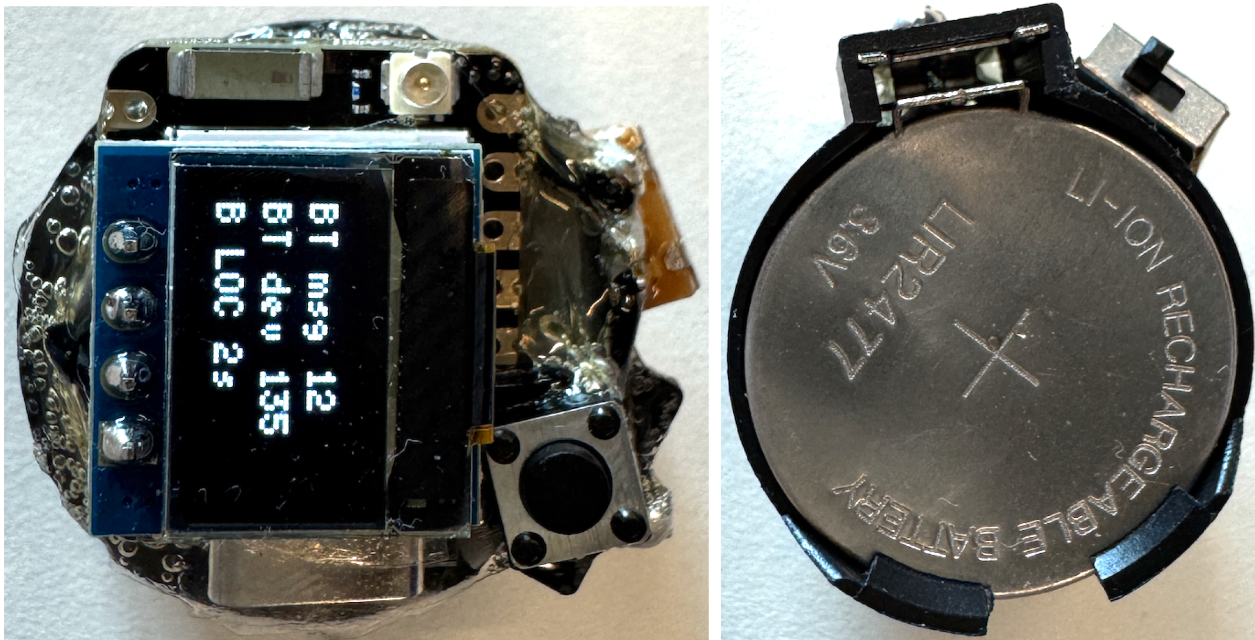

- A custom beacon firmware for ESP32-C3 to beacon ambient condition data and location reports.
- Web servers for reading reports without having to own an Apple device.
- A lightweight web app for storing and reading the recent reports.
This project derives from:
- https://github.com/seemoo-lab/openhaystack (AGPL-3.0)
- With kudos to its FindMy network protocol research and beacon firmware code.
- https://github.com/positive-security/send-my (AGPL-3.0)
- With kudos to its FindMy network protocol research (https://positive.security/blog/send-my) and beacon firmware code.
- https://github.com/dchristl/macless-haystack (GPL-3.0)
- With kudos to its location retrieval web service and elliptic curve decryption implementation.
Instead of using your own main Apple account, please prepare a new separate Apple account.
When registering the new account, make sure to use SMS text for two factor authentication.
Apple internally maintains a "trust status" for each account, try log into the new account on a genuine Apple device help improve its trust level.
Navigate to provision/ and run:
> ./genkey.py
Using python3
Output will be written to output/Navigate to firmware/src/, copy custom.h.example and rename into custom.h.
The file contains parameters for the firmware to beacon both location and data. Follow in-file instructions to change the parameters. The keys file line "hashed adv key" is not used anywhere.
If you wish to transmit ambient condition readings, wire up a BME280 sensor to the I2C bus. Put a 0.96 inch display on the I2C bus too as you like.
Without BME280 the device will beacon reading value 0 for ambient conditions, and continue beaconing location reports.
In Visual Studio Code, install PlatformIO plugin and then open directory firmwrae/.
Change the serial port in firmwrae/platformio.ini to that belongs to your development board, and then execute PlatformIO: Upload action.
Retrieving Find My location and data reports requires these server programs:
docker network create hzgl-air-bridge-network
docker run -d --restart always --name anisette -p 6969:6969 --volume anisette-data:/home/Alcoholic/.config/anisette-v3/ --network hzgl-air-bridge-network hzgl/anisette-v3-server
# Username and password input requires an interactive terminal.
# See https://github.com/HouzuoGuo/macless-haystack for the image build instructions.
docker run -it --restart always --name macless-haystack -p 6176:6176 --volume bridge-data:/app/data/ --network hzgl-air-bridge-network hzgl/air-bridge-wshzgl/air-bridge-ws will walk you through Apple account login and registers a fake macbook device under your Apple account.
Occasionally you may encounter obscure login errors such as:
- After entering password, Apple login response suggests "the operation cannot be completed" and recommends to retry at a later time.
- After entering password and 2FA code, Apple login response suggests "enter the correct password for this Apple account".
Should they occur, login to https://appleid.apple.com/ in an incognito browser tab, then allow the login attempt from the account's registered iOS device, do not copy the 2FA code and close the web browser tab. Restart macless-haystack container and repeat the login process, it should then succeed.
If you have to start over (e.g. changing to a different Apple account, or re-register the fake macbook), first remove the existing fake macbook from the Apple account, and then:
docker ps -aq | xargs docker rm -f
docker volume rm -f anisette-data
docker volume rm -f bridge-data
docker network remove hzgl-air-bridge-network
docker pull hzgl/air-bridge-wsThe procedure deletes all stored apple ID and fake macbook device credentials.
To retrieve the latest data & location reports, navigate to websvc/ and run:
go run main.go \
# Common reporting parameters.
-days=1 \ # Retrieve data and location up to this many days old, keep it low (<3) to reduce unnecessary API calls to Apple.
-spreadmins=20 \ # Tolerate this many minutes of spread between individual bites when re-assembling whole data bytes, 20 minutes is good for most cases, any shorter may prevent byte data recovery.
-airbridgews=http://localhost:6176 \ # The URL of hzgl/air-bridge-ws container web server.
# Location reporting parameters.
-locprivkey='the private key found in output/some.keys file' \
-locadvertkey='the advertisement key found in output/some.keys file' \
# Data reporting parameters.
-custommagic=... \ # The base64-encoded value of const uint8_t custom_magic_key.
# Save all reports to this file.
-file=/tmp/hzgl-air-bridge.jsonLeave it running, and it will download location and data reports at a regular interval.

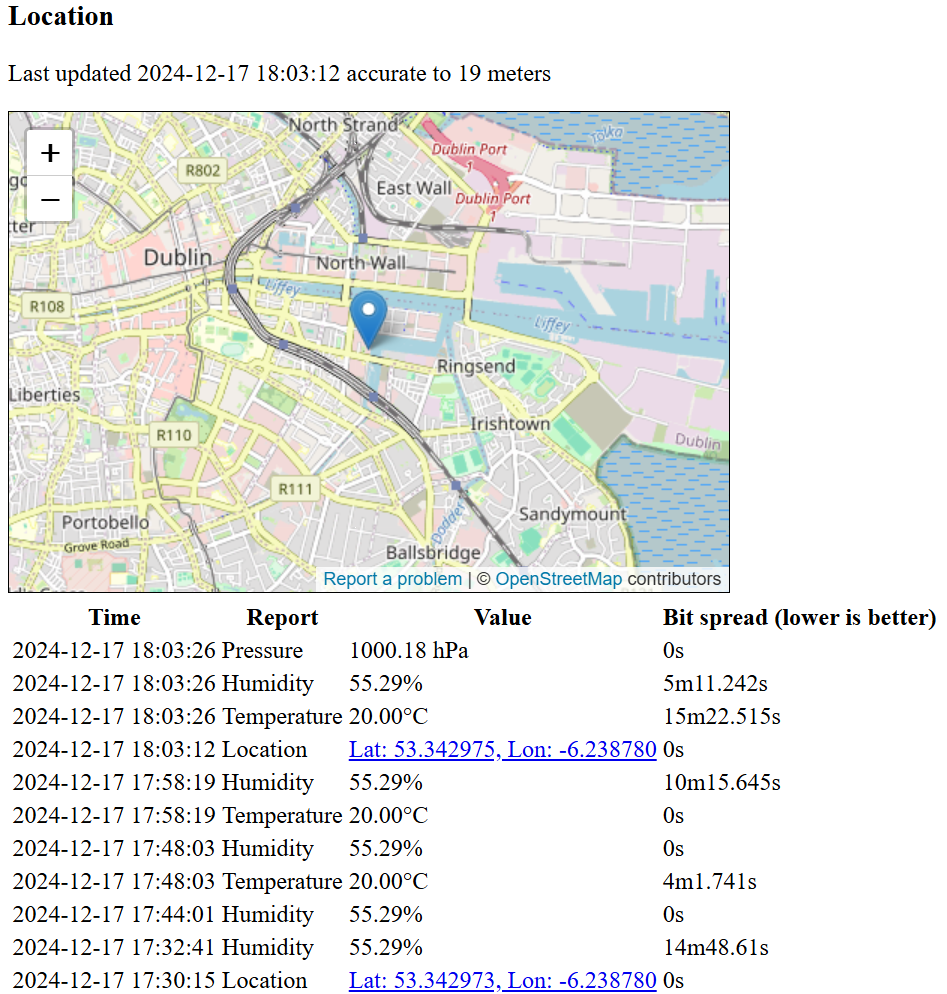

A built-in web server provides a lightweight frontend to view the reports:
...
# Save all reports to this file.
-file=/tmp/hzgl-air-bridge.json \
-webaddress=localhost \
-webport=34681 \
-webhandler=/air-bridge
Every couple of weeks, repeat the To start over and Lauch server infrastructure procedure to delete and re-register the fake macbook device.
Failure to do so will occasionally result in Apple account ban.
- 20260222 - remove esp32-c3 environment for now; port esp32-c6 code to use NimBLE, which seems to be more popular & better maintained than BlueDroid for newer members of the ESP32 chip family.
- 20260117 - fixed SMS 2FA with kudos to upstream project discussions, added workaround for occasional login failure after 2FA.
- 20251001 - the SMS 2FA authentication process seems broken, I'll keep an eye on the upstream bug reports to look for a solution.
This project derives from AGPLv3 (openhaystack & send-my) and GPLv3 (macless-haystack) licensed code, the project is therefore licensed under AGPLv3.
