Integration of Embedded Business AI (EBA) Framework into the IBM Sterling Call Center for Commerce application

The IBM Sterling Call Center for Commerce Solution provides the Customer Service Representatives (CSRs) with access to a multitude of critical order fulfillment system features in a UI designed for a call center environment. These include order entry, item and inventory lookup, processing returns and exchanges, managing alerts and exceptions on orders, customer appeasement, reshipment and modifications of orders as well as price matches.

The IBM Sterling Call Center for Commerce experience can also be enhanced by extending what is already available in the application using extensions. One such extension is the Embedded Business Assistant (or Embedded Business AI).

The Embedded Business AI (“EBA”) framework is an open, hybrid multi-cloud deployable, omni-channel, enterprise-class, digital AI framework that can be used by developers to enable advanced domain-specific process automations for business users. Unlike other dialog management systems that use rule-based reasoning and predicate logic, with EBA you describe your business domain to the machine in a simple, consistent, complete and straightforward way. IBM makes use of EBA to create an omni-present “digital twin” that supports the human counterparts wherever they may conduct their business.

Integration of EBA into the IBM Sterling Call Center for Commerce application makes it easier and faster for the CSR to obtain relevant information about the customer they are interacting with and about the customer's orders and transactions. This results in quicker query resolutions and provides enriching and improved interactions between the customer and the CSR.

In this code pattern, you will understand how to integrate the Embedded Business Assistant with IBM Sterling Call Center for Commerce.

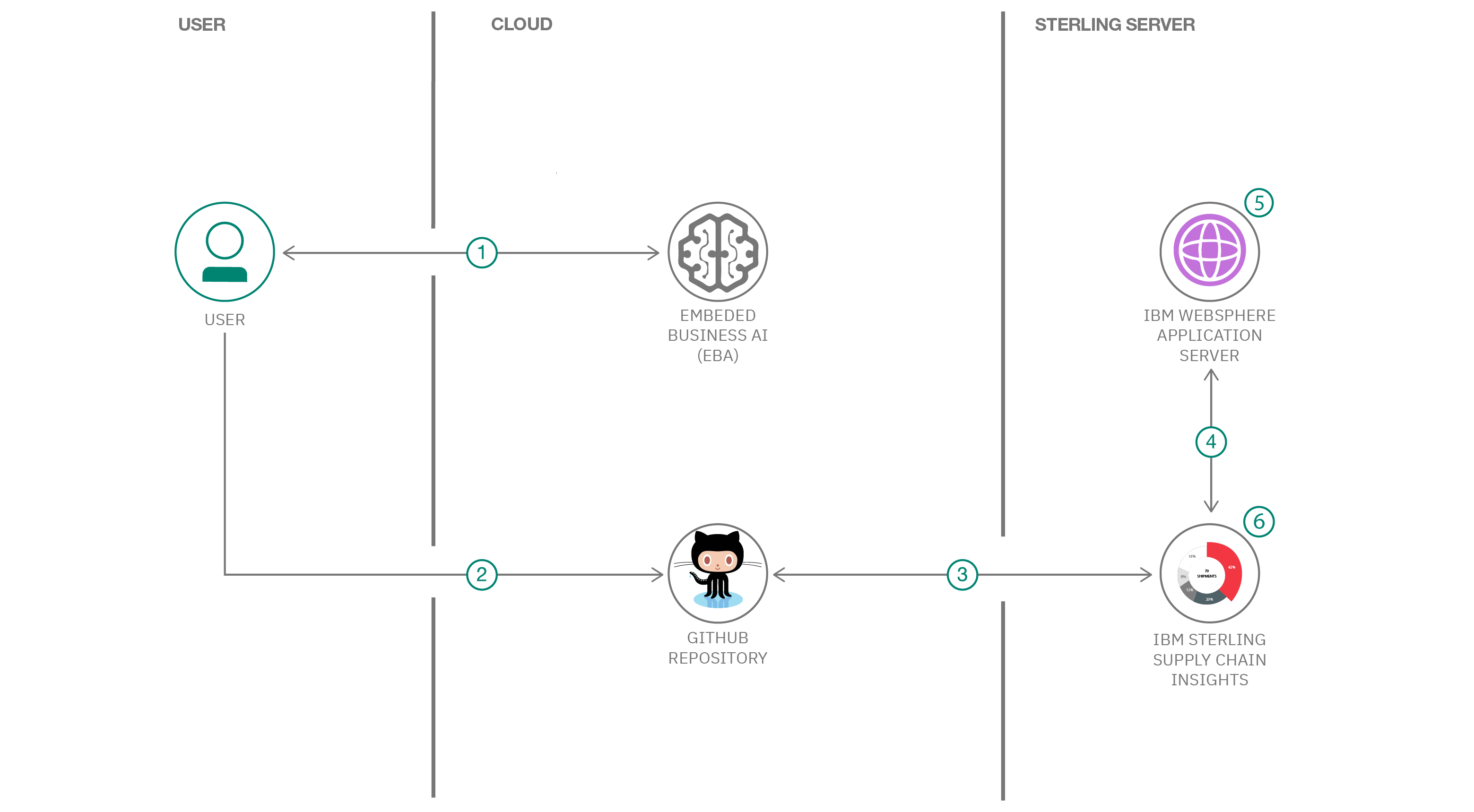

Architecture Diagram

Architecture diagram

Flow

  1. The user logs into the Embedded Business AI (EBA) Framework using their IBMId and generates public and private keys that can be used for programmatic access.
  2. Using the generated private key and the GetAccessKey.js script available in the Github repo, the user then generates an access key and updates the key in the customer_overrides.properties file available in the Github repo.
  3. Next, the user moves the updated customer_overrides.properties file as well as the extensions folder from the Github repo to the server where IBM Sterling Call Center for Commerce is deployed.
  4. A new EAR is built and deployed to the IBM Websphere Application Server.
  5. The IBM Websphere Application Server is restarted in order to reflect the changes as per the deployed EAR.
  6. The user can now verify that the Embedded Business Assistant is integrated into the IBM Sterling Call Center for Commerce application.

Included components

  • Embedded Business AI Framework: The Embedded Business AI (“EBA”) framework is an open, hybrid multi-cloud deployable, omni-channel, enterprise-class, digital AI framework used by developers to enable advanced domain-specific process automation (RPA) use cases for business users.

  • IBM Sterling Order Management: IBM Sterling Order Management software lets you orchestrate your entire fulfillment network with powerful core capabilities and next-level options. Combine multichannel order aggregation, inventory and delivery visibility, and service availability within a single platform, for truly omnichannel order fulfillment.

  • IBM Sterling Call Center for Commerce: IBM Sterling Call Center for Commerce is a web-based solution that provides customer service representatives (CSRs) with single access to all commerce information needed to ensure a seamless omni-channel experience for prospects, customers, and partners in a call center environment.

  • IBM WebSphere Application Server: IBM WebSphere Application Server is a flexible, security-rich Java server runtime environment for enterprise applications. It delivers advanced performance, redundancy and programming models.

Featured technologies

  • Node.js is an open source, cross-platform JavaScript run-time environment that executes server-side JavaScript code.

Prerequisites

Steps

Follow these steps to setup and run this code pattern:

  1. Clone the Github repository
  2. Generate access key
  3. Copy properties file and extensions folder from Github repository to Sterling server
  4. Build the EAR file and deploy the application to WebSphere
  5. Restart WAS server
  6. Start the deployed application on WAS
  7. Verify the changes on IBM Sterling Call Center for Commerce

1. Clone the Github repository

Use the following commands to obtain a copy of the Github repository on your local machine.

git clone https://github.com/IBM/Call-center-EBA/
cd Call-center-EBA

2. Generate access key

Note: This code pattern works best when you use the Google Chrome/Opera browsers.

We need to generate an access key in the Embedded Business Assistant using which we can connect EBA with IBM Sterling Call Center for Commerce.

Go to eba.ibm.com and log in using your IBMId.

Log into EBA

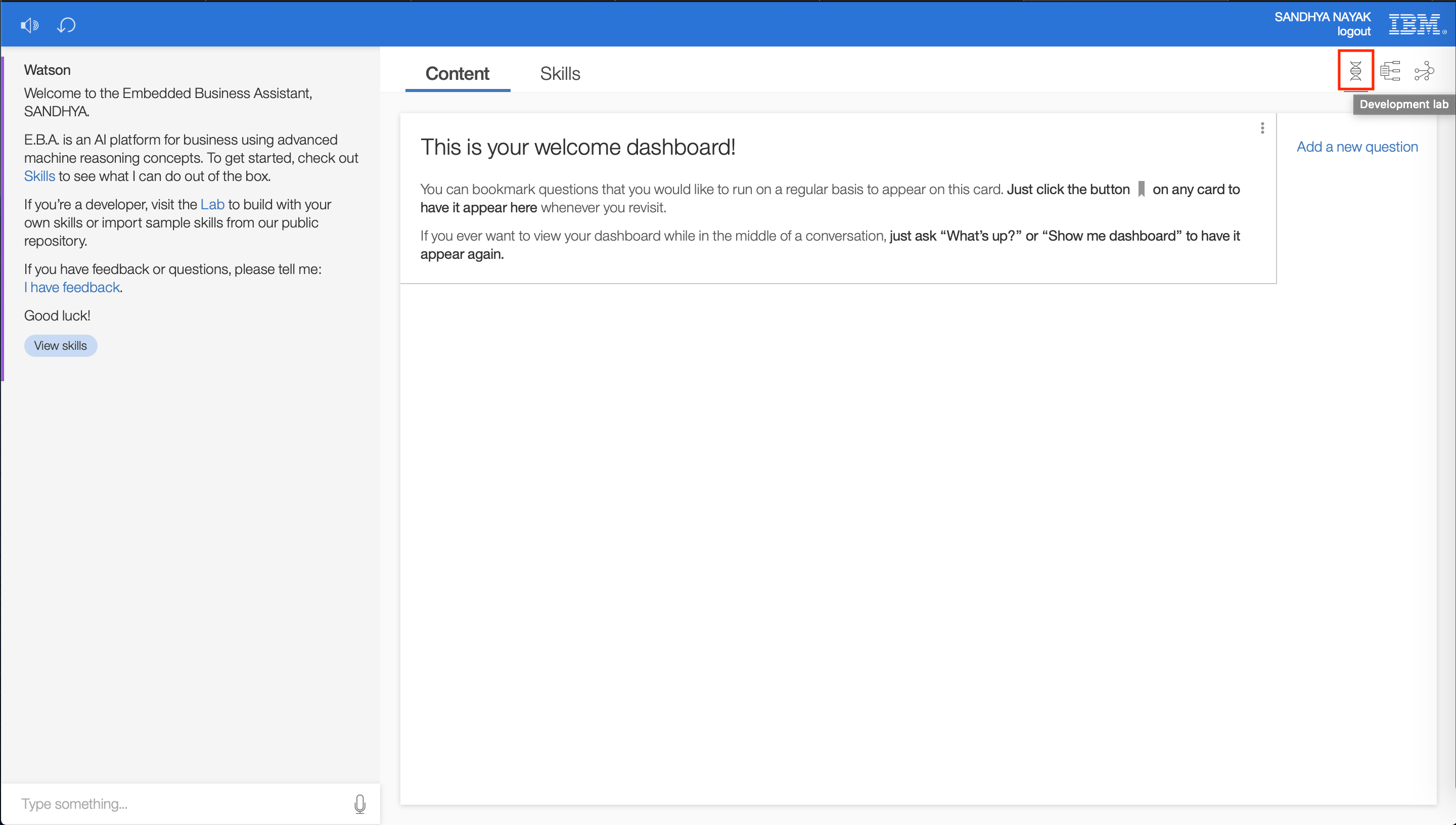

Once you have successfully logged in, click on the icon on the right hand side that resembles a DNA strand. This will take you to the Development lab.

Go to development lab

Go to the Settings tab and select Enable programmatic access. This will display all the instructions needed to generate an RSA private and public key pair.

Generate the RSA keypair by running the provided script in the terminal of your local machine.

View steps for access key

Once you have run the script, you should see 2 .pem files on your local machine - the private_key.pem and the public_key.pem.

Generated keys

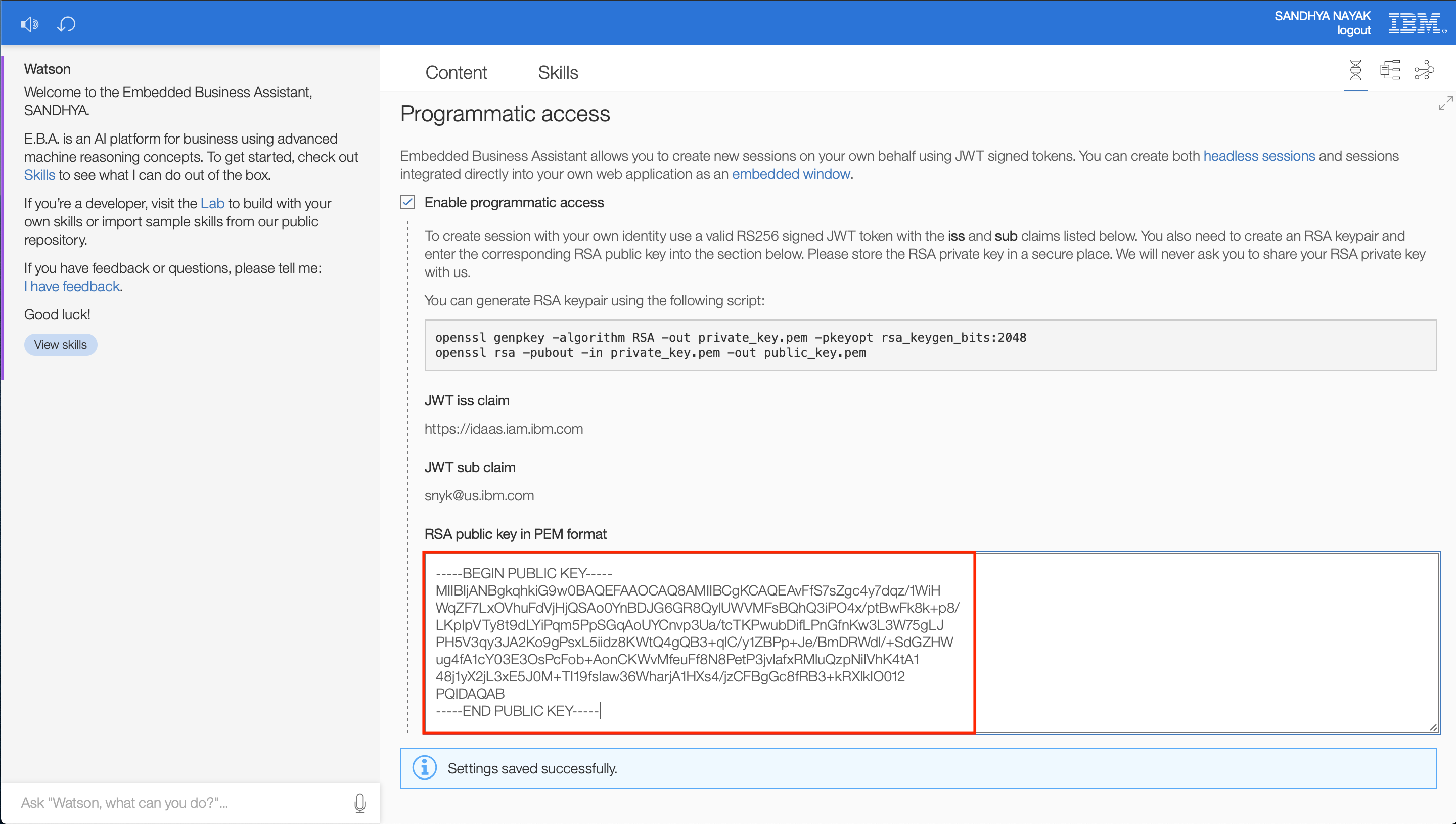

Copy the contents of the public_key.pem file and paste it into the section titled RSA public key in PEM format on the EBA framework screen.

Add public key in EBA

The updates to the settings should be saved automatically and you should see the message Settings saved successfully. as in the image above.

The next step is to generate the access_key using the private_key.pem file. Edit the GetAccessKey.js script and update the following information in the settings variable:

- key: The path to the private_key.pem file that was generated earlier.
- sub: Your email address/IBM Id used to log into the EBA.
- name: Your name.
{
    const settings = {
      url: 'https://eba.ibm.com/',
      key: '../eba_keys/private_key.pem',
      iss: 'https://idaas.iam.ibm.com',
      sub: '<email-address/IBM-Id>',
      name: 'Sandhya Nayak'
  }
}

Save the script with these changes and run it. You will first have to install the npm package for jsonwebtoken.

npm install jsonwebtoken
node GetAccessKey.js

An access key similar to the one below should be generated and displayed in the terminal.

eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCJ9.eyJpc3MiOiJodHRwczovL2lkYWFzLmlhbS5pYm0uY29tIiwic3ViIjoic255a0B1cy5pYm0uY29tIiwibmFtZSI6IlNhbmRoeWEgTmF5YWsiLCJpYXQiOjE1ODI1NjE3OTR9.UqMv5P_KtOQf_C9zrMOaXqx7pWbkMFayXwG2QhNekXTHwaWsoof99C-TWp9iTKL-dgVRKDzsqpO5ziV4OtU3BE1HuYAVwRZMQaiNcMs0xceQDPU7R2LKZR5Mfj-jvcFXoSHX2Qk-wO--Omyaol7RaHK_cFI1p9rKKFiHIR4WX6xDdm3-eb419_jtVliNYGLhlh-W3CFCeleY6ft1niPdGqzbsMcJ6_X0s6SsfL_DDlnEpB_SIx9jYjkHklgS-eRjZwLOnDLCUpjSDTCAg3NMqCfLx4jQ51rvmytrgdLOdnWIBjcFoTUyjPm2H9NAHTDzZ87HdLG0ISFPBDWs1yaQKA

Copy this access key and paste it into the customer_overrides.properties file as the yfs.accessKey property.

3. Copy properties file and extensions folder from Github repository to Sterling server

Now that the customer_overrides.properties file has been updated, we need to copy it to the Sterling server.

Copy the file to the <install_location_for_IBM_Sterling_Call_Center_for_Commerce>/properties folder on the Sterling server.

scp properties/customer_overrides.properties <install_location_for_IBM_Sterling_Call_Center_for_Commerce>/properties

Next, we need to recursively copy the contents of the extensions folder to the <install_location_for_IBM_Sterling_Call_Center_for_Commerce>/extensions folder on the Sterling server.

scp -r extensions <install_location_for_IBM_Sterling_Call_Center_for_Commerce>

4. Build the EAR file and deploy the application to WebSphere

After the properties and extensions have been updated, a new EAR (Enterprise Archive) file needs to be created.

On the server, open a terminal, and go to <install_location_for_IBM_Sterling_Call_Center_for_Commerce>/bin and run the following command to generate the EAR.

Note: Replace <EAR_name> with the name that you would like to provide for the EAR file.

cd <install_location_for_IBM_Sterling_Call_Center_for_Commerce>/bin

./buildear.sh -Dappserver=websphere -Dwarfiles=smcfs,isccsdev,isccs -Dearfile=<EAR_name>.ear -Dnowebservice=true -Dnoejb=true -Ddevmode=true -Dnodocear=true -Duidevmode=true create-ear

Once the process completes, the EAR will be generated and stored in the <install_location_for_IBM_Sterling_Call_Center_for_Commerce>/external_deployments location.

Now, we need to deploy this generated EAR to the Websphere Application Server.

Open a browser and go to the Websphere Console.

Open Websphere console

After logging in, expand Applications > Application types and click on Websphere enterprise applications. Once the enterprise applications page is loaded, click on Install.

Install application on WAS

Select the radio button for Remote file system and browse to the <install_location_for_IBM_Sterling_Call_Center_for_Commerce>/external_deployments location. Select the EAR that was just built and click OK. Click Next.

Select EAR

Select the radio button for Fast Path - Prompt only when additional information is required. and click Next.

Select Fast path

Provide a relevant application name and click Next.

Application name

On the next screen, select all the modules displayed and click Next.

Select modules

Click Finish.

Click finish

It will take about 3 minutes for the screen to be refreshed, after which you should see the screen shown below. Click on Save.

Click Save

Like before, this will take a couple minutes and when the screen is finally refreshed, you should be back on the Enterprise applications page and should be able to see the application that you just deployed in the list of available applications.

Application is deployed

5. Restart WAS server

Now that the files have been copied, the EAR generated and deployed to the Websphere server, we need to restart the server in order to see the changes reflected.

Using the following commands on the Sterling server go to the bin/ folder for your WebsphereApplicationServer profile, then stop the server using the stopServer.sh script and finally, start the server using the startServer.sh script.

cd <install_location_for_IBM_WebSphere>/AppServer/profiles/AppSrv01/bin/
./stopServer.sh <SERVER NAME>
./startServer.sh <SERVER NAME>

6. Start the deployed application on WAS

In most cases, there will only be one application deployed to the WebSphere server - that is the one that you just deployed. However, it is possible that you have more than one deployed application on the WebSphere server. Follow the instructions in this step in case you have more than one deployed application on your WebSphere server.

If you do not have any other deployed applications, or if you have deployed applications but none of them are running (an application is running/started if there is a green arrow under the Application Status for that application), then you should be able to see that the application you deployed is already running.

Application is already running

However, if the application you deployed is not already running, you will have to start the application in order to see the changes reflected.

Note: Only one application can be running at a time, so if you see a different application that is already in the running state, you will have to select that application and click on Stop in order to stop it, before you start your application.

Once you have ensured that no other application is running, select your deployed application and click on Start. Once your application starts, you should see a green arrow next to your application and a message that says the application was started successfully.

Application is started

7. Verify the changes on IBM Sterling Call Center for Commerce

Now that all the changes have been made and the WAS server has been successfully restarted, you can log into the IBM Sterling Call Center for Commerce application, and you should be able to verify that the Embedded Business Assistant extension that we had added can be seen on the screen.

This is how the application looked before the extension was applied.

Call center before applying extensions

And this is how the IBM Sterling Call Center for Commerce application looks now, once the EBA extension has been applied. You can see the extension on the lower right hand corner of the screen.

Call center after applying extensions

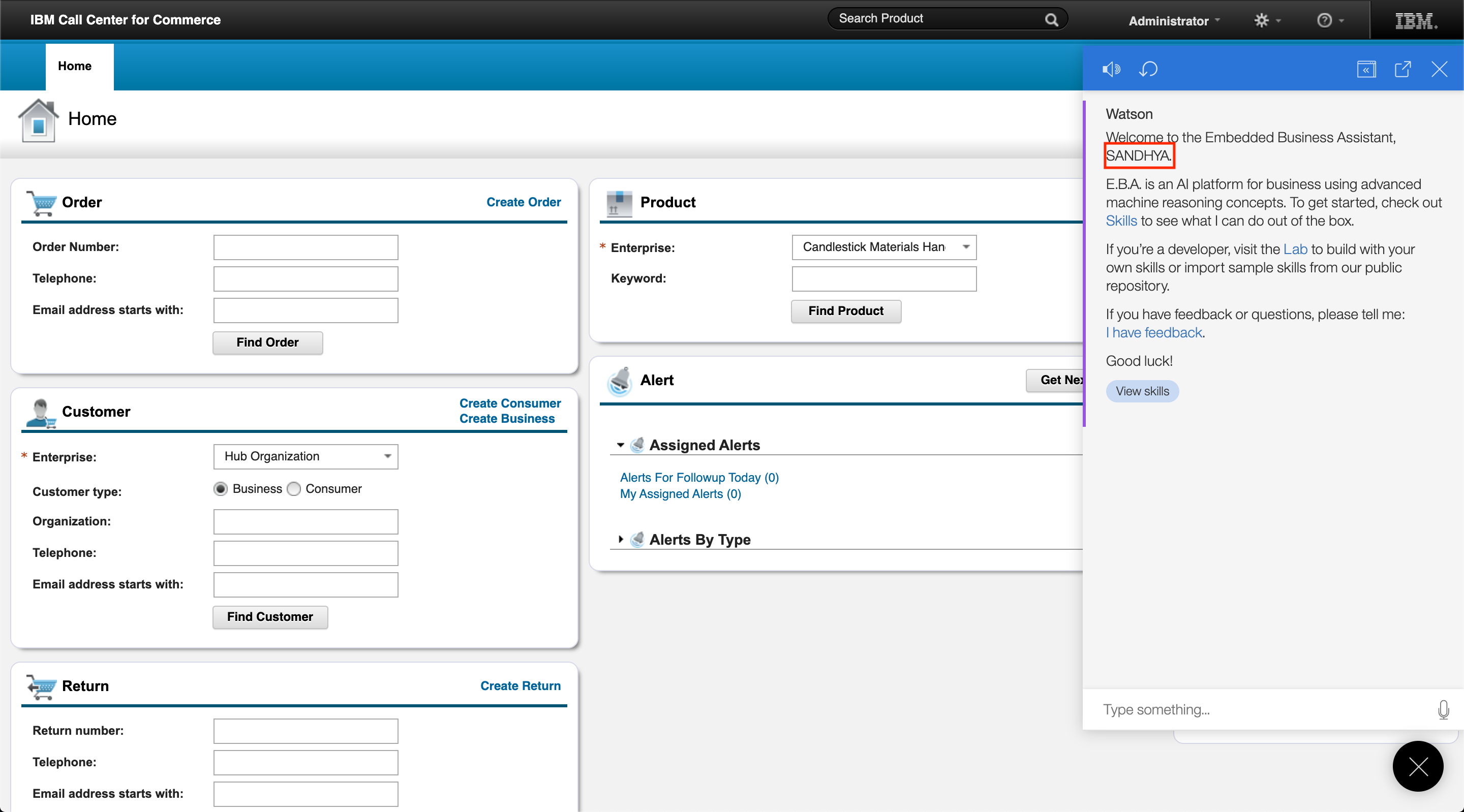

Since you have provided the access key which was generated using your login information in Embedded Business Assistant, the EBA extension on the IBM Sterliing Call Center for Commerce application should be able to pull up this information and you should be able to see your name on the dashboard as shown below:

EBA is already logged in

Learn more

License

This code pattern is licensed under the Apache Software License, Version 2. Separate third party code objects invoked within this code pattern are licensed by their respective providers pursuant to their own separate licenses. Contributions are subject to the Developer Certificate of Origin, Version 1.1 (DCO) and the Apache Software License, Version 2.

Check the ASL FAQ link for more details.
