This module allows us to use Instamojo as Payment Gateway with Magento.


####Let's assume for the rest of this article that your website URL is

Open Magento Connect Manager from the admin backend, usually its url is

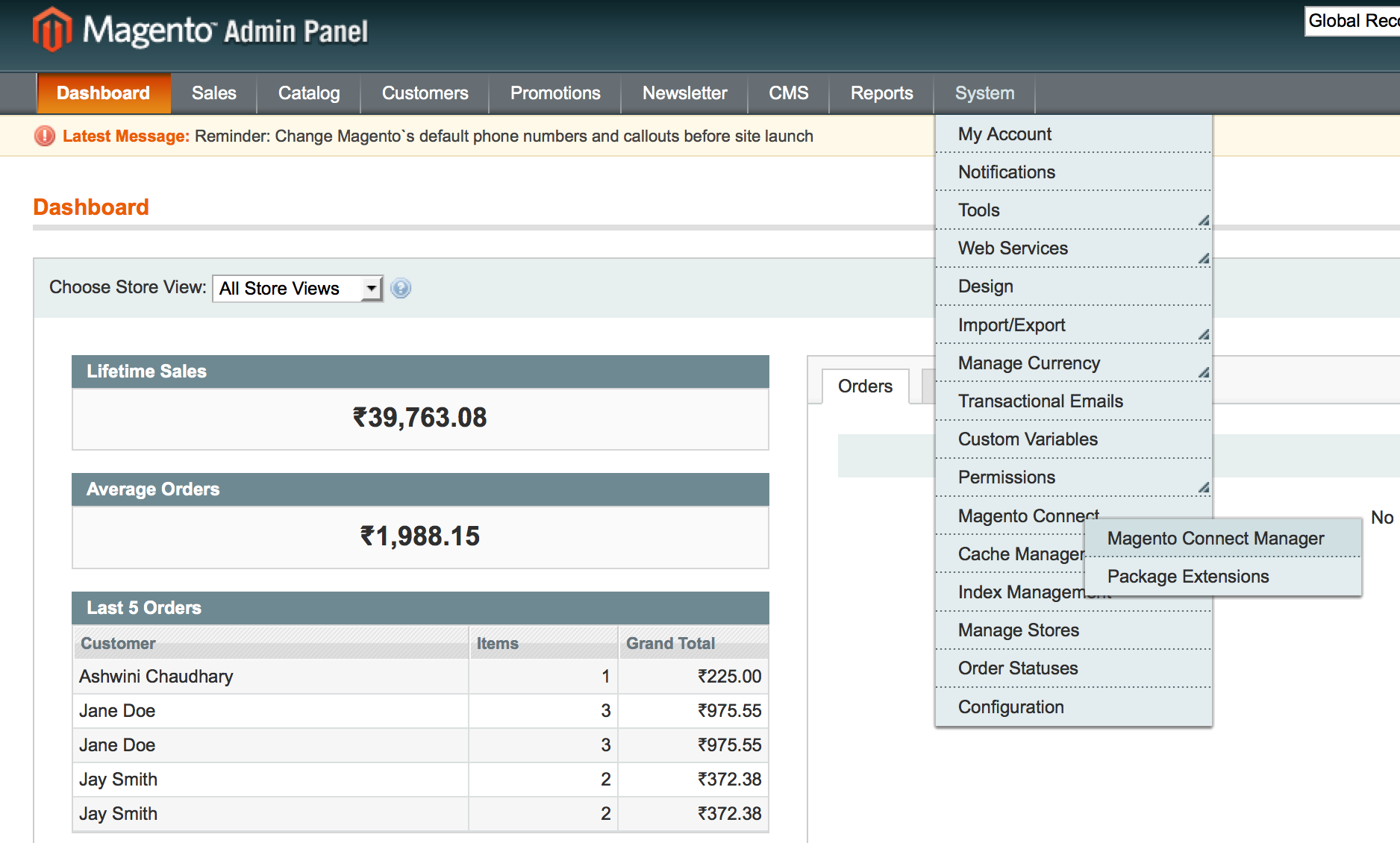

If that didn't work then go to the admin backend and then System -> Magento Connect -> Magento Connect Manager. This page may prompt for username and password again for security reasons.

enter image description here

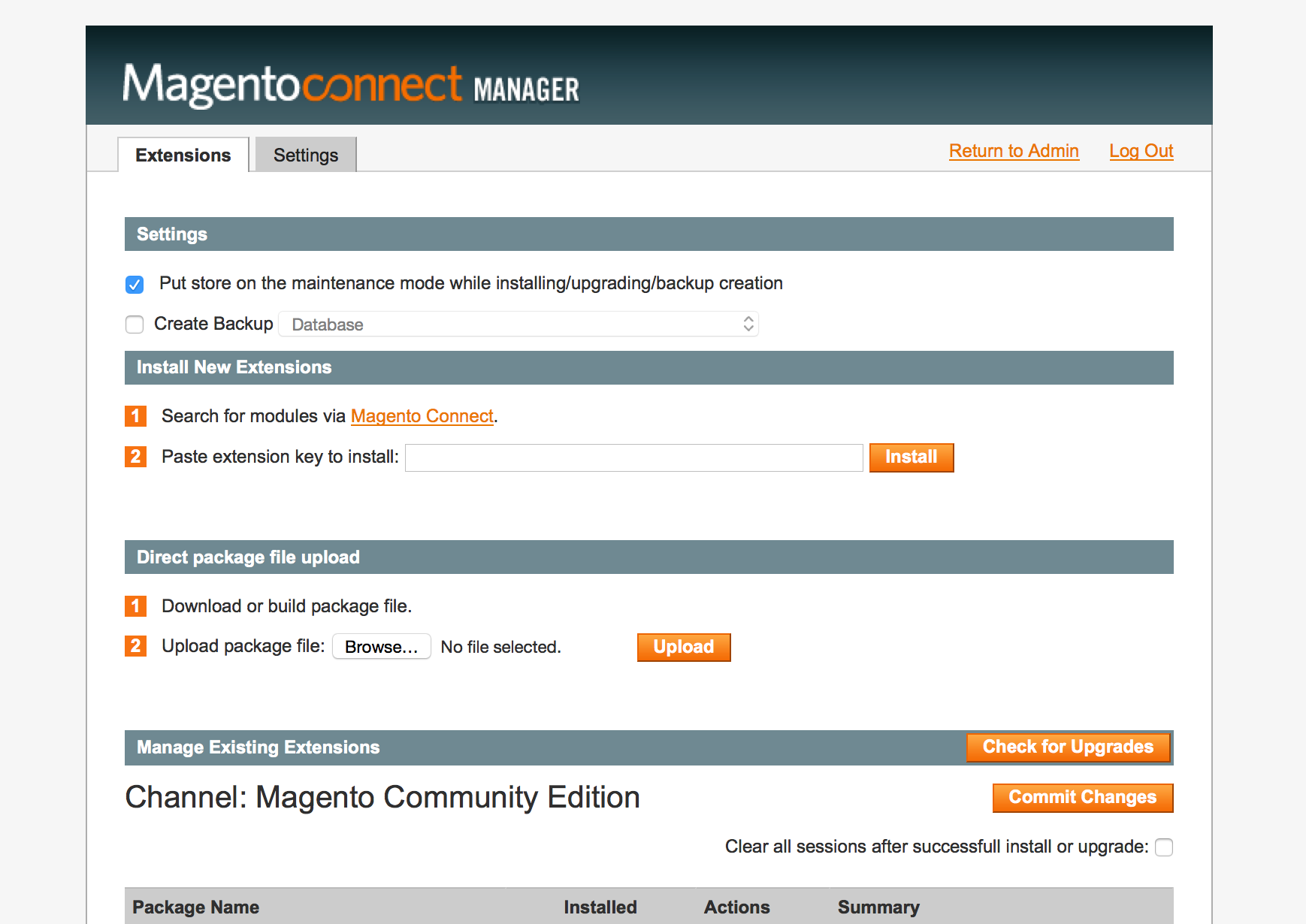

After entering username and password you will see the page shown below:

enter image description here

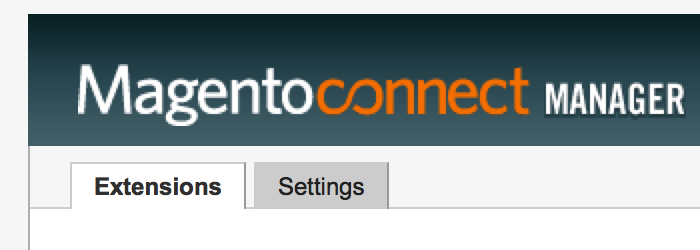

Here first go to settings:

enter image description here

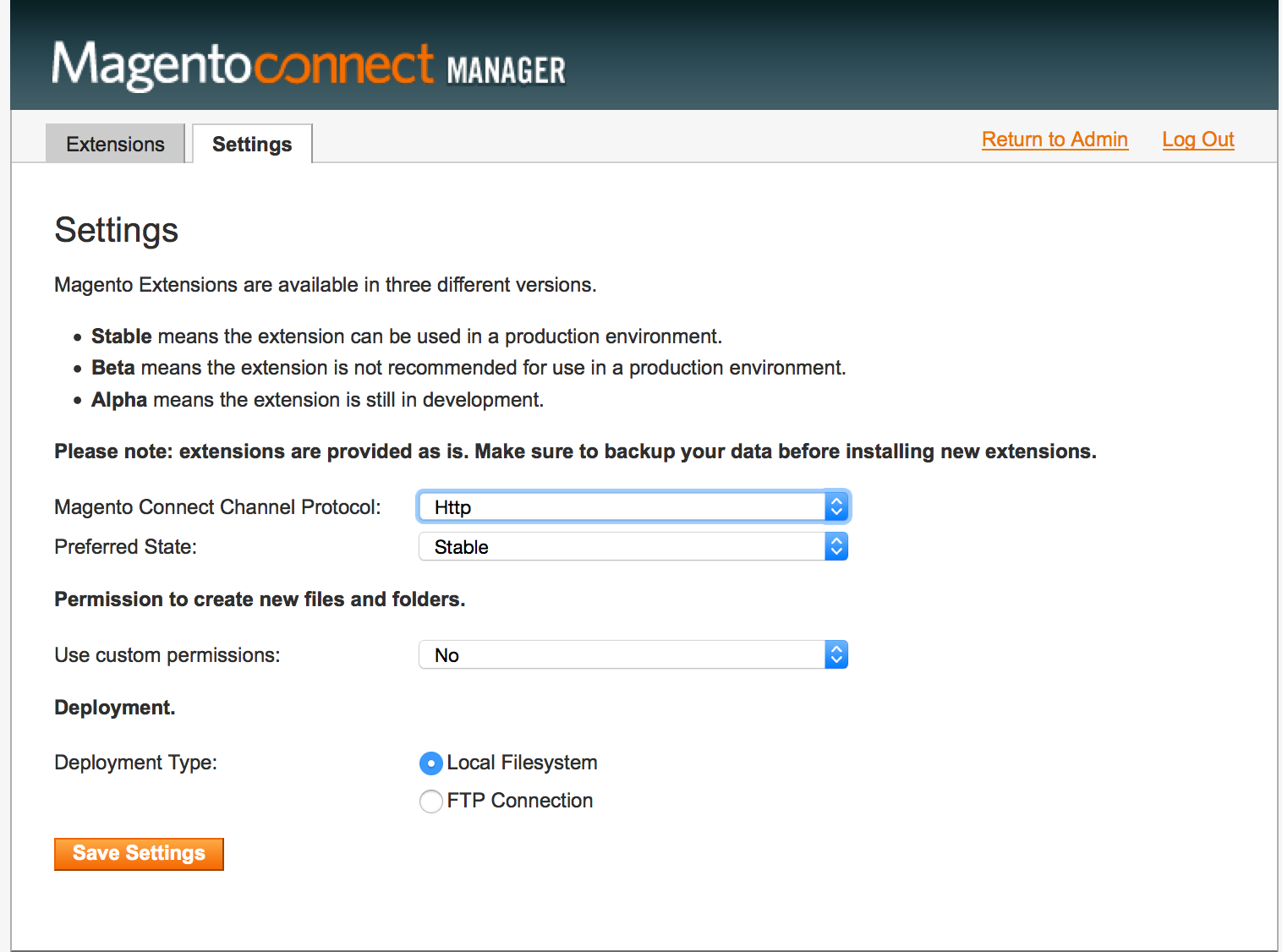

And change the value of Magento Connect Channel Protocol from "Https" to "Http" and click on Save Settings.

enter image description here

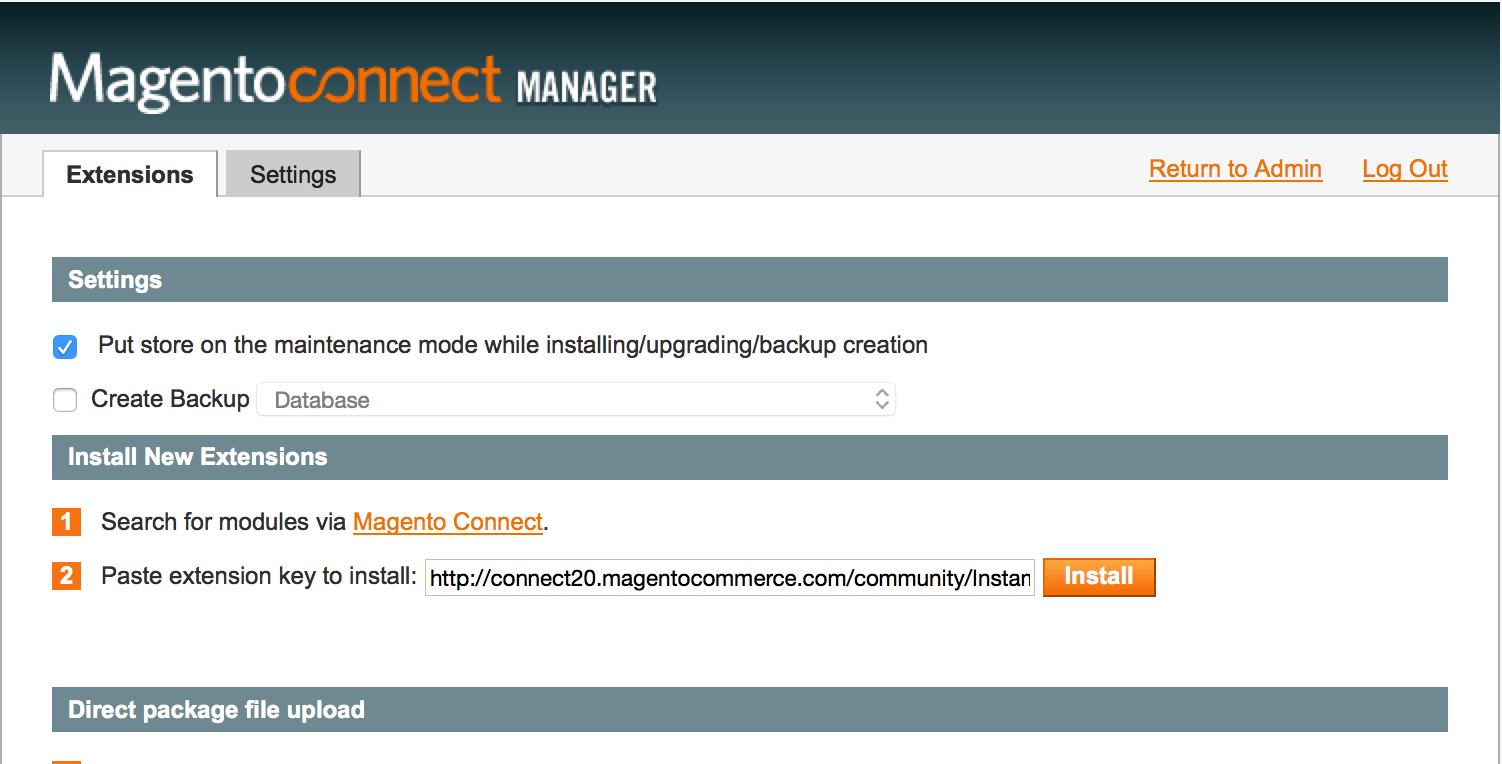

Now go back to the previous page by clicking on Extensions and enter in Paste extension key to install under Install New Extensions:

enter image description here

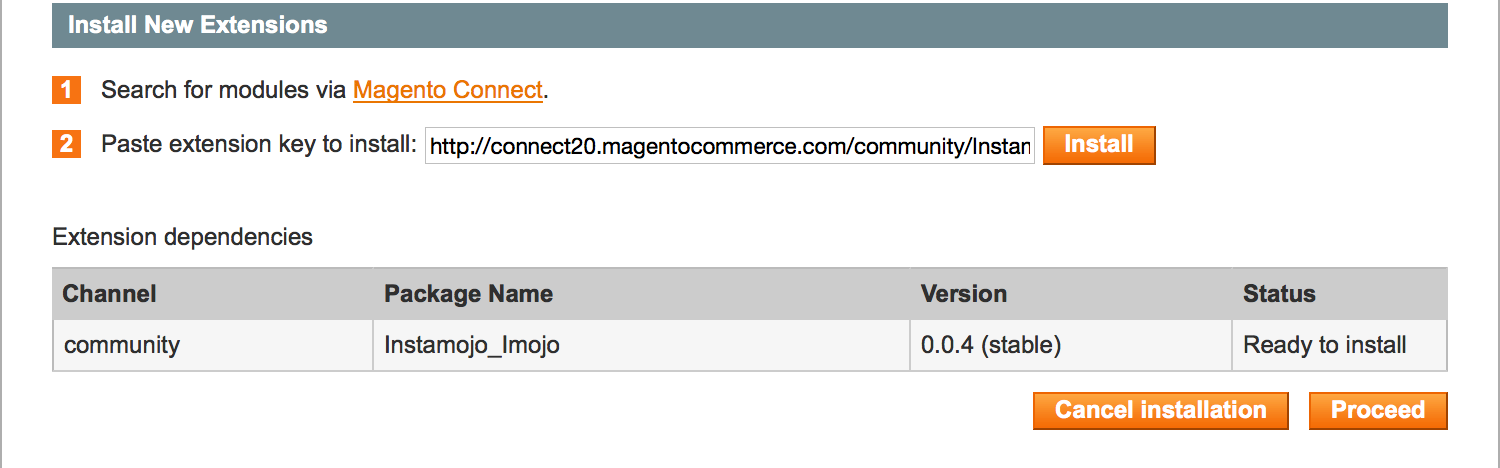

Now click on Install and after that Magento will show you a package by the name of Instamojo_Imojo with some version number. Now click on "Proceed" to install the extension(Note: Always choose the latest stable version in case it is displaying multiple options)

enter image description here

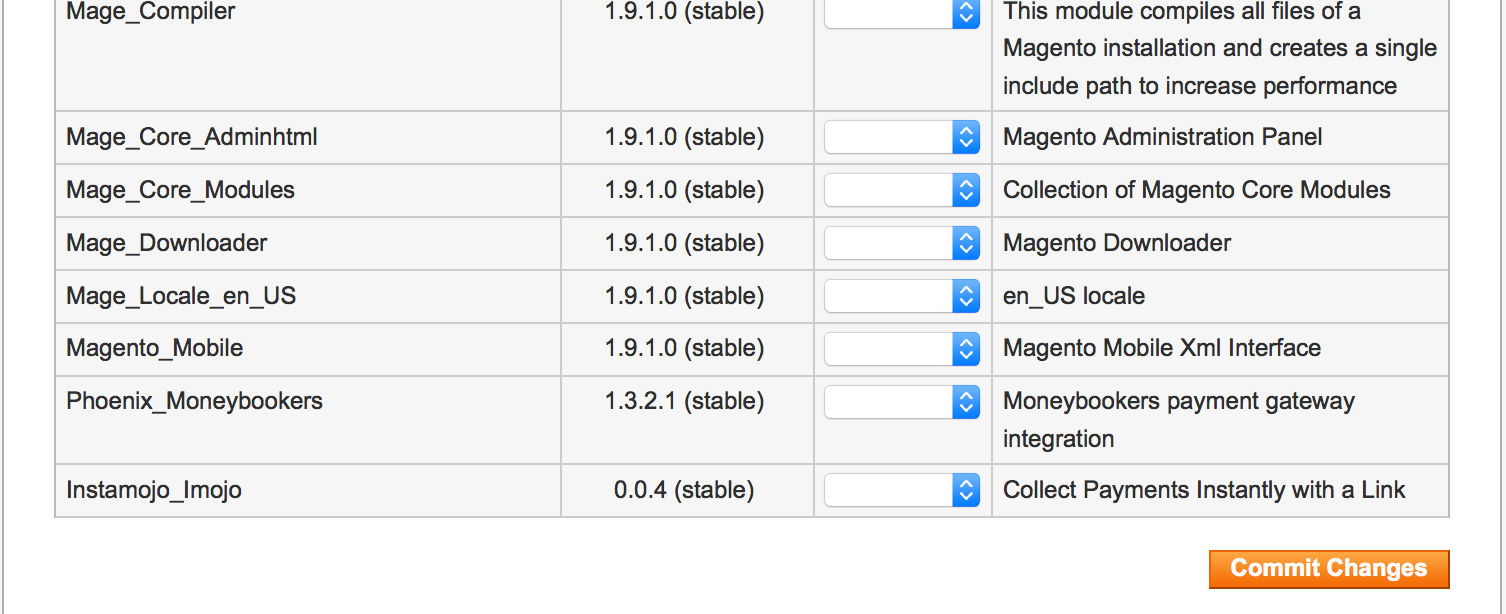

Once the installation is done Instamojo_Imojo will show up in the list of extensions:

enter image description here

Now that we have installed the extension it's time to configure this extension.

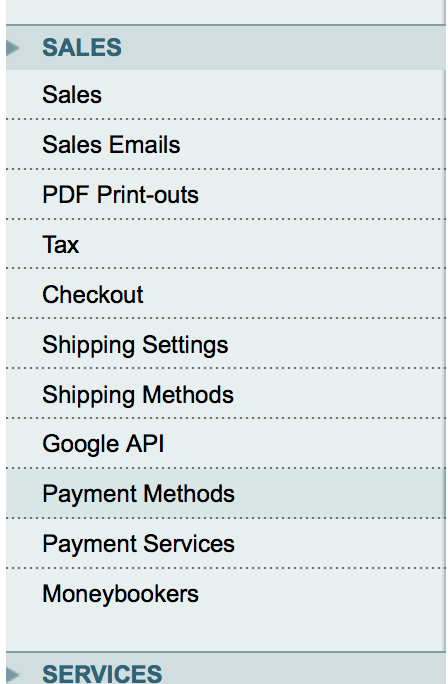

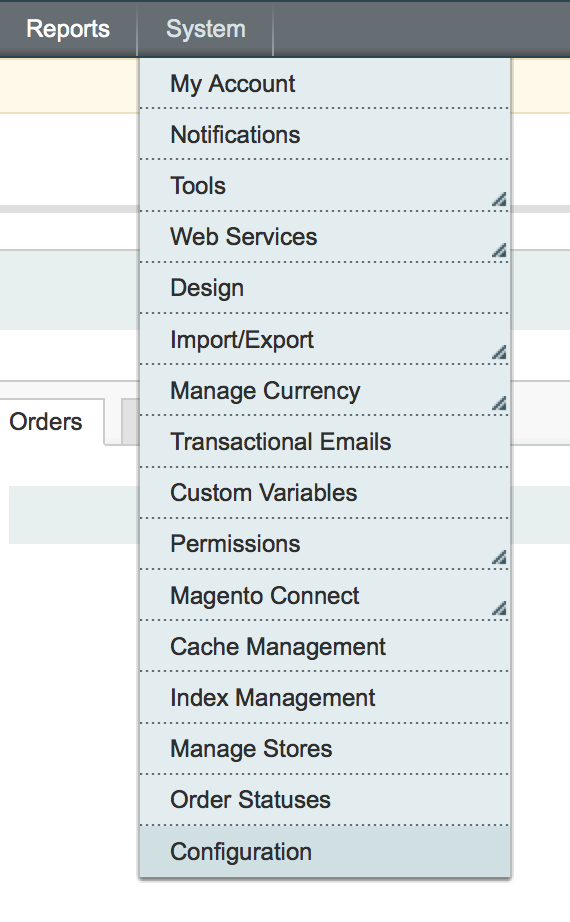

To configure the extension in admin panel go to System -> Configuration -> Payment Methods.

enter image description here

enter image description here

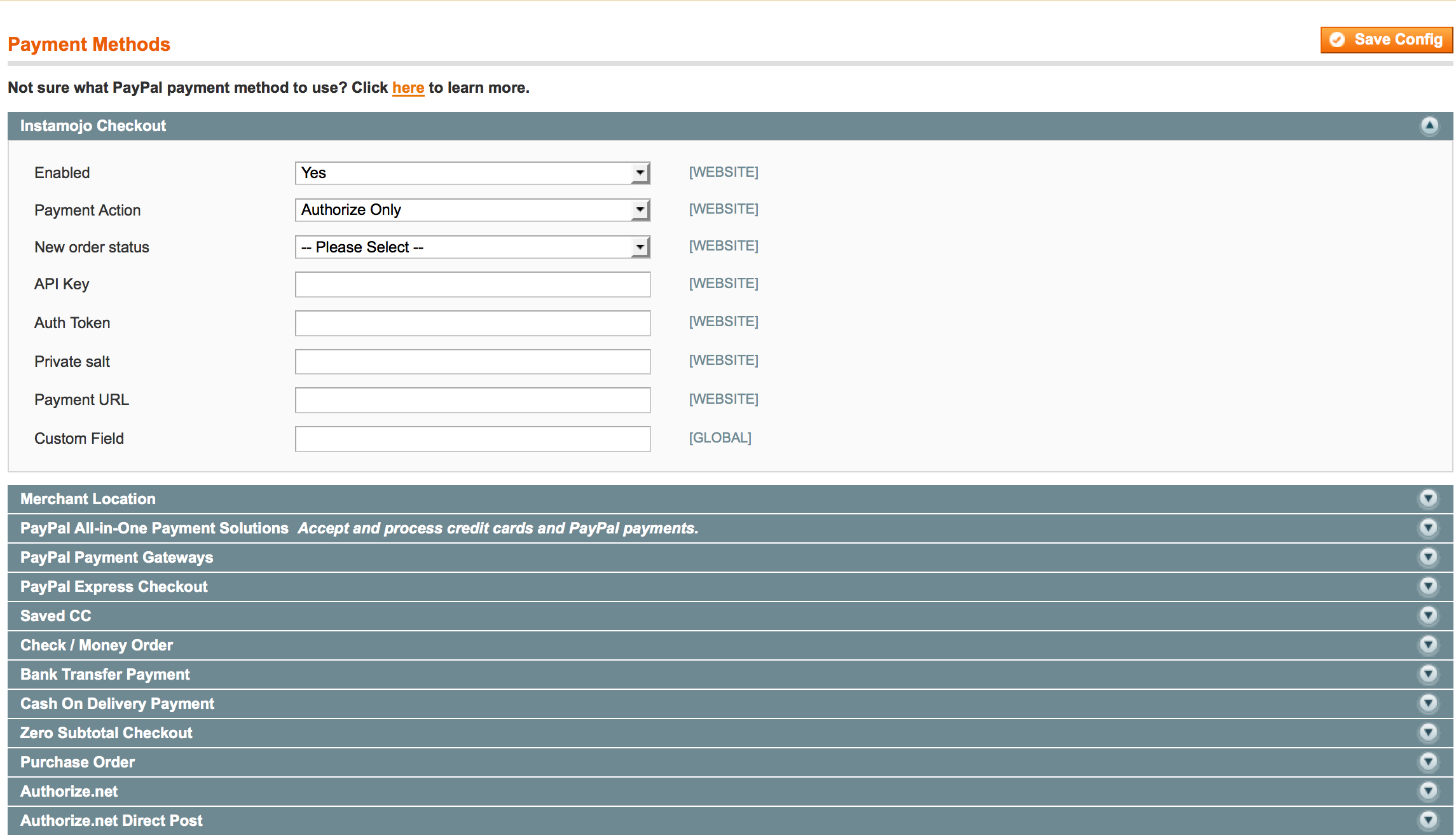

Here you will see a list of Payment methods already installed along with Instamojo Checkout.

enter image description here

Now make sure Enabled is set to Yes if you want to use this extension during checkout, and change the values of Payment Action and New order status to Authorize and Capture and Processing respectively.

Creating a Product

In this section we will learn how to create a product along with how to get the required values for Payment Link and Custom Field.

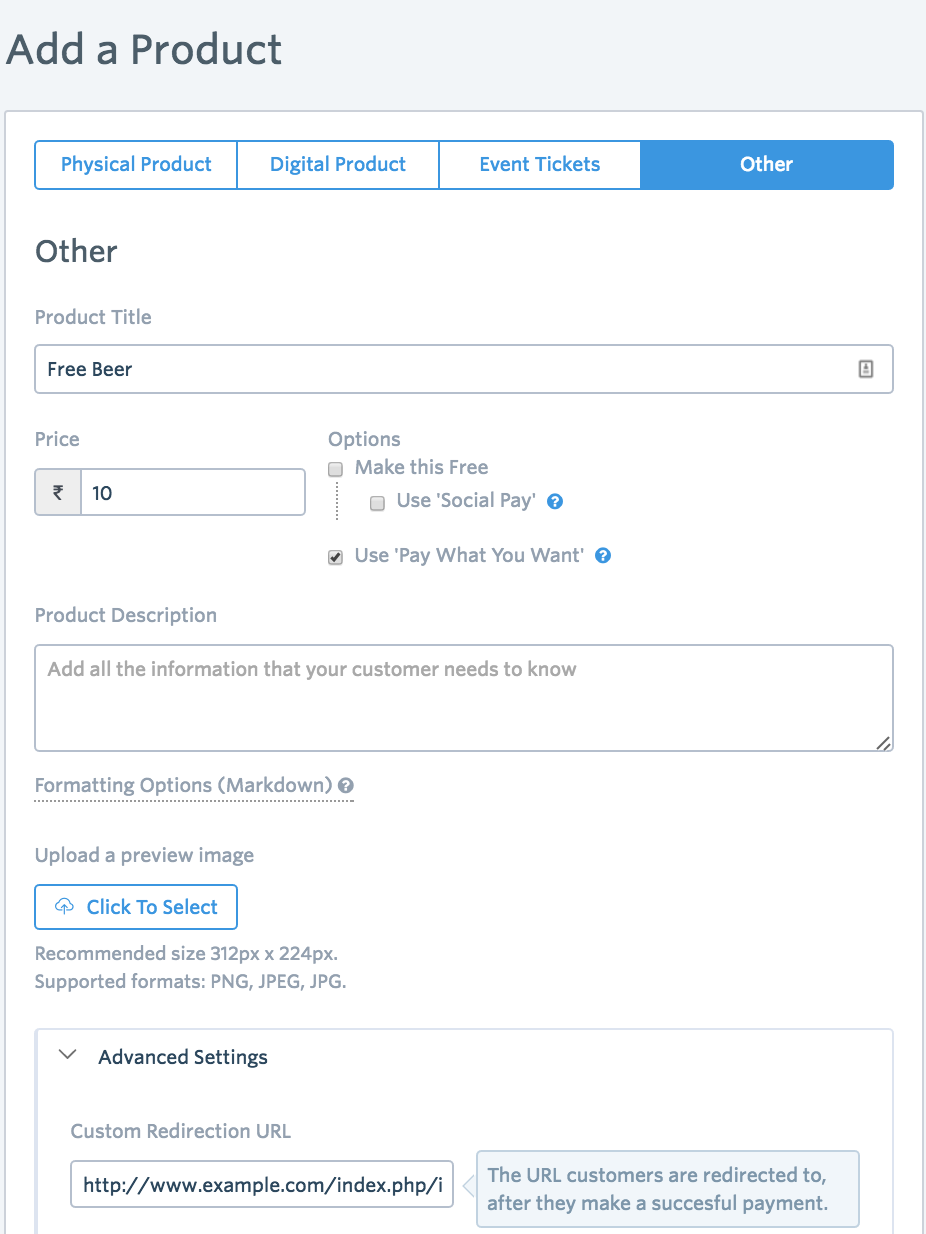

  • Create a product by clicking on Add a Product on your Instamojo dashboard and choose the category Other.

    Set the price to Rs. 10 and enable "Pay what you want". Under Title and Description, you may enter something that describes your business and the nature of the products being sold.

    Under Advanced settings of the same product there's a field Custom Redirection URL. Here if your website's url is then use as Custom Redirection URL.

enter image description here

Click on Add Product to Store to save the product.

  • Copy the product URL and paste this in Payment Link field. URL's format is usually:

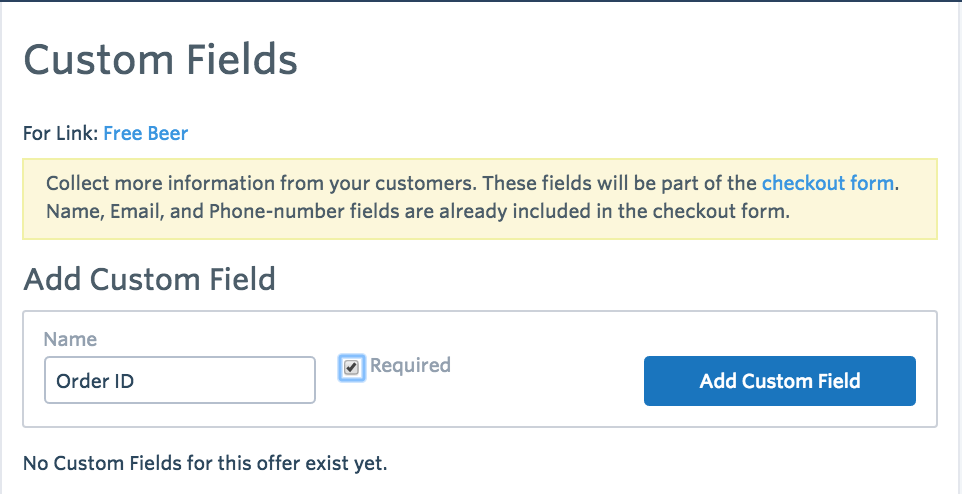

  • On the product page go to More options and click on Custom Fields. Create a custom field called Order ID and mark it as required. Click on Add Custom Field to save this custom field.

enter image description here

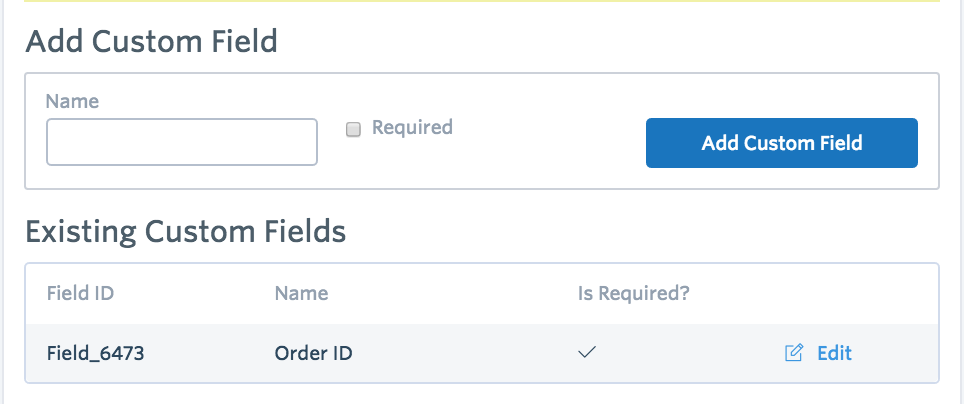

After the custom field has been created Existing Custom Fields section will appear. Copy the name shown under Field ID column, its format is Field_xxxx, where xxxx are some numbers(Note that this is case sensitive!). In this example the value is Field_6473.

enter image description here

Enter this value in the Custom field field of the Instamojo module configuration page in Magento.


Go the Instamojo developers page, if your are not logged in already then login first and then you'll see the value of API Key, Auth token, Private salt there on the bottom left side of the page. Copy these values and paste them in their respective fields in Instamojo Checkout configuration.

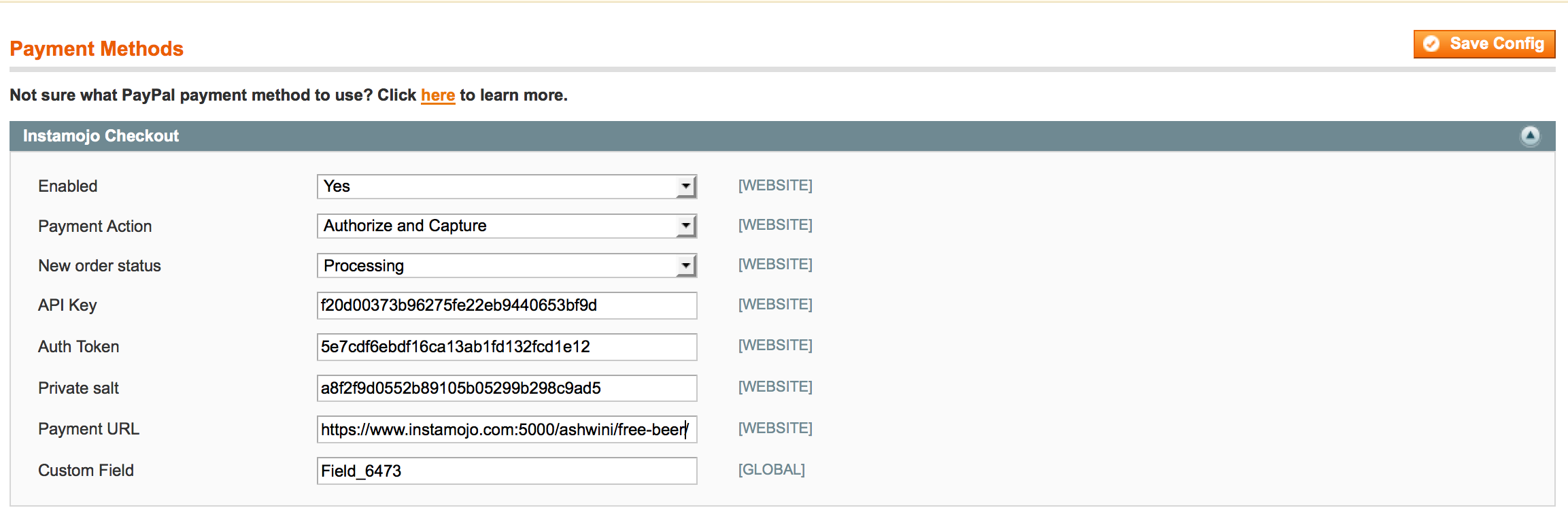

At the end the Configuration will look something like this:

enter image description here

Click on Save Config to save these settings. Now we are ready to use Instamojo as payment gateway.

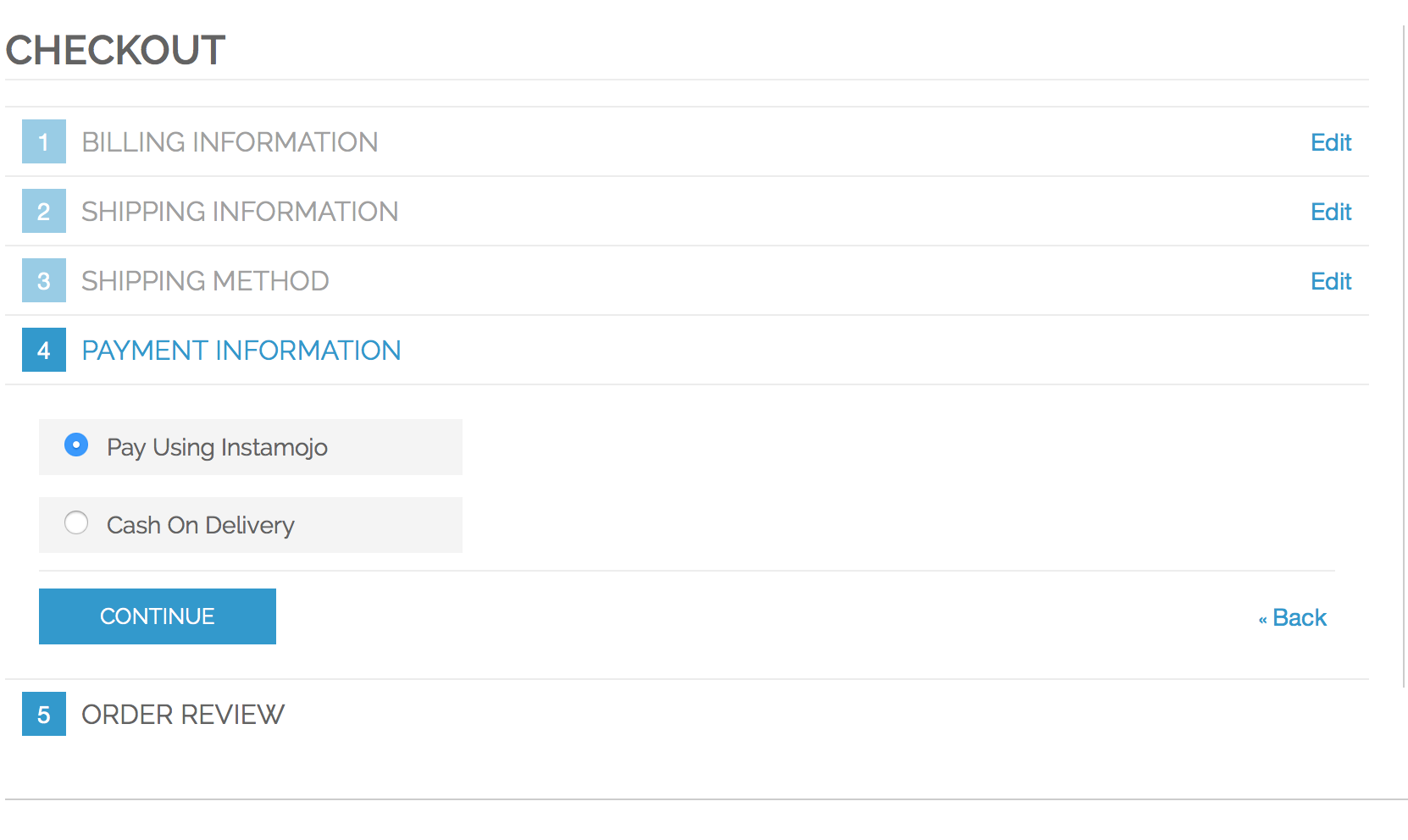

During checkout users can choose the option "Pay using Instamojo".

enter image description here

Note: Don't forget to replace all the instances of with your website's URL.
