Feature: add element dependency with events #81

Merged
merged 10 commits into from Jul 30, 2019

Conversation

@divyanshu013
Copy link
Member

divyanshu013 commented Jun 28, 2019

Reference

Spec

This feature introduces a new trigger - on-event and a new behavior action dispatch-event. (Refer to the example for complete XML)

Consider the following view rendered on the screen:

<view action="append" trigger="on-event" event-name="test-event" scroll="true" href="/advanced_behaviors/dispatch_event/dispatch_event_append.xml" style="Main">
  <text style="Description">Dispatch events to load screens</text>
  <view style="Button" href="/advanced_behaviors/dispatch_event/dispatch_event_source.xml">
  <text style="Button__Label">Open new screen</text>
</view>
</view>

This view will listen for on-event trigger specifically for the event-name test-event (throws an error if event-name is not specified). When this event is caught, it does the append action and appends the XML fragment dispatch_event_append.xml which looks like:

<text xmlns="https://hyperview.org/hyperview">Let it Be!</text>

The source of this event is a different screen:

<view style="Button">
  <behavior trigger="press" action="dispatch-event" event-name="test-event" />
  <text style="Button__Label">Reload previous</text>
</view>

With the press trigger the dispatch-event action will fire an event (internal to hyperview) with the name defined by the event-name attribute (if not provided throws an error).

Overview

This uses an event emitter (or pub-sub) based approach for implementation. I went with this approach since the hyperview screens could be different for different routes (and navigators). The alternative approach which I didn't go with was to use the context API due to following reasons:

  1. Context is best used for sharing state via a global tree between different react components (which have to be a child of the context provider). It didn't make much sense to me to implement an event based pub/sub system using context.
  2. This will require us to wrap the root app navigator with a hyperview provider so all the screens can access the event dispatcher from the context consumer:
import { Provider } from 'hyperview';

...
<Provider>
  <AppNavigator />
</Provider>

An event emitter based approach looked better and simpler to me. I also tried to look into options if I could build this on top of react-navigation with some shared event publishers and subscribers but didn't spend much time on it since I wasn't able to find something related on the topic which I could use.

Also supports once and delay:

once

  • When added to a listener behavior (with trigger="on-event"), the behavior would only respond to the dispatched event once (till the screen is unmounted)
  • When added to the dispatching behavior (with action="dispatch-event"), the behavior will only dispatch the event once

delay

  • When added to a listener behavior (with trigger="on-event"), the behavior would respond to the dispatched event after the specified delay. (Note that when the delay is large this can lead to indeterminate UI state related)
  • When added to the dispatching behavior (with action="dispatch-event"), the behavior will dispatch the event after the specified delay

ToDo

  • Should I add a check for the presence of both trigger="on-event" and action="dispatch-event" and throw an error or warning?
  • Simplifying debugging around events. What should be logged in __DEV__ mode?
  • Avoiding event chaining? I think preventing adding both trigger="on-event" and action="dispatch-event" should be help with this but any better ideas?

Any other feedback? Would love some help with testing it for more actions/triggers in case there are any issues.

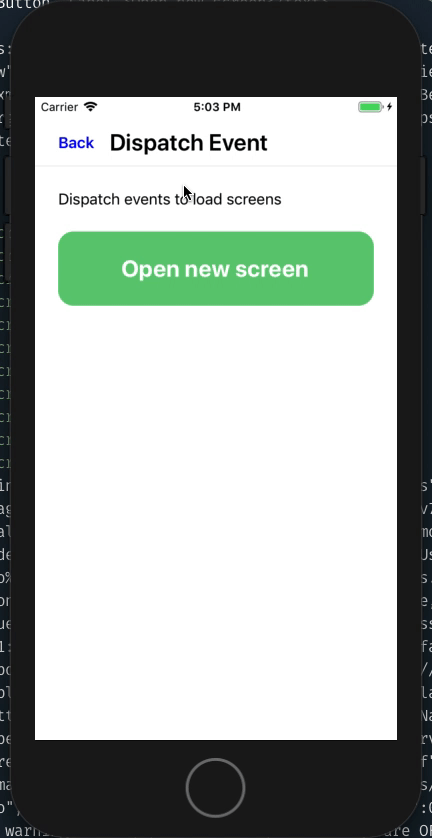

Demo

The following demos use the same example mentioned in the spec above. A screen is able to trigger an append in a different screen using the event dispatch system.

With prepend action With append action
demo prepend demo append

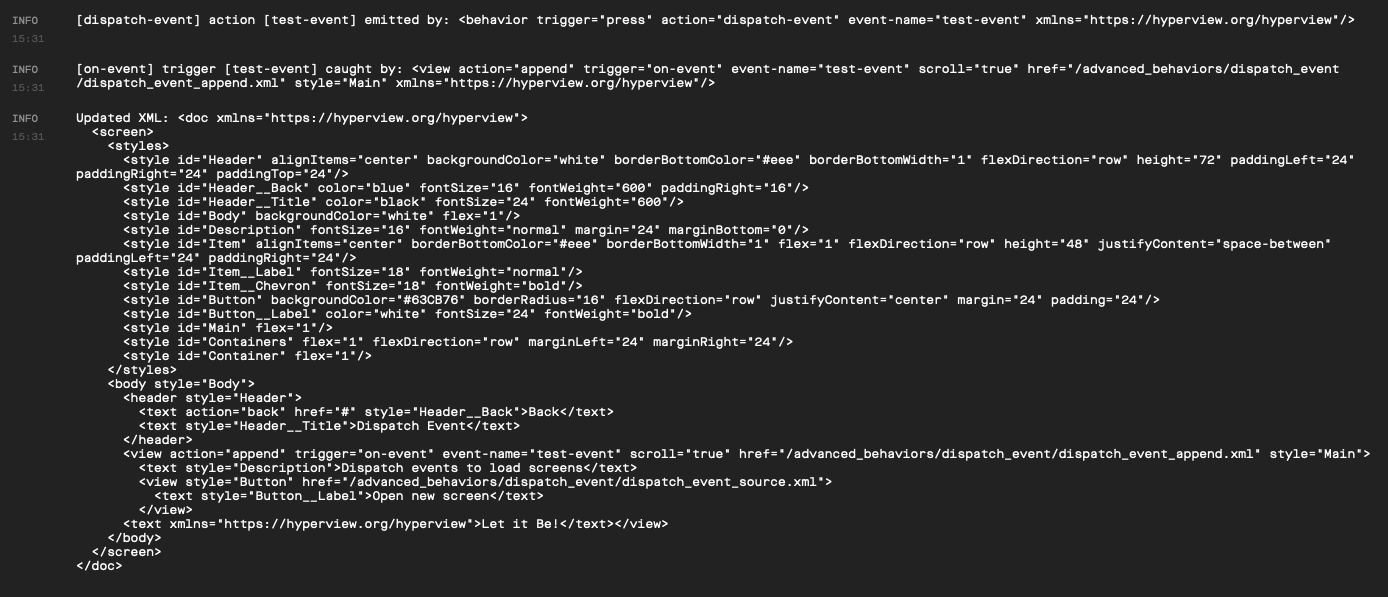

Debugging

Screen Shot 2019-07-03 at 3 31 44 PM

Next steps

  1. Add docs
  2. New release
  3. Test on Instawork app
  4. Blog post
@adamstep

This comment has been minimized.

Copy link
Contributor

adamstep commented Jul 3, 2019

for debugging:

  • log any dispatched events (along with string of dispatching element)
  • log any elements triggered by event (along with string of triggered element)
@adamstep

This comment has been minimized.

Copy link
Contributor

adamstep commented Jul 3, 2019

  • make sure to support behavior attributes of once and delay
divyanshu013 added 2 commits Jul 4, 2019
@divyanshu013

This comment has been minimized.

Copy link
Member Author

divyanshu013 commented Jul 4, 2019

Thanks for the feedback @adamstep, I've added support for once and delay as well.

@divyanshu013 divyanshu013 marked this pull request as ready for review Jul 4, 2019
Copy link
Contributor

flochtililoch left a comment

Looks good to me, thanks for implementing this!

@divyanshu013 divyanshu013 merged commit 25e589f into Instawork:master Jul 30, 2019
2 of 5 checks passed
2 of 5 checks passed
Header rules - upbeat-shaw-3c738f No header rules processed
Details
Pages changed - upbeat-shaw-3c738f All files already uploaded
Details
Redirect rules - upbeat-shaw-3c738f No redirect rules processed
Details
Mixed content - upbeat-shaw-3c738f No mixed content detected
Details
netlify/upbeat-shaw-3c738f/deploy-preview Deploy preview ready!
Details
@divyanshu013 divyanshu013 deleted the divyanshu013:element-dependency branch Jul 30, 2019
