Expand Up @@ -97,5 +97,29 @@ Update Jan 2023

Ian Schofield Jan 2023


Update Jan 2023<br>
This is a major update with many minor change. The most important point is that the app has now gone multi-user!<br>
I have added and extra DL11 interface. If you use a SparkFun board, upload the .uf2 in the images directory.<br>
2 comm ports will appear ... connect a terminal instance to both of them.
For thse who wish to build the code .... edit tusb_config.h in Pico-SDK\src\rp2_common\pico_stdio_usb\include\<br>
#define CFG_TUD_CDC (2)<br>
(I hope this works for you)<br>
This required quite a lot of changes to the app and to the supported operating systems:<br>
1. RT11. RT11_V5_CFB: Fortran/Basic/C.<br>
2. RT11_V5_MUBasic: Multi user basic. Boot to RT11XM and run MUBASX. Type '2user' for the config file.<br>
3. Unix_V6: I have rebuilt the kernel to add an extra DL11 device. You should see a login in both terminal windows.<br>
4. RSX_31_Fortran: This image boot RSX11/M in 2 user mode. This is a very complex OS. Best of luck!<br>
5. MINC_BASIC is as before and boots to a 'READY' prompt.<br>
6. Rsts_DL: This boot Rsts/E in multi user mode. A bit easier to use than RSX/11.<br>
<br>
You may note that these operating system have one thing in common (except Unix) ... this is BASIC.<br>
The history and logic behind this is very interesting in that DEC's view of the language to use was Basic!. This was at a time just prior to c
appearing and it was believed that Fortran was not the language of the future. As it happens, I am a Basic fan and I still use VB.Net for
a number of projects. But c was in the pipeline and one of the RT11 disc contains DECUS c. The rest as they say is history but I have to say
that I am not keen on Rust etc.!

Ian Schofield Jan 2023


It is most

16 comments on commit 427b079

@guidol70
Copy link
Contributor

@guidol70 guidol70 commented on 427b079 Jan 27, 2023 •
edited
Loading

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Dear Ian,
with your precompiled .UF2 I do get 2 serial (COM 36&37 - new TinyUSB numbers) ports, but when I do compile for myself then I did get only one serial port (COM25) like on the compile before the change in tusb_config.h)

My pico-sdk is cloned from https://github.com/raspberrypi/pico-sdk.git

INSTALL PICO-DSK:
===============================
cd /home/pi/
mkdir pico
sudo chmod -R 777 pico
cd pico
git clone -b master https://github.com/raspberrypi/pico-sdk.git
cd pico-sdk
git submodule update --init
cd ..
git clone -b master https://github.com/raspberrypi/pico-examples.git

So the tusb_config.h is on my system at /home/pi/pico/pico-sdk/src/rp2_common/pico_stdio_usb/include

I changed the line
#define CFG_TUD_CDC (1)
to
#define CFG_TUD_CDC (2)

I also recloned the pico-sdk to have the acutal version - but no change :(

Is there anything else to change? (I cleared also the build directory before recompiling)

PS: cmake says
TinyUSB available at /home/pi/pico/pico-sdk/lib/tinyusb/src/portable/raspberrypi/rp2040; enabling build support for USB.

Kind regards
Guido

@Isysxp
Copy link
Owner Author

@Isysxp Isysxp commented on 427b079 Jan 27, 2023 via email

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

@guidol70
Copy link
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Dear Guido, I wondered if this might happen. I had updated the Pico SDK in order to sort out this problem.
Replace the old file with the attached file in:
\Pico-SDK\src\rp2_common\pico_stdio_usb\ In combination with the changes to tusb_config.h, this should give you 2 USB comm ports.....

Dear Ian,
Hmm - cant see the attachment :(

Kind regards
Guido

@Isysxp
Copy link
Owner Author

@Isysxp Isysxp commented on 427b079 Jan 27, 2023 via email

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

@guidol70
Copy link
Contributor

@guidol70 guidol70 commented on 427b079 Jan 27, 2023 •
edited
Loading

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Dear Guido, Lets try this.... Regards, Ian.
…

Dear Ian,
for me it looks like that github is blocking your attachments when you did replay via email to github and not using github directly :(

After some clicking around I did found the content of the attached .txt file, but this didnt work as replacement for tusb_config.h

tusb_file.txt

Kind regards
Guido

@spoofy-zz
Copy link

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Hello, I am interested in the project because I like pdp-11, and I am interested in microcontrollers. One question regarding the rsx11 image. I am interested in where it comes from and how it is configured and generated. It is quite an old version and there is no DCL, I would like to try to adapt the newer version to see if it will work. Even 3.2 would be enough. Do you have that information? Thank you.

@Isysxp
Copy link
Owner Author

@Isysxp Isysxp commented on 427b079 Jan 28, 2023 via email

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

@guidol70
Copy link
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

As you can see, this is a bit involved and would have to be done using Simh. Also, I suspect that for a half reasonable build, the app has only 96KW of core which is marginal. I have emailed Johnny Billquist about adding more DL11s without a sysgen. But I haven't heard anything yet. Regards, Ian.

Dear Ian,

maybe the follwing instructions - for a PDP 11/40 build - are a better/shorter way for getting RX-11 onto a RL02 .dks image?:
Build a bootable RSX11/M on RL02 disk

Or this RK07-image (RSX-11M V3.2 for 11/45, 124KW, 50HZ (RK07 image)) could be downstripped?

PS: cant also see the second attachment :(

Kind regards,
Guido

@Isysxp
Copy link
Owner Author

@Isysxp Isysxp commented on 427b079 Jan 29, 2023 via email

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

@guidol70
Copy link
Contributor

@guidol70 guidol70 commented on 427b079 Jan 30, 2023 •
edited
Loading

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Dear Guido,
Sorry about the file, something must be blocking it.
Try: https://drive.google.com/file/d/15NvRZVKWLnPXwKXaAqGPE0oyCQNemiab/view?usp=share_link
Regards, Ian.

Dear Ian,
this link did work and also the file stdio_usb_descriptors.c for the path
/pico-sdk/src/rp2_common/pico_stdio_usb/
did help to get 2 serial ports displayed ;)

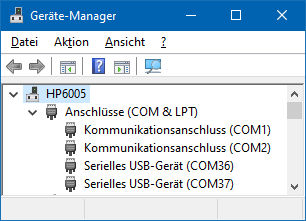

The second port (on my system the COM37) is the first terminal port (for the boot-menu).
I assume then the first port (COM36) will work as the second terminal port (havent tested it yet).

Pico_1140_2serial_ports

stdio_usb_descriptors.zip

BUT with the changes for 2 CDC-Terminals my changes for a serial port version doesnt compile anymore, because I have to disable tinyusb (because I oly use 1 serial/terminal) - so this will stall the serial verison!? :(

[ 13%] Building CXX object CMakeFiles/Pico_1140.dir/dl11.cxx.obj /home/pi/pico/Pico_1140/Pico_1140_DC_serial/dl11.cxx: In function 'int _kbhit()': /home/pi/pico/Pico_1140/Pico_1140_DC_serial/dl11.cxx:29:16: error: 'tud_cdc_n_available' was not declared in this scope 29 | return tud_cdc_n_available(1); | ^~~~~~~~~~~~~~~~~~~ /home/pi/pico/Pico_1140/Pico_1140_DC_serial/dl11.cxx: In member function 'void DL11::serial_putchar(char)': /home/pi/pico/Pico_1140/Pico_1140_DC_serial/dl11.cxx:34:9: error: 'tud_cdc_n_write_char' was not declared in this scope 34 | tud_cdc_n_write_char(1,c); | ^~~~~~~~~~~~~~~~~~~~ /home/pi/pico/Pico_1140/Pico_1140_DC_serial/dl11.cxx:35:9: error: 'tud_cdc_n_write_flush' was not declared in this scope 35 | tud_cdc_n_write_flush(1); | ^~~~~~~~~~~~~~~~~~~~~ /home/pi/pico/Pico_1140/Pico_1140_DC_serial/dl11.cxx: In member function 'char DL11::serial_getchar()': /home/pi/pico/Pico_1140/Pico_1140_DC_serial/dl11.cxx:39:16: error: 'tud_cdc_n_read_char' was not declared in this scope 39 | return tud_cdc_n_read_char(1); | ^~~~~~~~~~~~~~~~~~~ make[2]: *** [CMakeFiles/Pico_1140.dir/build.make:258: CMakeFiles/Pico_1140.dir/dl11.cxx.obj] Error 1 make[1]: *** [CMakeFiles/Makefile2:1403: CMakeFiles/Pico_1140.dir/all] Error 2 make: *** [Makefile:91: all] Error 2

Kind regards
Guido

@spoofy-zz
Copy link

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

HI, I am made a rsx11-v4.0-bl32 image on rl02 disk with DCL, 2 users (system and user), for now, without compilers but this part come soon.
