Modified version that links the console and DL11 to UART0 and UART1 on the pico board. (Speed 115200).
Pins: TX/RX on GPIO 0/1 and 20/21.
  • Loading branch information
@Isysxp
Isysxp committed Jan 31, 2023
1 parent 68cb0c9 commit 59d456d
Showing 1 changed file with 0 additions and 0 deletions.
Binary file added Pico_1140_DC/images/Pico_1140_UART.uf2
View file
Binary file not shown.

2 comments on commit 59d456d

@guidol70
Copy link
Contributor

@guidol70 guidol70 commented on 59d456d Jan 31, 2023 •
edited
Loading

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Dear Ian,
COOL :)
will there be also a source version for the UART-version or where can we select between USB/UART (and UARt Pins) while compile?

Why did you choose Pin20/21 for the second terminal?
I dont know how hard it is wired/defined, but on a "old" Pinout-Picture Pin (GPIO 20/21) is also for I2C0 SDA/SCL

UART1 is useable (from that Pinout) on Pin 6/7 (GPIO 4/5) or 11/12 (GPIO 8/9)

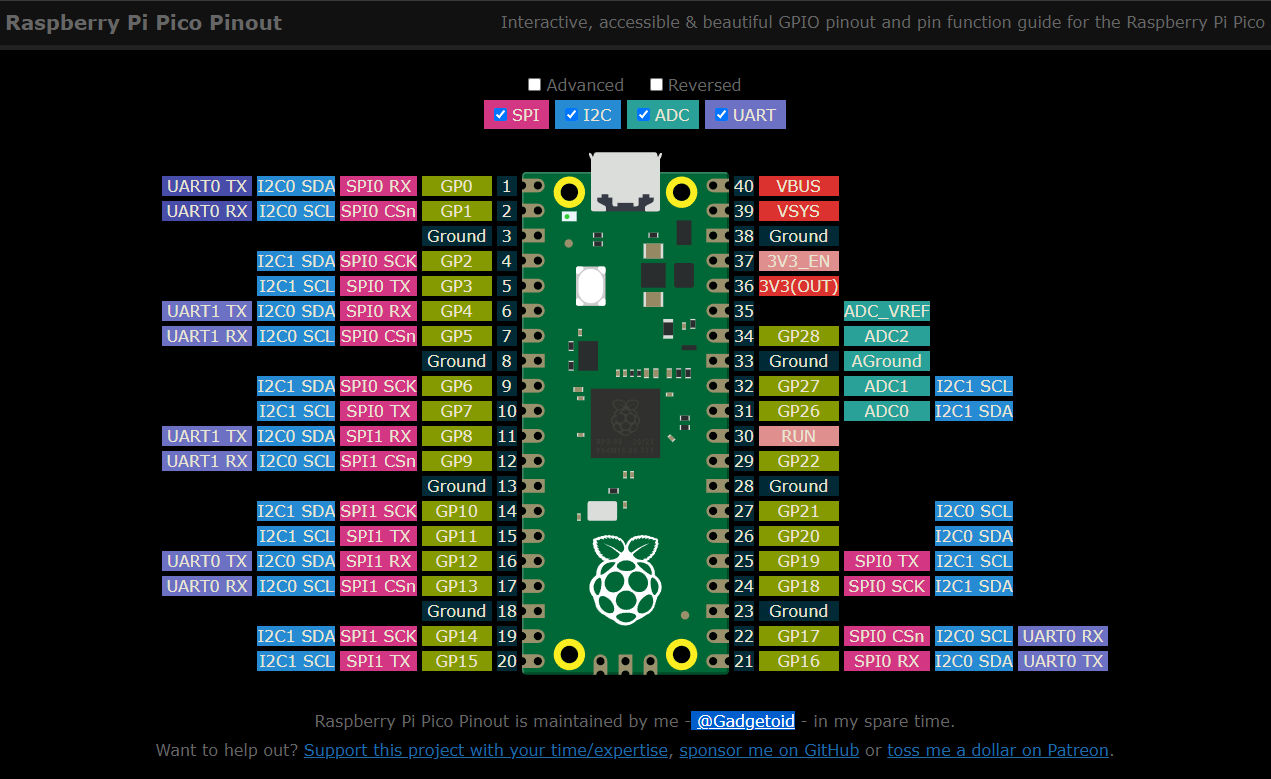

Interactive Pico-Pinout at https://pico.pinout.xyz/
Pico-interactive

Kind Regards
Guido
