Plantcare

Beschreibung (DE)

Plantcare ist ein automatisches Pflanzenbewässerungssystem auf Basis des ESP32. Es misst die Bodenfeuchte über bis zu drei kapazitive Sensoren, steuert eine Pumpe per Relais und kann optional Statusinformationen an selbst gehostete HTTP-Endpunkte senden. Die gesamte Konfiguration erfolgt bequem über den integrierten Webserver im Browser.

Description (EN)

Plantcare is an automatic plant watering system built around the ESP32. It reads up to three capacitive soil-moisture sensors, drives a pump via a relay using a two-threshold hysteresis loop, and optionally reports telemetry to user-supplied HTTP endpoints. A built-in web server provides full browser-based configuration and a live debug log page.

---

---

Features / Funktionen

• Supports 1–3 capacitive humidity sensors; uses their average value.
• Hysteresis pump control: upper threshold stops cyclic pumping, lower threshold restarts it.
• Push-button WPS fallback — activated automatically 40 s after a failed WiFi connection on cold start.
• HTTP callback when the water tank is empty (configurable URL).
• HTTP telemetry of current humidity values (configurable URL).
• In-browser configuration and debug log viewer.

---

Build / Toolchain

Item	Value
Language	C++ (Arduino dialect, ESP32 Arduino core)
Board package	esp32 by Espressif Systems — install via Arduino IDE Board Manager
Required libraries	URLCode by XieXuan; incbin by AlexIII (install via Arduino IDE Library Manager)
Runtime dependency	jquery-3.7.1.min.js — download separately (see below)
Tested hardware	WEMOS D1 MINI ESP32

Known Issues

In case you're using Linux or any other case sensitive operating system you may need to edit Arduino/libraries/URLCode/src/URLCode.h and change

#include <String.h>

to lower case

#include <string.h>

---

Hardware

Required:

• ESP32 board (e.g. WEMOS D1 MINI ESP32)
• Capacitive soil-moisture sensor + relay module + small water pump
• 3.9 Ω resistor, 47 µF capacitor
• USB-C power supply with sufficient current headroom (brownout = pump runs longer!)

See the Fritzing diagram for wiring details. Fritzing part sources are listed in the file header of Plantcare.ino.

---

Run / Flash / Deploy

ESP32 firmware

1. Clone or download the repository.
2. Download jquery-3.7.1.min.js from https://code.jquery.com/jquery-3.7.1.min.js and place it in the same directory as Plantcare.ino. (Failing to do this causes an "Error: file not found: jquery-3.7.1.min.js" at compile time.)
3. Open Plantcare.ino by double-clicking it (opens the full Arduino project folder).
4. Install the board package and libraries listed above.
5. Select the correct board and COM port; click Upload.

PHP backend (optional)

Deploy index.php, status.php, empty.php, and a db.php (not included — provide your own with a $dbcon MySQLi connection, a db_query() wrapper, and a sendMail() helper) to a PHP-capable web server with a MySQL/MariaDB database.

Expected DB schema (minimum):

CREATE TABLE Humidity (Id INT AUTO_INCREMENT PRIMARY KEY, Date DATETIME DEFAULT NOW(), Average FLOAT);
CREATE TABLE Config   (Id VARCHAR(20) PRIMARY KEY, Value VARCHAR(100));
INSERT INTO Config VALUES ('Threshold1', '70'), ('Threshold2', '50');

---

Configuration

WiFi credentials

Rename ssidAndPassword.example.h to ssidAndPassword.h and insert your SSID and password or use WPS push-button mode (the ESP switches to WPS automatically 40 seconds after a failed connection attempt). Credentials entered via WPS or the web UI are persisted in ESP32 NVS.

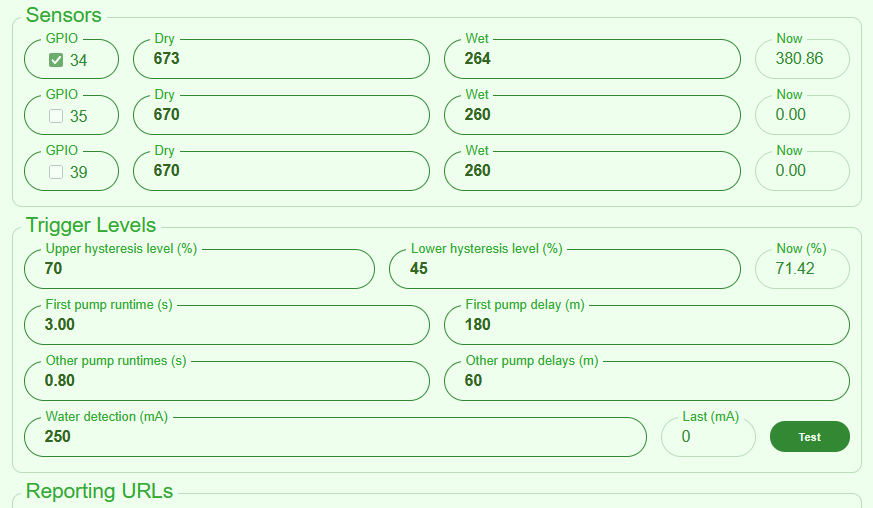

Runtime settings (web UI)

Navigate to the ESP32's IP address in a browser. All settings are stored in NVS and survive power cycles.

Parameter	Description	Default
Sensor GPIOs	Enable/disable sensors; calibrate dry/wet ADC values	GPIO 34 active; dry=670, wet=260
Upper hysteresis (%)	Pumping deactivated above this humidity	70 %
Lower hysteresis (%)	Pumping activated below this humidity	50 %
First pump runtime (s)	Duration of first pump activation per cycle	7 s
First pump delay (min)	Delay before second activation per cycle	360 min
Other pump runtimes (s)	Duration of subsequent activations	0.8 s
Other pump delays (min)	Minimum delay between subsequent activations	180 min
Water detection (mA)	Pump current threshold for empty-tank detection	250 mA
Empty-warning URL	Called via HTTP GET when tank is empty	—
Status-report URL	Called via HTTP GET with current humidity	—
Debug level	Error / Warn / Info / Verbose / Debug / Trace	Info
Serial debug	Mirror debug log to UART @ 115200 baud	off

---

Architecture / Modules

Plantcare.ino
├── setup()              — One-time init: ADC, GPIO, NVS, WiFi, NTP
├── loop()               — Main control loop (~20 ms cycle when pump idle)
│   ├── webServerReaction()   — Blocking HTTP request handler (one client/iteration)
│   ├── Sensor averaging      — Exponential moving average (α=0.02)
│   ├── Hysteresis logic      — Two-threshold pump mode control
│   ├── doStatusReporting()   — HTTP GET telemetry (on ≥0.5 % change)
│   ├── doCheckWiFiConnection()— WiFi reconnect (every 60 s)
│   └── Pump control          — startPump / stopPump / current measurement
├── WiFiEvent()          — FreeRTOS task: WPS + WiFi event handler [!shared state]
└── wpsSetup()           — Initiates WPS push-button mode

Concurrency:
WiFiEvent() runs in a separate FreeRTOS task. It writes to ssid, pwd, checkWifiConnectionFlag, and the debug ring buffer without a mutex. checkWifiConnectionFlag is declared volatile; full mutex protection of the String globals is a known limitation (see CHANGELOG).

Pump GPIO: GPIO 33 — LOW-active relay (HIGH = off, LOW = on).
Sensor GPIOs: 34, 35, 39 (ADC1, 10-bit resolution, 0–1023).
Current sense: GPIO 36 — ADC reading scaled by PUMP_CURRENT_MULTIPLIER (2.8).

---

Interfaces

Interface	Direction	Description
WiFi HTTP server :80	inbound	Config UI, AJAX endpoints, static assets
emptyWaterURL (HTTP GET)	outbound	Empty-tank notification
reportURL?oah=&t1=&t2= (HTTP GET)	outbound	Humidity telemetry
NVS (ESP32 Preferences)	local	Persistent settings, namespace "p"
UART 115200 (optional)	outbound	Serial debug mirror

HTTP Endpoints (ESP32 built-in server)

Path	Method	Returns
/	GET	HTML config page
/	POST	Saves config, redirects
/H?<n>	GET	JSON: raw ADC value for sensor n
/H	GET	JSON: array of all raw ADC values
/O	GET	JSON: overall average humidity (%)
/M	GET	Text: "Rising" or "Falling"
/P	GET	JSON: last pump current (mA)
/jq.js	GET	jQuery 3.7.1 (cached 10 h)
/s.css /d.css /n.css	GET	Stylesheets (cached 10 h)
/Da /Db /Dc	GET	Debug log pages
/T	GET	Trigger pump test
/E	GET	Trigger empty-water warning
/R	GET	Trigger status report

---

Tests / Static Analysis

No automated test suite exists for this project (embedded hardware required for meaningful integration tests).

For static analysis on the C++ code, cppcheck can be run against the .ino file treated as C++14:

cppcheck --std=c++14 --enable=all --language=c++ Plantcare.ino

The PHP files can be checked with:

php -l status.php
php -l index.php
php -l empty.php

---

File Structure

Plantcare/
├── Plantcare.ino          # ESP32 firmware (main sketch)
├── ssidAndPassword.example.h  # WiFi fallback credentials example
├── jquery-3.7.1.min.js    # jQuery (download separately, not in repo)
├── s.css                  # Base stylesheet (served by ESP32)
├── d.css                  # Day theme stylesheet
├── n.css                  # Night theme stylesheet
├── index.php              # Optional: humidity chart (Chart.js, PHP backend)
├── status.php             # Optional: telemetry receiver endpoint
├── empty.php              # Optional: empty-tank notification endpoint
├── README.md              # This file
└── LICENSE

---

Limitations / Known Issues

• BUG-06 (data race): WiFiEvent runs in a FreeRTOS task and writes to shared String globals without a mutex. Occasional garbled debug output or spurious reconnects are theoretically possible. Full fix would require FreeRTOS semaphores.
• No HTTPS on ESP32 web server: The built-in HTTP server serves plain HTTP. Use only on a trusted local network.
• No authentication on the web UI: anyone on the same network can change settings or trigger the pump.
• Single-client HTTP server: webServerReaction() handles one request per loop() iteration; concurrent browser tabs may stall briefly.
• Browsing to d.css or n.css directly switches the active stylesheet as a side effect (intentional Easter egg).

---

Changelog / Lizenz

See CHANGELOG.md for a detailed history of changes.
Licensed under the terms in LICENSE.
