WiiTUIO improves the stability of the IR sources captured by the Wiimote and generates TUIO & Windows 7 touch events.

Notifications You must be signed in to change notification settings

JohnHardy/wiituio

Folders and files

NameName
Last commit message
Last commit date

Latest commit



History

23 Commits









Repository files navigation

#WiiTUIO Ever wanted to use a Wiimote to get multi-touch on your Windows 7 PC? WiiTUIO might just be what you're looking for. If you would like some instructions there is a good guide here (along with a few handy scripts to automate things) http://goo.gl/Vp9dt.

WiiTUIO improves the stability of the IR sources captured by the Wiimote using some thresholds and spatio-temporal classification. The application can generate native Windows 7 touch events as well as TUIO messages from the stabilised data.

Interested in doing the same thing with a Kinect? Check out Ubi Displays: http://code.google.com/p/ubidisplays/

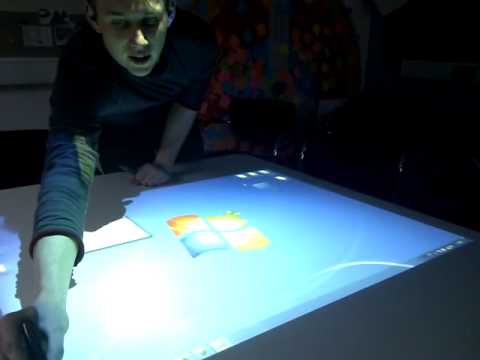

Watch a preview

Each raw IR source captured by the Wiimote is either assigned to the best existing tracked source or generates a new tracker. This means that the touch events can be generated from stable data without the jitter (namely, false-positives generated between two IR sources and the unordered source buffer) that occurs when trying to use the Wiimote to capture true multi-touch IR.

Created as part of the CoffeeTable project. Find out more here: http://highwire-dtc.com/coffeetable/

AUTHORS

WiiTUIO v2 John Hardy & Christopher Bull HighWire Programme, Lancaster University 22-06-2010

REQUIREMENTS

  1. Windows 7 is required in order to use generate touch events.
  2. The UniSoftHID driver used with MultiTouchVista. The code to support touch events is based on (Multitouch.Driver.Logic) by Nesher. As such, I reccomend that you use the whole 'MultiTouchVista' package for better support. The UniSoftHID driver can be found bundled with 'MultiTouchVista' here: http://multitouchvista.codeplex.com/releases/view/28979

NOTES

Still reading? There are a couple of things you should know before using this software:

  1. You need to click Connect first.
  2. Ensure you click calibrate at least once after you have created a connection.

ACKNOWLEDGEMENTS

Johnny Chung Lee: http://johnnylee.net/projects/wii/

Brian Peek: http://www.brianpeek.com/

Nesher: http://www.codeplex.com/site/users/view/nesher

TUIO Project: http://www.tuio.org

MultiTouchVista: http://multitouchvista.codeplex.com/

OSC.NET Library: http://luvtechno.net/

WiimoteLib 1.7: http://wiimotelib.codeplex.com/

HIDLibrary: http://hidlibrary.codeplex.com/

WPFNotifyIcon: http://www.hardcodet.net/projects/wpf-notifyicon

Please respect each invdivudal project's software license.
