Generalize Shape #3436
Generalize Shape #3436
Conversation
|
|
||
| "get an array of tuples of points on a circle with radius `r`" | ||
| function partialcircle(start_θ, end_θ, n = 20, r=1) | ||
| Tuple{Float64,Float64}[(r*cos(u),r*sin(u)) for u in range(start_θ, stop=end_θ, length=n)] |
There was a problem hiding this comment.
The removal of the type annotation here is only necessary for creating circles with a radius ::MyType. The type in these tuples will be that of *(::MyType, ::Float64), but I don't think annotating that changes the type of the vector.
If this annotation is very important for performance, this change could easily be reverted, it's not a very important function.
Codecov Report
@@ Coverage Diff @@
## master #3436 +/- ##
==========================================
+ Coverage 63.64% 63.65% +0.01%
==========================================
Files 27 27
Lines 6582 6585 +3
==========================================
+ Hits 4189 4192 +3
Misses 2393 2393
Continue to review full report at Codecov.
|
| function rotate(shape::Shape, θ::Real, c = center(shape)) | ||
| x, y = coords(shape) | ||
| cx, cy = c | ||
| x_new = rotate_x.(x, y, θ, cx, cy) | ||
| y_new = rotate_y.(x, y, θ, cx, cy) | ||
| Shape(x_new, y_new) |
There was a problem hiding this comment.
Rotating a Shape{Int, Int} will leave you with a Shape{Float64, Float64}, so rotate! doesn't work in general. I did a quick benchmark, and this function if anything seems slightly faster than the rotate! version.
|
Thanks! |
2 participants
Allows

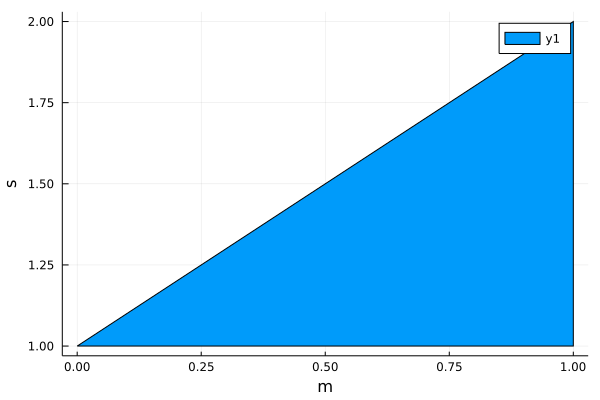

Shapeto hold other types thanFloat64, so that recipes can dispatch on the vertices.With this change, for instance,
Shape([(0u"m", 1u"s"), (1u"m", 1u"s"), (1u"m", 2u"s")])(with Unitful unitsu"m"andu"s") is a validShape, and when plotted it will invoke the recipes for the respective axis types:
