Speed up DownloadEvent queries

[HebaruSan]

Problem

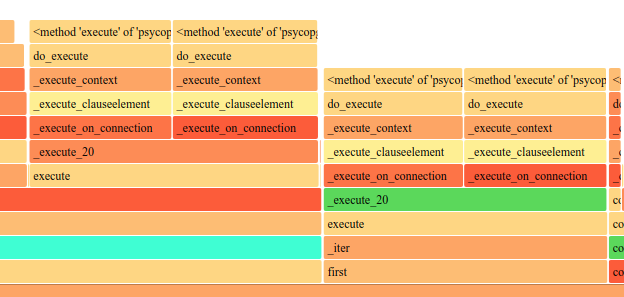

Flame graph profiling from #346 has revealed that accessing DownloadEvent is a substantial part of loading a mod page and especially starting a download:

Cause

DownloadEvent is a big table with a lot of rows, and we filter it by columns that aren't indexed (mod_id and version_id). This means the database engine has to search every row and check whether they match.

Changes

• New multi-column index in DownloadEvent: (mod_id, created), to be used for loading the mod page
• New multi-column index in DownloadEvent: (version_id, created), to be used when starting downloads
• The download route now only filters by DownloadEvent.version_id since if this matches then DownloadEvent.mod_id will match as well, and both will now be indexed
• The download route previously retrieved DownloadEvent.created and checked whether it was more than 1 hour ago in Python code, but the check was somewhat wrong (it used timedelta.seconds, which only goes up to 86399 and so could satisfy the limit when it shouldn't). Now it enforces this limit in SQL, correctly.
• Cascade deletion is enabled for DownloadEvent.mod_id and DownloadEvent.version_id so download events are deleted from the database if their corresponding mod or version is removed
• A few calls to isfile are now removed to lighten the load on storage
• ModVersion.download_size now stores the size of the download file, again to lighten the load on storage

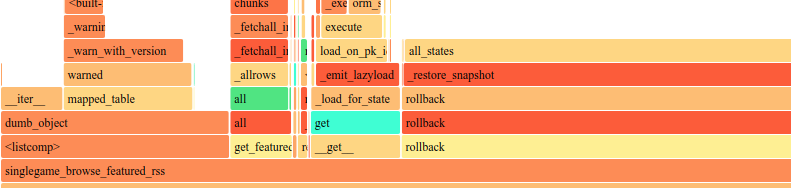

• The featured.rss routes no longer set properties on db objects and then call db.rollback() to undo, because those calls showed up in profiling as slow; the timezone offset is also now included in the RSS output because I think it's supposed to be there


This should speed up mod page loads and downloads somewhat noticeably in some cases.

Also mypy has changed again, so now we install type libs to satisfy it.

[DasSkelett]

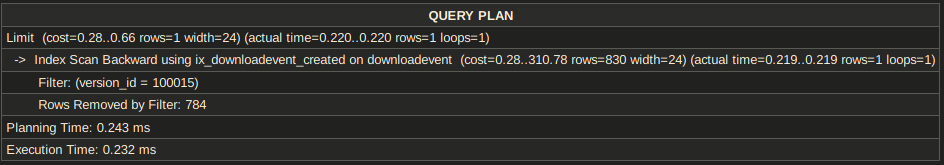

So apparently on my system, after generating a bunch of download events (~5k) for only a few mods (6) and mod versions (10), the query planner decides to go through the DownloadEvent.created index backwards, filtering out all non-matching mods and stopping after encountering the first matching one:

This is even after creating indices for mod_id, version_id and (mod_id, version_id).

So Postgres assumes that there are many matching rows for that filter condition (high download event per mod version ratio), and that using the index to go directly to the matching rows and sorting them by created afterwards would take longer than going through a bunch of non-matching rows but not having to sort them anymore.

While having a lot more mods (~2k), mod versions (~15k) and download events (~10m), the ratio is roughly the same, so there's a chance that the query planner behaves the same, and that these new indices would not be used.

This is one of the cases where it would be really nice to be able to run EXPLAIN SELECT queries on the production db, or a copy thereof...

[DasSkelett]

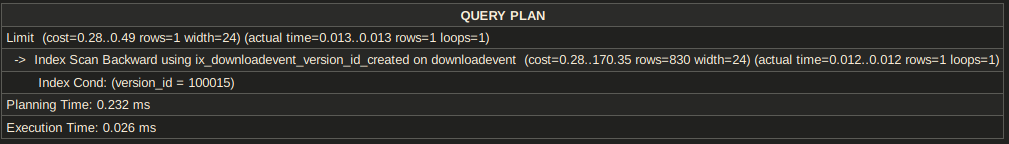

Good idea! I can confirm that it uses this index at least in the /download query, and you can see it's a lot faster:

[DasSkelett]

While we're on it, what do you think about adding ondelete='CASCADE' to the foreign keys, so that the download events are also deleted from the database if their corresponding mod (version) is removed? I don't think there's a reason to keep them around, and they just bloat the table.

    mod_id = Column(Integer, ForeignKey('mod.id', ondelete='CASCADE'))
    version_id = Column(Integer, ForeignKey('modversion.id', ondelete='CASCADE'))

[HebaruSan]

@DasSkelett, what do you think about also removing this isfile call and instead putting the getsize call inside a try/except block?

SpaceDock/KerbalStuff/common.py

Lines 255 to 269 in ebb54cb

	def get_version_size(f: str) -> Optional[str]:
	if not os.path.isfile(f):
	return None
	size = os.path.getsize(f)
	if size < 1023:
	return "%d %s" % (size, ("byte" if size == 1 else "bytes"))
	elif size < 1048576:
	return "%3.2f KiB" % (size/1024)
	elif size < 1073741824:
	return "%3.2f MiB" % (size/1048576)
	elif size < 1099511627776:
	return "%3.2f GiB" % (size/1073741824)
	else:
	return "%3.2f TiB" % (size/1099511627776)

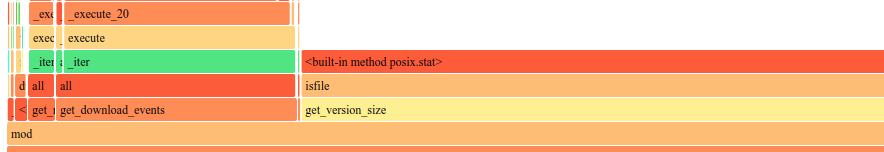

Sometimes (but not always) the mod page bogs down on isfile, maybe we can eliminate some of the requests to the storage here?

If the storage causes getsize to fail then we can still return None in the except handler.

[DasSkelett]

@DasSkelett, what do you think about also removing this isfile call and instead putting the getsize call inside a try/except block?

Hm yeah, that could work. Would also remove a theoretical bug, because a file could be removed inbetween the isfile and the getsize checks.

I'm also pondering about this line:

SpaceDock/KerbalStuff/blueprints/mods.py

Line 530 in 95fcd95

if not storage or not os.path.isfile(os.path.join(storage, mod_version.download_path)):

If we remove* this line, we would not only get rid of another filesystem access, but also allow the reverse proxies to serve this file out of its memory cache even if the storage is inaccessible.
A downside is that if the file does indeed not exist (or the storage is inaccessible) and neither of the reverse proxies in front has it cached, the user wouldn't see the nice 404 template from the backend, but some standard Apache 404 page. Probably not that big of an issue.
And maybe there are other contra points that I didn't think of yet.

*: we still need it for when there's no cdn_domain configured and we directly serve the files from the backend, so we'd need to move it down, not fully remove it.

The next step after these changes should probably be following @techman83's suggestion to store the file size in the database, to get rid of even more calls.
(If it were a local disk, one or two stat calls would probably be cheaper than a database query, but since it's a network mount...)
This would nicely fit in get_version_size(), first ask the database, and if it's not stored there yet, check the filesystem (with your above improvement to a single call), then fill it into the db.
But

[HebaruSan]

OK, let me know how the latest commit looks, should include those changes.

[DasSkelett]

Thanks so much! This looks really really good now, and contains so many improvements. And you kept on implementing every new request I came up with 😄
