Better filtering of exported nodes

[emackey]

This PR deals with parent nodes and ancestor nodes that have been filtered out of glTF export, typically by "use_selected" failing to select the parents of live children. Previously, such nodes would be completely excluded, leaving a hole in the scene graph with a disconnected section below.

In this PR, if a given node fails the export filter, but that node has descendants that pass the export filter, then the failed node is still a critical node to include in the glTF node hierarchy. The failed node will not export any mesh, skin, camera, or weights. But as a parent or ancestor of live descendants, the node will still include its transformations, animations, extras, and extensions, which may have visible effects on the descendants.

This PR could use a bit of additional testing, with animations and skinning in play.

[scurest]

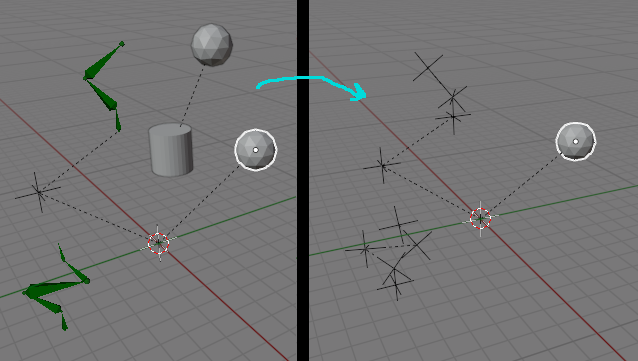

FWIW I tested this with some armatures and animation (object parented to animated bone, object skinned by arma in different tree) and I couldn't break it, so kudos!

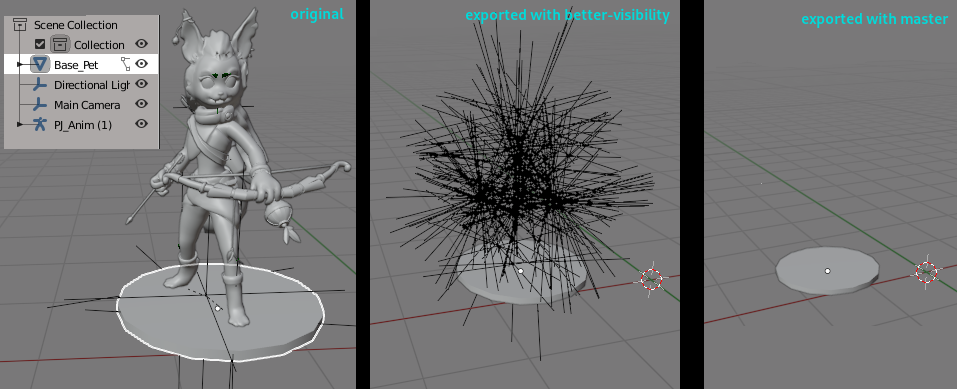

I did find that it overapproximates what to export sometimes. It appears to always export all bones wherever they exist.

So there are some cases where master, when it works, is better

I don't know how hard this would be to fix, but obviously those extra empty nodes are invisible in actual viewers, so better to overapproximate than under.

[scurest]

@emackey So is this waiting for something? This fixes #193, #1030, #1066.

[julienduroure]

We need to check how this work with collection and linked collection

[scurest]

Tested with linked collections. It doesn't work.

By "collections", do you mean if you click on a collection in the outliner like this and export with "Selected Objects" it should export the Cube? That doesn't work either.

[scurest]

For linked collections, is it enough to check if the dupli_object_parent is selected?

Patch

diff --git a/addons/io_scene_gltf2/blender/exp/gltf2_blender_gather_nodes.py b/addons/io_scene_gltf2/blender/exp/gltf2_blender_gather_nodes.py
index f05f21e..7a405ae 100644
--- a/addons/io_scene_gltf2/blender/exp/gltf2_blender_gather_nodes.py
+++ b/addons/io_scene_gltf2/blender/exp/gltf2_blender_gather_nodes.py
@@ -60,7 +60,7 @@ def __gather_node(blender_object, library, blender_scene, dupli_object_parent, e
     # If blender_scene is None, we are coming from animation export
     # Check to know if object is exported is already done, so we don't check
     # again if object is instanced in scene : this check was already done when exporting object itself
-    if not __filter_node(blender_object, blender_scene, export_settings):
+    if not __filter_node(blender_object, blender_scene, dupli_object_parent, export_settings):
         if children:
             # This node should be filtered out, but has un-filtered children present.
             # So, export this node, excluding its camera, mesh, skin, and weights.
@@ -113,7 +113,7 @@ def __gather_node(blender_object, library, blender_scene, dupli_object_parent, e
     return node


-def __filter_node(blender_object, blender_scene, export_settings):
+def __filter_node(blender_object, blender_scene, dupli_object_parent, export_settings):
     if blender_object.users == 0:
         return False
     if blender_scene is not None:
@@ -125,8 +125,11 @@ def __filter_node(blender_object, blender_scene, export_settings):
             else:
                 # Not instanced, not linked -> We don't keep this object
                 return False
-    if export_settings[gltf2_blender_export_keys.SELECTED] and blender_object.select_get() is False:
-        return False
+    if export_settings[gltf2_blender_export_keys.SELECTED]:
+        if dupli_object_parent and bpy.data.objects[dupli_object_parent].select_get():
+            return True
+        if blender_object.select_get() is False:
+            return False

     return True


edit: No, it's not, since dupli_object_parent is only set for the direct children of the linked collection object, not the grandchild, etc.

[julienduroure]

Was thinking about another way to solve the issue:

• Construct a virtual tree as done in importer, calculating world matrix for each node
• Based on that, using all roots of this virtual tree to recursively go inside tree

[scurest]

I think so too, two passes are necessary.

[emackey]

@julienduroure That sounds good, but would it involve "skipping" intermediate nodes, leaving them out of the tree? Sometimes, multiple children depend on a common parent node that is turned off for export, but the parent may have an animation applied that affects all of the children's locations. Apologies if I misunderstood your suggestion.

[julienduroure]

Checking animation on node must be part of checks that need to be done in order to know if we can skip a node or node.
I was mostly thinking about upper nodes (from blender root to the node, if root is not selected), but we can extend the solution to intermediate node too. Will try to write some quick drawing to explain

[scurest]

Is this blocked for "the perfect is the enemy of the good" reasons?

[emackey]

@scurest This started to touch too many edge cases and Blender features I'm not well-versed on. We last talked about two-pass processing here with support for linked collections, armatures, etc., which are not tools I normally use in my own simplified workflow. I'm unsure how best to get this moving again. If you have ideas for that, you could make a branch off this branch, or a whole separate implementation if that's easier. Otherwise, I'll try to come back around to this, eventually, but it won't be quick.

[scurest]

What I mean is, why can't it be merged as is? Linked collections don't work in master either.

[emackey]

Ah, if this doesn't make things worse, then yes, let's merge it. Not sure if Julien might be away for a couple days though...

Note that Blender 2.91 "Bcon 3" starts tomorrow, meaning bug fixes only for that particular version. But I do consider this a bug fix, so if it doesn't break new things it can go into 2.91.

[julienduroure]

Hello,
I'm here :)
Will merge it soon

[scurest]

Neat. I can confirm that #193 and #1030 now work with master. Can someone close?

[TheKruspe]

Is it possible to export an object without its parent nodes?

[emackey]

Without parent nodes, the exported object ends up as an orphan in the scene graph, so does not render at all.

[scurest]

@TheKruspe If you mean like

BLENDER                             GLTF

A         (unselected)     ====>    B
└─ B      (selected)                └─ C
   └─ C   (selected)

Then no, the exporter cannot do that; A always gets pulled along.

[emackey]

Right, and in the case @scurest mentions, "A" might have transformations and/or animations applied to it, that B and C are required to inherit. So you can't just declare B to be a new root of the graph.

[scurest]

I mean, you could. A's transforms would be folded into the transform for B. You can pretty much use whatever hierarchy you want; just compute all local transforms as (parent world).inverted() @ (self world).

[julienduroure]

This is one of the purpose of #1244
I locally performed some experiments recently on caching/hierarchy. I will write a proposition soon
