School project for Haaga Helia.
In this project we are creating a smart device that will be attached to a disc golf disc. The device will have a buzzer to help find the disc if it is thrown in to the bush. It will also have sensors for acceleration and gyro, so we can get the top speed and rotation speed of the disc. Gyro sensor will also be used to get the angle of the disk.
The idea is that the player can use these information to help better their play.
- Assignment for Haaga-Helia's ICT-Infrastructure project.
- Purpose of our project is to build a smart-frisbee using ESP-32 dev board, it's chips and open data.
- Project developed using ArduinoIDE
- Dev board used: ESP32-WROOM
- Chips used: MPU-6050 (3 access gyro & accelometer)
Further development aims to add features and integrate the chips to the golf disc
- In this project we are creating a smart device that will be attached to a disc golf disc.

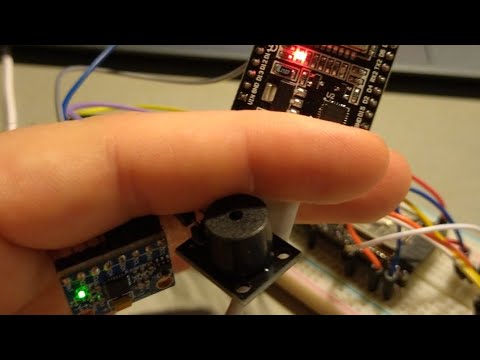

- The device will have a buzzer to help find the disc if it is thrown in to the bush.
- It will also have sensors for acceleration and gyro, so we can get the top speed and rotation speed of the disc. Gyro sensor will also be used to get the angle of the disk.
- The idea is that the player can use these information to help better their play.
- As a aspiring frisbee golf player I want to get data from from my throws to improve my game.
- As a player I want to easily find my lost disc using the inbuilt speaker that pinpoint its location.
- The target audience for SmartDisc are frisbee golf professionals, enthusiasts and recreational playet that want to imnprove their game and easily find their lost discs
When we first tried uploading code to the ESP32 we got an error code:
A fatal error occurred: Could not open /dev/ttyUSB0, the port doesn't exist
this was fixed with giving right permissions to the port
sudo chmod a+rw /dev/ttyUSB0
Verifying that the chip works by uploading a basic code block to it using Arduino IDE with success.
void setup() {
// Initialize serial communication
Serial.begin(115200);
}
void loop() {
// Send "Hello, World!" over serial
Serial.println("Hello, World!");
delay(1000); // Wait for a second
}
We also tested that the wifi works on the ESP32.
First we connected the Acceleration/Gyro sensor to the ESP32.
Installed nessessaru libraries (Adafruit MPU6050) for the MPU6050 Then we tested that the sensor works with example code.
The code was found in file --> Examples --> Adafruit MPU6050 --> basic_readings
Code
// Basic demo for accelerometer readings from Adafruit MPU6050#include <Adafruit_MPU6050.h> #include <Adafruit_Sensor.h> #include <Wire.h>
Adafruit_MPU6050 mpu;
void setup(void) { Serial.begin(115200); while (!Serial) delay(10); // will pause Zero, Leonardo, etc until serial console opens
Serial.println("Adafruit MPU6050 test!"); ^ // Try to initialize! if (!mpu.begin()) { Serial.println("Failed to find MPU6050 chip"); while (1) { delay(10); } } Serial.println("MPU6050 Found!");
mpu.setAccelerometerRange(MPU6050_RANGE_8_G); Serial.print("Accelerometer range set to: "); switch (mpu.getAccelerometerRange()) { case MPU6050_RANGE_2_G: Serial.println("+-2G"); break; case MPU6050_RANGE_4_G: Serial.println("+-4G"); break; case MPU6050_RANGE_8_G: Serial.println("+-8G"); break; case MPU6050_RANGE_16_G: Serial.println("+-16G"); break; } mpu.setGyroRange(MPU6050_RANGE_500_DEG); Serial.print("Gyro range set to: "); switch (mpu.getGyroRange()) { case MPU6050_RANGE_250_DEG: Serial.println("+- 250 deg/s"); break; case MPU6050_RANGE_500_DEG: Serial.println("+- 500 deg/s"); break; case MPU6050_RANGE_1000_DEG: Serial.println("+- 1000 deg/s"); break; case MPU6050_RANGE_2000_DEG: Serial.println("+- 2000 deg/s"); break; }
mpu.setFilterBandwidth(MPU6050_BAND_21_HZ); Serial.print("Filter bandwidth set to: "); switch (mpu.getFilterBandwidth()) { case MPU6050_BAND_260_HZ: Serial.println("260 Hz"); break; case MPU6050_BAND_184_HZ: Serial.println("184 Hz"); break; case MPU6050_BAND_94_HZ: Serial.println("94 Hz"); break; case MPU6050_BAND_44_HZ: Serial.println("44 Hz"); break; case MPU6050_BAND_21_HZ: Serial.println("21 Hz"); break; case MPU6050_BAND_10_HZ: Serial.println("10 Hz"); break; case MPU6050_BAND_5_HZ: Serial.println("5 Hz"); break; }
Serial.println(""); delay(100); }
void loop() {
/_ Get new sensor events with the readings _/ sensors_event_t a, g, temp; mpu.getEvent(&a, &g, &temp);
/_ Print out the values _/ Serial.print("Acceleration X: "); Serial.print(a.acceleration.x); Serial.print(", Y: "); Serial.print(a.acceleration.y); Serial.print(", Z: "); Serial.print(a.acceleration.z); Serial.println(" m/s^2");
Serial.print("Rotation X: "); Serial.print(g.gyro.x); Serial.print(", Y: "); Serial.print(g.gyro.y); Serial.print(", Z: "); Serial.print(g.gyro.z); Serial.println(" rad/s");
Serial.print("Temperature: "); Serial.print(temp.temperature); Serial.println(" degC");
Serial.println(""); delay(500); }
Whit this we get reading from the sensor but the readings aren't calibrated.
So we needed to calibrate the sensor. We got the information on hot to do it here
We calibrated the sensor with the example code in files --> examples --> MPU6050 --> IMU_Zero
Code
// MPU6050 offset-finder, based on Jeff Rowberg's MPU6050_RAW // 2016-10-19 by Robert R. Fenichel (bob@fenichel.net)// I2C device class (I2Cdev) demonstration Arduino sketch for MPU6050 class // 10/7/2011 by Jeff Rowberg jeff@rowberg.net // Updates should (hopefully) always be available at https://github.com/jrowberg/i2cdevlib // // Changelog: // 2019-07-11 - added PID offset generation at begninning Generates first offsets // - in @ 6 seconds and completes with 4 more sets @ 10 seconds // - then continues with origional 2016 calibration code. // 2016-11-25 - added delays to reduce sampling rate to ~200 Hz // added temporizing printing during long computations // 2016-10-25 - requires inequality (Low < Target, High > Target) during expansion // dynamic speed change when closing in // 2016-10-22 - cosmetic changes // 2016-10-19 - initial release of IMU_Zero // 2013-05-08 - added multiple output formats // - added seamless Fastwire support // 2011-10-07 - initial release of MPU6050_RAW
/* ============================================ I2Cdev device library code is placed under the MIT license Copyright (c) 2011 Jeff Rowberg
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
If an MPU6050 _ is an ideal member of its tribe, _ is properly warmed up, _ is at rest in a neutral position, _ is in a location where the pull of gravity is exactly 1g, and * has been loaded with the best possible offsets, then it will report 0 for all accelerations and displacements, except for Z acceleration, for which it will report 16384 (that is, 2^14). Your device probably won't do quite this well, but good offsets will all get the baseline outputs close to these target values.
Put the MPU6050 on a flat and horizontal surface, and leave it operating for 5-10 minutes so its temperature gets stabilized.
Run this program. A "----- done -----" line will indicate that it has done its best. With the current accuracy-related constants (NFast = 1000, NSlow = 10000), it will take a few minutes to get there.
Along the way, it will generate a dozen or so lines of output, showing that for each of the 6 desired offsets, it is _ first, trying to find two estimates, one too low and one too high, and _ then, closing in until the bracket can't be made smaller.
The line just above the "done" line will look something like [567,567] --> [-1,2] [-2223,-2223] --> [0,1] [1131,1132] --> [16374,16404] [155,156] --> [-1,1] [-25,-24] --> [0,3] [5,6] --> [0,4] As will have been shown in interspersed header lines, the six groups making up this line describe the optimum offsets for the X acceleration, Y acceleration, Z acceleration, X gyro, Y gyro, and Z gyro, respectively. In the sample shown just above, the trial showed that +567 was the best offset for the X acceleration, -2223 was best for Y acceleration, and so on.
The need for the delay between readings (usDelay) was brought to my attention by Nikolaus Doppelhammer.
*/
// I2Cdev and MPU6050 must be installed as libraries, or else the .cpp/.h files // for both classes must be in the include path of your project #include "I2Cdev.h" #include "MPU6050.h"
// Arduino Wire library is required if I2Cdev I2CDEV_ARDUINO_WIRE implementation // is used in I2Cdev.h #if I2CDEV_IMPLEMENTATION == I2CDEV_ARDUINO_WIRE #include "Wire.h" #endif
// class default I2C address is 0x68 // specific I2C addresses may be passed as a parameter here // AD0 low = 0x68 (default for InvenSense evaluation board) // AD0 high = 0x69 MPU6050 accelgyro; //MPU6050 accelgyro(0x69); // <-- use for AD0 high
const char LBRACKET = '['; const char RBRACKET = ']'; const char COMMA = ','; const char BLANK = ' '; const char PERIOD = '.';
const int iAx = 0; const int iAy = 1; const int iAz = 2; const int iGx = 3; const int iGy = 4; const int iGz = 5;
const int usDelay = 3150; // empirical, to hold sampling to 200 Hz const int NFast = 1000; // the bigger, the better (but slower) const int NSlow = 10000; // .. const int LinesBetweenHeaders = 5; int LowValue[6]; int HighValue[6]; int Smoothed[6]; int LowOffset[6]; int HighOffset[6]; int Target[6]; int LinesOut; int N;
void ForceHeader() { LinesOut = 99; }
void GetSmoothed() { int16_t RawValue[6]; int i; long Sums[6]; for (i = iAx; i <= iGz; i++) { Sums[i] = 0; } // unsigned long Start = micros();
for (i = 1; i <= N; i++) { // get sums accelgyro.getMotion6(&RawValue[iAx], &RawValue[iAy], &RawValue[iAz], &RawValue[iGx], &RawValue[iGy], &RawValue[iGz]); if ((i % 500) == 0) Serial.print(PERIOD); delayMicroseconds(usDelay); for (int j = iAx; j <= iGz; j++) Sums[j] = Sums[j] + RawValue[j]; } // get sums// unsigned long usForN = micros() - Start; // Serial.print(" reading at "); // Serial.print(1000000/((usForN+N/2)/N)); // Serial.println(" Hz"); for (i = iAx; i <= iGz; i++) { Smoothed[i] = (Sums[i] + N/2) / N ; } } // GetSmoothed
void Initialize() { // join I2C bus (I2Cdev library doesn't do this automatically) #if I2CDEV_IMPLEMENTATION == I2CDEV_ARDUINO_WIRE Wire.begin(); #elif I2CDEV_IMPLEMENTATION == I2CDEV_BUILTIN_FASTWIRE Fastwire::setup(400, true); #endif
Serial.begin(9600); // initialize device Serial.println("Initializing I2C devices..."); accelgyro.initialize(); // verify connection Serial.println("Testing device connections..."); Serial.println(accelgyro.testConnection() ? "MPU6050 connection successful" : "MPU6050 connection failed"); Serial.println("PID tuning Each Dot = 100 readings");/_A tidbit on how PID (PI actually) tuning works. When we change the offset in the MPU6050 we can get instant results. This allows us to use Proportional and integral of the PID to discover the ideal offsets. Integral is the key to discovering these offsets, Integral uses the error from set-point (set-point is zero), it takes a fraction of this error (error _ ki) and adds it to the integral value. Each reading narrows the error down to the desired offset. The greater the error from set-point, the more we adjust the integral value. The proportional does its part by hiding the noise from the integral math. The Derivative is not used because of the noise and because the sensor is stationary. With the noise removed the integral value lands on a solid offset after just 600 readings. At the end of each set of 100 readings, the integral value is used for the actual offsets and the last proportional reading is ignored due to the fact it reacts to any noise. */ accelgyro.CalibrateAccel(6); accelgyro.CalibrateGyro(6); Serial.println("\nat 600 Readings"); accelgyro.PrintActiveOffsets(); Serial.println(); accelgyro.CalibrateAccel(1); accelgyro.CalibrateGyro(1); Serial.println("700 Total Readings"); accelgyro.PrintActiveOffsets(); Serial.println(); accelgyro.CalibrateAccel(1); accelgyro.CalibrateGyro(1); Serial.println("800 Total Readings"); accelgyro.PrintActiveOffsets(); Serial.println(); accelgyro.CalibrateAccel(1); accelgyro.CalibrateGyro(1); Serial.println("900 Total Readings"); accelgyro.PrintActiveOffsets(); Serial.println();
accelgyro.CalibrateAccel(1); accelgyro.CalibrateGyro(1); Serial.println("1000 Total Readings"); accelgyro.PrintActiveOffsets(); Serial.println("\n\n Any of the above offsets will work nice \n\n Lets proof the PID tuning using another method:"); } // Initializevoid SetOffsets(int TheOffsets[6]) { accelgyro.setXAccelOffset(TheOffsets [iAx]); accelgyro.setYAccelOffset(TheOffsets [iAy]); accelgyro.setZAccelOffset(TheOffsets [iAz]); accelgyro.setXGyroOffset (TheOffsets [iGx]); accelgyro.setYGyroOffset (TheOffsets [iGy]); accelgyro.setZGyroOffset (TheOffsets [iGz]); } // SetOffsets
void ShowProgress() { if (LinesOut >= LinesBetweenHeaders) { // show header Serial.println("\tXAccel\t\t\tYAccel\t\t\t\tZAccel\t\t\tXGyro\t\t\tYGyro\t\t\tZGyro"); LinesOut = 0; } // show header Serial.print(BLANK); for (int i = iAx; i <= iGz; i++) { Serial.print(LBRACKET); Serial.print(LowOffset[i]), Serial.print(COMMA); Serial.print(HighOffset[i]); Serial.print("] --> ["); Serial.print(LowValue[i]); Serial.print(COMMA); Serial.print(HighValue[i]); if (i == iGz) { Serial.println(RBRACKET); } else { Serial.print("]\t"); } } LinesOut++; } // ShowProgress
void PullBracketsIn() { boolean AllBracketsNarrow; boolean StillWorking; int NewOffset[6];
Serial.println("\nclosing in:"); AllBracketsNarrow = false; ForceHeader(); StillWorking = true; while (StillWorking) { StillWorking = false; if (AllBracketsNarrow && (N == NFast)) { SetAveraging(NSlow); } else { AllBracketsNarrow = true; }// tentative for (int i = iAx; i <= iGz; i++) { if (HighOffset[i] <= (LowOffset[i]+1)) { NewOffset[i] = LowOffset[i]; } else { // binary search StillWorking = true; NewOffset[i] = (LowOffset[i] + HighOffset[i]) / 2; if (HighOffset[i] > (LowOffset[i] + 10)) { AllBracketsNarrow = false; } } // binary search } SetOffsets(NewOffset); GetSmoothed(); for (int i = iAx; i <= iGz; i++) { // closing in if (Smoothed[i] > Target[i]) { // use lower half HighOffset[i] = NewOffset[i]; HighValue[i] = Smoothed[i]; } // use lower half else { // use upper half LowOffset[i] = NewOffset[i]; LowValue[i] = Smoothed[i]; } // use upper half } // closing in ShowProgress(); } // still working} // PullBracketsIn
void PullBracketsOut() { boolean Done = false; int NextLowOffset[6]; int NextHighOffset[6];
Serial.println("expanding:"); ForceHeader(); while (!Done) { Done = true; SetOffsets(LowOffset); GetSmoothed(); for (int i = iAx; i <= iGz; i++) { // got low values LowValue[i] = Smoothed[i]; if (LowValue[i] >= Target[i]) { Done = false; NextLowOffset[i] = LowOffset[i] - 1000; } else { NextLowOffset[i] = LowOffset[i]; } } // got low values SetOffsets(HighOffset); GetSmoothed(); for (int i = iAx; i <= iGz; i++) { // got high values HighValue[i] = Smoothed[i]; if (HighValue[i] <= Target[i]) { Done = false; NextHighOffset[i] = HighOffset[i] + 1000; } else { NextHighOffset[i] = HighOffset[i]; } } // got high values ShowProgress(); for (int i = iAx; i <= iGz; i++) { LowOffset[i] = NextLowOffset[i]; // had to wait until ShowProgress done HighOffset[i] = NextHighOffset[i]; // .. } } // keep going} // PullBracketsOut
void SetAveraging(int NewN) { N = NewN; Serial.print("averaging "); Serial.print(N); Serial.println(" readings each time"); } // SetAveraging
void setup() { Initialize(); for (int i = iAx; i <= iGz; i++) { // set targets and initial guesses Target[i] = 0; // must fix for ZAccel HighOffset[i] = 0; LowOffset[i] = 0; } // set targets and initial guesses Target[iAz] = 16384; SetAveraging(NFast);
PullBracketsOut(); PullBracketsIn(); Serial.println("-------------- done --------------");} // setup
void loop() { } // loop
With this we get the offset values.
For us those are:
XAccel YAccel ZAccel XGyro YGyro ZGyro
[13,14] --> [0,17] [557,558] --> [-6,13] [711,712] --> [16369,16389] [-8,-7] --> [-2,2] [5,6] --> [-1,2] [13,14] --> [-2,1]In our case this method is obsolete.
We managed to find suitable method for calibrating gyro. We needed to install Adafruit Sensor Lab.
Then we got the code from Files --> Examples --> Adafruti Sensor Lab --> Calibration --> gyro_zerorate_simplecal
Code
/*************************************************************************** This is an example for the Adafruit SensorLab library It will look for a supported gyroscope and collect rad/s data for a few seconds to calcualte the zero rate calibration offsetsWritten by Limor Fried for Adafruit Industries. ***************************************************************************/
#include <Adafruit_SensorLab.h> Adafruit_SensorLab lab;
#define NUMBER_SAMPLES 500
Adafruit_Sensor *gyro; sensors_event_t event;
float min_x, max_x, mid_x; float min_y, max_y, mid_y; float min_z, max_z, mid_z;
void setup(void) { Serial.begin(115200); while (!Serial) delay(10); // will pause Zero, Leonardo, etc until serial console opens
Serial.println(F("Sensor Lab - Gyroscope Calibration!")); lab.begin();
Serial.println("Looking for a gyro"); gyro = lab.getGyroscope(); if (! gyro) { Serial.println(F("Could not find a gyro, check wiring!")); while(1) delay(10); } gyro->printSensorDetails(); delay(100);
gyro->getEvent(&event); min_x = max_x = event.gyro.x; min_y = max_y = event.gyro.y; min_z = max_z = event.gyro.z; delay(10);
Serial.println(F("Place gyro on flat, stable surface!"));
Serial.print(F("Fetching samples in 3...")); delay(1000); Serial.print("2..."); delay(1000); Serial.print("1..."); delay(1000); Serial.println("NOW!");
float x, y, z; for (uint16_t sample = 0; sample < NUMBER_SAMPLES; sample++) { gyro->getEvent(&event); x = event.gyro.x; y = event.gyro.y; z = event.gyro.z; Serial.print(F("Gyro: (")); Serial.print(x); Serial.print(", "); Serial.print(y); Serial.print(", "); Serial.print(z); Serial.print(")");
min_x = min(min_x, x); min_y = min(min_y, y); min_z = min(min_z, z); max_x = max(max_x, x); max_y = max(max_y, y); max_z = max(max_z, z); mid_x = (max_x + min_x) / 2; mid_y = (max_y + min_y) / 2; mid_z = (max_z + min_z) / 2; Serial.print(F(" Zero rate offset: (")); Serial.print(mid_x, 4); Serial.print(", "); Serial.print(mid_y, 4); Serial.print(", "); Serial.print(mid_z, 4); Serial.print(")"); Serial.print(F(" rad/s noise: (")); Serial.print(max_x - min_x, 3); Serial.print(", "); Serial.print(max_y - min_y, 3); Serial.print(", "); Serial.print(max_z - min_z, 3); Serial.println(")"); delay(10);} Serial.println(F("\n\nFinal zero rate offset in radians/s: ")); Serial.print(mid_x, 4); Serial.print(", "); Serial.print(mid_y, 4); Serial.print(", "); Serial.println(mid_z, 4); }
void loop() { delay(10); }
This gave us offset values:
XGyro = 0.0057 YGyro = -0.0031 ZGyro = -0.0080These values were added to the test code
Serial.print("Rotation X: ");
Serial.print(g.gyro.x - 0.0057);
Serial.print(", Y: ");
Serial.print(g.gyro.y - (-0.0031));
Serial.print(", Z: ");
Serial.print(g.gyro.z - (0.0080));
Serial.println(" rad/s");And these gave us almost perfect 0 value to the gyros when stationary.
This code uses the Adafruit_MPU6050 library to interface with an MPU6050 accelerometer (gyroscope) and perform calibration and data reading on an Arduino platform. The code performs the following actions:
- Initializes the MPU6050 sensor and checks for its availability.
- Performs calibration of the accelerometer, which includes the following steps:
- Computes offset values for the accelerometer (average for x, y, and z axes).
- Calculates calibration values (gain) for the accelerometer by tilting it in different directions and taking averages for each axis.
- In the loop, it reads accelerometer data, applies calibration values (offset and gain), prints the x-axis acceleration value to the serial monitor, and introduces a 1-second delay.
This code helps obtain more accurate acceleration values from the MPU6050 sensor by calibrating its offset and gain values.
Below is the Arduino code embedded in a dropdown menu:
Code
#include <Adafruit_MPU6050.h>
Adafruit_MPU6050 mpu;
float accelerometer_offset[3];
float accelerometer_gain[3];
void setup() {
Serial.begin(115200);
// Initialize the accelerometer
if (!mpu.begin()) {
Serial.println("Failed to find MPU6050 chip");
while (1); // Halt the program if the sensor initialization fails
}
// Calibrate the accelerometer offset
for (int i = 0; i < 3; i++) {
accelerometer_offset[i] = 0.0f;
// Take 100 accelerometer readings and average them
for (int j = 0; j < 100; j++) {
sensors_event_t a, g, temp;
mpu.getEvent(&a, &g, &temp); // Pass in all three sensor_event_t objects
accelerometer_offset[i] += a.acceleration.x;
}
accelerometer_offset[i] /= 100.0f;
}
// Calibrate the accelerometer gain
for (int i = 0; i < 3; i++) {
accelerometer_gain[i] = 1.0f;
// Take 100 accelerometer readings while tilting the accelerometer in different directions
// and average them
for (int j = 0; j < 100; j++) {
sensors_event_t a, g, temp;
mpu.getEvent(&a, &g, &temp); // Pass in all three sensor_event_t objects
accelerometer_gain[i] += abs(a.acceleration.x);
}
accelerometer_gain[i] /= 100.0f;
}
}
void loop() {
// Read the accelerometer data
sensors_event_t a, g, temp;
mpu.getEvent(&a, &g, &temp); // Pass in all three sensor_event_t objects
// Apply the offset and gain calibration
a.acceleration.x -= accelerometer_offset[0];
a.acceleration.x *= accelerometer_gain[0];
// Print the accelerometer data to the serial monitor
Serial.print("Accelerometer X: ");
Serial.println(a.acceleration.x);
// Delay for 1 second
delay(1000);
}Code
#include <Adafruit_MPU6050.h>
#include <Math.h>
Adafruit_MPU6050 mpu;
float accelerometer_offset[3];
float accelerometer_gain[3];
void setup() {
Serial.begin(115200);
// Initialize the accelerometer
if (!mpu.begin()) {
Serial.println("Failed to find MPU6050 chip");
while (1); // Halt the program if the sensor initialization fails
}
// Calibrate the accelerometer offset
for (int i = 0; i < 3; i++) {
accelerometer_offset[i] = 0.0f;
// Take 100 accelerometer readings and average them
for (int j = 0; j < 100; j++) {
sensors_event_t a, g, temp;
mpu.getEvent(&a, &g, &temp); // Pass in all three sensor_event_t objects
accelerometer_offset[i] += a.acceleration[i];
}
accelerometer_offset[i] /= 100.0f;
}
// Calibrate the accelerometer gain
for (int i = 0; i < 3; i++) {
accelerometer_gain[i] = 1.0f;
// Take 100 accelerometer readings while tilting the accelerometer in different directions
// and average them
for (int j = 0; j < 100; j++) {
sensors_event_t a, g, temp;
mpu.getEvent(&a, &g, &temp); // Pass in all three sensor_event_t objects
accelerometer_gain[i] += abs(a.acceleration[i]);
}
accelerometer_gain[i] /= 100.0f;
}
}
void loop() {
// Read the accelerometer data
sensors_event_t a, g, temp;
mpu.getEvent(&a, &g, &temp); // Pass in all three sensor_event_t objects
// Calculate the acceleration vector magnitude
float acceleration_magnitude = sqrt(pow(a.acceleration.x, 2) + pow(a.acceleration.y, 2) + pow(a.acceleration.z, 2));
// Apply the offset and gain calibration to the magnitude
acceleration_magnitude -= sqrt(pow(accelerometer_offset[0], 2) + pow(accelerometer_offset[1], 2) + pow(accelerometer_offset[2], 2));
acceleration_magnitude *= sqrt(pow(accelerometer_gain[0], 2) + pow(accelerometer_gain[1], 2) + pow(accelerometer_gain[2], 2));
// Print the acceleration vector magnitude to the serial monitor
Serial.print("Acceleration Magnitude: ");
Serial.println(acceleration_magnitude);
// Delay for 1 second
delay(1000);
}We realized that our caliibration only affected the X axis and that we needed to make a calibration that takes in account the dispersion of the gravitational acceleration on all axes. For this we needed to implement a high-pass filter. We first implemented it on the basic readings example from before, beacuse we figured it would be quick to implement and reliable.
Code
#include <Adafruit_MPU6050.h>
#include <Adafruit_Sensor.h>
#include <Wire.h>
Adafruit_MPU6050 mpu;
const float alpha = 0.8; // Adjust alpha based on the filter requirements
float accelXFiltered = 0.0;
float accelYFiltered = 0.0;
float accelZFiltered = 0.0;
void setup(void) {
Serial.begin(115200);
while (!Serial)
delay(10); // will pause Zero, Leonardo, etc until serial console opens
Serial.println("Adafruit MPU6050 test!");
// Try to initialize!
if (!mpu.begin()) {
Serial.println("Failed to find MPU6050 chip");
while (1) {
delay(10);
}
}
Serial.println("MPU6050 Found!");
mpu.setAccelerometerRange(MPU6050_RANGE_8_G);
Serial.print("Accelerometer range set to: ");
switch (mpu.getAccelerometerRange()) {
case MPU6050_RANGE_2_G:
Serial.println("+-2G");
break;
case MPU6050_RANGE_4_G:
Serial.println("+-4G");
break;
case MPU6050_RANGE_8_G:
Serial.println("+-8G");
break;
case MPU6050_RANGE_16_G:
Serial.println("+-16G");
break;
}
mpu.setGyroRange(MPU6050_RANGE_500_DEG);
Serial.print("Gyro range set to: ");
switch (mpu.getGyroRange()) {
case MPU6050_RANGE_250_DEG:
Serial.println("+- 250 deg/s");
break;
case MPU6050_RANGE_500_DEG:
Serial.println("+- 500 deg/s");
break;
case MPU6050_RANGE_1000_DEG:
Serial.println("+- 1000 deg/s");
break;
case MPU6050_RANGE_2000_DEG:
Serial.println("+- 2000 deg/s");
break;
}
mpu.setFilterBandwidth(MPU6050_BAND_21_HZ);
Serial.print("Filter bandwidth set to: ");
switch (mpu.getFilterBandwidth()) {
case MPU6050_BAND_260_HZ:
Serial.println("260 Hz");
break;
case MPU6050_BAND_184_HZ:
Serial.println("184 Hz");
break;
case MPU6050_BAND_94_HZ:
Serial.println("94 Hz");
break;
case MPU6050_BAND_44_HZ:
Serial.println("44 Hz");
break;
case MPU6050_BAND_21_HZ:
Serial.println("21 Hz");
break;
case MPU6050_BAND_10_HZ:
Serial.println("10 Hz");
break;
case MPU6050_BAND_5_HZ:
Serial.println("5 Hz");
break;
}
Serial.println("");
delay(100);
}
void loop() {
sensors_event_t a, g, temp;
mpu.getEvent(&a, &g, &temp);
// High-pass filter for accelerometer readings
accelXFiltered = alpha * accelXFiltered + (1.0 - alpha) * a.acceleration.x;
accelYFiltered = alpha * accelYFiltered + (1.0 - alpha) * a.acceleration.y;
accelZFiltered = alpha * accelZFiltered + (1.0 - alpha) * a.acceleration.z;
/* Print out the values */
Serial.print("Acceleration X: ");
Serial.print(a.acceleration.x - accelXFiltered);
Serial.print(", Y: ");
Serial.print(a.acceleration.y - accelYFiltered);
Serial.print(", Z: ");
Serial.print(a.acceleration.z - accelZFiltered);
Serial.println(" m/s^2");
Serial.print("Rotation X: ");
Serial.print(g.gyro.x - 0.0449);
Serial.print(", Y: ");
Serial.print(g.gyro.y - 0.0364);
Serial.print(", Z: ");
Serial.print(g.gyro.z - 0.0154);
Serial.println(" rad/s");
Serial.print("Temperature: ");
Serial.print(temp.temperature);
Serial.println(" degC");
Serial.println("");
delay(500);
}
Using this we tried to make bluetooth work and possibly control ESP32 through it.
We uploaded the example code from File --> Examples --> BluetoothSerial --> SerialtoSerialIBT
Code
//This example code is in the Public Domain (or CC0 licensed, at your option.) //By Evandro Copercini - 2018 // //This example creates a bridge between Serial and Classical Bluetooth (SPP) //and also demonstrate that SerialBT have the same functionalities of a normal Serial#include "BluetoothSerial.h"
//#define USE_PIN // Uncomment this to use PIN during pairing. The pin is specified on the line below const char *pin = "1234"; // Change this to more secure PIN.
String device_name = "ESP32-BT-Slave";
#if !defined(CONFIG_BT_ENABLED) || !defined(CONFIG_BLUEDROID_ENABLED) #error Bluetooth is not enabled! Please run
make menuconfigto and enable it #endif#if !defined(CONFIG_BT_SPP_ENABLED) #error Serial Bluetooth not available or not enabled. It is only available for the ESP32 chip. #endif
BluetoothSerial SerialBT;
void setup() { Serial.begin(115200); SerialBT.begin(device_name); //Bluetooth device name Serial.printf("The device with name "%s" is started.\nNow you can pair it with Bluetooth!\n", device_name.c_str()); //Serial.printf("The device with name "%s" and MAC address %s is started.\nNow you can pair it with Bluetooth!\n", device_name.c_str(), SerialBT.getMacString()); // Use this after the MAC method is implemented #ifdef USE_PIN SerialBT.setPin(pin); Serial.println("Using PIN"); #endif }
void loop() { if (Serial.available()) { SerialBT.write(Serial.read()); } if (SerialBT.available()) { Serial.write(SerialBT.read()); } delay(20); }
To turn on the bluetooth you press the ESP32 Enable button on the ESP32.

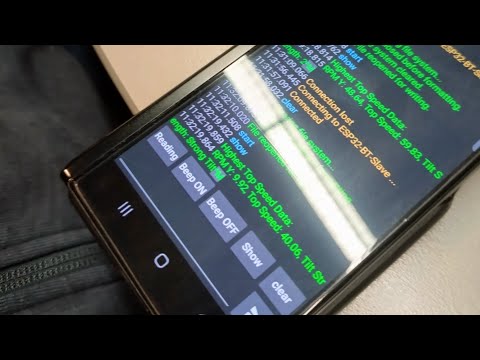

Connected the ESP32 to mobile phone with Serial Bluetooth Terminal
First we open the the menu.
We choose devices and select the the device we wan't to connect.
And then we connect to the device in terminal.
We tried to add command to start the data reading with Serial Bluetooth Terminal. To do this we added bluetooth to the example sensor code.
#include "BluetoothSerial.h"
const char *pin = "1234";
String device_name = "ESP32-BT-Slave";
#if !defined(CONFIG_BT_ENABLED) || !defined(CONFIG_BLUEDROID_ENABLED)
#error Bluetooth is not enabled! Please run make menuconfig to and enable it
#endif
#if !defined(CONFIG_BT_SPP_ENABLED)
#error Serial Bluetooth not available or not enabled. It is only available for the ESP32 chip.
#endif
BluetoothSerial SerialBT;After adding these we can connect to the bluetooth while the sensor is working.
Next we needed to add the control to start the reading when given command in Serial Bluetooth Terminal. When testing what different inputs do, we figured out that input 1 gets a value of 49. So we implemented that to the code.
int incoming;
void setup(void){
SerialBT.begin(device_name);
Serial.println("Bluetooth Device is Ready to Pair");
}
void loop() {
if (SerialBT.available()) //Check if we receive anything from Bluetooth
{
incoming = SerialBT.read();
Serial.print("Received:"); Serial.println(incoming);
if (incoming == 49){
}
}The complete code
// Basic demo for accelerometer readings from Adafruit MPU6050 #include #include #include #include "BluetoothSerial.h"const char *pin = "1234"; Adafruit_MPU6050 mpu; String device_name = "ESP32-BT-Slave";
#if !defined(CONFIG_BT_ENABLED) || !defined(CONFIG_BLUEDROID_ENABLED) #error Bluetooth is not enabled! Please run make menuconfig to and enable it #endif
#if !defined(CONFIG_BT_SPP_ENABLED) #error Serial Bluetooth not available or not enabled. It is only available for the ESP32 chip. #endif
BluetoothSerial SerialBT; int incoming;
void setup(void) { Serial.begin(115200); while (!Serial) delay(10); // will pause Zero, Leonardo, etc until serial console opens
SerialBT.begin(device_name); Serial.println("Bluetooth Device is Ready to Pair"); Serial.println("Adafruit MPU6050 test!");
// Try to initialize! if (!mpu.begin()) { Serial.println("Failed to find MPU6050 chip"); while (1) { delay(10); } } Serial.println("MPU6050 Found!");
mpu.setAccelerometerRange(MPU6050_RANGE_8_G); Serial.print("Accelerometer range set to: "); switch (mpu.getAccelerometerRange()) { case MPU6050_RANGE_2_G: Serial.println("+-2G"); break; case MPU6050_RANGE_4_G: Serial.println("+-4G"); break; case MPU6050_RANGE_8_G: Serial.println("+-8G"); break; case MPU6050_RANGE_16_G: Serial.println("+-16G"); break; } mpu.setGyroRange(MPU6050_RANGE_500_DEG); Serial.print("Gyro range set to: "); switch (mpu.getGyroRange()) { case MPU6050_RANGE_250_DEG: Serial.println("+- 250 deg/s"); break; case MPU6050_RANGE_500_DEG: Serial.println("+- 500 deg/s"); break; case MPU6050_RANGE_1000_DEG: Serial.println("+- 1000 deg/s"); break; case MPU6050_RANGE_2000_DEG: Serial.println("+- 2000 deg/s"); break; }
mpu.setFilterBandwidth(MPU6050_BAND_21_HZ); Serial.print("Filter bandwidth set to: "); switch (mpu.getFilterBandwidth()) { case MPU6050_BAND_260_HZ: Serial.println("260 Hz"); break; case MPU6050_BAND_184_HZ: Serial.println("184 Hz"); break; case MPU6050_BAND_94_HZ: Serial.println("94 Hz"); break; case MPU6050_BAND_44_HZ: Serial.println("44 Hz"); break; case MPU6050_BAND_21_HZ: Serial.println("21 Hz"); break; case MPU6050_BAND_10_HZ: Serial.println("10 Hz"); break; case MPU6050_BAND_5_HZ: Serial.println("5 Hz"); break; }
Serial.println(""); delay(100); }
void loop() {
if (SerialBT.available()){ //Check if we receive anything from Bluetoothincoming = SerialBT.read(); Serial.print("Received:"); Serial.println(incoming); if (incoming == 49){ // Get new sensor events with the readings // sensors_event_t a, g, temp; mpu.getEvent(&a, &g, &temp);
// Print out the values // Serial.print("Acceleration X: "); Serial.print(a.acceleration.x); Serial.print(", Y: "); Serial.print(a.acceleration.y); Serial.print(", Z: "); Serial.print(a.acceleration.z); Serial.println(" m/s^2"); Serial.print("Rotation X: "); Serial.print(g.gyro.x); Serial.print(", Y: "); Serial.print(g.gyro.y); Serial.print(", Z: "); Serial.print(g.gyro.z); Serial.println(" rad/s"); Serial.print("Temperature: "); Serial.print(temp.temperature); Serial.println(" degC"); Serial.println(""); delay(500);} } }
The code partially works.
By sendin 1 in Serial Bluetooth Terminal the code gives us reading ones and then automatically shuts down.
We added the true acceleration to the code. We got it with calculatin squeroot of acceleration.x^2 + acceleration.y^2 + acceleration.z ^2. Then fixing the automatic shutdown for the terminal command we changed the if method to while.
if (incoming == 49){ --> while (incoming == 49){And to shutdown the while method we added if method inside it.
if (sroot < 12){
incoming = 0;
}For testing this I need the true acceleration value to be under 12 for the reading to stop. We haven't been able to calibrate acceleration jet so gravity is still in effect and in rest we get acceleration value 11m/s^s.
Code
// Basic demo for accelerometer readings from Adafruit MPU6050 #include "Adafruit_MPU6050.h" #include "Adafruit_Sensor.h" #include "Wire.h" #include "BluetoothSerial.h"const char *pin = "1234"; Adafruit_MPU6050 mpu; String device_name = "ESP32-BT-Slave";
#if !defined(CONFIG_BT_ENABLED) || !defined(CONFIG_BLUEDROID_ENABLED) #error Bluetooth is not enabled! Please run make menuconfig to and enable it #endif
#if !defined(CONFIG_BT_SPP_ENABLED) #error Serial Bluetooth not available or not enabled. It is only available for the ESP32 chip. #endif
BluetoothSerial SerialBT; int incoming;
void setup(void) { Serial.begin(115200); while (!Serial) delay(10); // will pause Zero, Leonardo, etc until serial console opens
SerialBT.begin(device_name); Serial.println("Bluetooth Device is Ready to Pair"); Serial.println("Adafruit MPU6050 test!");
// Try to initialize! if (!mpu.begin()) { Serial.println("Failed to find MPU6050 chip"); while (1) { delay(10); } } Serial.println("MPU6050 Found!");
mpu.setAccelerometerRange(MPU6050_RANGE_8_G); Serial.print("Accelerometer range set to: "); switch (mpu.getAccelerometerRange()) { case MPU6050_RANGE_2_G: Serial.println("+-2G"); break; case MPU6050_RANGE_4_G: Serial.println("+-4G"); break; case MPU6050_RANGE_8_G: Serial.println("+-8G"); break; case MPU6050_RANGE_16_G: Serial.println("+-16G"); break; } mpu.setGyroRange(MPU6050_RANGE_500_DEG); Serial.print("Gyro range set to: "); switch (mpu.getGyroRange()) { case MPU6050_RANGE_250_DEG: Serial.println("+- 250 deg/s"); break; case MPU6050_RANGE_500_DEG: Serial.println("+- 500 deg/s"); break; case MPU6050_RANGE_1000_DEG: Serial.println("+- 1000 deg/s"); break; case MPU6050_RANGE_2000_DEG: Serial.println("+- 2000 deg/s"); break; }
mpu.setFilterBandwidth(MPU6050_BAND_21_HZ); Serial.print("Filter bandwidth set to: "); switch (mpu.getFilterBandwidth()) { case MPU6050_BAND_260_HZ: Serial.println("260 Hz"); break; case MPU6050_BAND_184_HZ: Serial.println("184 Hz"); break; case MPU6050_BAND_94_HZ: Serial.println("94 Hz"); break; case MPU6050_BAND_44_HZ: Serial.println("44 Hz"); break; case MPU6050_BAND_21_HZ: Serial.println("21 Hz"); break; case MPU6050_BAND_10_HZ: Serial.println("10 Hz"); break; case MPU6050_BAND_5_HZ: Serial.println("5 Hz"); break; }
Serial.println(""); delay(100); }
void loop() {
if (SerialBT.available()){ //Check if we receive anything from Bluetoothincoming = SerialBT.read(); Serial.print("Received:"); Serial.println(incoming); while (incoming == 49){ // Get new sensor events with the readings // sensors_event_t a, g, temp; mpu.getEvent(&a, &g, &temp);
// Print out the values // Serial.print("Acceleration X: "); Serial.print(a.acceleration.x); Serial.print(", Y: "); Serial.print(a.acceleration.y); Serial.print(", Z: "); Serial.print(a.acceleration.z); Serial.print(", True: "); double sroot = sqrt(pow(a.acceleration.x,2) + pow(a.acceleration.y,2) + pow(a.acceleration.z,2)); Serial.print(sroot); Serial.println(" m/s^2"); Serial.print("Rotation X: "); Serial.print(g.gyro.x); Serial.print(", Y: "); Serial.print(g.gyro.y); Serial.print(", Z: "); Serial.print(g.gyro.z); Serial.println(" rad/s"); Serial.print("Temperature: "); Serial.print(temp.temperature); Serial.println(" degC"); Serial.println(""); delay(500); if (sroot < 12){ incoming = 0; }} } }
Now giving the command 1 in Bluetooth terminal the code gives readings while the device is moving fast enough.
We tried to impliment possible timer to the shutdown. For that we added double sekunti to the code and in loop we added sekunti = sekunti +0.5, we add 0.5 because the loop has 0.5 second delay.
An for the shutdown we added:
if (sroot < 12 && sekunti >= 10){
incoming = 0;
sekunti = 0;
}Code
// Basic demo for accelerometer readings from Adafruit MPU6050 #include "Adafruit_MPU6050.h" #include "Adafruit_Sensor.h" #include "Wire.h" #include "BluetoothSerial.h"const char *pin = "1234"; Adafruit_MPU6050 mpu; String device_name = "ESP32-BT-Slave";
#if !defined(CONFIG_BT_ENABLED) || !defined(CONFIG_BLUEDROID_ENABLED) #error Bluetooth is not enabled! Please run make menuconfig to and enable it #endif
#if !defined(CONFIG_BT_SPP_ENABLED) #error Serial Bluetooth not available or not enabled. It is only available for the ESP32 chip. #endif
BluetoothSerial SerialBT; int incoming; double sekunti;
void setup(void) { Serial.begin(115200); while (!Serial) delay(10); // will pause Zero, Leonardo, etc until serial console opens
SerialBT.begin(device_name); Serial.println("Bluetooth Device is Ready to Pair"); Serial.println("Adafruit MPU6050 test!");
// Try to initialize! if (!mpu.begin()) { Serial.println("Failed to find MPU6050 chip"); while (1) { delay(10); } } Serial.println("MPU6050 Found!");
mpu.setAccelerometerRange(MPU6050_RANGE_8_G); Serial.print("Accelerometer range set to: "); switch (mpu.getAccelerometerRange()) { case MPU6050_RANGE_2_G: Serial.println("+-2G"); break; case MPU6050_RANGE_4_G: Serial.println("+-4G"); break; case MPU6050_RANGE_8_G: Serial.println("+-8G"); break; case MPU6050_RANGE_16_G: Serial.println("+-16G"); break; } mpu.setGyroRange(MPU6050_RANGE_500_DEG); Serial.print("Gyro range set to: "); switch (mpu.getGyroRange()) { case MPU6050_RANGE_250_DEG: Serial.println("+- 250 deg/s"); break; case MPU6050_RANGE_500_DEG: Serial.println("+- 500 deg/s"); break; case MPU6050_RANGE_1000_DEG: Serial.println("+- 1000 deg/s"); break; case MPU6050_RANGE_2000_DEG: Serial.println("+- 2000 deg/s"); break; }
mpu.setFilterBandwidth(MPU6050_BAND_21_HZ); Serial.print("Filter bandwidth set to: "); switch (mpu.getFilterBandwidth()) { case MPU6050_BAND_260_HZ: Serial.println("260 Hz"); break; case MPU6050_BAND_184_HZ: Serial.println("184 Hz"); break; case MPU6050_BAND_94_HZ: Serial.println("94 Hz"); break; case MPU6050_BAND_44_HZ: Serial.println("44 Hz"); break; case MPU6050_BAND_21_HZ: Serial.println("21 Hz"); break; case MPU6050_BAND_10_HZ: Serial.println("10 Hz"); break; case MPU6050_BAND_5_HZ: Serial.println("5 Hz"); break; }
Serial.println(""); delay(100); }
void loop() {
if (SerialBT.available()){ //Check if we receive anything from Bluetoothincoming = SerialBT.read(); Serial.print("Received:"); Serial.println(incoming); while (incoming == 49){ // Get new sensor events with the readings // sensors_event_t a, g, temp; mpu.getEvent(&a, &g, &temp);
// Print out the values // Serial.print("Acceleration X: "); Serial.print(a.acceleration.x); Serial.print(", Y: "); Serial.print(a.acceleration.y); Serial.print(", Z: "); Serial.print(a.acceleration.z); Serial.print(", True: "); double sroot = sqrt(pow(a.acceleration.x,2) + pow(a.acceleration.y,2) + pow(a.acceleration.z,2)); Serial.print(sroot); Serial.println(" m/s^2"); Serial.print("Rotation X: "); Serial.print(g.gyro.x); Serial.print(", Y: "); Serial.print(g.gyro.y); Serial.print(", Z: "); Serial.print(g.gyro.z); Serial.println(" rad/s"); sekunti = sekunti + 0.5; Serial.print("Temperature: "); Serial.print(temp.temperature); Serial.println(" degC"); Serial.println(""); delay(500); if (sroot < 12 && sekunti >= 10){ incoming = 0; sekunti = 0; }} } }
Whit this the shutdown happens when the acceleration is under 12 and second are 10 or over it. This has still the problem that the seconds keep adding up even thought the acceleration isn't under 12.
To fix this we edited the shutdown to add the 0.5 to the scond when acceleration is under 12 and to reset the seconds when it is over it.
if (sroot < 12){
sekunti = sekunti + 0.5;
}else{
sekunti = 0;
}
if (sekunti >= 10) {
incoming = 0;
sekunti = 0;
}Whit this the seconds reset when acceleration is over 12 and the shutdown happens only if the device is stationary 10 seconds.
We also tested that the Piezo Buzzer works.
Code
#include// Define the buzzer pin const int buzzerPin = 16; // Define the buzzer pin
void setup() { // Set the buzzer pin as output pinMode(buzzerPin, OUTPUT); }
void loop() { // Turn on the buzzer digitalWrite(buzzerPin, HIGH);
// Delay for 1 second delay(1000);
// Turn off the buzzer digitalWrite(buzzerPin, LOW);
// Delay for 1 second delay(1000); }
With the following code we made it so that you can control buzzer withnthe bluetooth terminal, giving the command 1 the burrez goes on and with 0 it goes off. To achieve this we used the this tutorial modifying it to the buzzer instead of LED.
Code
#include "BluetoothSerial.h"BluetoothSerial SerialBT;
const int relayPin = 16; // Replace with the GPIO pin connected to the HW-508 control pin bool isRelayOn = false;
void setup() { Serial.begin(115200); SerialBT.begin("ESP32_BT_Control"); // Bluetooth device name pinMode(relayPin, OUTPUT); digitalWrite(relayPin, LOW); // Turn off the relay initially isRelayOn = false; // Update the initial state variable }
void loop() { static String receivedCommand = ""; static unsigned long lastCommandTime = 0; const unsigned long commandTimeout = 100; // Adjust as needed
while (SerialBT.available()) { char command = SerialBT.read(); if (command == '\n') { // End of command received, process it processCommand(receivedCommand); // Reset for the next command receivedCommand = ""; } else { // Append to the command receivedCommand += command; lastCommandTime = millis(); } }
// Check for a complete command with a timeout if (millis() - lastCommandTime > commandTimeout && !receivedCommand.isEmpty()) { processCommand(receivedCommand); // Reset for the next command receivedCommand = ""; }
// Additional logic as needed
delay(20); // Allow time for Bluetooth communication }
void processCommand(String command) { command.trim(); // Remove leading and trailing whitespace Serial.print("Received command: "); Serial.println(command);
if (command == "1") { digitalWrite(relayPin, HIGH); // Turn off the relay isRelayOn = false; Serial.println("Relay turned on"); } else if (command == "0") { digitalWrite(relayPin, LOW); // Turn on the relay isRelayOn = true; Serial.println("Relay turned off"); }
}
Now that we could control the beeper it was time to implicate this to the previously made code.
Code
// Basic demo for accelerometer readings from Adafruit MPU6050 #include "Adafruit_MPU6050.h" #include "Adafruit_Sensor.h" #include "Wire.h" #include "BluetoothSerial.h"// Add relay for buzzer control const int relayPin = 16; bool isRelayOn = false;
// Setting up bluetooth Adafruit_MPU6050 mpu; String device_name = "ESP32-BT-Slave";
#if !defined(CONFIG_BT_ENABLED) || !defined(CONFIG_BLUEDROID_ENABLED) #error Bluetooth is not enabled! Please run make menuconfig to and enable it #endif
#if !defined(CONFIG_BT_SPP_ENABLED) #error Serial Bluetooth not available or not enabled. It is only available for the ESP32 chip. #endif
BluetoothSerial SerialBT; String incoming; // Bluetooth command double sekunti; // For getting time
void processCommand(String command);
void setup(void) { Serial.begin(115200); while (!Serial) delay(10); // will pause Zero, Leonardo, etc until serial console opens
pinMode(relayPin, OUTPUT); digitalWrite(relayPin, LOW); // Turn off the relay initially isRelayOn = false; // Update the initial state variable
SerialBT.begin(device_name); Serial.println("Bluetooth Device is Ready to Pair"); Serial.println("Adafruit MPU6050 test!");
// Try to initialize! if (!mpu.begin()) { Serial.println("Failed to find MPU6050 chip"); while (1) { delay(10); } } Serial.println("MPU6050 Found!");
mpu.setAccelerometerRange(MPU6050_RANGE_8_G); Serial.print("Accelerometer range set to: "); switch (mpu.getAccelerometerRange()) { case MPU6050_RANGE_2_G: Serial.println("+-2G"); break; case MPU6050_RANGE_4_G: Serial.println("+-4G"); break; case MPU6050_RANGE_8_G: Serial.println("+-8G"); break; case MPU6050_RANGE_16_G: Serial.println("+-16G"); break; } mpu.setGyroRange(MPU6050_RANGE_500_DEG); Serial.print("Gyro range set to: "); switch (mpu.getGyroRange()) { case MPU6050_RANGE_250_DEG: Serial.println("+- 250 deg/s"); break; case MPU6050_RANGE_500_DEG: Serial.println("+- 500 deg/s"); break; case MPU6050_RANGE_1000_DEG: Serial.println("+- 1000 deg/s"); break; case MPU6050_RANGE_2000_DEG: Serial.println("+- 2000 deg/s"); break; }
mpu.setFilterBandwidth(MPU6050_BAND_21_HZ); Serial.print("Filter bandwidth set to: "); switch (mpu.getFilterBandwidth()) { case MPU6050_BAND_260_HZ: Serial.println("260 Hz"); break; case MPU6050_BAND_184_HZ: Serial.println("184 Hz"); break; case MPU6050_BAND_94_HZ: Serial.println("94 Hz"); break; case MPU6050_BAND_44_HZ: Serial.println("44 Hz"); break; case MPU6050_BAND_21_HZ: Serial.println("21 Hz"); break; case MPU6050_BAND_10_HZ: Serial.println("10 Hz"); break; case MPU6050_BAND_5_HZ: Serial.println("5 Hz"); break; }
Serial.println(""); delay(100); }
void loop() { static String receivedCommand = ""; static unsigned long lastCommandTime = 0; const unsigned long commandTimeout = 100; // Adjust as needed
while (SerialBT.available()) { // Check if we receive anything from Bluetooth char command = SerialBT.read(); if (command == '\n') { // End of command received, process it processCommand(receivedCommand); // Reset for the next command receivedCommand = ""; } else { // Append to the command receivedCommand += command; lastCommandTime = millis(); } }
// Check for command timeout if (millis() - lastCommandTime > commandTimeout) { receivedCommand = ""; // Clear the command if timeout occurs } }
void processCommand(String command) { command.trim(); // Remove leading and trailing whitespace Serial.print("Received command: "); Serial.println(command);
if (command == "1") { digitalWrite(relayPin, HIGH); // Turn off the relay isRelayOn = false; Serial.println("Relay turned on"); } else if (command == "0") { digitalWrite(relayPin, LOW); // Turn on the relay isRelayOn = true; Serial.println("Relay turned off"); } while (command == "start") {
// Get new sensor events with the readings // sensors_event_t a, g, temp; mpu.getEvent(&a, &g, &temp); // Print out the values // Serial.print("Acceleration X: "); Serial.print(a.acceleration.x); Serial.print(", Y: "); Serial.print(a.acceleration.y); Serial.print(", Z: "); Serial.print(a.acceleration.z); Serial.print(", True: "); double sroot = sqrt(pow(a.acceleration.x, 2) + pow(a.acceleration.y, 2) + pow(a.acceleration.z, 2)); Serial.print(sroot); Serial.println(" m/s^2"); Serial.print("Rotation X: "); Serial.print(g.gyro.x); Serial.print(", Y: "); Serial.print(g.gyro.y); Serial.print(", Z: "); Serial.print(g.gyro.z); Serial.println(" rad/s"); sekunti = sekunti + 0.5; Serial.print("Temperature: "); Serial.print(temp.temperature); Serial.println(" degC"); Serial.println(""); delay(500); if (sroot < 12 && sekunti >= 10) { command = "stop"; sekunti = 0; }} }
Now we tried to save the reading in to the ESP32 so we can see them with a command. So we needed to add following thing in to the code:
#include "SPIFFS.h"
void setup(){
if (!SPIFFS.begin()) {
Serial.println("Failed to mount file system");
return;
}
dataFile = SPIFFS.open("/sensor_data.txt", "a"); // Open the file for appending
if (!dataFile) {
Serial.println("Failed to open file for writing");
return;
}
// existing code...
}
void saveDataToFile(float accelX, float accelY, float accelZ, float gyroX, float gyroY, float gyroZ) {
// Save sensor data to file
dataFile.print("Acceleration X: ");
dataFile.print(accelX);
dataFile.print(", Y: ");
dataFile.print(accelY);
dataFile.print(", Z: ");
dataFile.print(accelZ);
dataFile.print(", Rotation X: ");
dataFile.print(gyroX);
dataFile.print(", Y: ");
dataFile.print(gyroY);
dataFile.print(", Z: ");
dataFile.print(gyroZ);
dataFile.println();
}We also needed to edit the exiting code. We needed to edit the code handeling the incoming command so we could get rid of while loop. This helps us to add new thing to the code more easily.
Code
#include "Adafruit_MPU6050.h" #include "Adafruit_Sensor.h" #include "Wire.h" #include "BluetoothSerial.h" #include "SPIFFS.h"const int relayPin = 16; bool isRelayOn = false;
Adafruit_MPU6050 mpu; String device_name = "ESP32-BT-Slave";
BluetoothSerial SerialBT; String incoming; // Bluetooth command double sekunti; // For getting time
File dataFile;
void processCommand(String command); void saveDataToFile(float accelX, float accelY, float accelZ, float gyroX, float gyroY, float gyroZ);
void setup(void) { Serial.begin(115200); while (!Serial) delay(10);
pinMode(relayPin, OUTPUT); digitalWrite(relayPin, LOW); isRelayOn = false;
SerialBT.begin(device_name); Serial.println("Bluetooth Device is Ready to Pair"); Serial.println("Adafruit MPU6050 test!");
if (!mpu.begin()) { Serial.println("Failed to find MPU6050 chip"); while (1) { delay(10); } } Serial.println("MPU6050 Found!");
mpu.setAccelerometerRange(MPU6050_RANGE_8_G); mpu.setGyroRange(MPU6050_RANGE_500_DEG); mpu.setFilterBandwidth(MPU6050_BAND_21_HZ);
if (!SPIFFS.begin()) { Serial.println("Failed to mount file system"); return; }
dataFile = SPIFFS.open("/sensor_data.txt", "a"); // Open the file for appending if (!dataFile) { Serial.println("Failed to open file for writing"); return; }
delay(100); }
void loop() { static String receivedCommand = ""; static unsigned long lastCommandTime = 0; const unsigned long commandTimeout = 100; // Adjust as needed
while (SerialBT.available()) { char command = SerialBT.read(); if (command == '\n') { processCommand(receivedCommand); receivedCommand = ""; } else { receivedCommand += command; lastCommandTime = millis(); } }
if (millis() - lastCommandTime > commandTimeout) { receivedCommand = ""; }
if (incoming == "start") { // Get new sensor events with the readings // sensors_event_t a, g, temp; mpu.getEvent(&a, &g, &temp);
// Print out the values // Serial.print("Acceleration X: "); Serial.print(a.acceleration.x); Serial.print(", Y: "); Serial.print(a.acceleration.y); Serial.print(", Z: "); Serial.print(a.acceleration.z); Serial.print(", True: "); double sroot = sqrt(pow(a.acceleration.x, 2) + pow(a.acceleration.y, 2) + pow(a.acceleration.z, 2)); Serial.print(sroot); Serial.println(" m/s^2"); Serial.print("Rotation X: "); Serial.print(g.gyro.x); Serial.print(", Y: "); Serial.print(g.gyro.y); Serial.print(", Z: "); Serial.print(g.gyro.z); Serial.println(" rad/s"); sekunti = sekunti + 0.5; Serial.print("Temperature: "); Serial.print(temp.temperature); Serial.println(" degC"); // Save data to file saveDataToFile(a.acceleration.x, a.acceleration.y, a.acceleration.z, g.gyro.x, g.gyro.y, g.gyro.z); Serial.println(""); delay(500); if (sroot < 12 && sekunti >= 10) { incoming = "stop"; sekunti = 0; }} }
void processCommand(String command) { command.trim(); // Remove leading and trailing whitespace Serial.print("Received command: "); Serial.println(command);
if (command == "1") { digitalWrite(relayPin, HIGH); // Turn off the relay isRelayOn = false; Serial.println("Relay turned on"); } else if (command == "0") { digitalWrite(relayPin, LOW); // Turn on the relay isRelayOn = true; Serial.println("Relay turned off"); } else if (command == "start") { incoming = "start"; } }
void saveDataToFile(float accelX, float accelY, float accelZ, float gyroX, float gyroY, float gyroZ) { // Save sensor data to file dataFile.print("Acceleration X: "); dataFile.print(accelX); dataFile.print(", Y: "); dataFile.print(accelY); dataFile.print(", Z: "); dataFile.print(accelZ); dataFile.print(", Rotation X: "); dataFile.print(gyroX); dataFile.print(", Y: "); dataFile.print(gyroY); dataFile.print(", Z: "); dataFile.print(gyroZ); dataFile.println(); }
Then we added command to show the saved data.
void loop(){
// Existing code...
} else if (incoming == "show") {
showSavedData();
incoming = "";
}
}
void processCommand(String command) {
// Existing code...
} else if (command == "show")
incoming = "show";
}
After this when trying if this works we got an error with mounting the file system.
E (813) SPIFFS: mount failed, -10025
Failed to mount file systemWith googling we didn't get any clear awnser why this was happening so we ended up asking chatgpt what might cause this error. With the awnsers we got we ended up trying to format the filesystem. For this we used this site and ended up with the following code.
#include "FS.h"
void setup() {
Serial.begin(115200);
if (!SPIFFS.begin(true)) {
Serial.println("Failed to format SPIFFS");
return;
}
Serial.println("SPIFFS formatted successfully");
}
After uploading this to ESP32 and reuploading the previous code, the file system was succesfully mounted.
To get the top speed we needed to calculate it from m/s^2. For the formula we used this website and get the following clause.
double topSpeedKmH = acceleration * 3600 / 1000;Next we needed to integrate it to the code.
void loop() {
// Existing code...
if (incoming == "start") {
// Existing code...
// Calculate top speed in km/h
double topSpeedKmH = calculateTopSpeed(sroot);
Serial.print(", Top Speed: ");
Serial.print(topSpeedKmH);
Serial.println(" km/h");
// Existing code...
double calculateTopSpeed(double acceleration) {
// Convert acceleration from m/s^2 to km/h
double topSpeedKmH = acceleration * 3600 / 1000;
return topSpeedKmH;
}To add and calculate RPM we used following website.
void loop() {
// Existing code...
if (incoming == "start") {
// Existing code...
// Calculate RPM from gyroY (angular velocity around Y-axis)
double rpmY = calculateRPM(g.gyro.y);
// Existing code..
double calculateRPM(float angularVelocity) {
// Convert angular velocity from rad/s to RPM
double rpm = angularVelocity * 60 / (2 * M_PI);
return rpm;
}We wanted to put tilt detection when the disk leaves hand. We did this with gyro x and z axes.
void loop() {
bool tiltDuringTopSpeed = false; // Variable to track tilt during top speed recording
// Existing code...
if (incoming == "start") {
// Existing code...
if (isTilted(g.gyro.x, g.gyro.z)) {
tiltDuringTopSpeed = true;
}
// Existing code...
bool isTilted(float gyroX, float gyroZ) {
// Set your threshold for tilt detection
float tiltThreshold = 0.1;
// Check if the absolute values of gyroX and gyroZ are greater than the threshold
return (fabs(gyroX) > tiltThreshold || fabs(gyroZ) > tiltThreshold);
}Then we wanted to spesify if the tilt is mild or strong. So we changed the code to the following.
void loop(){
String tiltStrength = "";
// Existing code...
if (incoming == "start") {
// Existing code...
// Check for tilt during top speed recording and get tilt strength
tiltStrength = getTiltStrength(g.gyro.x, g.gyro.z);
// Existing code...
}
void saveDataToFile(double rpmY, double topSpeedKmH, String tiltStrength) {
// Open the file for writing
File dataFile = SPIFFS.open("/sensor_data.txt", "a");
if (dataFile) {
// Save sensor data to file
dataFile.print("RPM Y: ");
dataFile.print(rpmY);
dataFile.print(", Top Speed: ");
dataFile.print(topSpeedKmH);
dataFile.print(", Tilt: ");
dataFile.print(tiltStrength);
dataFile.println();
Serial.println("Saving data to file... Data saved successfully.");
// Close the file
dataFile.close();
} else {
// Debugging statement
Serial.println("Error: Failed to open file for writing!");
}
}
String getTiltStrength(float gyroX, float gyroZ) {
// Set your threshold for tilt detection
float mildTiltThreshold = 0.1;
float strongTiltThreshold = 0.5;
// Check if the absolute values of gyroX and gyroZ are greater than the threshold
float absGyroX = fabs(gyroX);
float absGyroZ = fabs(gyroZ);
if (absGyroX > strongTiltThreshold || absGyroZ > strongTiltThreshold) {
return "Strong Tilt";
} else if (absGyroX > mildTiltThreshold || absGyroZ > mildTiltThreshold) {
return "Mild Tilt";
} else {
return "No Tilt";
}
}After putting all the code together there was problem with show command and it didn't find any saved data.
void saveDataToFile(double rpmY, double topSpeedKmH, bool tiltDuringTopSpeed) {
// Save sensor data to file
dataFile.print("RPM Y: ");
dataFile.print(rpmY);
dataFile.print(", Top Speed: ");
dataFile.print(topSpeedKmH); // Keep this label consistent
dataFile.print(", Tilted: ");
dataFile.print(tiltDuringTopSpeed ? "Yes" : "No");
dataFile.println();
}
void showSavedData() {
// Open the file in read mode
File file = SPIFFS.open("/sensor_data.txt", "r");
if (!file) {
Serial.println("Failed to open file for reading");
return;
}
Serial.println("Saved Sensor Data:");
double maxTopSpeed = 0.0;
String maxTopSpeedRow;
// Read the content of the file line by line
while (file.available()) {
String line = file.readStringUntil('\n');
// Check if the line contains the relevant data
if (line.indexOf("Top Speed") != -1) {
// Extract the top speed value from the line
int colonIndex = line.indexOf(":");
double currentTopSpeed = line.substring(colonIndex + 1).toDouble();
// Update the maximum top speed and corresponding row
if (currentTopSpeed > maxTopSpeed) {
maxTopSpeed = currentTopSpeed;
maxTopSpeedRow = line;
}
}
}We knew one of these was the problem so we started to debug these one at the time. First we looked into showSavedData and added lines to help debug.
/ Debugging statement
Serial.println("Read line: " + line);But with this we didnt get any errors, only that there were no data. So with that in mind next we looked into saveDataToFile. First we added line to see if data were saved.
Serial.println("Data saved.");This didn't give us any errors and printed Data saved.. This was where we were getting lost since everything seemed like it was working correctly but we didn't get correct results and we still weren't really familiar with C++. So we asked ChatGPT help debugging.
With the help of ChatGPT we started debugging further and put changed saveDataToFile to the following
void saveDataToFile(double rpmY, double topSpeedKmH, bool tiltDuringTopSpeed) {
// Check if the file is open
if (dataFile) {
// Save sensor data to file
dataFile.print("RPM Y: ");
dataFile.print(rpmY);
dataFile.print(", Top Speed: ");
dataFile.print(topSpeedKmH);
dataFile.print(", Tilted: ");
dataFile.print(tiltDuringTopSpeed ? "Yes" : "No");
dataFile.println();
// Debugging statement
Serial.println("Data saved to file.");
} else {
// Debugging statement
Serial.println("Error: File not open!");
}
}With this we were making sure the file was open for writing when saving data. This still didn't fix the problem so next we opened the file for writing by adding the following line in the beginning of the saveDataToFile
File dataFile = SPIFFS.open("/sensor_data.txt", "a");With this the data was saved correctly and commands in the code worked as intended.
There still is one preblem that we didn't find solution for and that is that the Accelemoter/Gyro sometimes just stops working and only gives values of 0.
Final Code
#include "Adafruit_MPU6050.h" #include "Adafruit_Sensor.h" #include "Wire.h" #include "BluetoothSerial.h" #include "SPIFFS.h"Adafruit_MPU6050 mpu; BluetoothSerial SerialBT;
const float alpha = 0.8; // Adjust alpha based on the filter requirements
float accelXFiltered = 0.0; float accelYFiltered = 0.0; float accelZFiltered = 0.0;
const int relayPin = 16; bool isRelayOn = false;
File dataFile;
String device_name = "ESP32-BT-Slave"; String incoming; // Bluetooth command double sekunti; // For getting time
void processCommand(String command); void saveDataToFile(double rpmY, double topSpeedKmH, String tiltStrength); void clearFileSystem();
void setup(void) { Serial.begin(115200); while (!Serial) delay(10);
pinMode(relayPin, OUTPUT); digitalWrite(relayPin, LOW); isRelayOn = false;
SerialBT.begin(device_name); Serial.println("Bluetooth Device is Ready to Pair"); Serial.println("Adafruit MPU6050 test!");
if (!mpu.begin()) { Serial.println("Failed to find MPU6050 chip"); while (1) { delay(10); } } Serial.println("MPU6050 Found!");
mpu.setAccelerometerRange(MPU6050_RANGE_8_G); mpu.setGyroRange(MPU6050_RANGE_500_DEG); mpu.setFilterBandwidth(MPU6050_BAND_21_HZ);
if (!SPIFFS.begin()) { Serial.println("Failed to mount file system"); return; }
dataFile = SPIFFS.open("/sensor_data.txt", "a"); // Open the file for appending if (!dataFile) { Serial.println("Failed to open file for writing"); return; }
delay(100); }
void loop() { static String receivedCommand = ""; static unsigned long lastCommandTime = 0; const unsigned long commandTimeout = 100; // Adjust as needed String tiltStrength = ""; double accelerationX = 0; double accelerationY = 0; double accelerationZ = 0;
while (SerialBT.available()) { char command = SerialBT.read(); if (command == '\n') { processCommand(receivedCommand); receivedCommand = ""; } else { receivedCommand += command; lastCommandTime = millis(); } }
if (millis() - lastCommandTime > commandTimeout) { receivedCommand = ""; }
if (incoming == "start") { sensors_event_t a, g, temp; mpu.getEvent(&a, &g, &temp);
// High-pass filter for accelerometer readings accelXFiltered = alpha * accelXFiltered + (1.0 - alpha) * a.acceleration.x; accelYFiltered = alpha * accelYFiltered + (1.0 - alpha) * a.acceleration.y; accelZFiltered = alpha * accelZFiltered + (1.0 - alpha) * a.acceleration.z; // Adjusted accelerometer readings accelerationX = a.acceleration.x - accelXFiltered; accelerationY = a.acceleration.y - accelYFiltered; accelerationZ = a.acceleration.z - accelZFiltered; // Rest of your code... // Example: Print adjusted accelerometer values Serial.print("Adjusted Acceleration X: "); Serial.print(accelerationX); Serial.print(", Y: "); Serial.print(accelerationY); Serial.print(", Z: "); Serial.print(accelerationZ); Serial.println(" m/s^2"); double sroot = sqrt(pow(accelerationX, 2) + pow(accelerationY, 2) + pow(accelerationZ, 2)); Serial.print(sroot); Serial.println(" m/s^2");// Calculate top speed in km/h double topSpeedKmH = calculateTopSpeed(sroot); Serial.print(", Top Speed: "); Serial.print(topSpeedKmH); Serial.println(" km/h");
sekunti = sekunti + 0.5; // Check for tilt during top speed recording and get tilt strength tiltStrength = getTiltStrength(g.gyro.x, g.gyro.z); // Calculate RPM from gyroY (angular velocity around Y-axis) double rpmY = calculateRPM(g.gyro.y);
// Save data to file saveDataToFile(rpmY, topSpeedKmH, tiltStrength);Serial.println(""); delay(500);
if (sroot < 1 && sekunti >= 5) { incoming = "stop"; sekunti = 0; } }else if (incoming == "show") { showSavedData(); incoming = ""; }else if (incoming == "clear"){ clearFileSystem(); incoming = ""; } }
void processCommand(String command) { command.trim(); // Remove leading and trailing whitespace Serial.print("Received command: "); Serial.println(command);
if (command == "1") { digitalWrite(relayPin, HIGH); // Turn off the relay isRelayOn = false; Serial.println("Relay turned on"); } else if (command == "0") { digitalWrite(relayPin, LOW); // Turn on the relay isRelayOn = true; Serial.println("Relay turned off"); } else if (command == "start") { incoming = "start"; } else if (command == "show") { incoming = "show"; } else if (command == "clear") { incoming = "clear"; } }
void saveDataToFile(double rpmY, double topSpeedKmH, String tiltStrength) { // Open the file for writing File dataFile = SPIFFS.open("/sensor_data.txt", "a");
if (dataFile) { // Save sensor data to file dataFile.print("RPM Y: "); dataFile.print(rpmY); dataFile.print(", Top Speed km/h: "); dataFile.print(topSpeedKmH); dataFile.print(", Tilt: "); dataFile.print(tiltStrength); dataFile.println(); Serial.println("Saving data to file... Data saved successfully."); // Close the file dataFile.close(); } else { // Debugging statement Serial.println("Error: Failed to open file for writing!"); }}
double calculateRPM(float angularVelocity) { // Convert angular velocity from rad/s to RPM double rpm = angularVelocity * 60 / (2 * M_PI); return rpm; }
void showSavedData() { // Open the file in read mode File file = SPIFFS.open("/sensor_data.txt", "r"); if (!file) { SerialBT.println("Failed to open file for reading"); return; }
Serial.println("Saved Sensor Data:"); double maxTopSpeed = 0.0; String maxTopSpeedRow; // Read the content of the file line by line while (file.available()) { String line = file.readStringUntil('\n'); // Debugging statement //Serial.println("Read line: " + line); // Check if the line contains the relevant data if (line.indexOf("Top Speed") != -1) { // Extract the top speed value from the line int colonIndex = line.indexOf(":"); double currentTopSpeed = line.substring(colonIndex + 1).toDouble(); // Update the maximum top speed and corresponding row if (currentTopSpeed > maxTopSpeed) { maxTopSpeed = currentTopSpeed; maxTopSpeedRow = line; } } } // Display only the row with the highest top speed if (!maxTopSpeedRow.isEmpty()) { SerialBT.println("Highest Top Speed Data:"); SerialBT.println(maxTopSpeedRow); } else { SerialBT.println("No data available."); } // Close the file file.close(); Serial.println("End of Sensor Data");}
double calculateTopSpeed(double acceleration) { // Convert acceleration from m/s^2 to km/h double topSpeedKmH = acceleration * 3600 / 1000; return topSpeedKmH; }
String getTiltStrength(float gyroX, float gyroZ) { // Set your threshold for tilt detection float mildTiltThreshold = 0.1; float strongTiltThreshold = 0.5;
// Check if the absolute values of gyroX and gyroZ are greater than the threshold float absGyroX = fabs(gyroX); float absGyroZ = fabs(gyroZ); if (absGyroX > strongTiltThreshold || absGyroZ > strongTiltThreshold) { return "Strong Tilt"; } else if (absGyroX > mildTiltThreshold || absGyroZ > mildTiltThreshold) { return "Mild Tilt"; } else { return "No Tilt"; }}
void clearFileSystem() { SerialBT.println("Clearing file system...");
// Close the file before formatting dataFile.close(); SerialBT.println("File closed before formatting."); // Format the file system if (SPIFFS.format()) { SerialBT.println("File system cleared."); // Reopen the file for writing after clearing the file system dataFile = SPIFFS.open("/sensor_data.txt", "w"); if (dataFile) { SerialBT.println("File reopened for writing."); } else { SerialBT.println("Failed to open file for writing."); } } else { SerialBT.println("Failed to format file system."); }}
