AddComponentDialog: Pre-select symbol variant by project norms #430

Merged
merged 2 commits into from Mar 17, 2019

Conversation

1 participant
@ubruhin
Copy link
Member

commented Mar 16, 2019

  • Enable project settings menu item in board/schematic editors (I guess they were hidden by accident).
  • AddComponentDialog: Pre-select symbol variant by project norms

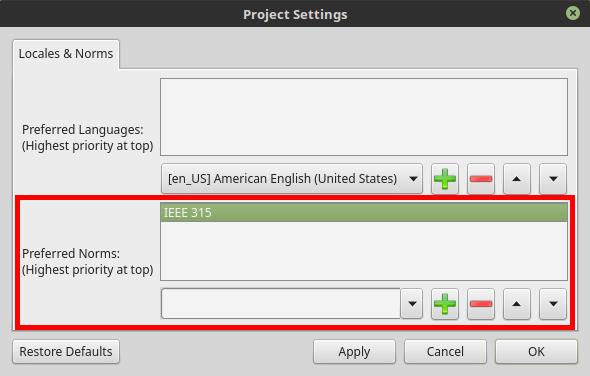

Now you can set your preferred norm in the project settings dialog:
grafik

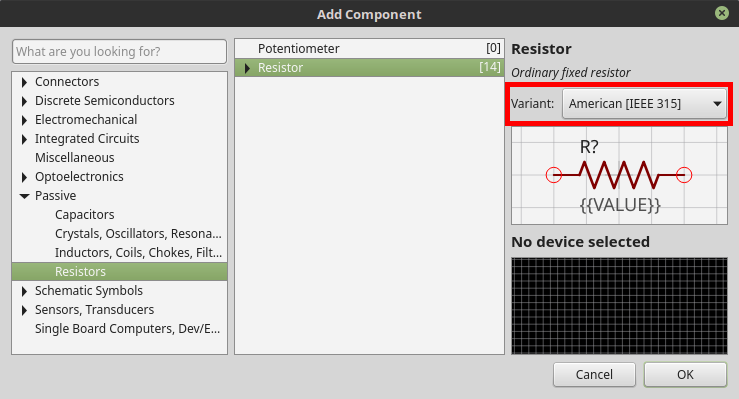

And then the "Add Component"-dialog automatically pre-selects the component symbol variant according the specified norm:
grafik

Fixes #396

@ubruhin ubruhin added this to the 0.1.1 milestone Mar 16, 2019

@ubruhin ubruhin self-assigned this Mar 16, 2019

@ubruhin ubruhin added this to In Progress in Improve user experience of GUI Mar 16, 2019

@ubruhin ubruhin force-pushed the 396-support-project-norm branch from b725e8c to b74a930 Mar 17, 2019

@ubruhin ubruhin merged commit bc82905 into master Mar 17, 2019

4 checks passed

continuous-integration/appveyor/branch AppVeyor build succeeded
Details
continuous-integration/appveyor/pr AppVeyor build succeeded
Details
continuous-integration/travis-ci/pr The Travis CI build passed
Details
continuous-integration/travis-ci/push The Travis CI build passed
Details

@ubruhin ubruhin deleted the 396-support-project-norm branch Mar 17, 2019

ubruhin added a commit that referenced this pull request Mar 17, 2019

Merge pull request #430 from LibrePCB/396-support-project-norm
AddComponentDialog: Pre-select symbol variant by project norms
(cherry picked from commit bc82905)

@ubruhin ubruhin moved this from In Progress to Done in Improve user experience of GUI Apr 6, 2019
