Respect configured grid unit in statusbar #689

merged 6 commits into from Apr 26, 2020


Copy link

@ubruhin ubruhin commented Apr 26, 2020

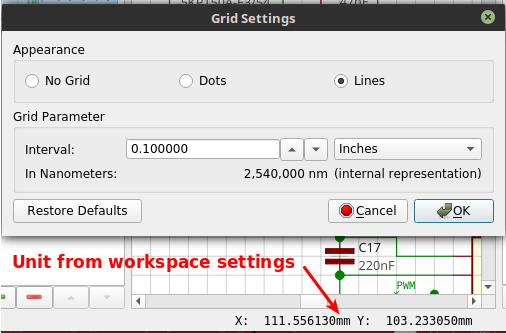

In #684 I adjusted the editors to display the cursor position in the statusbar in the unit from workspace settings. But now while testing the 0.1.4 release candidate I realized that it probably makes even more sense to use the unit configured in the grid settings of the opened editor. So for example if you configure the schematics grid to 0.1 inches, the schematic editor will show the cursor position in inches too, while at the same time the board editor might show Millimeters if the board grid is set to e.g. 0.1mm.

In addition, I completely refactored and cleaned up the grid settings dialog. It is now also using the new length edit widget instead of using spinbox+buttons+combobox.



Summary: Less and cleaner code, simpler UI and more functionality 馃榿

ubruhin added 6 commits Apr 26, 2020
To edit a grid interval with LengthEditBas, some new features were

- Optionally make up/down buttons changing the value by factor 2
- Reset unit to default
- Emit signal if unit gets changed
- General refactoring, cleanup and GUI enhancements
- Use PositiveLengthEdit widget to edit the grid interval (instead of
  separate spinbox, buttons and combobox widgets)
@ubruhin ubruhin added this to the 0.1.4 milestone Apr 26, 2020
@ubruhin ubruhin self-assigned this Apr 26, 2020
@ubruhin ubruhin merged commit 42fb36c into master Apr 26, 2020
11 checks passed
@ubruhin ubruhin deleted the statusbar-unit-from-grid-settings branch Apr 26, 2020
ubruhin added a commit that referenced this issue Apr 26, 2020
Respect configured grid unit in statusbar
(cherry picked from commit 42fb36c)
