Rewrite MOC southern boundary extractor #181
Conversation
|
@milenaveneziani, I'm still testing this but figured I'd do a PR so I can post the results of my testing here. |
|
@milenaveneziani, I was able to verify that the transect on the southern boundary had the expected sign for all of the following meshes: I'm not sure what the procedure will be for testing the MOC with this new transect. Presumably waiting until @vanroekel is back? |
|
This is intended to address #164. |
|
@xylar: this is great. I can test with the MOC postprocessing first, similarly to what I did before. I will try with the v0.43 tag on titan's login node. |
|
sorry it took so long: titan is able to compute the high-res climos without ncclimo, but takes very long.. |
|
@milenaveneziani, okay. I'm disappointed that things still don't look "right" in your tests. I don't know how I can be more help unless you can put a set of files in my hands with which I can reproduce a case that looks "right" and another with my transect that doesn't. Is that something you can put together? |
|
Yes, I will do that. I will transfer 1 year of high-res data to NERSC, and then bring over the old transect file and the new one, for both the high-res and low-res cases. And yes, I was disappointed too: I really thought things were solved. Something tells me that we are close though. At least we don't get the weird structure with flipped signs.. |
|
@xylar: you can find year 11 and 30 of Luke's high-res run here at nersc: A low-res run could be this one: The newer MOC regions with transects mask files are these: The old ones are these: At OLCF, I have completed the MOC for year 11 using the new mask file, and I am now computing the same but using the old mask file. I shall see the results of this tomorrow morning since it takes about 2 hours to compute the 1-year climatologies on titan's login node. As a reminder you should check out v0.43 to do any test with the high-res data. Also, I have used Hopefully all permissions are OK. |
|
@milenaveneziani, thanks very much for making these available. I'm busy packing for the US and probably won't have a chance to look at this until Monday or Tuesday. But it's on my radar... |
|
@milenaveneziani Just to update, I was able to test those four mask files, each with a single monthly average and using the simple old python script for a single time. The old and new masks produce completely different results. I have another meeting now, but will update more soon. |
|
That's both disappointing and also maybe progress... Can we plot the edge sign in Paraview for both masks and see if they are consistent with one another, at least where they overlap? Other than the edge sign, I just don't know what could be wrong. |
Only if the evtk package is not found do we use the old pyevtk package. The evtk package is being built from evtk source as part of newer e3sm-unified packages and is on the e3sm channel. pyevtk does not seem to reliably support python 3 and some versions seem to have bugs in the setup script.
The latest netCDF4 package automatically masks all numpy arrays, which doesn't play nicely with pyevtk. To fix this, set_auto_mask(False) has been used when opening NetCDF files.
xylar
force-pushed
the
fix_moc_southern_boundary_extractor
branch
2 times, most recently
from
672ea9f to
81befe3
Compare
xylar
changed the title
|

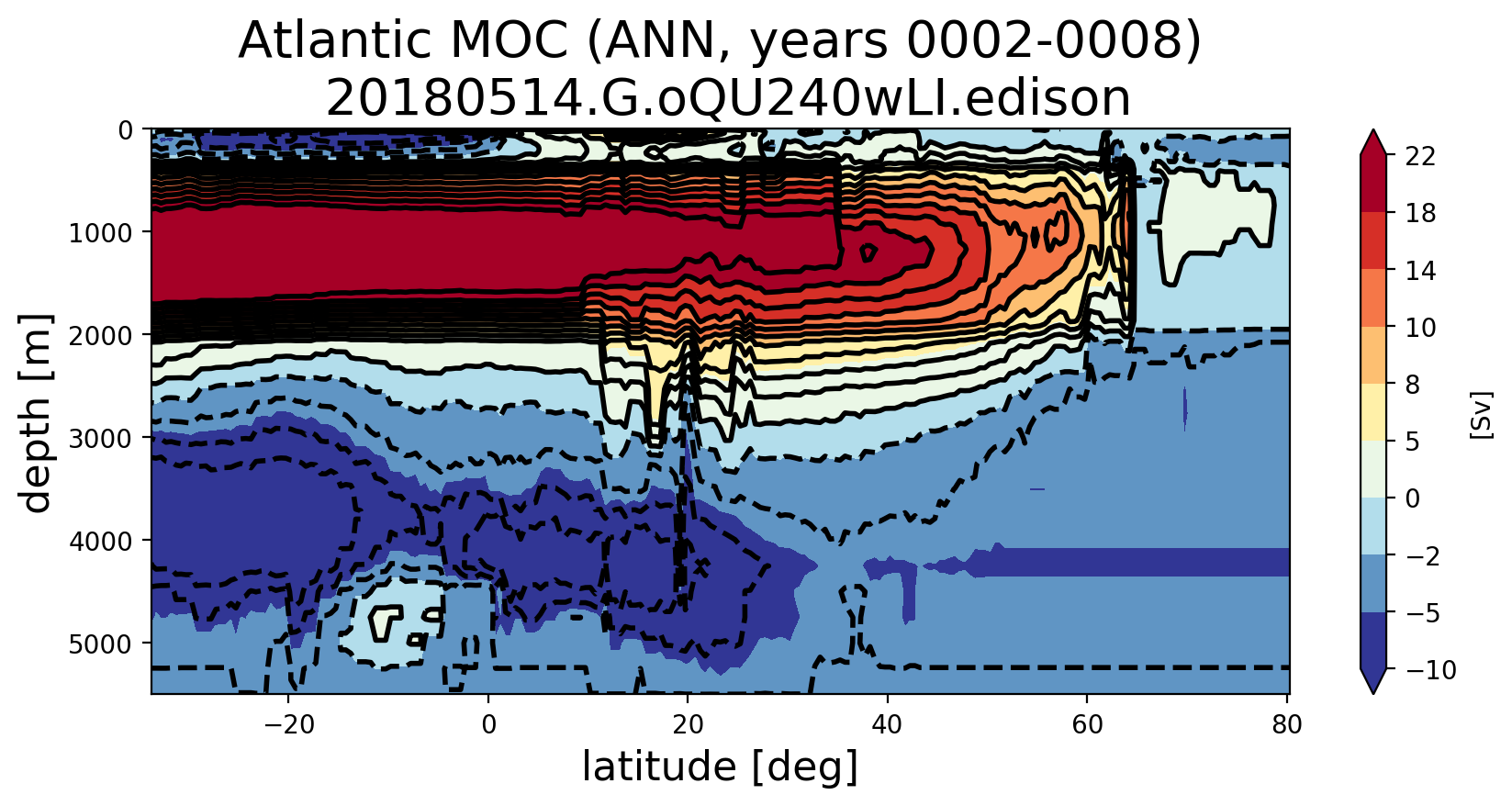

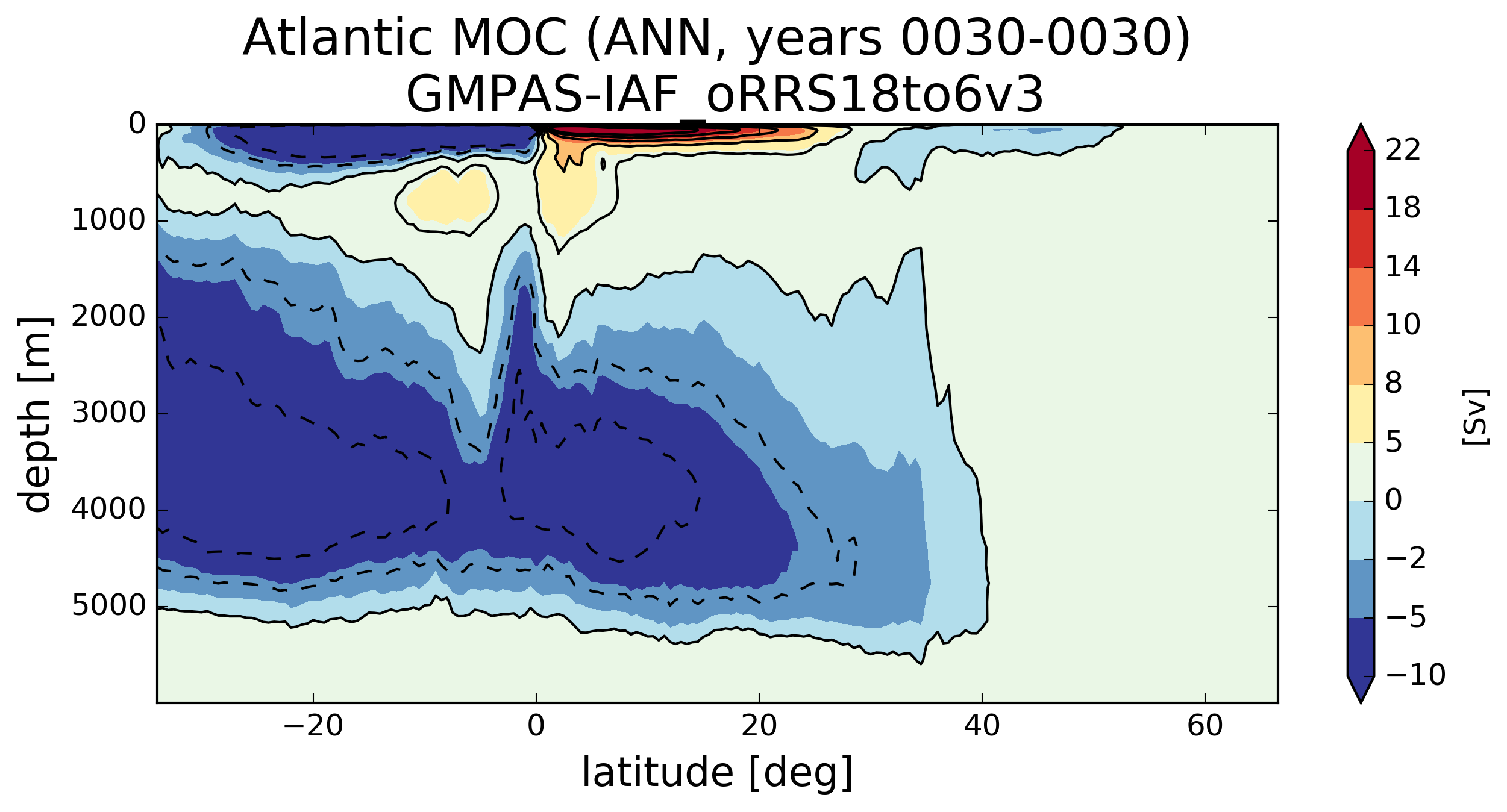

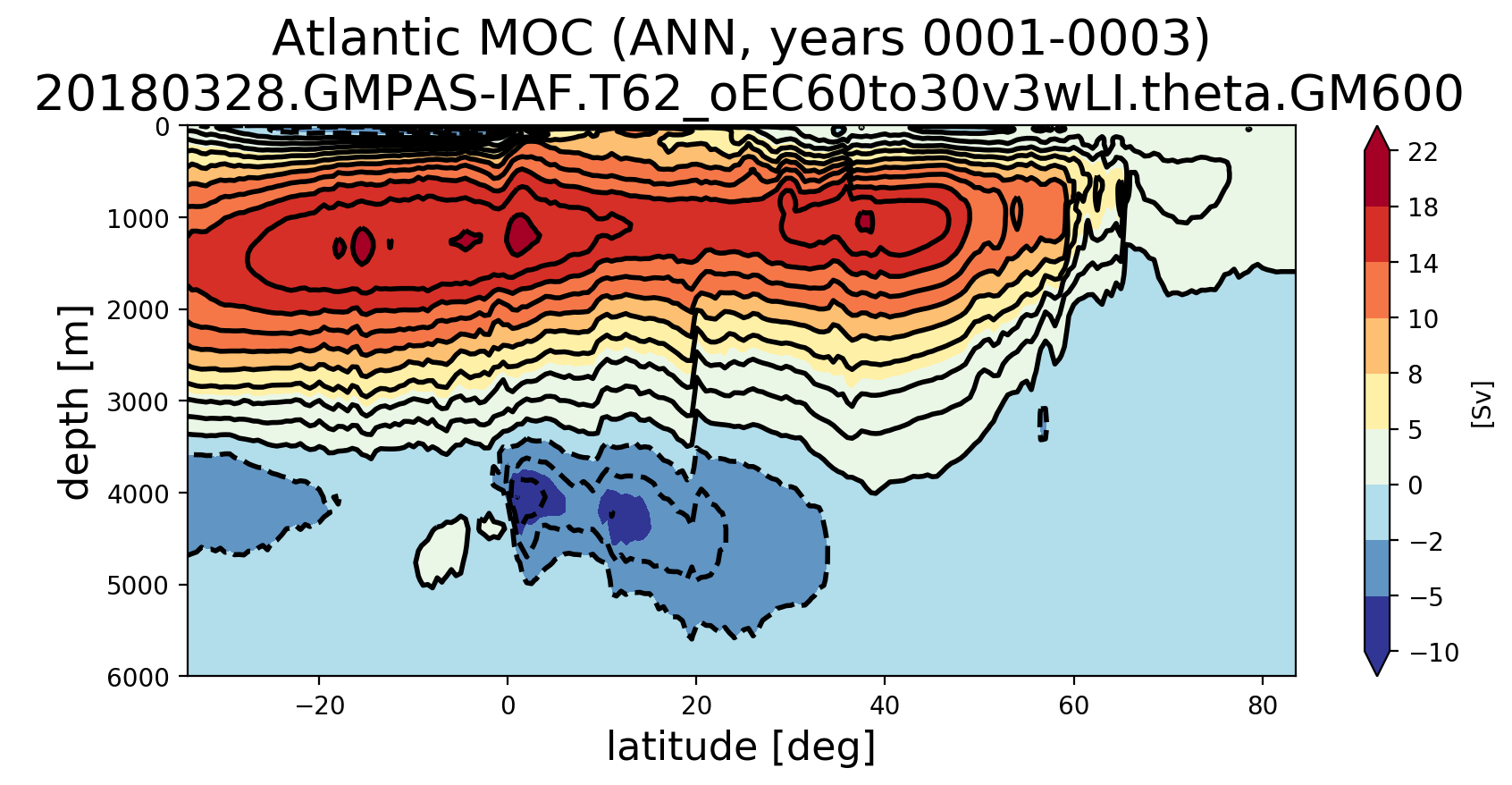

@milenaveneziani, I finally had time to get back to this. I believe a rewrite that I did earlier but didn't have a chance to fully test seems to be working. Here are Atlantic MOCs a very short time into runs at various resolutions: QU240: QU240wLI: EC60to30v3: EC60to30v3wLI: For comparison, here's are plots with the previous southern ocean transect. EC60to30v3: EC60to30v3wLI: |
|
Here's the Atlantic MOC with the old transect: and new:

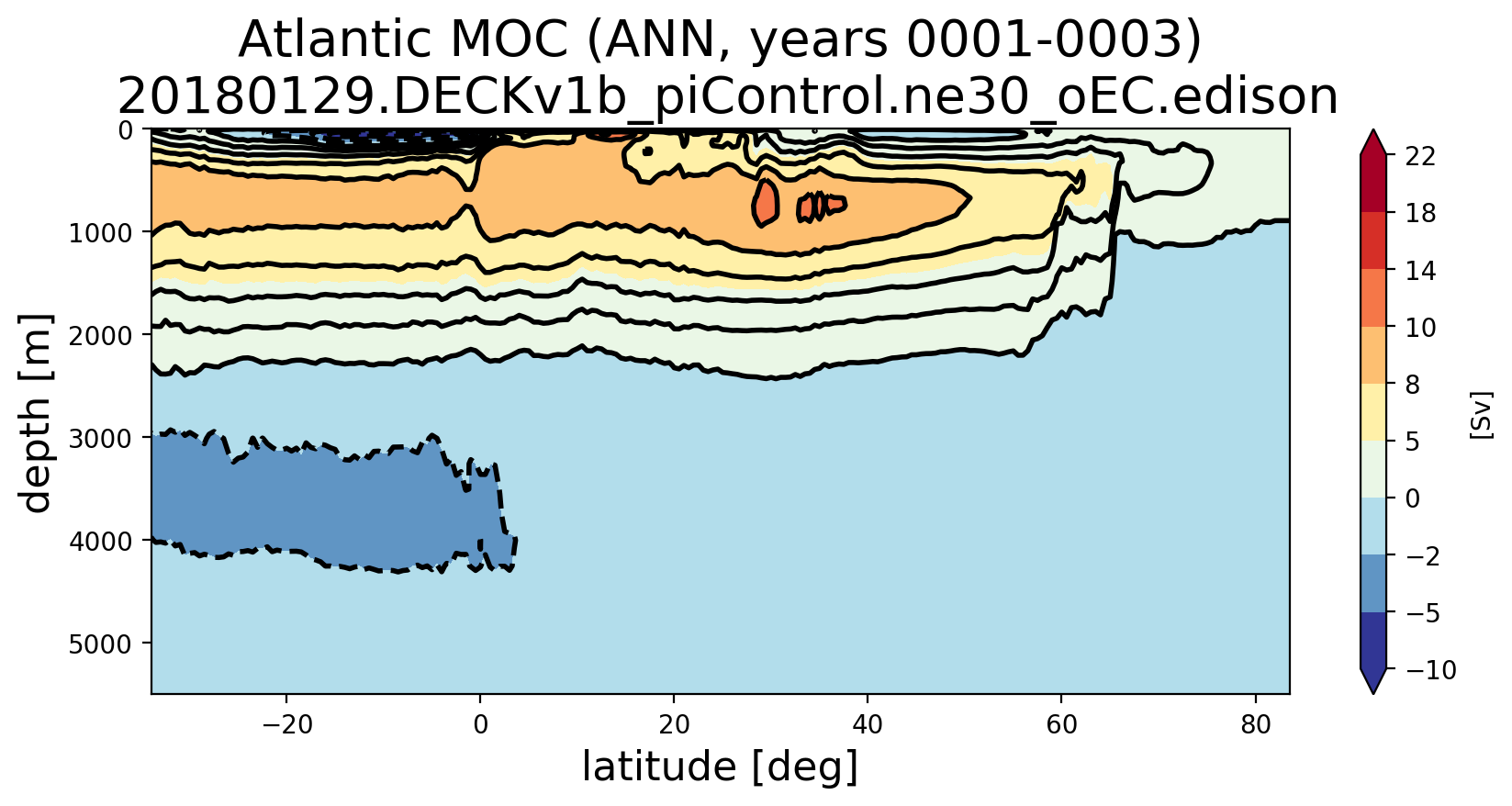

from a different set of years from 20180129.DECKv1b_piControl.ne30_oEC.edison The other regional MOCs using the new analysis can be seen here: |
|
Interestingly, the time series changes noticeably between the analysis with the old transect: and the new: But this may be inevitable given the effect of relatively small changes in transport across the southern boundary on where the maximum occurs (and therefore its value). |
|

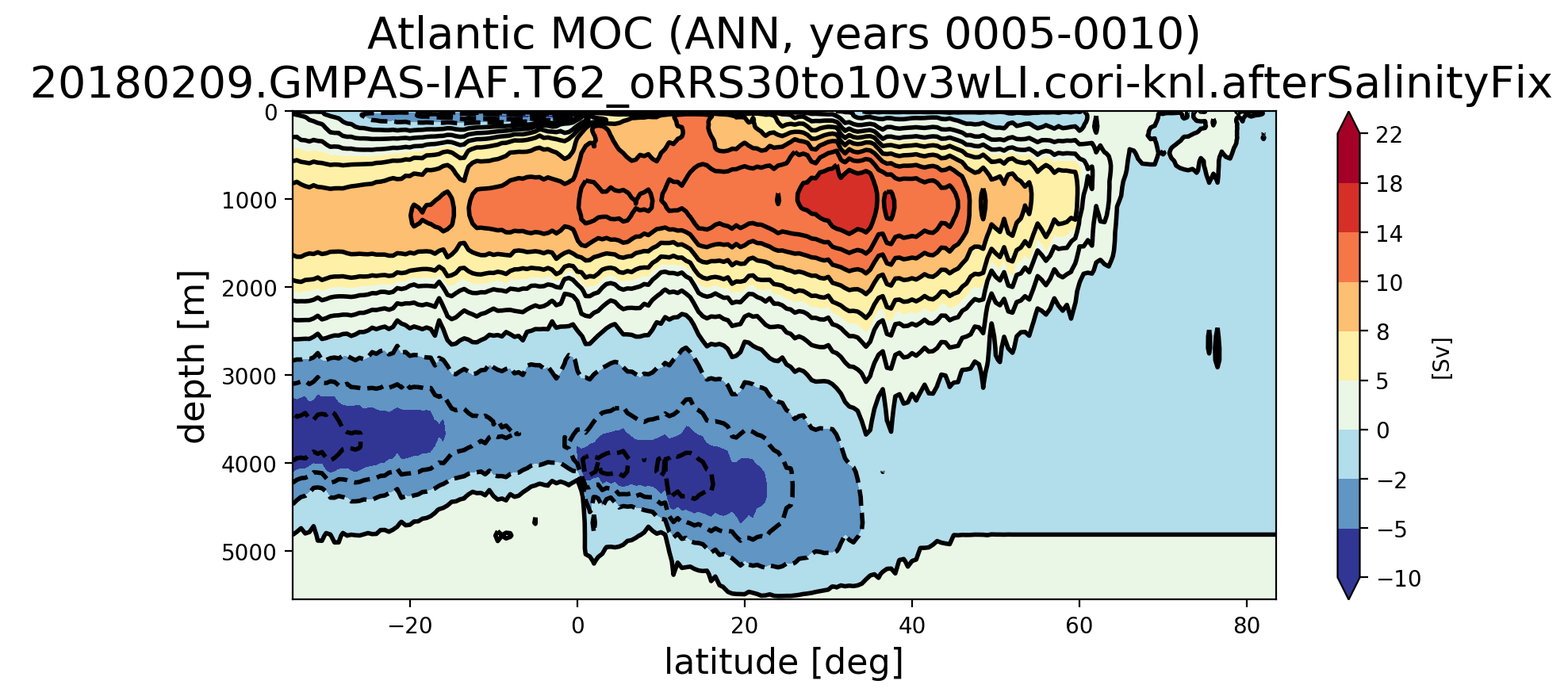

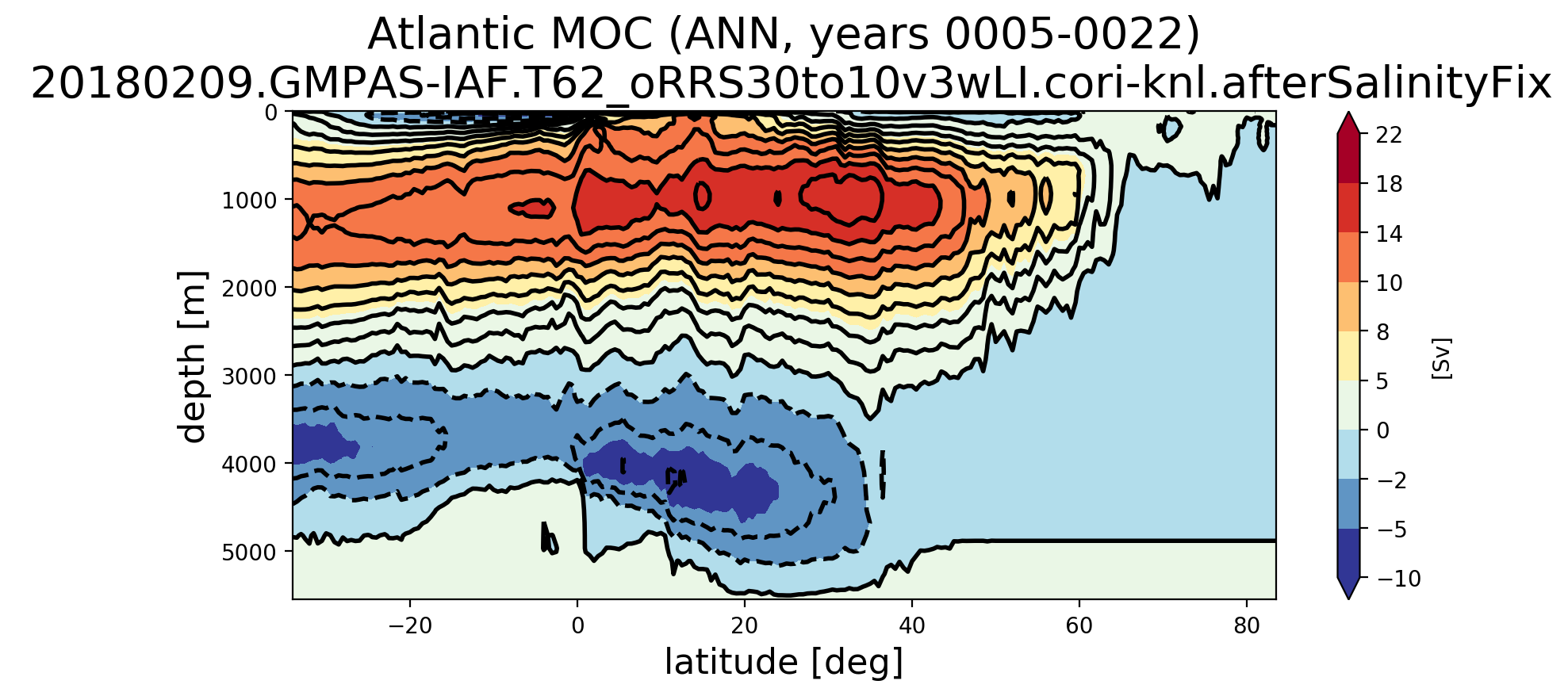

Here's the results from analyzing an RRS30to10 run: and 5-22: Here's the rest of the MOC plots for that same set of analysis: Here's the MOC over years 5-22 computed with the old transect : |
|
