Feature request: contour labels

[briochemc]

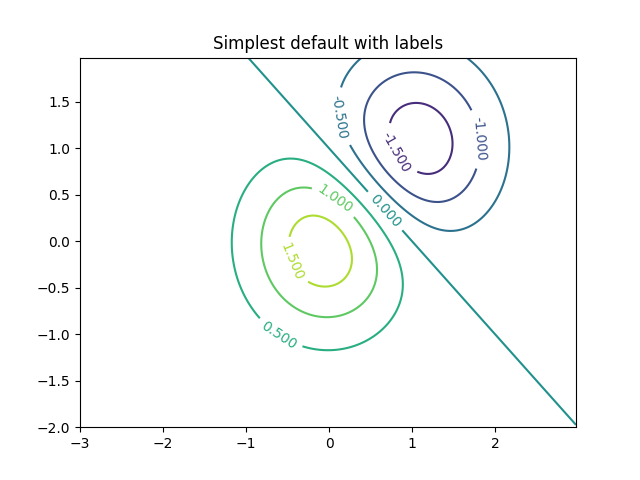

I don't think one can annotate contours with values in Makie (yet), for example (matplotlib):

I could not find an existing issue for this, so I thought I'd create one! 😃

---

FWIW, I only found this discourse post with a potential workaround, with this plot:

[jkrumbiegel]

For this we would need this PR JuliaPlots/AbstractPlotting.jl#430 to be merged, which is still stuck at the GLMakie implementation

[carstenbauer]

Came up on discourse again: https://discourse.julialang.org/t/how-to-add-value-labels-on-top-of-contours-in-makie/59242

Now that #430 is merged this should be possible somehow?

[SimonDanisch]

Yeah it does work nicely now:

using GLMakie

np = 500
nc = 200
f(x) = 2*x+1
x = LinRange(-1,1,f(np))
y = rand(f(np))*2 .- 1
x_c = LinRange(-nc/np,nc/np,f(nc))
y_c = LinRange(-nc/np,nc/np,f(nc))
c_mat = @. x_c^2 + y_c'^2
fig, ax, hp = heatmap(x_c, y_c, c_mat)
cplot = contour!(ax,x_c,y_c,c_mat, linewidth=2, color=:white)

beginnings = Point2f0[]; colors = RGBAf0[]
# First plot in contour is the line plot, first arguments are the points of the contour
segments = cplot.plots[1][1][]
for (i, p) in enumerate(segments)
    # the segments are separated by NaN, which signals that a new contour starts
    if isnan(p)
        push!(beginnings, segments[i-1])
    end
end
sc = scatter!(ax, beginnings, markersize=50, color=(:white, 0.1), strokecolor=:white)
translate!(sc, 0, 0, 1)
# Reshuffle the plot order, so that the scatter plot gets drawn before the line plot
delete!(ax, sc)
delete!(ax, cplot)
push!(ax.scene, sc)
push!(ax.scene, cplot)
anno = text!(ax, [(string(i), p) for (i, p) in enumerate(beginnings)],
                   align=(:center, :center))

# move, so that text is in front
translate!(anno, 0, 0, 2)

display(fig)

But this approach only works nicely with glmakie right now...

[SimonDanisch]

For CairoMakie transparent scatters don't block the line from being drawn, so it would need to be opaque:

[aramirezreyes]

There is a missing piece in this solution: Adding a colorbar shows that the labels do not correspond to the values in the contour:

fig = Figure(backgroundcolor =RGBf0(0.98, 0.98, 0.98))
ax = fig[1,1] = Axis(fig, title = "Heatmap and contours")

np = 500
nc = 200
f(x) = 2*x+1
x = LinRange(-1,1,f(np))
y = rand(f(np))*2 .- 1
x_c = LinRange(-nc/np,nc/np,f(nc))
y_c = LinRange(-nc/np,nc/np,f(nc))
c_mat = @. x_c^2 + y_c'^2
hp = heatmap!(x_c, y_c, c_mat)
cplot = contour!(ax,x_c,y_c,c_mat, linewidth=2, color=:white)

beginnings = Point2f0[]; colors = RGBAf0[]
# First plot in contour is the line plot, first arguments are the points of the contour
segments = cplot.plots[1][1][]
for (i, p) in enumerate(segments)
    # the segments are separated by NaN, which signals that a new contour starts
    if isnan(p)
        push!(beginnings, segments[i-1])
    end
end
sc = scatter!(ax, beginnings, markersize=50, color=(:white, 0.1), strokecolor=:white)
translate!(sc, 0, 0, 1)
# Reshuffle the plot order, so that the scatter plot gets drawn before the line plot
delete!(ax, sc)
delete!(ax, cplot)
push!(ax.scene, sc)
push!(ax.scene, cplot)
anno = text!(ax, [(string(i), p) for (i, p) in enumerate(beginnings)],
                   align=(:center, :center))

# move, so that text is in front
translate!(anno, 0, 0, 2)


cbar = fig[1,2] = Colorbar(fig,hp,label = "Values")
cbar.width = 15
cbar.height = Relative(4/5)


display(fig)

[jkrumbiegel]

I think they are just numbers from 1 to n for testing

[aramirezreyes]

Ah yes, thanks. Just wanted to point out that this is not the solution to the feature request yet but is a stepping stone. For some other person that arrives to this issue while looking for labeled contours.

[aramirezreyes]

Is there an easy way to extract the values each segment corresponds to in the snippet above so that we can create the labels accordingly?

[briochemc]

Here is to a gentle bump! It would be great to see a MWE that looks good with CairoMakie 😄 (for printing to PDF quality!)

[briochemc]

I just tried to reproduce this workaround using Makie v0.15.0 with GLMakie v0.4.4, but copy-pasting the codes above do not reproduce the plot for me. The annotations don't show for some reason:

FWIW I'm on OSX so maybe that's an issue?

[briochemc]

FWIW, reshuffling the order more (including the annotations) fixed that part for me. Here is a slightly smaller MWE:

using GLMakie

x = range(-3, 3, length=200)
y = range(-2, 2, length=100)
z = @. x^2 + y'^2
fig, ax, hp = heatmap(x, y, z)
levels = 0:1:100
cplot = contour!(ax, x, y, z, color=:black, levels=levels)

beginnings = Point2f0[]; colors = RGBAf0[]
# First plot in contour is the line plot, first arguments are the points of the contour
segments = cplot.plots[1][1][]
for (i, p) in enumerate(segments)
    # the segments are separated by NaN, which signals that a new contour starts
    if isnan(p)
        push!(beginnings, segments[i-1])
    end
end
sc = scatter!(ax, beginnings, markersize=30, color=(:white, 0.001), strokecolor=:white)
anno = text!(ax, [(string(float(i)), Point3(p..., 2f0)) for (i, p) in enumerate(beginnings)], align=(:center, :center), color=:black)
translate!(sc, 0, 0, 1)
translate!(anno, 0, 0, 2)
# Reshuffle the plot order, so that the scatter plot gets drawn before the line plot
delete!(ax, sc)
delete!(ax, cplot)
delete!(ax, anno)
push!(ax.scene, anno)
push!(ax.scene, sc)
push!(ax.scene, cplot)
# move, so that text is in front

fig

gives me (with GLMakie)

Maybe a list of remaining issues is useful?

• making it work with CairoMakie
• annotating with the level value (not just the iterator) as asked by @aramirezreyes
• clipping the contours more accurately than using circles (maybe depending on the label to be displayed, use a rectangle matching the pixel size of the contour label?)
• Improving contour label placement
• porting the workaround into a function/recipe/kwarg

[aramirezreyes]

I worked a little bit in a workaround which I think is not elegant at all but It kind of works:

using CairoMakie
function name_contours!(ax,cplot,value)
    beginnings = Point2f0[]; colors = RGBAf0[]
    # First plot in contour is the line plot, first arguments are the points of the contour
    segments = cplot.plots[1][1][]
    #@info segments[1]
    for (i, p) in enumerate(segments)
        # the segments are separated by NaN, which signals that a new contour starts
        if isnan(p)
            push!(beginnings, segments[i-1])
        end
    end
    sc = scatter!(ax, beginnings, markersize=30, color=(:white, 0.1), strokecolor=:white)
    translate!(sc, 0, 0, 1)
    # Reshuffle the plot order, so that the scatter plot gets drawn before the line plot
    delete!(ax, sc)
    delete!(ax, cplot)
    push!(ax.scene, sc)
    push!(ax.scene, cplot)
    anno = text!(ax, [(string(value), p) for (i, p) in enumerate(beginnings)],
                       align=(:center, :center), textsize=10)

    # move, so that text is in front
    translate!(anno, 0, 0, 2)
end

x = range(-3, 3, length=200)
y = range(-2, 2, length=100)
z = 10(@. x^2 + y'^2)
fig, ax, hp = heatmap(x, y, z)
levels = 0:10:100
for contour_value in levels
        contour_plot = contour!(ax,x,y, z, color = :black, levels = [contour_value])
        name_contours!(ax,contour_plot,contour_value)
end
fig

This code produces:

This the second point in @briochemc's list by calling contour on each specified level
and doesn't solve any of the other four.

It is not much, but it is honest work.

[ericphanson]

gentle bump to say this would be nice to have in Makie!

[t-bltg]

This would be a great addition.

Here is the workaround adapted to latest Makie:

using CairoMakie

name_contours!(ax, cplot, value) = begin
  beginnings = Point2f[]; colors = RGBAf[]

  # first plot in contour is the line plot, first arguments are the points of the contour
  segments = cplot.plots[1][1][]
  # @info segments[1]
  for (i, p) in enumerate(segments)
    # the segments are separated by NaN, which signals that a new contour starts
    isnan(p) && push!(beginnings, segments[i-1])
  end
  sc = scatter!(ax, beginnings, marker = :rect, markersize=20, color=(:white, .1), strokecolor=:white)
  translate!(sc, 0, 0, 1)

  # reshuffle the plot order, so that the scatter plot gets drawn before the line plot
  delete!(ax, sc)
  delete!(ax, cplot)
  push!(ax.scene, sc)
  push!(ax.scene, cplot)
  ann = text!(ax, [(string(value), p) for (i, p) in enumerate(beginnings)], align=(:center, :center), fontsize=10)

  # move, so that text is in front
  translate!(ann, 0, 0, 2)
end

main() = begin
  cases = (
    paraboloid = (x, y) -> 10(x^2 + y^2),
    # en.wikipedia.org/wiki/Himmelblau%27s_function
    himmelblau = (x, y) -> (x^2 + y - 11)^2 + (x + y^2 - 7)^2,
    # en.wikipedia.org/wiki/Rosenbrock_function
    rosenbrock = (x, y) -> (1 - x^2) + 100(y - x^2)^2,
  )

  x = range(-3, 3; length=100)
  y = range(-3, 3; length=200)
  z = cases[1].(x, y')

  fig, ax, hm = heatmap(x, y, z; interpolate = true)
  Colorbar(fig[1, 2], hm)

  for level ∈ 0:10:100
    contour_plot = contour!(ax, x, y, z, color=:black, levels=[level])
    name_contours!(ax, contour_plot, level)
  end

  save("contour_labels.png", fig)
  fig
end

main()

[jkrumbiegel]

I think the tricky part is that after text locations have been chosen, the contour lines have to be hidden where they intersect the label bounding boxes. But this calculation needs to happen in screen space, so it needs to update whenever the projection changes.
