README.md

Spike

Spike is a handheld gaming console based on ATMega Microcontrollers.

Spike

I've been playing around with this idea for a long while and the Spike is the current 'state-of-the-art' for me.

The main spike board has:

  • 128x64px monochrome OLED display
  • Piezo speaker
  • 7 buttons (plus reset)
  • 3.7v Lipo battery
  • Micro-USB port for charging & data

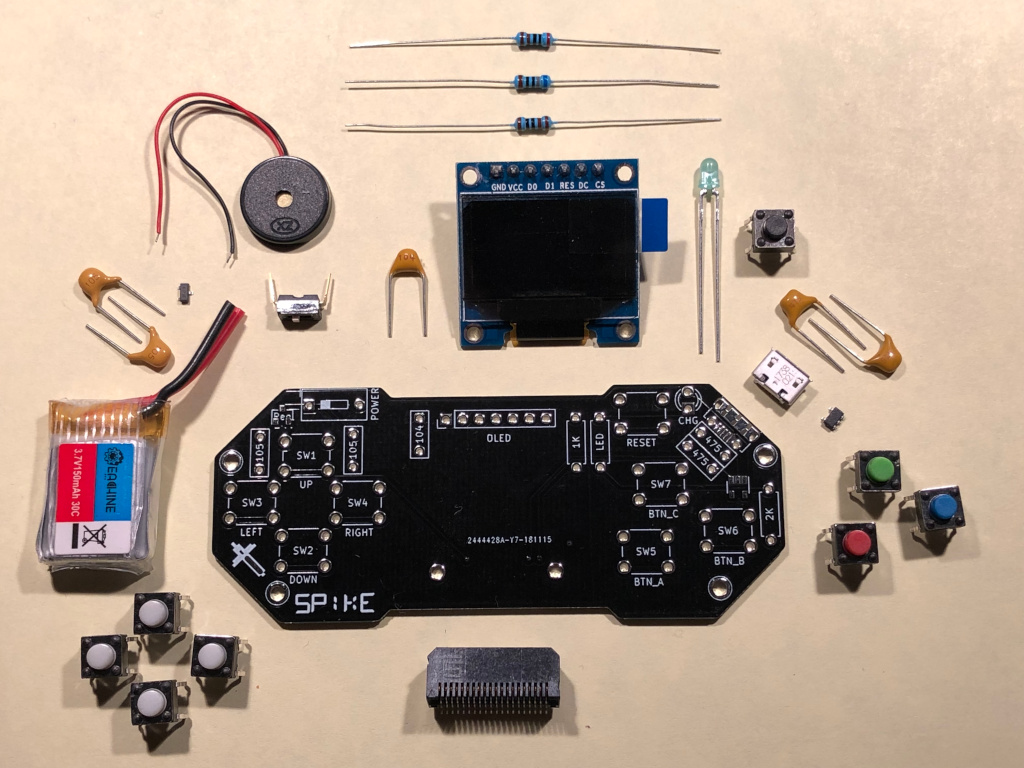

Spike Exploded

The shard board provides the brains and connects via an edge connector on the back of the main board.

Currently I'm using an ATMega1284p running at 16MHz.

I've written a little more detail on my blog.
