Get the Raw WMS Request Generated by QGIS

Jump to bottom Edit New page
Jeff McKenna edited this page May 20, 2022 · 15 revisions

  • since QGIS Pi / 3.14 you just press F12 for the "QGIS Network Logger" (no plugins needed!)

  • Since QGIS 3.6 you can use the "QGIS Network Logger" plugin: https://plugins.qgis.org/plugins/qgisnetworklogger/

    • once you install the plugin, you can open it through the menu: Plugins / QGIS Network Logger

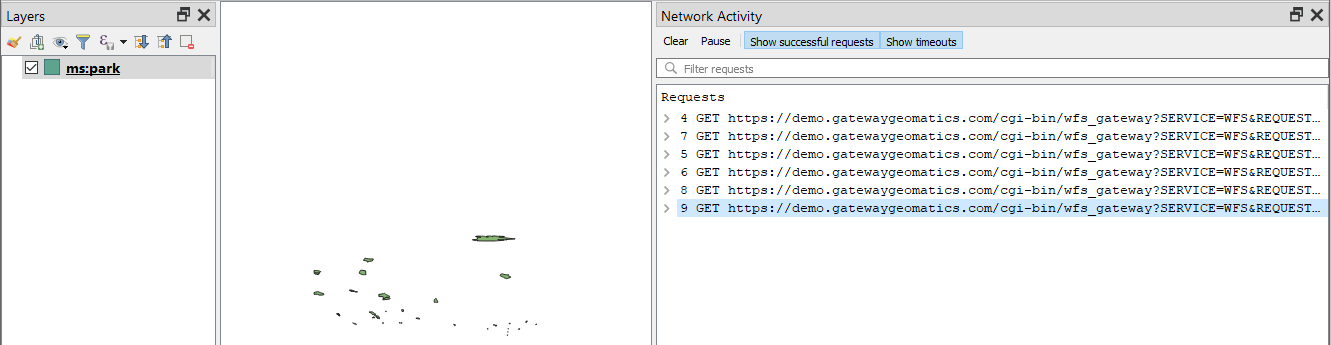

    QGIS Network Logger (thanks RichardD !)

  • Or, here is an alternative method:

    • download and install the software "Fiddler" (Google will help you find its current download location)
    • start Fiddler and leave it running
    • in QGIS goto /Settings/Options/Network
    • click on "Use proxy for web access"
    • for Proxy Type select "HttpProxy"
    • for Host enter: 127.0.0.1
    • for Port enter: 8888
    • presss "ok" button
    • now Add a WMS/WFS/WCS layer in QGIS again, but watch the Fiddler window
    • click on the request in Fiddler (such as GetCapabilities, GetMap, or GetCoverage)
    • to see the full requested url in Fiddler, check the 'Inspector' tab, and then select 'Raw'
    • then you can copy the raw url into a new browser window, load it, and examine the error and the url parameters

This is a handy trick especially when debugging MapServer services. (beware that QGIS caches the service though, see previous warnings by me for that).
