Mathjax render conflits #93

Closed
upupming opened this issue Jun 6, 2018 · 3 comments
Closed

Mathjax render conflits #93

upupming opened this issue Jun 6, 2018 · 3 comments

Comments

@upupming
Copy link
Contributor

@upupming upupming commented Jun 6, 2018

I want to create a new issue

Melody Information

Melody Version:

Platform: Ubuntu 18.04

Browser: Chrome

Expected behavior

I'm writng with mathjax on another website, and this is two pieces of code I write:

$\{0^n1^n\,|\,n \ge 1 \}$
$$\begin{align}
S &\to \epsilon\, \\
S &\to 001A\,|\,00A1\,|0A01\,|\,A001 \\
S &\to 010A\,|\,01A0\,|0A10\,|\,A010 \\
S &\to 100A\,|\,10A0\,|1A00\,|\,A100 \\
\end{align}$$

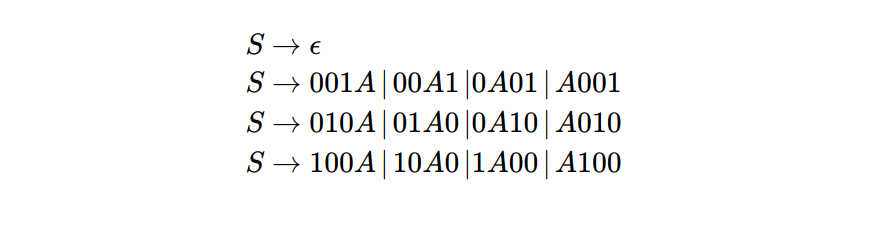

They are rendered as:
screenshot from 2018-06-06 09-42-16
screenshot from 2018-06-06 09-43-59

This is my expected behavior, but not the case in melody.

Actual behavior

screenshot from 2018-06-06 09-45-55

screenshot from 2018-06-06 09-46-27

I found that I have to change all \{ to \\{, and all \\ to \\\\ to make melody works, which is believed to be a confilct between mathjax and markdown engine melody is using now.

Could you please fix this bug or give some advice? Thanks in advance!

@Molunerfinn
Copy link
Owner

@Molunerfinn Molunerfinn commented Jun 6, 2018

Find a solution:
https://www.npmjs.com/package/hexo-renderer-kramed
And this is my test result:
I think may be I need to update the docs.

@upupming
Copy link
Contributor Author

@upupming upupming commented Jun 6, 2018

This still not works(expected { wasn't rendered):

$\{a = 0\}$

screenshot from 2018-06-06 22-03-55

But this is okay:

$$\{a = 0\}$$

screenshot from 2018-06-06 22-03-15


kramed render suggests inline equations using this format, which is difficult to be compatible with the usual tex syntax:

`$\{a = 0\}$`

I cannot find any better solution, so I will use

`$$`

tag for inline equation.

@Molunerfinn
Copy link
Owner

@Molunerfinn Molunerfinn commented Jun 13, 2018

@upupming To have MathJax on hexo is a hard work. Not only should the theme do some work to fit it, but also the hexo and the plugin of it need to fit it. Since I didn't write mathJax in my blog, may be I won't meet problem. May be someone has solved this problem, and I will appreciate it if he can give the project a PR~
