Crash when CTRL+click to show a vehicle group that is collapsed #7974

LeandroSImmich opened this issue Feb 4, 2020 · 0 comments

Crash when CTRL+click to show a vehicle group that is collapsed #7974

LeandroSImmich opened this issue Feb 4, 2020 · 0 comments


Copy link

@LeandroSImmich LeandroSImmich commented Feb 4, 2020

Version of OpenTTD

Tested with latest nightly (20200202-master) - win64 - Windows 10

Issue details

Under some circumstances a crash (assertion failed) happens when the user CTRL+click to open/'bring to front' the vehicle group window and to show/select a vehicle's group (feature introduced in 1.10.0-beta2, #7800).

It seems to only (and always) happen when both these conditions apply:
a) the vehicle's group has at least one parent (is not at root level) and at least one of its parents is collapsed (feature introduced in 1.10.0-beta1, #7417)
b) the vehicle group window would need a scroll down to show the clicked vehicle's group on the tree-view.

I set up 3 savegames with some of the simplest example cases for the issue:

  1. 9 groups, each being a subgroup of the previous one (a 9-deep level group structure)
    (cases 1 and 2 crash with a default group window size of 8 groups shown, or smaller)

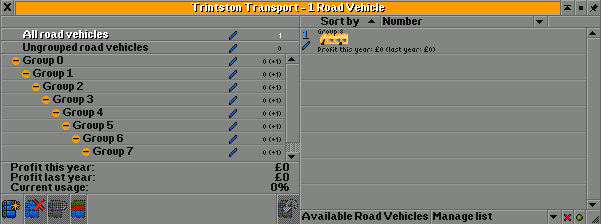

    Case #1-Expanded

  2. 9 groups, each being a root group except one, which is a subgroup of the last root group

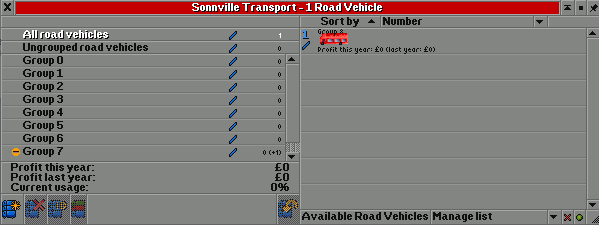

    Case #2-Expanded

  3. 3 groups, 2 at root level and another being a subgroup of the last one

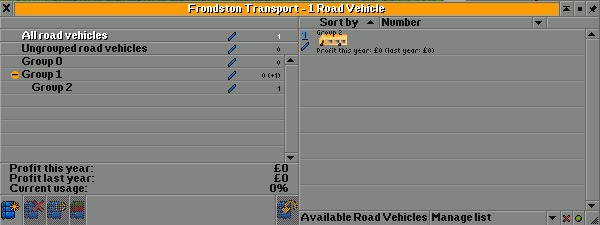

    Case #3-Expanded-1

(case 3 only crashes with a resized group window, to its minimum height of 2 groups shown)
Case #3-Expanded-2

Expected result

The vehicle group window is opened (if not already), and scrolled if needed to show/select the vehicle's group.

Actual result

The game crashes with the error message:
Assertion failed at line 702 of d:\a\1\s\src\widget_type.h: this->count <= this->cap ? (position == 0) : (position + this->cap <= this->count)


Steps to reproduce

  1. Load one of the 3 saves
  2. Click on the 'Display list of company's road vehicles' button on the toolbar to open the road vehicle group window
  3. Collapse any group/node on the tree-view of the groups, to hide its subgroups
  4. If testing case 3, resize the vehicle group window to its minimum height (only 2 groups shown)
  5. CTRL+click on the vehicle and the game will crash with "Assertion failed at line 702 of src\widget_type.h"


Features 7800 7417 issue -

stormcone added a commit to stormcone/OpenTTD that referenced this issue Feb 4, 2020
@LordAro LordAro closed this in 492d270 Feb 6, 2020
douiwby added a commit to douiwby/OpenTTD that referenced this issue Apr 16, 2020
