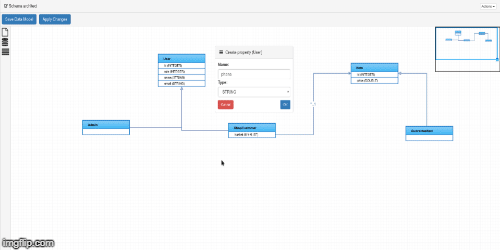

Orienteer Wordcloud Screencast

What is Orienteer

Orienteer is Business Application Platform:

  • Easy creation of business applications
  • Extendable to fit your needs
  • Dynamic datamodel
  • Rest/JSON enabled
  • Developers friendly
  • Scalling and cloud ready (support of Docker)

Git Pitch

User Guide

Demo Site

Orienteer installation

There are 3 options for Orienteer installation:

  • Docker
  • Embedded (on application server)
  • Standalone (no need in application server)


Run new container by command docker run -p 8080:8080 orienteer/orienteer. Adjust this command if needed:

-v <runtime>:/app/runtime - mount runtime directory with databases, dynamically installed modules and etc.

-v <maven>:/root/m2 - mount your local maven repository

ORIENTDB_ADMIN_PASSWORD=<password> - specify admin password by default

ORIENTDB_GUEST_PASSWORD=<password> - specify reader password by default


Orienteer is Java Servlet 3.1 web application and can be installed on all famous compatible containers:

  • Jboss
  • Weblogic
  • IBM WebSphere
  • Tomcat
  • Jetty
  • and etc.

To install Orienteer in embedded mode:

  • Download latest orienteer.war
  • Put orienteer.war into deployment folder for your application server
  • Configure according to your environment and place it in the same directory or above
  • Run application server


Orienteer in standalone mode use embedded jetty server to run yourself. To install Orienteer in standalone mode:

  • Download latest orienteer-standalone.jar
  • Put orienteer-standalone.jar into any directory
  • Optionally configure accordging to your environment and place it in the same directory or above
    • By default, Orienteer, will run OrientDB database embedded
  • Run Orinteer as java -Xmx512m -Xms512m -jar orienteer-standalone.jar. JVM parameters can be adjusted accordingly. Additional application parameters can be supplied:
    • --config=<filename> - specification of path to orienteer configuration file
    • --embedded - run embedded OrientDB database
    • --port=<port number> - run Orienteer on specified port (Default: 8080)
    • --help - display help

Orienteer initial configuration is the main file to store initial configuration paramenters for your installation. Sample properties file can be always found here.

orienteer.production=false  //Run Orienteer in production mode or not
orientdb.embedded=false     //Run embedded OrientDB server?
orientdb.url=remote:localhost/Orienteer   //OrientDB server URL
orientdb.guest.username=reader               //Default OrientDB user (will be used for guests as well)
orientdb.guest.password=reader               //Password for default OrientDB user
orientdb.admin.username=admin    //OrientDB user to user for administrative stuff
orientdb.admin.password=admin    //Password for OrientDB user used for administrative stuff

# Optional properties

#webjars.readFromCacheTimeout=5 seconds

Setup of development environment


  1. java 8+
  2. git
  3. maven
  4. OrientDB, if you want to use OrientDB remotely


Install of wicket-orientdb github SNAPSHOT

This step is optional: wicket-orientdb SNAPSHOT always available on Maven central

git clone <your fork URL for wicket-orientdb>
cd wicket-orientdb
mvn clean install
Install Orienteer
cd ..
git clone <your fork URL for Orienteer>
cd Orienteer
mvn clean install
Modify file

See configuration section above

Code compilation
mvn clean install
Run jetty server by command
mvn jetty:run
Goto the application

Open http://localhost:8080 is in your browser
