Work on X86_64 support

[beaumanvienna]

• Dedicated pull request for x64 support
• Contains commits for #3434 "defines for x86 opcodes added", as the same files are involved. Actual changes start on June 07
• Related to #3308 "Make the interpreter work on x86_64 Unix".
• Status: The x64 recompilers work on Windows, macOS and Linux. Gameplay works fine.

Give it a try, guys! We would like to know if it runs on your 64-bit OS as well. Please checkout this here branch or @tellowkrinkle's JIT64 branch.

• Download artifacts for Windows
• Ubuntu PPA: Launchpad
• Compile instructions for Fedora
• Required packages in general

We are preparing Tellow's branch to be pulled in. The changes will be split into four PRs. Three out of four have been issued so far: #3512 #3523 #3524

[arcum42]

#warning isn't supported by Visual Studio.

[tellowkrinkle]

If you could make the .odt in common/doc into a .md or some other plain-text-based file that would be great

IMO the easiest way to get x86Emitter generating the x86-64 instructions you ask it to is with unit tests (rather then running it, letting it crash, and then looking at the results in a debugger), which I've started work on here

[pixelherodev]

Hmm, you shouldn't be changing the addressing form used in the source.

    xSHL( eax, 2 );  // 3 on x64 (8-byte alignment)
    xMOV( ecx, eax );
    xMOV( eax, (sptr)recLUT);
    xADD( ecx, eax );
    xMOV( ecx, ptr[ecx] );

This should remain as SiB addressing, instead of being shifted to require multiple separate operations. Shifting it like this is a massive performance cost, as not only does it increase the instruction count, it also requires register renaming and creates artificial instruction dependences.

Instead, I'd replace the constant four in the original source with a definition POINTER_WIDTH, which is defined to four on x86 and eight on x64.

[pixelherodev]

Also, the s32 -> sptr changes were a mistake. Notice the comment:

sptr Displacement; // address displacement // 4B max even on 64 bits

The maximum value, even on x64, is four bytes. s32 is correct here. It's a signed 32-bit value (which we happen to use as a pointer), and not a "signed pointer," which implies native width (64-bit).

[beaumanvienna]

@arcum42 I will remove the warning directives. That's probably why the check failed. Thanks!
@tellowkrinkle: I will change the .odt accordingly. I wanted to update it with the look-up tables. I found this wiki here https://wiki.pcsx2.net/PCSX2_Documentation/PCSX2_EE_Recompiler but I my doc needs more details on the table structure/content.
@pixelherodev Yes, the 32 displacement is a key topic for the port. And agreed, the current code

xMOV( eax, (sptr)recLUT);

is a bit goofy with recLUT being an 8-byte pointer. Maybe change to

xMOV( rax, (sptr)recLUT);

? (And yes, above cast would be uptr. All I needed was a 64-bit pointer there. Will be changed)
I noticed in the 32-bit code there is an overflow in the last instruction

        xMOV( eax, ptr[&cpuRegs.pc]);       // a = pc = (0x58b86878)[0]
	xMOV( ebx, eax );                   // b = a
	xSHR( eax, 16 );                    // a = a >> 16
	xMOV( ecx, ptr[recLUT + (eax*4)] ); // c = (recLUT + (a * 4))[0]
	xJMP( ptr32[ecx+ebx] );             // jump ( (c + b)[0] )

Ebx is loaded with the stack pointer 0xbfc0 0000, then the value retrieved from recLUT causes ecx+ebx to overflow. So the s32 displacement topic is still giving me a headache. So far, it did fix the two "mov 64bit-offset" / "mov 64-bit immediate" in _DynGen_DispatcherReg, see above byte code. When you guys say "there are only 32bit displacements", is that referring to the EE? I guess this comes back to my question about what to do with the LUTs...

I'm not so much worried about performance at the moment. I noticed when I printf many thousands of debug lines to the terminal (I had 10 or 20 in there for each pseudo assembly code so that the buffer of the terminal wasn't enough), the load time for the game becomes long, but the game itself was fine. Also, I understood you wanted to replace the entire part, so I won't focus too much on optimizations "in the old code".

[pixelherodev]

@beaumanvienna I mean, there is literally no mechanism for a 64-bit displacement on x64. This has nothing to do with PCSX2 or the EmotionEngine. All displacements must be 32-bit. (There are absolute 64-bit forms, but nothing relative 64-bit).

[beaumanvienna]

It works now! The jitted code from _DynGen_DispatcherReg retrieves the correct pointer from recLUT, which is recLutReserve_RAM + 64MB - cpuReg.pc, reads the function pointer from there, which is JITCompile(), and jumps to this function accordingly. If you're wondering why the code is subtracting 0x800000000 from the pointer retrieved from recLUT, this has to do with the overflow under i386 I mentioned earlier. On i386 the equation is

trunc32(pc + recLUT_value) = recLutReserve_RAM + 32MB

whereby the truncation corresponds to subtracting 0x1 0000 0000. This overflow doesn't happen on x64. I think there's another overflow happening in recLUT_SetPage, that happens on both architectures:

reclut[page] = (uptr)&mapbase[(mappage - page) << 14];

Under i386 they cancel each other out. Here's the code:

    xMOV( eax, ptr[&cpuRegs.pc]);
    xMOV( ebx, eax );
    xSHR( eax, 16 );

    #ifdef __M_X86_64
      xSHL( eax, 3 );
    #else
      xSHL( eax, 2 );
    #endif
    xMOV( ecx, eax );
    xMOV( eax, (uptr)recLUT);
    xADD( ecx, eax );
    xMOV( ecx, ptr[ecx] );
    xMOV( eax, (uptr)0x800000000);
    xSUB( ecx, eax );

    xADD( ecx, ebx );
    xMOV( ecx, ptr[ecx] );
    xJMP( ecx );

[pixelherodev]

Nicely done :)

[tellowkrinkle]

Personally I think we should be looking at what the old code was supposed to do to decide which things need to change and how. (And since we're going through all this, maybe add comments to the old code saying what it's trying to do so the next person doesn't have to figure it out for themselves)
Here's the old code with my understanding of it (may be completely wrong, I've never touched this section of the codebase):

xMOV( eax, ptr[&psxRegs.pc] ); // Load the PS2 PC into eax
xMOV( ebx, eax );              // ... and ebx
xSHR( eax, 16 );               // psxRecLUT is a 2-level page table so first get the top 16 bits
xMOV( ecx, ptr[psxRecLUT + (eax*4)] ); // ... and use them to index psxRecLUT
// Normally we would want to jump to ((uptr*)ecx)[(ebx & 0xFFFF)/4]
// but as an optimization ecx already has the top bits of ebx subtracted from it
// so we can just add and jump
xJMP( ptr32[ecx+ebx] );

Based on these, a few things with the new code:

• The PS2 PC is 32 bits, not 64. I don't know what your opinion is on the "should e** registers be 32 or 64 bits" argument, but as it stands, right now they're 64-bit. We should either do the switch over to 32-bit e** registers (and change all uses that need to be 64-bit to the r** registers), define some new 32-bit registers, or use eax.GetNonWide()
  • Note: My personal opinion on how to do this switch cleanly is to define some new registers (maybe e**d) to temporarily be our 32-bit registers, migrate all uses of e** to either r** or e**d, then delete the e** registers and use an IDE's rename function to rename all uses of e**d back to e**
• I'm pretty sure the whole thing you described was an optimization to go faster. The unoptimized version would have stored page-table-pointers directly here (with reclut[page] = (uptr)mapbase) and would have anded ebx with 0xFFFF before jumping. Instead we can calculate correct number to wrap around a 64-bit integer in BaseblockEx.h and continue to use the optimization.

Personally, here's what I think the code should look like (using e** as 32-bit registers and r** as 64-bit registers):

xMOV( eax, ptr[&psxRegs.pc] ); // Load the PS2 PC into eax
xMOV( ebx, eax );              // ... and ebx
xSHR( eax, 16 );               // psxRecLUT is a 2-level page table so first get the top 16 bits
xMOV( rcx, ptr[psxRecLUT + (rax*sizeof(uptr))] ); // ... and use them to index psxRecLUT
// Normally we would want to jump to ((uptr*)ecx)[(ebx & 0xFFFF)/4]
// but as an optimization rcx already has the top bits of ebx subtracted from it
// so we can just add and jump
xJMP( ptrNative[rcx+rbx*(sizeof(uptr)/4)] );

Note: We don't currently have a ptrNative but we should (or something like it)

[gregory38]

psx (aka iop) optimization are useless.honestly iop should be a subset of ee.

[beaumanvienna]

@gregory38 We are trying to port the recompilers to x86. Optimizations are not the primary focus, we're still struggling to make it work in general. We fixed a bunch of broken emitted code, some 4-byte/8-byte pointer issues, and partially the entries in the LUT, but it is still work in progress. recLUT and recLUTReserve_RAM are now 8-byte wide. We are discussing the pseudo assembler and C-code on how to address those changes. There's a lot discussion about eXx registers vs the rXx registers. Also, the convenient SIB 32 addressing cannot always be used as before. But we got this :-) I noticed you are a reviewer on tellowkrinkle's PR about making the interpreter work on x64/Unix. My branch here is already synced up with most of tellowkrinkle's changes. Those changes did fix for example the xFastcall instruction in JITCompile. The current status is that we can

• enter the emitted code
• do the first double-table jump (recLUT->recLUTReserve->JITCompile)
• jump out of the emitted code to recRecompile.

PC_GETBLOCK is still broken, not only because it assumes 4-byte table elements, but also because we have a weird offset of 0x800000000 in the recLUT elements.

A last thing I wanted to mention, this PR will have zero-performance impact on the i386 "production" branch. We use either the C compiler to change from four to eight bytes or __M_X86_64, where not possible. This way you guys can probably pull it in more easily.

[beaumanvienna]

@tellowkrinkle

// uptr* fp = reclut[ pc >> 16] + pc*sizeof(uptr)/4;
// jump fp[0];
xMOV( eax, ptr[&psxRegs.pc] ); // Load the PS2 PC into eax
xMOV( ebx, eax );              // ... and ebx
xSHR( eax, 16 );               // psxRecLUT is a 2-level page table so first get the top 16 bits
xMOV( rcx, ptr[psxRecLUT + (rax*sizeof(uptr))] ); // ... and use them to index psxRecLUT
// Normally we would want to jump to ((uptr*)ecx)[(ebx & 0xFFFF)/4]
// but as an optimization rcx already has the top bits of ebx subtracted from it
// so we can just add and jump
xJMP( ptrNative[rcx+rbx*(sizeof(uptr)/4)] );

Yes, rbx has to be adjusted, too. I fully agree. This is still missing in my suggested code. The base offset retrieved from recLUT needs also to be changed then. That was very helpful, thank you!

[gregory38]

For the pc. It depends if you need sign extension. But it would be more cache efficient to use only 4B.

[beaumanvienna]

Thanks, Gregory!

From my understanding, we have a 4-byte PS2 pc and 8-byte look-up table elements. The code in Baseblock.h should be ok. It's basically the C version of the pseudo assembler code above. In my code, I overlooked the pc*sizeof(BASEBLOC)/4 part.So the access to recLUTReserve_RAM (via PC_GETBLOCK) should advance in steps of eight bytes:

iR5900-32.cpp:
i = startpc;
             ...

	while(1) {
		BASEBLOCK* pblock = PC_GETBLOCK(i);
                         ...
		i += 4;
	}

But what do the values 0x2000, 0x000, 0x8000, and 0xa000 in iR5900-32.cpp stand for?

	for ( int i = 0x1fc0; i < 0x2000; i++ )
	{
		recLUT_SetPage(recLUT, hwLUT, recROM, 0x0000, i, i - 0x1fc0);
		recLUT_SetPage(recLUT, hwLUT, recROM, 0x8000, i, i - 0x1fc0);
		recLUT_SetPage(recLUT, hwLUT, recROM, 0xa000, i, i - 0x1fc0);
	}

I did understand that recROM is 4MB, corresponding to 64 pages (0x2000-0x40=0x1fc0), each used to jump into a 64k page in recLUTReserve_RAM

[gregory38]

Ram is mirrored.
0x8000_0000 area is physical and cached. Kernel
0 is virtual memory which is often mapped 1:1 to the physical mem
0xa000_0000 iirc is for supervisor mode (middle between kernel and user)
0xb000_0000 is uncached (rom)

[gregory38]

Top of my head mips memory is 8 segments of 512 MB

[Nucleoprotein]

Looks like copy-paste error - it should not be cpuRegs.PERF.n.pccr.b.U1 ???

[beaumanvienna]

@arcum42 / @tellowkrinkle I changed the format of the documentation to markup and revised it per your feedback. I also added comments to the code as discussed and fixed the bug in the pseudo assembler code about the missing multiplication pc*sizeof(uptr)/4.

• recLUT_SetPage revised for good, no more weird offsets

It runs now until where the recompile process is started and fails in recompileNextInstruction (here) with "SIB target is too far away, needs an indirect register" (x86emiter.cpp).

[rien333]

Thanks for your great work! The amount of 32bit stuff I had to install always turned me off from this project; without all that extra cruft I can now keep my system clean and easier to manage.

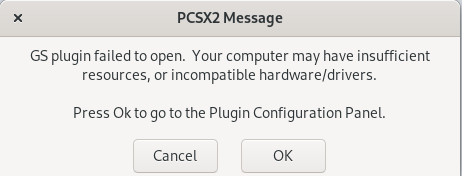

So far, all games I tried have worked great. However, there is this specific game (Klonoa 2: Lunatea's Veil) that crashes before even showing any visual output. Given that it does work on the earlier 32bit, 1.6 versions of PCSX2 (installed using flatpak), I think the 64bit, 1.7 version of PCSX2 breaks something specific to that game. I also tried your x86_64-support branch, but same problem. I fiddled around with different config options, as well as running the game with a default/vanilla config (e.g. moving ~/.config/PCSX2), but again same problem.

I'm not sure if this is the right place to report this problem, but here is a log that shows what happens. If not, please tell me where to best report this issue. It also contains most of my system info, I think. As the log indicates, I get a GTK dialog box telling me that some assertion has failed (Unhandled page fault), with the more specific error always being j8 greater than 0x7f!!. If I click any of the no/ignore/yes buttons, I get a Trace/breakpoint trap (core dumped) error in my terminal, and the program crashes/quits (I think I have also seen a SIGSEV instead of a SIGTRAP).

Crash log

$ PCSX2 Klonoa2.iso
12:34:03: Warning: Mismatch between the program and library build versions detected.
The library used 3.0 (wchar_t,compiler with C++ ABI 1013,wx containers,compatible with 2.8),
and your program used 3.0 (wchar_t,compiler with C++ ABI 1014,wx containers,compatible with 2.8).
Interface is initializing.  Entering Pcsx2App::OnInit!
Applying operating system default language...
Command line parsing...
Command line parsed!
PCSX2 1.7.0-20200929103003
Savestate version: 0x9a0e0000

Host Machine Init:
	Operating System =  Linux 5.8.12-arch1-1 x86_64
	Physical RAM     =  15792 MB
	CPU name         =  Intel(R) Core(TM) i7-8550U CPU @ 1.80GHz
	Vendor/Model     =  GenuineIntel (stepping 0A)
	CPU speed        =  1.989 ghz (8 logical threads)
	x86PType         =  Standard OEM
	x86Flags         =  bfebfbff 7ffafbbf
	x86EFlags        =  2c100800

x86 Features Detected:
	SSE2.. SSE3.. SSSE3.. SSE4.1.. SSE4.2.. AVX.. AVX2.. FMA
	Pcsx2 was compiled as 64-bits.

Installing POSIX SIGSEGV handler...
Reserving memory for recompilers...

Loading plugins from /usr/lib/pcsx2...
	Bound   GS: libGSdx-AVX2.so [GSdx 64-bit (GCC 10.2.0 AVX/AVX) 1.2.0]
	Bound  PAD: libonepad.so [OnePAD 20200929103003 2.0.0]
	Bound SPU2: libspu2x-2.0.0.so [SPU2-X 2.0.0]
	Bound  USB: libUSBnull-0.7.0.so [USBnull Driver 20200929103003 0.7.0]
	Bound DEV9: libdev9null-0.5.0.so [DEV9null Driver 20200929103003 0.5.0]
Plugins loaded successfully.

HLE Notice: ELF does not have a path.

Initializing plugins...
	Init GS
	Init PAD
	Init SPU2
	Init USB
	Init DEV9
Plugins initialized successfully.

Patches: No CRC found, using 00000000 instead.
Opening plugins...
	Opening GS
EGL: Supported extensions: EGL_EXT_platform_base EGL_EXT_device_base EGL_EXT_device_enumeration EGL_EXT_device_query EGL_KHR_client_get_all_proc_addresses EGL_EXT_client_extensions EGL_KHR_debug EGL_KHR_platform_x11 EGL_EXT_platform_x11 EGL_EXT_platform_device EGL_KHR_platform_wayland EGL_EXT_platform_wayland EGL_MESA_platform_gbm EGL_KHR_platform_gbm EGL_MESA_platform_surfaceless
EGL: select X11 platform
(GameDB) 9869 games on record (loaded in 121ms)
OpenGL information. GPU: Mesa Intel(R) UHD Graphics 620 (KBL GT2). Vendor: Intel. Driver: (Core Profile) Mesa 20.1.8
INFO: GL_ARB_sparse_texture is NOT SUPPORTED
INFO: GL_ARB_sparse_texture2 is NOT SUPPORTED
INFO: GL_ARB_gpu_shader5 is available
INFO: GL_ARB_shader_image_load_store is available
INFO: GL_ARB_compute_shader is available
INFO: GL_ARB_shader_storage_buffer_object is available
INFO: GL_ARB_texture_view is available
INFO: GL_ARB_vertex_attrib_binding is available
INFO: GL_ARB_clear_texture is available
INFO: GL_ARB_multi_bind is available
INFO: GL_ARB_direct_state_access is available
INFO: GL_ARB_texture_barrier is available
INFO: GL_ARB_get_texture_sub_image is available

Current Renderer: OpenGL
No extenstion supported to get available memory. Use default value !
Available VRAM/RAM:3840MB for textures
GSdx Lookup CRC:00000000
	Opening PAD
GSdx Lookup CRC:00000000
	Opening SPU2
48000 SampleRate:
Request SDL audio driver: pulseaudio
	Opening USB
	Opening DEV9
Opened SDL audio driver: pulseaudio
McdSlot 0 [File]: /home/rw/.config/PCSX2/memcards/Mcd001.ps2
McdSlot 1 [File]: /home/rw/.config/PCSX2/memcards/Mcd002.ps2
Plugins opened successfully.
isoFile open ok: Klonoa 2 - Lunatea's Veil (USA).iso
	Image type  = DVD
 * CDVD Disk Open: DVD, Single layer or unknown:
 * * Track 1: Data (Mode 1) (635856 sectors)
EE/iR5900-32 Recompiler Reset
	Bios Found: Europe  v02.00(14/06/2004)  Console
	BIOS r module not found, skipping...
	BIOS r module not found, skipping...
	BIOS e module not found, skipping...
# Initialize memory (rev:3.70, ctm:196Mhz, cpuclk:147Mhz detected)
Frame buffer size set to  512x1280 (1024x2560)

PlayStation 2 ======== Hard reset boot
 ROMGEN=2004-0614, IOP info (CPUID=1f, CACH_CONFIG=0, 2MB, IOP mode)
 <20040614-100914,ROMconf,PS20200EC20040614.bin:11696>
# Total accessable memory size: 32 MB (B:2:8:0) (370:2:7c30)
# TLB spad=0 kernel=1:12 default=13:30 extended=31:38
# Initialize Start.
# Initialize GS ...
# Initialize INTC ...
# Initialize TIMER ...
# Initialize DMAC ...
# Initialize VU1 ...
# Initialize VIF1 ...
# Initialize GIF ...
# Initialize VU0 ...
# Initialize VIF0 ...
# Initialize IPU ...
# Initialize FPU ...
# Initialize User Memory ...
# Initialize Scratch Pad ...
# Initialize Done.

EE DECI2 Manager version 0.06 Feb  6 2003 08:38:48
  CPUID=2e20, BoardID=0, ROMGEN=2004-0614, 32M

Patches: No CRC found, using 00000000 instead.
(SYSTEM.CNF) Detected PS2 Disc = cdrom0:\SLUS_201.51;1
(SYSTEM.CNF) Software version = 1.00
(SYSTEM.CNF) Disc region type = NTSC
ELF (cdrom0:\SLUS_201.51;1) Game CRC = 0x2F56CBC9, EntryPoint = 0x00100008
(SYSTEM.CNF) Detected PS2 Disc = cdrom0:\SLUS_201.51;1
(SYSTEM.CNF) Software version = 1.00
(SYSTEM.CNF) Disc region type = NTSC

IOP Realtime Kernel Ver.0.9.1
    Copyright 1999 (C) Sony Computer Entertainment Inc.
Reboot service module.(99/11/10)
cdvd driver module version 0.1.1 (C)SCEI
Load File service.(99/11/05)
Multi Threaded Fileio module.(99/11/15)
iop heap service (99/11/03)
loadelf: fname cdrom0:¥SLUS_201.51;1 secname all
loadelf version 3.30
Input ELF format filename = cdrom0:¥SLUS_201.51;1
0 00100000 002fc188 ................................................
Loaded, cdrom0:¥SLUS_201.51;1
start address 0x100008
gp address 00000000
# Restart Without Memory Clear.
# Initialize GS ...
# Initialize INTC ...
# Initialize TIMER ...
# Initialize DMAC ...
# Initialize VU1 ...
# Initialize VIF1 ...
# Initialize GIF ...
# Initialize VU0 ...
# Initialize VIF0 ...
# Initialize IPU ...
# Initialize FPU ...
# Initialize Scratch Pad ...
# Restart Without Memory Clear Done.
Elf entry point @ 0x00100008 about to get recompiled. Load patches first.
(GameDB) Changing EE/FPU clamp mode [mode=3]
(GameDB) Changing VU0/VU1 clamp mode [mode=2]
EE/iR5900-32 Recompiler Reset
GSdx Lookup CRC:2F56CBC9
GSdx Lookup CRC:2F56CBC9
Get Reboot Request From EE
ROM directory not found

PlayStation 2 ======== Update rebooting..

PlayStation 2 ======== Update reboot complete
cdvdman Init

IOP Realtime Kernel Ver.0.9.1
    Copyright 1999 (C) Sony Computer Entertainment Inc.
Reboot service module.(99/11/10)
cdvd driver module version 0.1.1 (C)SCEI
Load File service.(99/11/05)
Multi Threaded Fileio module.(99/11/15)
iop heap service (99/11/03)
loadmodule: fname cdrom0:¥M¥SIFCMD.IRX;1 args 0 arg
loadmodule: id 25, ret 1
loadmodule: fname cdrom0:¥M¥SIO2MAN.IRX;1 args 0 arg
loadmodule: id 26, ret 0
loadmodule: fname cdrom0:¥M¥MCMAN.IRX;1 args 0 arg
loadmodule: id 27, ret 0
loadmodule: fname cdrom0:¥M¥MCSERV.IRX;1 args 0 arg
loadmodule: id 28, ret 0
loadmodule: fname cdrom0:¥M¥PADMAN.IRX;1 args 0 arg
loadmodule: id 29, ret 0
loadmodule: fname cdrom0:¥M¥LIBSD.IRX;1 args 0 arg
loadmodule: id 30, ret 0
loadmodule: fname cdrom0:¥M¥SDRDRV.IRX;1 args 0 arg
SDR driver version 2.0.0 (C)SCEI
 Exit rsd_main
loadmodule: id 31, ret 0
loadmodule: fname cdrom0:¥M¥KL2.IRX;1 args 0 arg
loadmodule: id 32, ret 0
(UpdateVSyncRate) Mode Changed to NTSC.
(UpdateVSyncRate) FPS Limit Changed : 59.94 fps
# Note: this is where the error starts/text gets red and all
j8 greater than 0x7f!!
j8 greater than 0x7f!!
j8 greater than 0x7f!!
/build/pcsx2/src/pcsx2/common/src/Utilities/Linux/LnxHostSys.cpp(70) : assertion failed:
    Function:  void SysPageFaultSignalFilter(int, siginfo_t*, void*)
    Thread:    EE Core
    Condition: false
    Message:   Unhandled page fault @ 0x9540f640

[00] 0x0x5562dd0246aa
[01] 0x0x7fe8b0ee00f0
[02] 0x0x7fe89540f640

/build/pcsx2/src/pcsx2/common/src/Utilities/Linux/LnxHostSys.cpp(70) : assertion failed:
    Function:  void SysPageFaultSignalFilter(int, siginfo_t*, void*)
    Thread:    EE Core
    Condition: false
    Message:   Unhandled page fault @ 0x9540f640
Trace/breakpoint trap (core dumped)

Additional system info

• Fully updated Arch Linux.
• Using the main community/pcsx2 package (version 1.7.0.r343.5858f7274-1),
  • also tried to build pcsx2-git from source, but such that it builds in 64bit mode. Same problem, however.
• I tried BIOSes from different regions, just to be sure.
• Tried it both under nvidia and intel GPUS.

[beaumanvienna]

Probably from here. If you slightly edited the text to j8 greater than 0x7f!! [1] and j8 greater than 0x7f!! [2] we could narrow it down further:

$ grep -r -n  "j8 greater than" pcsx2/
pcsx2/common/src/x86emitter/legacy.cpp:101:        Console.Error("j8 greater than 0x7f!!");
pcsx2/common/src/x86emitter/legacy.cpp:112:        Console.Error("j8 greater than 0x7f!!");

void x86SetJ8(u8 *j8)
{
    u32 jump = (x86Ptr - j8) - 1;

    if (jump > 0x7f) {
        Console.Error("j8 greater than 0x7f!!");
        assert(0);
    }
    *j8 = (u8)jump;
}

void x86SetJ8A(u8 *j8)
{
    u32 jump = (x86Ptr - j8) - 1;

    if (jump > 0x7f) {
        Console.Error("j8 greater than 0x7f!!");
        assert(0);
    }

    if (((uptr)x86Ptr & 0xf) > 4) {

        uptr newjump = jump + 16 - ((uptr)x86Ptr & 0xf);

        if (newjump <= 0x7f) {
            jump = newjump;
            while ((uptr)x86Ptr & 0xf)
                *x86Ptr++ = 0x90;
        }
    }
    *j8 = (u8)jump;
}

[rien333]

All right, that change produced the following output (so it's the first of those two functions):

j8 greater than 0x7f!! [1]
j8 greater than 0x7f!! [1]
j8 greater than 0x7f!! [1]
/tmp/makepkg/pcsx2/src/pcsx2/common/src/Utilities/Linux/LnxHostSys.cpp(70) : assertion failed:
    Function:  void SysPageFaultSignalFilter(int, siginfo_t*, void*)
    Thread:    EE Core
    Condition: false
    Message:   Unhandled page fault @ 0xc5fa30ca

/tmp/makepkg/pcsx2/src/pcsx2/common/src/Utilities/Linux/LnxHostSys.cpp(70) : assertion failed:
    Function:  void SysPageFaultSignalFilter(int, siginfo_t*, void*)
    Thread:    EE Core
    Condition: false
    Message:   Unhandled page fault @ 0xc5fa30ca
[00] 0x0x56193efb4032
[01] 0x0x7f86efaf40f0
[02] 0x0x5619800671c4

EDIT:
Not sure if it matters, but u32 jump has a value of 0x83 right before the failed assert.

[tellowkrinkle]

The exact number doesn't really matter, "j8 greater than 0x7f" means "you generated too much code between the jump point and its target, and it doesn't fit in 8 bytes"

So the important part is the backtrace that shows who called x86SetJ8, because you would fix it by either generating less code or by switching the J8 with a J32

If you have GDB, a symbolicated backtrace would be nice here

[rien333]

If you have GDB, a symbolicated backtrace would be nice here

Hope this is okay.

... # some stuff  right before the crash
loadmodule: id 28, ret 0
loadmodule: fname cdrom0:¥M¥PADMAN.IRX;1 args 0 arg
sifcmd sceSifRegisterRpc: rpc_id 80000400
RegisterLibraryEntries:   padman version 2.03
sifcmd sceSifRegisterRpc: rpc_id 80000100
sifcmd sceSifRegisterRpc: rpc_id 80000101
loadmodule: id 29, ret 0
loadmodule: fname cdrom0:¥M¥LIBSD.IRX;1 args 0 arg
RegisterLibraryEntries:    libsd version 1.04
loadmodule: id 30, ret 0
loadmodule: fname cdrom0:¥M¥SDRDRV.IRX;1 args 0 arg
SDR driver version 2.0.0 (C)SCEI
 Exit rsd_main
sifcmd sceSifRegisterRpc: rpc_id 80000701
loadmodule: id 31, ret 0
loadmodule: fname cdrom0:¥M¥KL2.IRX;1 args 0 arg
sifcmd sceSifRegisterRpc: rpc_id 12346
loadmodule: id 32, ret 0
(UpdateVSyncRate) Mode Changed to NTSC.
(UpdateVSyncRate) FPS Limit Changed : 59.94 fps
Set GS CRTC configuration. NTSC 640x448 @ 59.940 (59.82) Interlaced (FRAME)
RegisterIntrHandler: intr INT_dmaSPU, handler 7d5a4
RegisterIntrHandler: intr INT_dmaSPU2, handler 7d5a4
RegisterIntrHandler: intr INT_SPU, handler 7cc14
Set GS CRTC configuration. NTSC 640x448 @ 59.940 (59.82) Interlaced (FRAME)
j8 greater than 0x7f!! [1]
PCSX2: /tmp/makepkg/pcsx2/src/pcsx2/common/src/x86emitter/legacy.cpp:103: void x86SetJ8(u8*): Assertion `0' failed.

Thread 9 "EE Core" received signal SIGABRT, Aborted.
[Switching to Thread 0x7fffe0c7d640 (LWP 268678)]
0x00007ffff6665615 in raise () from /usr/lib/libc.so.6
(gdb) bt
#0  0x00007ffff6665615 in raise () at /usr/lib/libc.so.6
#1  0x00007ffff664e862 in abort () at /usr/lib/libc.so.6
#2  0x00007ffff664e747 in _nl_load_domain.cold () at /usr/lib/libc.so.6
#3  0x00007ffff665dbf6 in  () at /usr/lib/libc.so.6
#4  0x00005555559bd557 in x86SetJ8(unsigned char*) (j8=j8@entry=0x5555a007b82c "")
    at /tmp/makepkg/pcsx2/src/pcsx2/common/src/x86emitter/legacy.cpp:103
#5  0x00005555558cd276 in R5900::Dynarec::OpcodeImpl::COP1::DOUBLE::ToPS2FPU_Full(int, bool, int, bool, bool)
    (reg=reg@entry=9, flags=flags@entry=true, absreg=absreg@entry=10, acc=acc@entry=false, addsub=addsub@entry=true) at /tmp/makepkg/pcsx2/src/pcsx2/pcsx2/x86/iFPUd.cpp:249
#6  0x00005555558ce3d8 in R5900::Dynarec::OpcodeImpl::COP1::DOUBLE::ToPS2FPU(int, bool, int, bool, bool)
    (reg=reg@entry=9, flags=flags@entry=true, absreg=absreg@entry=10, acc=acc@entry=false, addsub=addsub@entry=true) at /tmp/makepkg/pcsx2/src/pcsx2/pcsx2/x86/iFPUd.cpp:259
#7  0x00005555558d789d in R5900::Dynarec::OpcodeImpl::COP1::DOUBLE::recFPUOp(int, int, int, bool)
    (info=info@entry=32798, regd=regd@entry=0, op=op@entry=0, acc=acc@entry=false)
    at /tmp/makepkg/pcsx2/src/pcsx2/pcsx2/x86/iFPUd.cpp:437
#8  0x00005555558d81d5 in R5900::Dynarec::OpcodeImpl::COP1::DOUBLE::recADD_S_xmm(int) (info=info@entry=32798)
    at /tmp/makepkg/pcsx2/src/pcsx2/pcsx2/x86/iFPUd.cpp:451
#9  0x0000555555946778 in eeFPURecompileCode(void (*)(int), void (*)(), int)
    (xmmcode=0x5555558d81ba <R5900::Dynarec::OpcodeImpl::COP1::DOUBLE::recADD_S_xmm(int)>, fpucode=<optimized out>, xmminfo=xmminfo@entry=208) at /tmp/makepkg/pcsx2/src/pcsx2/pcsx2/x86/ix86-32/iR5900Templates.cpp:722
#10 0x00005555558b1d3e in R5900::Dynarec::OpcodeImpl::COP1::recADD_S() ()
    at /tmp/makepkg/pcsx2/src/pcsx2/pcsx2/x86/iFPU.cpp:610
#11 0x0000555555916ce1 in recompileNextInstruction(int) (delayslot=delayslot@entry=0)
    at /tmp/makepkg/pcsx2/src/pcsx2/pcsx2/x86/ix86-32/iR5900-32.cpp:1394
#12 0x0000555555920c0b in recRecompile(u32) (startpc=3198120)
    at /tmp/makepkg/pcsx2/src/pcsx2/pcsx2/x86/ix86-32/iR5900-32.cpp:2051
#13 0x00005555611b002b in eeRecDispatchers ()
#14 0x0000000000000000 in  ()
(gdb)

[beaumanvienna]

When you say

I think the 64bit, 1.7 version of PCSX2 breaks something specific to that game. I also tried your x86_64-support branch, but same problem

you mean the latest upstream version, right?

EDIT:It works for me with the latest upstream. I tried on a Core-i7/Nvidia GTX machine and on a Ryzen 5/Radeon 5700 machine, both with Arch. Works. Actually, only kind of. 2 minutes into the game at the 2nd ledge (after the block you have to smash and the cave) the little helper thingies that are supposed to boost you up are misplaced. They're at the exit of the cave, one is even half in the ground, not at the ledge like here
EDIT: I also tested it on an Intel(R) Xeon(R) CPU E31220 / AMD Oland machine, also with Arch. It works.

[beaumanvienna]

@rien333 I also tested this on my two laptops with Ubuntu and Mint. I cannot reproduce the issue on any of my 5 machines. Apparently, Dobie had the same issue with j8 boundaries broken. If you could let us know your compile instructions, please. Are you using any options for PCSX2? Hardware/OpenGL or SoftwareOpen/GL?

This is the bug I get. The green elevator thingies are misplaced. Also a known & fixed bug from Dobie:
https://streamable.com/q4briu

[rien333]

I think the 64bit, 1.7 version of PCSX2 breaks something specific to that game. I also tried your x86_64-support branch, but same problem

you mean the latest upstream version, right?

When I said that I tried your x86_64 branch, I meant that I cloned the code from this github page. The 1.7.0 version(s) I tried corresponds to the last two iterations of the PKGBUILD in the arch community repo. There's is a line in each PKGBUILD that specifies the commit that was used.

If you could let us know your compile instructions, please. Are you using any options for PCSX2?

Just the options listed in aforementioned PKGBUILDs. I have actually also build pcsx2 with slightly different, more vanilla options, but I haven't messed with every single configuration option used in the official PKGBUILDs. I'm pretty sure I've also tried to produce the most vanilla build possible (basically removing everything, except for -DCMAKE_BUILD_TYPE=Release -DCMAKE_INSTALL_PREFIX=/usr). If any of the options in the PKGBUILD look problematic, let me know. Though I've generally build PCSX2 from source, I've also used the pre-build binary from the community repo. This, I think, would mean that we've tested the same binary.

Are you using any options for PCSX2? Hardware/OpenGL or SoftwareOpen/GL?

No special options, no. I've made sure to reset all my options to "factory settings" a few times (moving my config, and hitting "Clear all settings..." in the menu).

I just tried softwareOpen/GL, but I get the same j8 greater than 0x7f!! error as I do with hardware OpenGL. Pretty strange stuff.

[beaumanvienna]

Do you know for sure that your iso works with the 32-bit version? Maybe you copied from a USB stick and forgot to sync or something like that.

Ok, I will feed the build scripts you mentioned into extra-x86_64-build tonight, let's see if I can reproduce it then.

I have included PCSX2 in an emulator bundle I provide. The version there was rebased last week, so it's pretty fresh. There is a PKGBUILD script available, if you want to try that. Yesterday I actually tested mainly with that version, maybe you noticed at the end of the video I posted.

[rien333]

Do you know for sure that your iso works with the 32-bit version? Maybe you copied from a USB stick and forgot to sync or something like that.

Nope, totally sure it worked with the 32bit flatpak version of PCSX2 I installed. Same BIOS as well. Perhaps there is a subtle, hidden problem with my OS environment that flatpak somehow avoids though (i.e. the new x86_64 code might not be at fault, but some other change in e.g. a system lib is). Then again, 3/4 of the other games I tried work perfectly fine.

I have included PCSX2 in an emulator bundle I provide. The version there was rebased last week, so it's pretty fresh. There is a PKGBUILD script available, if you want to try that.

I will give that a try now.

Don't sweat it if you have no idea what's causing my issue. Perhaps a fix will come along eventually, or other users may run into similar problems when the x86_64 version of this emulator becomes more popular. Thanks for investigating this problem though!

[rien333]

I have included PCSX2 in an emulator bundle I provide. The version there was rebased last week, so it's pretty fresh. There is a PKGBUILD script available, if you want to try that.

After a pretty long build process, I got an error somewhere along the final stages of trying to build your "marley" emulator frontend (all emulators compiled fine, I think). I could open an issue over at marley's github if you want.

Here is the last part of the compilation log (I just ran makepkg on the PKGBUILD, more or less):

Compilation log

g++ -DPACKAGE_NAME=\"marley\" -DPACKAGE_TARNAME=\"marley\" -DPACKAGE_VERSION=\"0.1.5\" -DPACKAGE_STRING=\"marley\ 0.1.5\" -DPACKAGE_BUGREPORT=\"\" -DPACKAGE_URL=\"\" -DPACKAGE=\"marley\" -DVERSION=\"0.1.5\" -DPACKAGE=\"marley\" -DVERSION=\"0.1.5\" -I.   -D_FORTIFY_SOURCE=2 --std=c++17 -O2 -fno-pie -no-pie -I/usr/include/SDL2/ -I../mednafen -Idolphin/Source/Core -I/usr/include/gtk-2.0 -I/usr/lib/gtk-2.0/include -I/usr/include/pango-1.0 -I/usr/include/glib-2.0 -I/usr/lib/glib-2.0/include -I/usr/include/harfbuzz -I/usr/include/freetype2 -I/usr/include/libpng16 -I/usr/include/libmount -I/usr/include/blkid -I/usr/include/fribidi -I/usr/include/cairo -I/usr/include/pixman-1 -I/usr/include/gdk-pixbuf-2.0 -I/usr/include/atk-1.0 -pthread  -march=skylake -O2 -pipe -fno-stack-protector -fno-plt -MT resources/pcsx2_res.o -MD -MP -MF $depbase.Tpo -c -o resources/pcsx2_res.o resources/pcsx2_res.cpp &&\
mv -f $depbase.Tpo $depbase.Po
In file included from /usr/include/gtk-2.0/gtk/gtkobject.h:37,
                 from /usr/include/gtk-2.0/gtk/gtkwidget.h:36,
                 from /usr/include/gtk-2.0/gtk/gtkcontainer.h:35,
                 from /usr/include/gtk-2.0/gtk/gtkbin.h:35,
                 from /usr/include/gtk-2.0/gtk/gtkwindow.h:36,
                 from /usr/include/gtk-2.0/gtk/gtkdialog.h:35,
                 from /usr/include/gtk-2.0/gtk/gtkaboutdialog.h:32,
                 from /usr/include/gtk-2.0/gtk/gtk.h:33,
                 from src/gui.cpp:29:
/usr/include/gtk-2.0/gtk/gtktypeutils.h:236:64: warning: ‘GTypeDebugFlags’ is deprecated [-Wdeprecated-declarations]
  236 | void            gtk_type_init   (GTypeDebugFlags    debug_flags);
      |                                                                ^
In file included from /usr/include/glib-2.0/gobject/gobject.h:24,
                 from /usr/include/glib-2.0/gobject/gbinding.h:29,
                 from /usr/include/glib-2.0/glib-object.h:22,
                 from /usr/include/glib-2.0/gio/gioenums.h:28,
                 from /usr/include/glib-2.0/gio/giotypes.h:28,
                 from /usr/include/glib-2.0/gio/gio.h:26,
                 from /usr/include/gtk-2.0/gdk/gdkapplaunchcontext.h:30,
                 from /usr/include/gtk-2.0/gdk/gdk.h:32,
                 from /usr/include/gtk-2.0/gtk/gtk.h:32,
                 from src/gui.cpp:29:
/usr/include/glib-2.0/gobject/gtype.h:685:3: note: declared here
  685 | } GTypeDebugFlags GLIB_DEPRECATED_TYPE_IN_2_36;
      |   ^~~~~~~~~~~~~~~
In file included from /usr/include/gtk-2.0/gtk/gtktoolitem.h:31,
                 from /usr/include/gtk-2.0/gtk/gtktoolbutton.h:30,
                 from /usr/include/gtk-2.0/gtk/gtkmenutoolbutton.h:30,
                 from /usr/include/gtk-2.0/gtk/gtk.h:126,
                 from src/gui.cpp:29:
/usr/include/gtk-2.0/gtk/gtktooltips.h:73:12: warning: ‘GTimeVal’ is deprecated: Use 'GDateTime' instead [-Wdeprecated-declarations]
   73 |   GTimeVal last_popdown;
      |            ^~~~~~~~~~~~
In file included from /usr/include/glib-2.0/glib/galloca.h:32,
                 from /usr/include/glib-2.0/glib.h:30,
                 from /usr/include/glib-2.0/gobject/gbinding.h:28,
                 from /usr/include/glib-2.0/glib-object.h:22,
                 from /usr/include/glib-2.0/gio/gioenums.h:28,
                 from /usr/include/glib-2.0/gio/giotypes.h:28,
                 from /usr/include/glib-2.0/gio/gio.h:26,
                 from /usr/include/gtk-2.0/gdk/gdkapplaunchcontext.h:30,
                 from /usr/include/gtk-2.0/gdk/gdk.h:32,
                 from /usr/include/gtk-2.0/gtk/gtk.h:32,
                 from src/gui.cpp:29:
/usr/include/glib-2.0/glib/gtypes.h:545:26: note: declared here
  545 | typedef struct _GTimeVal GTimeVal GLIB_DEPRECATED_TYPE_IN_2_62_FOR(GDateTime);
      |                          ^~~~~~~~
In file included from /usr/include/gtk-2.0/gtk/gtkobject.h:37,
                 from /usr/include/gtk-2.0/gtk/gtkwidget.h:36,
                 from /usr/include/gtk-2.0/gtk/gtkcontainer.h:35,
                 from /usr/include/gtk-2.0/gtk/gtkbin.h:35,
                 from /usr/include/gtk-2.0/gtk/gtkwindow.h:36,
                 from /usr/include/gtk-2.0/gtk/gtkdialog.h:35,
                 from /usr/include/gtk-2.0/gtk/gtkaboutdialog.h:32,
                 from /usr/include/gtk-2.0/gtk/gtk.h:33,
                 from src/marley.cpp:35:
/usr/include/gtk-2.0/gtk/gtktypeutils.h:236:64: warning: ‘GTypeDebugFlags’ is deprecated [-Wdeprecated-declarations]
  236 | void            gtk_type_init   (GTypeDebugFlags    debug_flags);
      |                                                                ^
In file included from /usr/include/glib-2.0/gobject/gobject.h:24,
                 from /usr/include/glib-2.0/gobject/gbinding.h:29,
                 from /usr/include/glib-2.0/glib-object.h:22,
                 from /usr/include/glib-2.0/gio/gioenums.h:28,
                 from /usr/include/glib-2.0/gio/giotypes.h:28,
                 from /usr/include/glib-2.0/gio/gio.h:26,
                 from /usr/include/gtk-2.0/gdk/gdkapplaunchcontext.h:30,
                 from /usr/include/gtk-2.0/gdk/gdk.h:32,
                 from /usr/include/gtk-2.0/gtk/gtk.h:32,
                 from src/marley.cpp:35:
/usr/include/glib-2.0/gobject/gtype.h:685:3: note: declared here
  685 | } GTypeDebugFlags GLIB_DEPRECATED_TYPE_IN_2_36;
      |   ^~~~~~~~~~~~~~~
In file included from /usr/include/gtk-2.0/gtk/gtktoolitem.h:31,
                 from /usr/include/gtk-2.0/gtk/gtktoolbutton.h:30,
                 from /usr/include/gtk-2.0/gtk/gtkmenutoolbutton.h:30,
                 from /usr/include/gtk-2.0/gtk/gtk.h:126,
                 from src/marley.cpp:35:
/usr/include/gtk-2.0/gtk/gtktooltips.h:73:12: warning: ‘GTimeVal’ is deprecated: Use 'GDateTime' instead [-Wdeprecated-declarations]
   73 |   GTimeVal last_popdown;
      |            ^~~~~~~~~~~~
In file included from /usr/include/glib-2.0/glib/galloca.h:32,
                 from /usr/include/glib-2.0/glib.h:30,
                 from /usr/include/glib-2.0/gobject/gbinding.h:28,
                 from /usr/include/glib-2.0/glib-object.h:22,
                 from /usr/include/glib-2.0/gio/gioenums.h:28,
                 from /usr/include/glib-2.0/gio/giotypes.h:28,
                 from /usr/include/glib-2.0/gio/gio.h:26,
                 from /usr/include/gtk-2.0/gdk/gdkapplaunchcontext.h:30,
                 from /usr/include/gtk-2.0/gdk/gdk.h:32,
                 from /usr/include/gtk-2.0/gtk/gtk.h:32,
                 from src/marley.cpp:35:
/usr/include/glib-2.0/glib/gtypes.h:545:26: note: declared here
  545 | typedef struct _GTimeVal GTimeVal GLIB_DEPRECATED_TYPE_IN_2_62_FOR(GDateTime);
      |                          ^~~~~~~~
In file included from /usr/include/gtk-2.0/gtk/gtkobject.h:37,
                 from /usr/include/gtk-2.0/gtk/gtkwidget.h:36,
                 from /usr/include/gtk-2.0/gtk/gtkcontainer.h:35,
                 from /usr/include/gtk-2.0/gtk/gtkbin.h:35,
                 from /usr/include/gtk-2.0/gtk/gtkwindow.h:36,
                 from /usr/include/gtk-2.0/gtk/gtkdialog.h:35,
                 from /usr/include/gtk-2.0/gtk/gtkaboutdialog.h:32,
                 from /usr/include/gtk-2.0/gtk/gtk.h:33,
                 from src/emu.cpp:44:
/usr/include/gtk-2.0/gtk/gtktypeutils.h:236:64: warning: ‘GTypeDebugFlags’ is deprecated [-Wdeprecated-declarations]
  236 | void            gtk_type_init   (GTypeDebugFlags    debug_flags);
      |                                                                ^
In file included from /usr/include/glib-2.0/gobject/gobject.h:24,
                 from /usr/include/glib-2.0/gobject/gbinding.h:29,
                 from /usr/include/glib-2.0/glib-object.h:22,
                 from /usr/include/glib-2.0/gio/gioenums.h:28,
                 from /usr/include/glib-2.0/gio/giotypes.h:28,
                 from /usr/include/glib-2.0/gio/gio.h:26,
                 from /usr/include/gtk-2.0/gdk/gdkapplaunchcontext.h:30,
                 from /usr/include/gtk-2.0/gdk/gdk.h:32,
                 from /usr/include/gtk-2.0/gtk/gtk.h:32,
                 from src/emu.cpp:44:
/usr/include/glib-2.0/gobject/gtype.h:685:3: note: declared here
  685 | } GTypeDebugFlags GLIB_DEPRECATED_TYPE_IN_2_36;
      |   ^~~~~~~~~~~~~~~
In file included from /usr/include/gtk-2.0/gtk/gtktoolitem.h:31,
                 from /usr/include/gtk-2.0/gtk/gtktoolbutton.h:30,
                 from /usr/include/gtk-2.0/gtk/gtkmenutoolbutton.h:30,
                 from /usr/include/gtk-2.0/gtk/gtk.h:126,
                 from src/emu.cpp:44:
/usr/include/gtk-2.0/gtk/gtktooltips.h:73:12: warning: ‘GTimeVal’ is deprecated: Use 'GDateTime' instead [-Wdeprecated-declarations]
   73 |   GTimeVal last_popdown;
      |            ^~~~~~~~~~~~
In file included from /usr/include/glib-2.0/glib/galloca.h:32,
                 from /usr/include/glib-2.0/glib.h:30,
                 from /usr/include/glib-2.0/gobject/gbinding.h:28,
                 from /usr/include/glib-2.0/glib-object.h:22,
                 from /usr/include/glib-2.0/gio/gioenums.h:28,
                 from /usr/include/glib-2.0/gio/giotypes.h:28,
                 from /usr/include/glib-2.0/gio/gio.h:26,
                 from /usr/include/gtk-2.0/gdk/gdkapplaunchcontext.h:30,
                 from /usr/include/gtk-2.0/gdk/gdk.h:32,
                 from /usr/include/gtk-2.0/gtk/gtk.h:32,
                 from src/emu.cpp:44:
/usr/include/glib-2.0/glib/gtypes.h:545:26: note: declared here
  545 | typedef struct _GTimeVal GTimeVal GLIB_DEPRECATED_TYPE_IN_2_62_FOR(GDateTime);
      |                          ^~~~~~~~
src/emu.cpp: In function ‘void initPPSSPP()’:
src/emu.cpp:551:9: warning: ignoring return value of ‘char* getcwd(char*, size_t)’ declared with attribute ‘warn_unused_result’ [-Wunused-result]
  551 |   getcwd(cwd, sizeof(cwd));
      |   ~~~~~~^~~~~~~~~~~~~~~~~~
src/emu.cpp:553:8: warning: ignoring return value of ‘int chdir(const char*)’ declared with attribute ‘warn_unused_result’ [-Wunused-result]
  553 |   chdir(ppsspp_dir.c_str());
      |   ~~~~~^~~~~~~~~~~~~~~~~~~~
src/emu.cpp:556:9: warning: ignoring return value of ‘int system(const char*)’ declared with attribute ‘warn_unused_result’ [-Wunused-result]
  556 |   system(command.c_str());
      |   ~~~~~~^~~~~~~~~~~~~~~~~
src/emu.cpp:558:8: warning: ignoring return value of ‘int chdir(const char*)’ declared with attribute ‘warn_unused_result’ [-Wunused-result]
  558 |   chdir(cwd);
      |   ~~~~~^~~~~
src/emu.cpp: In function ‘void initDOLPHIN()’:
src/emu.cpp:609:9: warning: ignoring return value of ‘char* getcwd(char*, size_t)’ declared with attribute ‘warn_unused_result’ [-Wunused-result]
  609 |   getcwd(cwd, sizeof(cwd));
      |   ~~~~~~^~~~~~~~~~~~~~~~~~
src/emu.cpp:611:8: warning: ignoring return value of ‘int chdir(const char*)’ declared with attribute ‘warn_unused_result’ [-Wunused-result]
  611 |   chdir(dolphin_dir.c_str());
      |   ~~~~~^~~~~~~~~~~~~~~~~~~~~
src/emu.cpp:614:9: warning: ignoring return value of ‘int system(const char*)’ declared with attribute ‘warn_unused_result’ [-Wunused-result]
  614 |   system(command.c_str());
      |   ~~~~~~^~~~~~~~~~~~~~~~~
src/emu.cpp:616:8: warning: ignoring return value of ‘int chdir(const char*)’ declared with attribute ‘warn_unused_result’ [-Wunused-result]
  616 |   chdir(cwd);
      |   ~~~~~^~~~~
In file included from /usr/include/gtk-2.0/gtk/gtkobject.h:37,
                 from /usr/include/gtk-2.0/gtk/gtkwidget.h:36,
                 from /usr/include/gtk-2.0/gtk/gtkcontainer.h:35,
                 from /usr/include/gtk-2.0/gtk/gtkbin.h:35,
                 from /usr/include/gtk-2.0/gtk/gtkwindow.h:36,
                 from /usr/include/gtk-2.0/gtk/gtkdialog.h:35,
                 from /usr/include/gtk-2.0/gtk/gtkaboutdialog.h:32,
                 from /usr/include/gtk-2.0/gtk/gtk.h:33,
                 from src/controller.cpp:32:
/usr/include/gtk-2.0/gtk/gtktypeutils.h:236:64: warning: ‘GTypeDebugFlags’ is deprecated [-Wdeprecated-declarations]
  236 | void            gtk_type_init   (GTypeDebugFlags    debug_flags);
      |                                                                ^
In file included from /usr/include/glib-2.0/gobject/gobject.h:24,
                 from /usr/include/glib-2.0/gobject/gbinding.h:29,
                 from /usr/include/glib-2.0/glib-object.h:22,
                 from /usr/include/glib-2.0/gio/gioenums.h:28,
                 from /usr/include/glib-2.0/gio/giotypes.h:28,
                 from /usr/include/glib-2.0/gio/gio.h:26,
                 from /usr/include/gtk-2.0/gdk/gdkapplaunchcontext.h:30,
                 from /usr/include/gtk-2.0/gdk/gdk.h:32,
                 from /usr/include/gtk-2.0/gtk/gtk.h:32,
                 from src/controller.cpp:32:
/usr/include/glib-2.0/gobject/gtype.h:685:3: note: declared here
  685 | } GTypeDebugFlags GLIB_DEPRECATED_TYPE_IN_2_36;
      |   ^~~~~~~~~~~~~~~
In file included from /usr/include/gtk-2.0/gtk/gtktoolitem.h:31,
                 from /usr/include/gtk-2.0/gtk/gtktoolbutton.h:30,
                 from /usr/include/gtk-2.0/gtk/gtkmenutoolbutton.h:30,
                 from /usr/include/gtk-2.0/gtk/gtk.h:126,
                 from src/controller.cpp:32:
/usr/include/gtk-2.0/gtk/gtktooltips.h:73:12: warning: ‘GTimeVal’ is deprecated: Use 'GDateTime' instead [-Wdeprecated-declarations]
   73 |   GTimeVal last_popdown;
      |            ^~~~~~~~~~~~
In file included from /usr/include/glib-2.0/glib/galloca.h:32,
                 from /usr/include/glib-2.0/glib.h:30,
                 from /usr/include/glib-2.0/gobject/gbinding.h:28,
                 from /usr/include/glib-2.0/glib-object.h:22,
                 from /usr/include/glib-2.0/gio/gioenums.h:28,
                 from /usr/include/glib-2.0/gio/giotypes.h:28,
                 from /usr/include/glib-2.0/gio/gio.h:26,
                 from /usr/include/gtk-2.0/gdk/gdkapplaunchcontext.h:30,
                 from /usr/include/gtk-2.0/gdk/gdk.h:32,
                 from /usr/include/gtk-2.0/gtk/gtk.h:32,
                 from src/controller.cpp:32:
/usr/include/glib-2.0/glib/gtypes.h:545:26: note: declared here
  545 | typedef struct _GTimeVal GTimeVal GLIB_DEPRECATED_TYPE_IN_2_62_FOR(GDateTime);
      |                          ^~~~~~~~
g++ --std=c++17 -O2 -fno-pie -no-pie -I/usr/include/SDL2/ -I../mednafen -Idolphin/Source/Core -I/usr/include/gtk-2.0 -I/usr/lib/gtk-2.0/include -I/usr/include/pango-1.0 -I/usr/include/glib-2.0 -I/usr/lib/glib-2.0/include -I/usr/include/harfbuzz -I/usr/include/freetype2 -I/usr/include/libpng16 -I/usr/include/libmount -I/usr/include/blkid -I/usr/include/fribidi -I/usr/include/cairo -I/usr/include/pixman-1 -I/usr/include/gdk-pixbuf-2.0 -I/usr/include/atk-1.0 -pthread  -march=skylake -O2 -pipe -fno-stack-protector -fno-plt --std=c++17 -O2 -fno-pie -no-pie -s -L/usr/lib/x86_64-linux-gnu -Wl,-O1,--sort-common,--as-needed,-z,relro,-z,now -o marley src/marley.o src/gui.o src/controller.o src/statemachine.o src/emu.o src/wii.o resources/res.o resources/pcsx2_res.o mednafen/src/libmednafen_marley.a ppsspp/build/lib/libglslang.a ppsspp/build/lib/libxxhash.a ppsspp/build/lib/liblibzip.a ppsspp/build/lib/libspirv-cross-cpp.a ppsspp/build/lib/libspirv-cross-glsl.a ppsspp/build/lib/libdiscord-rpc.a ppsspp/build/lib/libudis86.a ppsspp/build/lib/libOSDependent.a ppsspp/build/lib/libspirv-cross-core.a ppsspp/build/lib/libspirv-cross-msl.a ppsspp/build/lib/libsfmt19937.a ppsspp/build/lib/libPPSSPPSDL.a ppsspp/build/lib/libspirv-cross-hlsl.a ppsspp/build/lib/libcityhash.a ppsspp/build/lib/libkirk.a ppsspp/build/lib/libarmips.a ppsspp/build/lib/libnative.a ppsspp/build/lib/libOGLCompiler.a ppsspp/build/lib/libgason.a ppsspp/build/lib/libxbrz.a ppsspp/build/lib/libSPVRemapper.a ppsspp/build/lib/libCore.a ppsspp/build/lib/libHLSL.a ppsspp/build/lib/libCommon.a ppsspp/build/lib/libSPIRV.a ppsspp/build/lib/libsnappy.a ppsspp/ffmpeg/linux/x86_64/lib/libavcodec.a ppsspp/ffmpeg/linux/x86_64/lib/libavutil.a ppsspp/ffmpeg/linux/x86_64/lib/libswscale.a ppsspp/ffmpeg/linux/x86_64/lib/libavformat.a ppsspp/ffmpeg/linux/x86_64/lib/libswresample.a ppsspp/build/lib/libminiupnpc.a ppsspp/build/lib/libglslang.a ppsspp/build/lib/libxxhash.a ppsspp/build/lib/liblibzip.a ppsspp/build/lib/libspirv-cross-cpp.a ppsspp/build/lib/libspirv-cross-glsl.a ppsspp/build/lib/libdiscord-rpc.a ppsspp/build/lib/libudis86.a ppsspp/build/lib/libOSDependent.a ppsspp/build/lib/libspirv-cross-core.a ppsspp/build/lib/libspirv-cross-msl.a ppsspp/build/lib/libsfmt19937.a ppsspp/build/lib/libPPSSPPSDL.a ppsspp/build/lib/libspirv-cross-hlsl.a ppsspp/build/lib/libcityhash.a ppsspp/build/lib/libkirk.a ppsspp/build/lib/libarmips.a ppsspp/build/lib/libnative.a ppsspp/build/lib/libOGLCompiler.a ppsspp/build/lib/libgason.a ppsspp/build/lib/libxbrz.a ppsspp/build/lib/libSPVRemapper.a ppsspp/build/lib/libCore.a ppsspp/build/lib/libHLSL.a ppsspp/build/lib/libCommon.a ppsspp/build/lib/libSPIRV.a ppsspp/build/lib/libsnappy.a ppsspp/ffmpeg/linux/x86_64/lib/libavcodec.a ppsspp/ffmpeg/linux/x86_64/lib/libavutil.a ppsspp/ffmpeg/linux/x86_64/lib/libswscale.a ppsspp/ffmpeg/linux/x86_64/lib/libavformat.a ppsspp/ffmpeg/linux/x86_64/lib/libswresample.a ppsspp/build/lib/libminiupnpc.a ppsspp/build/lib/libglslang.a ppsspp/build/lib/libxxhash.a ppsspp/build/lib/liblibzip.a ppsspp/build/lib/libspirv-cross-cpp.a ppsspp/build/lib/libspirv-cross-glsl.a ppsspp/build/lib/libdiscord-rpc.a ppsspp/build/lib/libudis86.a ppsspp/build/lib/libOSDependent.a ppsspp/build/lib/libspirv-cross-core.a ppsspp/build/lib/libspirv-cross-msl.a ppsspp/build/lib/libsfmt19937.a ppsspp/build/lib/libPPSSPPSDL.a ppsspp/build/lib/libspirv-cross-hlsl.a ppsspp/build/lib/libcityhash.a ppsspp/build/lib/libkirk.a ppsspp/build/lib/libarmips.a ppsspp/build/lib/libnative.a ppsspp/build/lib/libOGLCompiler.a ppsspp/build/lib/libgason.a ppsspp/build/lib/libxbrz.a ppsspp/build/lib/libSPVRemapper.a ppsspp/build/lib/libCore.a ppsspp/build/lib/libHLSL.a ppsspp/build/lib/libCommon.a ppsspp/build/lib/libSPIRV.a ppsspp/build/lib/libsnappy.a ppsspp/ffmpeg/linux/x86_64/lib/libavcodec.a ppsspp/ffmpeg/linux/x86_64/lib/libavutil.a ppsspp/ffmpeg/linux/x86_64/lib/libswscale.a ppsspp/ffmpeg/linux/x86_64/lib/libavformat.a ppsspp/ffmpeg/linux/x86_64/lib/libswresample.a ppsspp/build/lib/libminiupnpc.a mupen64plus/Source/input-sdl/_obj/config.o mupen64plus/Source/input-sdl/_obj/sdl_key_converter.o mupen64plus/Source/input-sdl/_obj/plugin.o mupen64plus/Source/input-sdl/_obj/autoconfig.o mupen64plus/Source/input-sdl/_obj/osal_dynamiclib_unix.o mupen64plus/Source/video-glide64mk2/_obj/Glitch64/OGLtextures.o mupen64plus/Source/video-glide64mk2/_obj/Glitch64/OGLcombiner.o mupen64plus/Source/video-glide64mk2/_obj/Glitch64/OGLgeometry.o mupen64plus/Source/video-glide64mk2/_obj/Glitch64/OGLglitchmain.o mupen64plus/Source/video-glide64mk2/_obj/GlideHQ/TextureFilters_hq2x.o mupen64plus/Source/video-glide64mk2/_obj/GlideHQ/Ext_TxFilter.o mupen64plus/Source/video-glide64mk2/_obj/GlideHQ/TxDbg.o mupen64plus/Source/video-glide64mk2/_obj/GlideHQ/TxReSample.o mupen64plus/Source/video-glide64mk2/_obj/GlideHQ/TxImage.o mupen64plus/Source/video-glide64mk2/_obj/GlideHQ/tc-1.1+/fxt1.o mupen64plus/Source/video-glide64mk2/_obj/GlideHQ/tc-1.1+/s2tc/s2tc_libtxc_dxtn.o mupen64plus/Source/video-glide64mk2/_obj/GlideHQ/tc-1.1+/s2tc/s2tc_algorithm.o mupen64plus/Source/video-glide64mk2/_obj/GlideHQ/tc-1.1+/wrapper.o mupen64plus/Source/video-glide64mk2/_obj/GlideHQ/tc-1.1+/texstore.o mupen64plus/Source/video-glide64mk2/_obj/GlideHQ/TxFilterExport.o mupen64plus/Source/video-glide64mk2/_obj/GlideHQ/TextureFilters_hq4x.o mupen64plus/Source/video-glide64mk2/_obj/GlideHQ/TxCache.o mupen64plus/Source/video-glide64mk2/_obj/GlideHQ/TextureFilters_2xsai.o mupen64plus/Source/video-glide64mk2/_obj/GlideHQ/TextureFilters.o mupen64plus/Source/video-glide64mk2/_obj/GlideHQ/TxUtil.o mupen64plus/Source/video-glide64mk2/_obj/GlideHQ/TxTexCache.o mupen64plus/Source/video-glide64mk2/_obj/GlideHQ/TxHiResCache.o mupen64plus/Source/video-glide64mk2/_obj/GlideHQ/TxQuantize.o mupen64plus/Source/video-glide64mk2/_obj/GlideHQ/TxFilter.o mupen64plus/Source/video-glide64mk2/_obj/Glide64/rdp.o mupen64plus/Source/video-glide64mk2/_obj/Glide64/FBtoScreen.o mupen64plus/Source/video-glide64mk2/_obj/Glide64/Debugger.o mupen64plus/Source/video-glide64mk2/_obj/Glide64/TexBuffer.o mupen64plus/Source/video-glide64mk2/_obj/Glide64/Ini.o mupen64plus/Source/video-glide64mk2/_obj/Glide64/DepthBufferRender.o mupen64plus/Source/video-glide64mk2/_obj/Glide64/Combine.o mupen64plus/Source/video-glide64mk2/_obj/Glide64/Keys.o mupen64plus/Source/video-glide64mk2/_obj/Glide64/Config.o mupen64plus/Source/video-glide64mk2/_obj/Glide64/CRC.o mupen64plus/Source/video-glide64mk2/_obj/Glide64/TexCache.o mupen64plus/Source/video-glide64mk2/_obj/Glide64/osal_dynamiclib_unix.o mupen64plus/Source/video-glide64mk2/_obj/Glide64/Util.o mupen64plus/Source/video-glide64mk2/_obj/Glide64/3dmath.o mupen64plus/Source/video-glide64mk2/_obj/Glide64/Main.o mupen64plus/Source/core/_obj/osal/files_unix.o mupen64plus/Source/core/_obj/osal/dynamiclib_unix.o mupen64plus/Source/core/_obj/md5/md5.o mupen64plus/Source/core/_obj/asm_defines/asm_defines.o mupen64plus/Source/core/_obj/osd/oglft_c.o mupen64plus/Source/core/_obj/osd/osd.o mupen64plus/Source/core/_obj/api/config.o mupen64plus/Source/core/_obj/api/vidext.o mupen64plus/Source/core/_obj/api/frontend.o mupen64plus/Source/core/_obj/api/debugger.o mupen64plus/Source/core/_obj/api/callbacks.o mupen64plus/Source/core/_obj/api/common.o mupen64plus/Source/core/_obj/device/r4300/r4300_core.o mupen64plus/Source/core/_obj/device/r4300/cp1.o mupen64plus/Source/core/_obj/device/r4300/interrupt.o mupen64plus/Source/core/_obj/device/r4300/idec.o mupen64plus/Source/core/_obj/device/r4300/tlb.o mupen64plus/Source/core/_obj/device/r4300/recomp.o mupen64plus/Source/core/_obj/device/r4300/cp0.o mupen64plus/Source/core/_obj/device/r4300/pure_interp.o mupen64plus/Source/core/_obj/device/r4300/cached_interp.o mupen64plus/Source/core/_obj/device/r4300/x86_64/dynarec.o mupen64plus/Source/core/_obj/device/r4300/x86_64/assemble.o mupen64plus/Source/core/_obj/device/r4300/x86_64/dyna_start.o mupen64plus/Source/core/_obj/device/r4300/x86_64/regcache.o mupen64plus/Source/core/_obj/device/rdram/rdram.o mupen64plus/Source/core/_obj/device/rcp/pi/pi_controller.o mupen64plus/Source/core/_obj/device/rcp/ai/ai_controller.o mupen64plus/Source/core/_obj/device/rcp/vi/vi_controller.o mupen64plus/Source/core/_obj/device/rcp/mi/mi_controller.o mupen64plus/Source/core/_obj/device/rcp/ri/ri_controller.o mupen64plus/Source/core/_obj/device/rcp/si/si_controller.o mupen64plus/Source/core/_obj/device/rcp/rsp/rsp_core.o mupen64plus/Source/core/_obj/device/rcp/rdp/rdp_core.o mupen64plus/Source/core/_obj/device/rcp/rdp/fb.o mupen64plus/Source/core/_obj/device/memory/memory.o mupen64plus/Source/core/_obj/device/pif/cic.o mupen64plus/Source/core/_obj/device/pif/pif.o mupen64plus/Source/core/_obj/device/pif/bootrom_hle.o mupen64plus/Source/core/_obj/device/pif/n64_cic_nus_6105.o mupen64plus/Source/core/_obj/device/gb/gb_cart.o mupen64plus/Source/core/_obj/device/gb/mbc3_rtc.o mupen64plus/Source/core/_obj/device/gb/m64282fp.o mupen64plus/Source/core/_obj/device/device.o mupen64plus/Source/core/_obj/device/dd/dd_controller.o mupen64plus/Source/core/_obj/device/cart/cart_rom.o mupen64plus/Source/core/_obj/device/cart/cart.o mupen64plus/Source/core/_obj/device/cart/eeprom.o mupen64plus/Source/core/_obj/device/cart/af_rtc.o mupen64plus/Source/core/_obj/device/cart/flashram.o mupen64plus/Source/core/_obj/device/cart/sram.o mupen64plus/Source/core/_obj/device/controllers/paks/mempak.o mupen64plus/Source/core/_obj/device/controllers/paks/transferpak.o mupen64plus/Source/core/_obj/device/controllers/paks/rumblepak.o mupen64plus/Source/core/_obj/device/controllers/paks/biopak.o mupen64plus/Source/core/_obj/device/controllers/game_controller.o mupen64plus/Source/core/_obj/plugin/dummy_input.o mupen64plus/Source/core/_obj/plugin/plugin.o mupen64plus/Source/core/_obj/plugin/dummy_rsp.o mupen64plus/Source/core/_obj/plugin/dummy_video.o mupen64plus/Source/core/_obj/plugin/dummy_audio.o mupen64plus/Source/core/_obj/main/savestates.o mupen64plus/Source/core/_obj/main/sdl_key_converter.o mupen64plus/Source/core/_obj/main/screenshot.o mupen64plus/Source/core/_obj/main/workqueue.o mupen64plus/Source/core/_obj/main/eventloop.o mupen64plus/Source/core/_obj/main/main.o mupen64plus/Source/core/_obj/main/util.o mupen64plus/Source/core/_obj/main/rom.o mupen64plus/Source/core/_obj/main/cheat.o mupen64plus/Source/core/_obj/backends/plugins_compat/audio_plugin_compat.o mupen64plus/Source/core/_obj/backends/plugins_compat/input_plugin_compat.o mupen64plus/Source/core/_obj/backends/clock_ctime_plus_delta.o mupen64plus/Source/core/_obj/backends/file_storage.o mupen64plus/Source/core/_obj/backends/api/video_capture_backend.o mupen64plus/Source/core/_obj/backends/dummy_video_capture.o mupen64plus/Source/core/_obj/oglft/OGLFT.o mupen64plus/Source/core/_obj/minizip/zip.o mupen64plus/Source/core/_obj/minizip/ioapi.o mupen64plus/Source/core/_obj/minizip/unzip.o mupen64plus/Source/ui-console/_obj/plugin.o mupen64plus/Source/ui-console/_obj/core_interface.o mupen64plus/Source/ui-console/_obj/main.o mupen64plus/Source/ui-console/_obj/debugger.o mupen64plus/Source/ui-console/_obj/osal_files_unix.o mupen64plus/Source/ui-console/_obj/osal_dynamiclib_unix.o mupen64plus/Source/ui-console/_obj/compare_core.o mupen64plus/Source/ui-console/_obj/cheat.o mupen64plus/Source/rsp-hle/_obj/audio.o mupen64plus/Source/rsp-hle/_obj/alist_audio.o mupen64plus/Source/rsp-hle/_obj/re2.o mupen64plus/Source/rsp-hle/_obj/alist_nead.o mupen64plus/Source/rsp-hle/_obj/alist_naudio.o mupen64plus/Source/rsp-hle/_obj/plugin.o mupen64plus/Source/rsp-hle/_obj/hvqm.o mupen64plus/Source/rsp-hle/_obj/alist.o mupen64plus/Source/rsp-hle/_obj/hle.o mupen64plus/Source/rsp-hle/_obj/jpeg.o mupen64plus/Source/rsp-hle/_obj/mp3.o mupen64plus/Source/rsp-hle/_obj/memory.o mupen64plus/Source/rsp-hle/_obj/osal_dynamiclib_unix.o mupen64plus/Source/rsp-hle/_obj/cicx105.o mupen64plus/Source/rsp-hle/_obj/musyx.o mupen64plus/Source/audio-sdl/_obj/circular_buffer.o mupen64plus/Source/audio-sdl/_obj/volume.o mupen64plus/Source/audio-sdl/_obj/main.o mupen64plus/Source/audio-sdl/_obj/sdl_backend.o mupen64plus/Source/audio-sdl/_obj/resamplers/trivial.o mupen64plus/Source/audio-sdl/_obj/resamplers/src.o mupen64plus/Source/audio-sdl/_obj/resamplers/resamplers.o mupen64plus/Source/audio-sdl/_obj/osal_dynamiclib_unix.o dolphin/build/Source/Core/DolphinNoGUI/libdolphin-emu-nogui.a dolphin/build/Source/Core/Core/libcore.a dolphin/build/Source/Core/UICommon/libuicommon.a dolphin/build/Source/Core/../../Externals/imgui/libimgui.a dolphin/build/Source/Core/VideoBackends/Null/libvideonull.a dolphin/build/Source/Core/VideoBackends/OGL/libvideoogl.a dolphin/build/Source/Core/VideoBackends/Software/libvideosoftware.a dolphin/build/Source/Core/VideoBackends/Vulkan/libvideovulkan.a dolphin/build/Source/Core/VideoCommon/libvideocommon.a dolphin/build/Source/Core/Core/libcore.a dolphin/build/Source/Core/VideoBackends/Null/libvideonull.a dolphin/build/Source/Core/VideoBackends/OGL/libvideoogl.a dolphin/build/Source/Core/VideoBackends/Software/libvideosoftware.a dolphin/build/Source/Core/VideoBackends/Vulkan/libvideovulkan.a dolphin/build/Source/Core/VideoCommon/libvideocommon.a dolphin/build/Source/Core/AudioCommon/libaudiocommon.a dolphin/build/Source/Core/../../Externals/soundtouch/libSoundTouch.a dolphin/build/Source/Core/../../Externals/FreeSurround/libFreeSurround.a dolphin/build/Source/Core/../../Externals/cubeb/libcubeb.a dolphin/build/Source/Core/DiscIO/libdiscio.a dolphin/build/Source/Core/InputCommon/libinputcommon.a dolphin/build/Source/Core/../../Externals/hidapi/libhidapi.a dolphin/build/Source/Core/../../Externals/glslang/libglslang.a dolphin/build/Source/Core/../../Externals/imgui/libimgui.a dolphin/build/Source/Core/../../Externals/xxhash/libxxhash.a dolphin/build/Source/Core/Common/libcommon.a dolphin/build/Source/Core/../../Externals/enet/libenet.a dolphin/build/Source/Core/../../Externals/pugixml/libpugixml.a  dolphin/build/Source/Core/../../Externals/fmt/libfmt.a  dolphin/build/Source/Core/../../Externals/bzip2/libbzip2.a dolphin/build/Source/Core/../../Externals/Bochs_disasm/libbdisasm.a dolphin/build/Source/Core/../../Externals/cpp-optparse/libcpp-optparse.a dolphin/build/Source/Core/../../Externals/minizip/libminizip.a dolphin/build/Source/Core/../../Externals/discord-rpc/src/libdiscord-rpc.a -lGLEW -lGL -lstdc++ -lGLU -lfreetype -lboost_system -lboost_filesystem -lsamplerate pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Cache.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/COP0.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/COP2.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Counters.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/GameDatabase.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Dump.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Elfheader.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/FiFo.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/FPU.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Gif.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Gif_Logger.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Gif_Unit.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/GS.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/GSState.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Hw.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/HwRead.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/HwWrite.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Interpreter.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/IopBios.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/IopCounters.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/IopDma.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/IopGte.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/IopHw.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/IopIrq.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/IopMem.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/IopSio2.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Mdec.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Memory.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/MMI.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/MTGS.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/MTVU.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/MultipartFileReader.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/OutputIsoFile.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Patch.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Patch_Memory.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Pcsx2Config.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/PluginManager.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/PrecompiledHeader.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/R3000A.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/R3000AInterpreter.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/R3000AOpcodeTables.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/R5900.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/R5900OpcodeImpl.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/R5900OpcodeTables.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/SaveState.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/ShiftJisToUnicode.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Sif.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Sif0.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Sif1.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/sif2.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Sio.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/SourceLog.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/SPR.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/System.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Vif0_Dma.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Vif1_Dma.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Vif1_MFIFO.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Vif.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Vif_Codes.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Vif_Transfer.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Vif_Unpack.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/vtlb.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/VU0.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/VUmicro.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/VU0micro.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/VU0microInterp.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/VU1micro.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/VU1microInterp.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/VUflags.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/VUmicroMem.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/VUops.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/CDVD/BlockdumpFileReader.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/CDVD/CdRom.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/CDVD/CDVDaccess.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/CDVD/CDVD.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/CDVD/CDVDisoReader.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/CDVD/InputIsoFile.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/CDVD/OutputIsoFile.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/CDVD/ChunksCache.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/CDVD/CompressedFileReader.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/CDVD/CsoFileReader.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/CDVD/GzippedFileReader.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/CDVD/IsoFS/IsoFile.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/CDVD/IsoFS/IsoFSCDVD.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/CDVD/IsoFS/IsoFS.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/DebugTools/DebugInterface.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/DebugTools/DisassemblyManager.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/DebugTools/ExpressionParser.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/DebugTools/MIPSAnalyst.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/DebugTools/MipsAssembler.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/DebugTools/MipsAssemblerTables.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/DebugTools/MipsStackWalk.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/DebugTools/Breakpoints.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/DebugTools/SymbolMap.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/DebugTools/DisR3000A.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/DebugTools/DisR5900asm.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/DebugTools/DisVU0Micro.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/DebugTools/DisVU1Micro.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/DebugTools/BiosDebugData.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/AppAssert.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/AppConfig.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/AppCorePlugins.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/AppCoreThread.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/AppEventSources.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/AppGameDatabase.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/AppUserMode.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/AppInit.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/AppMain.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/AppRes.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/ConsoleLogger.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/CpuUsageProvider.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Dialogs/AboutBoxDialog.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Dialogs/AssertionDialog.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Dialogs/BaseConfigurationDialog.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Dialogs/ConfirmationDialogs.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Dialogs/ConvertMemoryCardDialog.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Dialogs/CreateMemoryCardDialog.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Dialogs/FirstTimeWizard.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Dialogs/ImportSettingsDialog.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Dialogs/LogOptionsDialog.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Dialogs/McdConfigDialog.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Dialogs/PickUserModeDialog.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Dialogs/SysConfigDialog.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Debugger/BreakpointWindow.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Debugger/CtrlDisassemblyView.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Debugger/CtrlRegisterList.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Debugger/CtrlMemView.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Debugger/DebuggerLists.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Debugger/DisassemblyDialog.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Deb
ugger/DebugEvents.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/ExecutorThread.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/FrameForGS.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/GlobalCommands.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/i18n.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/IsoDropTarget.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/MainFrame.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/MainMenuClicks.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/MemoryCardFile.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/MemoryCardFolder.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/MessageBoxes.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/MSWstuff.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Panels/BaseApplicableConfigPanel.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Panels/BiosSelectorPanel.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Panels/CpuPanel.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Panels/DirPickerPanel.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Panels/GameFixesPanel.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Panels/GSWindowPanel.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Panels/LogOptionsPanels.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Panels/MemoryCardListPanel.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Panels/MemoryCardListView.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Panels/MiscPanelStuff.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Panels/PathsPanel.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Panels/PluginSelectorPanel.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Panels/SpeedhacksPanel.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Panels/VideoPanel.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/RecentIsoList.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/Saveslots.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/SysState.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/UpdateUI.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/IPU/IPU.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/IPU/IPU_Fifo.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/IPU/IPUdither.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/IPU/IPUdma.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/IPU/mpeg2lib/Idct.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/IPU/mpeg2lib/Mpeg.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/IPU/yuv2rgb.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/ps2/BiosTools.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/ps2/pgif.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/ps2/LegacyDmac.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/ps2/Iop/IopHwRead.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/ps2/Iop/IopHwWrite.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/ps2/Iop/PsxBios.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Recording/InputRecording.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Recording/InputRecordingFile.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Recording/NewRecordingFrame.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Recording/PadData.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Recording/RecordingControls.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Recording/RecordingInputManager.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Recording/VirtualPad.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/System/SysCoreThread.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/System/SysThreadBase.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Utilities/FileUtils.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/x86/BaseblockEx.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/x86/iCOP0.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/x86/iCore.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/x86/iFPU.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/x86/iFPUd.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/x86/iMisc.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/x86/iMMI.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/x86/iR3000A.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/x86/iR3000Atables.cpp.o pc
sx2/build/pcsx2/CMakeFiles/PCSX2.dir/x86/iR5900Misc.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/x86/ir5900tables.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/x86/ix86-32/iCore-32.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/x86/ix86-32/iR5900-32.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/x86/ix86-32/iR5900Arit.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/x86/ix86-32/iR5900AritImm.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/x86/ix86-32/iR5900Branch.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/x86/ix86-32/iR5900Jump.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/x86/ix86-32/iR5900LoadStore.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/x86/ix86-32/iR5900Move.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/x86/ix86-32/iR5900MultDiv.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/x86/ix86-32/iR5900Shift.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/x86/ix86-32/iR5900Templates.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/x86/ix86-32/recVTLB.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/x86/newVif_Dynarec.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/x86/newVif_Unpack.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/x86/newVif_UnpackSSE.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/x86/microVU.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/ZipTools/thread_gzip.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/ZipTools/thread_lzma.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/gui/CpuUsageProviderLnx.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Linux/LnxConsolePipe.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Linux/LnxKeyCodes.cpp.o pcsx2/build/pcsx2/CMakeFiles/PCSX2.dir/Linux/LnxFlatFileReader.cpp.o pcsx2/build/pcsx2/libPCSX2.a pcsx2/build/common/src/x86emitter/libx86emitter.a pcsx2/build/common/src/Utilities/libUtilities.a pcsx2/build/common/src/Utilities/libUtilities_NO_TLS.a pcsx2/build/plugins/onepad/libonepad.a pcsx2/build/plugins/GSdx/libGSdx.a -lQt5Widgets -lasound -llzo2 -lavformat -lavcodec -lswscale -lavutil -lQt5Gui -lQt5Core -lcurl -lICE -lX11 -lXext -lSM -lGLX -lminiupnpc -lusb-1.0 -levdev -ludev -lXi -lsfml-network -lsfml-system -ludev -lc -lpng -ldl -lrt -lXrandr -lpulse -lsndio -lpthread -lSDL2 -lz -lEGL -lGL -lGLU -lOpenGL -ljack -lzstd -lEGL -llzma -lbluetooth -lmbedtls -lmbedx509 -lmbedcrypto -lSDL2 -lSDL2_image -lSDL2_ttf -lasound -lm -ldl -lpthread -ljack -lsndfile -lz -lwx_baseu-3.0  -lwx_gtk2u_core-3.0 -lwx_gtk2u_adv-3.0 -lgdk-x11-2.0 -lgtk-x11-2.0 -lglib-2.0 -lgobject-2.0 -latk-1.0 -lgio-2.0 -lgthread-2.0 -lgmodule-2.0 -lgdk_pixbuf-2.0 -lcairo -lpango-1.0 -lpangocairo-1.0 -lpangoft2-1.0 -lpangoxft-1.0 -laio -llzma -lXfixes -lxcb -lX11-xcb
g++: error: dolphin/build/Source/Core/../../Externals/fmt/libfmt.a: No such file or directory
make[2]: *** [Makefile:1398: marley] Error 1
make[2]: Leaving directory '/tmp/makepkg/marley-git/src/marley'
make[1]: *** [Makefile:1529: all-recursive] Error 1
make[1]: Leaving directory '/tmp/makepkg/marley-git/src/marley'
make: *** [Makefile:1291: all] Error 2
==> ERROR: A failure occurred in build().
    Aborting...

[beaumanvienna]

I could open an issue over at marley's github if you want.

Yes, that would be great. It will build in a clean chroot. Try the extra-x86_64-build script from https://wiki.archlinux.org/index.php/DeveloperWiki:Building_in_a_clean_chroot

Regarding the compile time, there are some notes in the readme.md about setting MAKEFLAGS.

[beaumanvienna]

The compile options from the PKBUILD script you mentioned

cmake .. \
    -DCMAKE_BUILD_TYPE=Release \
    -DCMAKE_INSTALL_PREFIX=/usr \
    -DDOC_DIR=/usr/share/doc/pcsx2 \
    -DGAMEINDEX_DIR=/usr/share/pcsx2 \
    -DPLUGIN_DIR=/usr/lib/pcsx2 \
    -DDISABLE_ADVANCE_SIMD=ON \
    -DDISABLE_BUILD_DATE=ON \
    -DDISABLE_PCSX2_WRAPPER=ON \
    -DENABLE_TESTS=OFF \
    -DEXTRA_PLUGINS=ON \
    -DGTK3_API=ON \
    -DSDL2_API=ON \
    -DPACKAGE_MODE=ON \
    -DREBUILD_SHADER=ON \
    -DUSE_LTO=OFF \
    -DUSE_VTUNE=OFF \
    -DXDG_STD=ON \
    -DwxWidgets_CONFIG_EXECUTABLE=/usr/bin/wx-config-gtk3 \
    -Wno-dev

give me

I tried first with the extra-x86_64-build script and then manually with

git clone https://github.com/PCSX2/pcsx2/
cd pcsx2
mkdir build && cd build && cmake .. $OPTIONS_AS_ABOVE
make
cd plugins
cp ./USBnull/libUSBnull-0.7.0.so ./spu2-x/src/libspu2x-2.0.0.so \
 ./onepad_legacy/libonepad-legacy.so ./onepad/libonepad.so \
./LilyPad/libLilyPad-0.11.0.so ./GSdx/libGSdx.so \
./dev9ghzdrk/libdev9ghzdrk-0.4.so \
./dev9null/libdev9null-0.5.0.so .
cd .. && ./pcsx2/PCSX2

Could you do a manual build per the above, but with cmake -DCMAKE_BUILD_TYPE=Release ..? This works for me, Klonoa 2 opens but has the green elevator balls placed incorrectly.

[HarukaMa]

It seems this branch have quite a few conflicts with master and it seems many of them are with Tellow's commits. What's the status of this PR w.r.t. to master at this point?

I have a local commit related to cdvd but that part was recently largely changed in master, so I may need to rebase the branch to master to test it, but seemingly it's not possible at the moment with conflicts in codegen part as I don't have related knowledge to locally merge them.

[rien333]

@beaumanvienna

Could you do a manual build per the above, but with make -DCMAKE_BUILD_TYPE=Release ..? This works for me, Klonoa 2 opens but has the green elevator balls placed incorrectly.

(I assume you mean cmake instead of make?)

Okay, I thought I tried this, but when following your instructions and calling cmake without any config options except DCMAKE_BUILD_TYPE=Release the game actually works! Great! I will do some trail and error later today to see what exactly caused my problem.

[beaumanvienna]

What's the status of this PR w.r.t. to master at this point?

The changes for the x64 port have been merged into master. So, basically, we are done here. The port seems to be stable. This thread here was more a means to bring everybody together and make the x64 bit port happen. The only actual changes that I'm aware of are some opcode define to replace magic numbers. Long story short, you need to rebase with master. It's all in there.

@rien333 Nice to hear it starts now. Do you have the bug with the misplaced object?

[beaumanvienna]

(I assume you mean cmake instead of make?)

yes

[rien333]

BTW: even though the cmake step in the arch linux build process did not change (which we established seemed to be part of the reason why Klonoa didn't launch), I got the game to work in the official Arch community build by disabling "Automatic game fixes" everywhere. Perhaps there is a problem in one of those fixes? And perhaps the reason why you had difficulty reproducing my issue was because your "automatic game fixes" settings differed?

[beaumanvienna]

"automatic game fixes" settings differed?

I left those on default. I actually tested Klonoa just yesterday, coincidence :-) It runs but the green elevator thingies are still misplaced. Can you confirm this bug? The version I tested with is from Sunday (0448b49). I'm rebasing PCSX2 for Marley, the cmake settings are:
cmake -DCMAKE_BUILD_TYPE=Release -DBUILTIN_PAD=ON -DBUILTIN_GS=ON -DGTK3_API=ON ..
On a side note, it required some minor modifications to get onepad and GSdx to compile as static libs: c8b9876 ff870c8

If you posted your cmake settings please one more time, I can try to reproduce this bug.

[kattjevfel]

@beaumanvienna
Since they mentioned they're using the package from community repos:
https://github.com/archlinux/svntogit-community/blob/77837766dfab6c1273f181ba34d68c5399fcb425/trunk/PKGBUILD#L71-L93

[rien333]

I left those on default.

Ah bummer. Still odd that the game launches fine if I turn them off.

It runs but the green elevator thingies are still misplaced. Can you confirm this bug?

Yeah, I also noticed that. Couldn't really progress beyond the first level. I checked out Klonoa again because I found someone with the exact same issue.. They were also unable to progress beyond the first level (with automatic game fixes off), and report the same j8 greater than 0x7f!! error (with automatic game fixes on).

If you posted your cmake settings please one more time, I can try to reproduce this bug.

I'm running the precompiled binary from the arch repos. I think you also tried that binary at one point. @kattjevfel already linked you the PKGBUILD, I see (which contains the cmake settings that were used).

I'll retry running Klonoa in Marley over the weekend.

[beaumanvienna]

Let me finish the rebase first. I will let you know.

Normally, WeirdBeard is maintaining the AUR. I had tried to connect @kattjevfel and WeirdBeard before, not sure if they ever met or not. Maybe there are two different PKGBUILDs, one from WeirdBeard (official) and the one you use?

@tadanokojin @arcum42 I can submit the above changes for -DBUILTIN_PAD=ON -DBUILTIN_GS=ON upstream if you want me to. I noticed you are about to restructure the plugins. Not sure what the gameplan is...

[kattjevfel]

Normally, WeirdBeard is maintaining the AUR. I had tried to connect @kattjevfel and WeirdBeard before, not sure if they ever met or not. Maybe there are two different PKGBUILDs, one from WeirdBeard (official) and the one you use?

I did join the discord and talk with them, yes. But let's just say I don't agree with a lot of things there and I ended up leaving. I now only use the official package from the community repo, maintained by alucryd.

[kenshen112]

Just curious. What didn't you agree with him about?

[rien333]

Normally, WeirdBeard is maintaining the AUR. Maybe there are two different PKGBUILDs, one from WeirdBeard (official) and the one you use?

I'm not using the package from the AUR. I also never have, because that builds a 32bit binary. As I said, I've been using the binary from the official community repo (the PKGBUILD used to create said binary was previously linked). The AUR is never official, I guess.

As mentioned, there is indeed a difference between the PKGBUILD in the community repo and the one the AUR, though that doesn't matter much here, because the AUR package has always been configured to build a 32bit binary (which works fine for Klonoa, hence this issue).

[kenshen112]

Ah, I'd heard the opposite. I heard it was the AUR repo that was the official package for pcsx2. Also I retesting that the other builds 64 bit. Seems a bit unstable for a package that's supposed to maintain from my understanding 1.6 only

[kattjevfel]

Just curious. What didn't you agree with him about?

Not so much about him in person, but the community in general seemingly seeing 64-bit as a bother and would rather keep 32-bit forever. Perhaps a lot of it is sysadmin vs developer, but still.

Ah, I'd heard the opposite. I heard it was the AUR repo that was the official package for pcsx2. Also I retesting that the other builds 64 bit. Seems a bit unstable for a package that's supposed to maintain from my understanding 1.6 only

Official in the eyes of arch, but unofficial in the eyes of pcsx2 devs.

[rien333]

Seems a bit unstable for a package that's supposed to maintain from my understanding 1.6 only

I have to say that community package indeed enables "experimental" options one would normally expect to find in an AUR package, but so far, I'm actually really happy with how it works. The options also make sense in the context of the rest of the arch eco system. Except that Klonoa has been a bit tricky to get running.

[beaumanvienna]

@rien333 @arcum42 @kattjevfel @gregory38

I found a bug in the Debian rules file I use to package PCSX2 for Marley. It was adding compiler flags that would crash PCSX2 with "Illegal instruction". I could confirm this bug on four machines. I had to override/reset the MAKEFLAGS option with

export DEB_BUILD_MAINT_OPTIONS=

See also https://github.com/beaumanvienna/marley/blob/6d455489547f74cabaefa7f19c73bff9689fbd8c/debian/rules#L8

It might be the same with other packaging tools such as pkgbuild.
