GS: Add texture dumping and replacement system

[stenzek]

Description of Changes

Something that many have requested and others have done very poorly and hackily. This one is (in my opinion) clean and mergeable.

Rough TODO:

• Basic texture dumping.
• Basic texture replacement.
• Asynchronous texture dumping and loading.
• Preloading of textures to memory.
• Support dumping mipmaps.
• Support loading DDS files and compressed textures.

Textures using multiple CLUTs/palettes will be dumped as multiple textures (e.g. Xenosaga). Mapping texels to CLUTs is outside the scope of this PR, since it works well enough without it in most games, and adds complexity. I might look into it later on.

Please note that while I'm not planning on changing the texture filenames or hashes, I can't guarantee that it won't change before the PR is merged. So keep that in mind if you're experimenting with it.

Rationale behind Changes

Suggested Testing Steps

Test dumping/replacement across a bunch of games, but probably wait until it's more complete first. But feel free to experiment :)

[stenzek]

Quick notes:

• Textures dumped go to pcsx2\textures\<SERIAL>\dumps
• Replacements get loaded from pcsx2\textures\<SERIAL>\replacements.
• Enable in Graphics Settings -> Advanced (Qt), Graphics Settings -> Debug (Wx).
• Beware of SSD wear, dumping can create lots of files.

[dio-gh]

Just to clarify, what happens if the dimensions of the replacement texture mismatches the original (i.e. if it's bigger)?

In other words, is the feature suitable for creating high-res texture packs?

[stenzek]

Just to clarify, what happens if the dimensions of the replacement texture mismatches the original (i.e. if it's bigger)?

It's scaled in the same way that target copies are; in other words, high res packs will work as expected.

[OriginalSwayze]

No idea if i can even comment here just want to thank you and everyone working on PCSX2 you guys rock

[Gunlaus]

Excellent work. Will DDS support (in the future) come with compression support as well? (DXT)

[RedDevilus]

Excellent work. Will DDS support (in the future) come with compression support as well? (DXT)

Support loading DDS files and compressed textures. Looks that way.

[Etokapa]

Just did a quick test and it seems to be working well for the most part. Some textures have garbage where I assume would usually be empty space, and some texture replacements do not load such as the font texture seen below. Going to try more experiments to see if I can see what I'm doing wrong.
Be very careful with using upscaled textures, as it may give a warning about PBO Map size and crash the emulator.
I'm very excited to see this feature in the works! Thank you!😃

[stenzek]

Be very careful with using upscaled textures, as it may give a warning about PBO Map size and crash the emulator.

Should be fixed with the last push (both GL and Vulkan).

[stenzek]

Asynchronous loading added (so it won't cause GS thread stutter while it loads from disk), as well as caching for known replacement textures. Note that new replacements added while the game is running won't register now until it rescans them, the easiest way is to just toggle software on and off, but I'll add a proper hotkey for this in the future (at least in Qt).

DDS textures should load now, and BC1(DXT1)/BC2(DXT2-3)/BC3(DXT4-5)/BC7 compressed formats will be natively uploaded to the GPU.

Replacement filename was changed, sorry, it was missing some bits which are needed to uniquely identify the texture. Hopefully the last change though.

Main things missing now are just mipmap dumping and preloading/precaching.

[Gunlaus]

What's the hashing algo used?

[xtremegat]

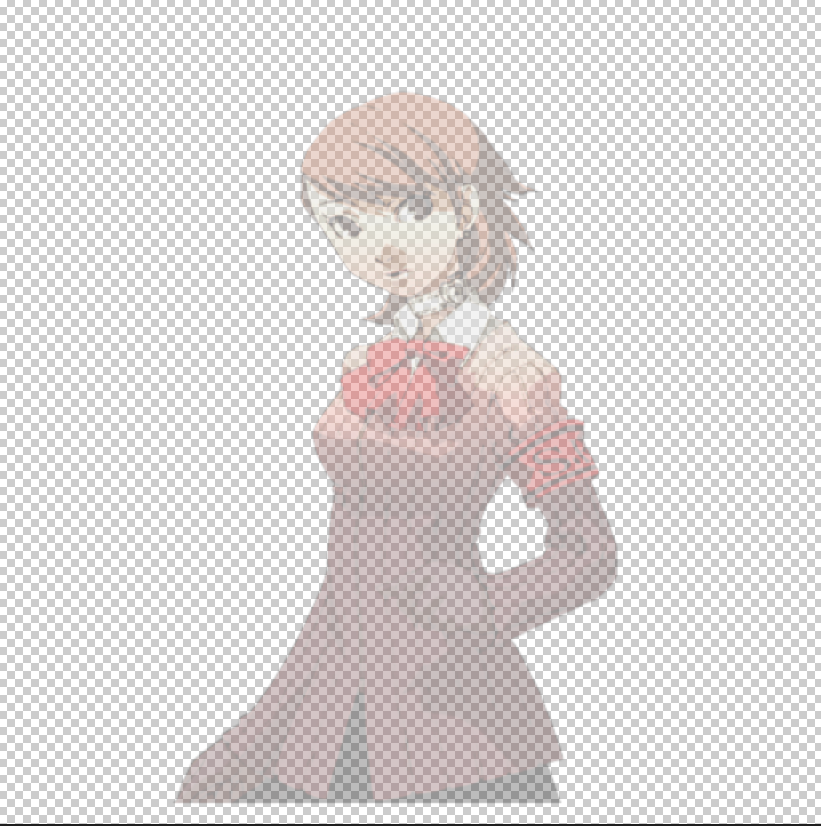

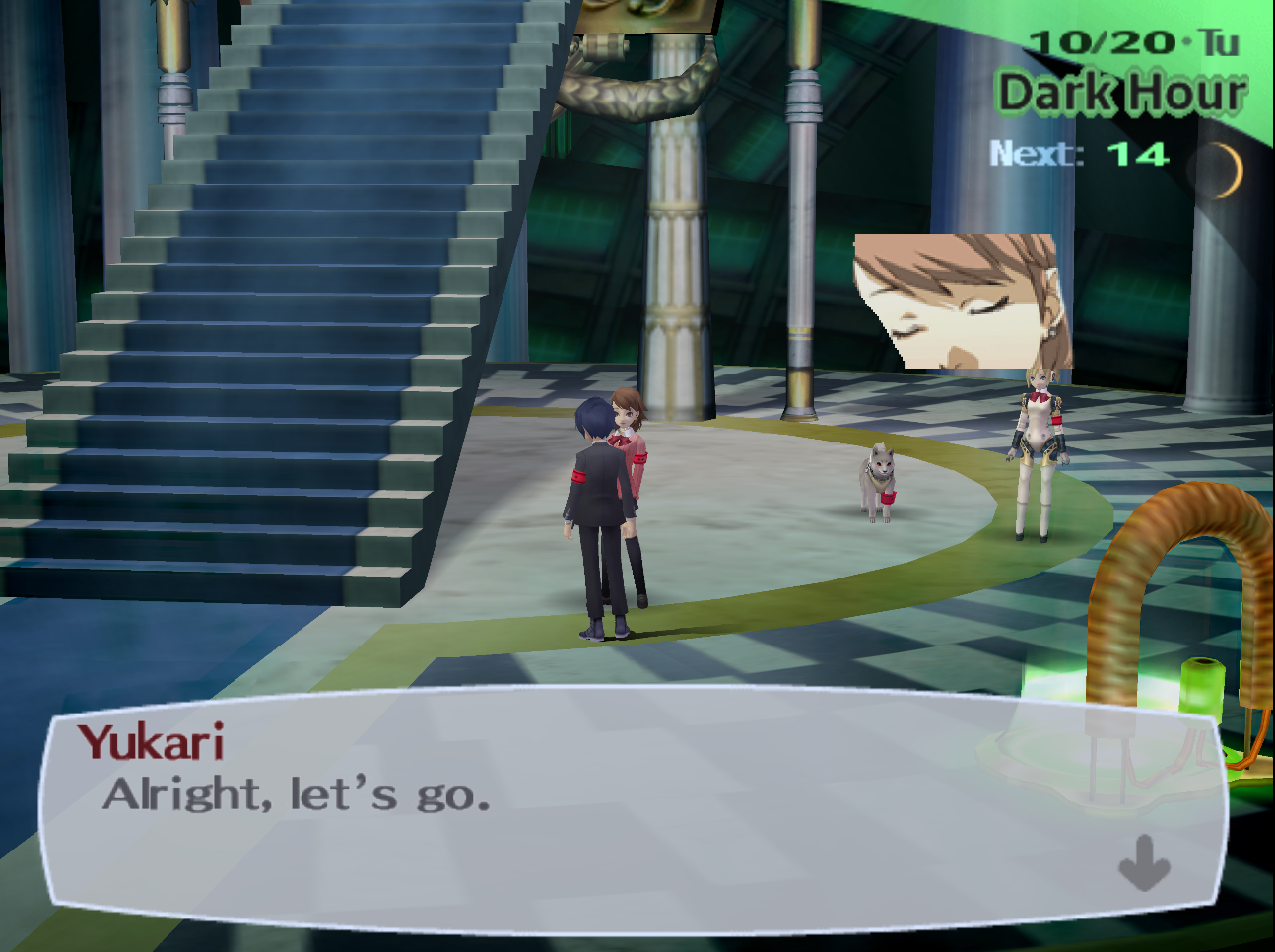

Most of the dumped Persona 3 FES textures are semi-transparent and if you try to replace them with a normal upscaled one it won't show up

[stenzek]

What's the hashing algo used?

xxhash

Most of the dumped Persona 3 FES textures are semi-transparent

Working as intended. Most of these textures have an alpha of 128, even in 32bit CLUT mode. You can ignore the alpha channel, or scale it before and after editing.

[Harkyzera]

worked well for AI upscale on SOTC

[TheKrzysiek]

In Ace Combat 04 many textures are broken, especially the terrain textures.
The HUD main texture file is ok, but some others like the title screen look like this.

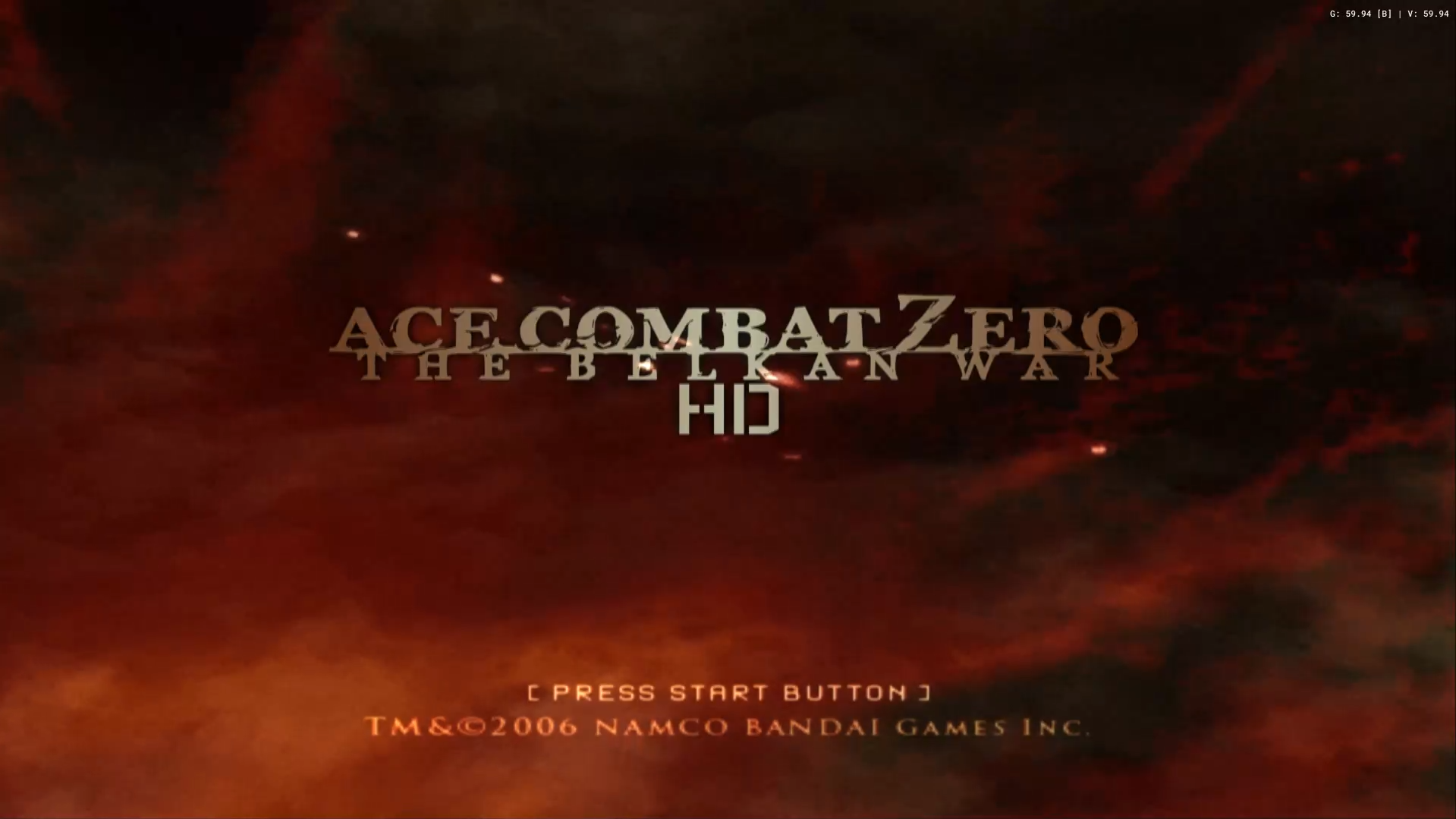

I've also tried Ace Combat Zero and there are some broken textures there too, but a lot fewer, mostly the terrain.

[RedDevilus]

If it already is broken , it's likely a Texture Cache issue which this PR won't solve.

[refractionpcsx2]

yes considering how broken Ace Combat 04 is in hardware mode, I wouldn't use that to gauge reliability of this PR, I would consider that out of scope.

Texture replacements wont fix games with broken graphics, that's not the intention of this feature.

[TheKrzysiek]

With the no interlacing code and changing some settings, 04 actually works fine aside missing some effects like volumetric clouds.

Eitherway, if it's not something that could be easily fixed then too bad.

[stenzek]

The HUD main texture file is ok, but some others like the title screen look like this.

That's probably correct, you'll find multiple dumps with the same first part of the filename (the texture data/indices hash), but a different second part (palette/clut hash). I specifically addressed this in the OP:

Textures using multiple CLUTs/palettes will be dumped as multiple textures (e.g. Xenosaga). Mapping texels to CLUTs is outside the scope of this PR, since it works well enough without it in most games, and adds complexity. I might look into it later on.

[fbievan]

/home/evan/.source/pcsx2/common/Linux/LnxHostSys.cpp(69) : assertion failed:
    Function:  void SysPageFaultSignalFilter(int, siginfo_t*, void*)
    Thread:    MTGS
    Condition: false
    Message:   Unhandled page fault @ 0x00000000

Stacktrace:
[00] 0x0x55d039a4af07
[01] 0x0x7fb6fe4e2560
[02] 0x0x55d039724ce9
[03] 0x0x55d039795d9b
[04] 0x0x55d03978ec12
[05] 0x0x55d03978f9fc
[06] 0x0x55d0397902d1
[07] 0x0x55d03977903a
[08] 0x0x55d03973d0cb
[09] 0x0x55d0397449b0
[10] 0x0x55d039761af1
[11] 0x0x55d039711bc5
[12] 0x0x55d0395301d5
[13] 0x0x55d039a3036a
[14] 0x0x55d039a32b1a
[15] 0x0x7fb6fe52d5c2
[16] clone

When trying to dump, I get this error soon after startup, Cant really say much, if you want more details just ask.

https://www.youtube.com/watch?v=1Nn3Q9QQFhU
(yes the classic jet fan )

[stenzek]

That backtrace is meaningless. Need to run under gdb, ideally with symbols.

[mntorankusu]

For the palette/CLUT thing, would it be possible to (optionally) dump indexed textures and palettes for them separately? So instead of dumping a different texture for each texture and palette combination, we can just have one indexed texture and then a bunch of .pal files (or whatever) next to them. Then have it apply the original CLUT to any loaded texture that doesn't have the second hash in the filename. I think there are cases where doing it this way would be much, much easier on people trying to do texture edits.

[stenzek]

It's a possibility, sure. But outside of the scope of this PR; personally I'm more in the camp of resolving palettes prior to dumping.

[LuismaSP89]

worked well for AI upscale on SOTC

Sorry good lord, but where I can download that textures for sotc? Looks **cking nice.

[danny199012]

Amazing work but i have an odd issue with it i made warriors textures and bumped them massively it works but i always get Hash Cache has used x amount of Vram Disabling then i get black screen but Vram it hits about 2GB then i get warning but i have a RTX3090 24GB iv'e tried all 3 settings seems more usable with opengl compared to vulkan but still getting hit with hash cache

[Harkyzera]

worked well for AI upscale on SOTC

Sorry good lord, but where I can download that textures for sotc? Looks **cking nice.

unfortunately there is nowhere to download, I used some programs to increase the texture using artificial intelligence

[danny199012]

Amazing work but my invisible car could this becaused by Hash Cache disabling no matter what option I use I always get that message and it's when this happens could it because textures to big for cache and I've tried deleting all junk textures also but didn't fix so unsure if it could be mips related

[refractionpcsx2]

looks like you messed up your alpha values

[SayakaMaizono]

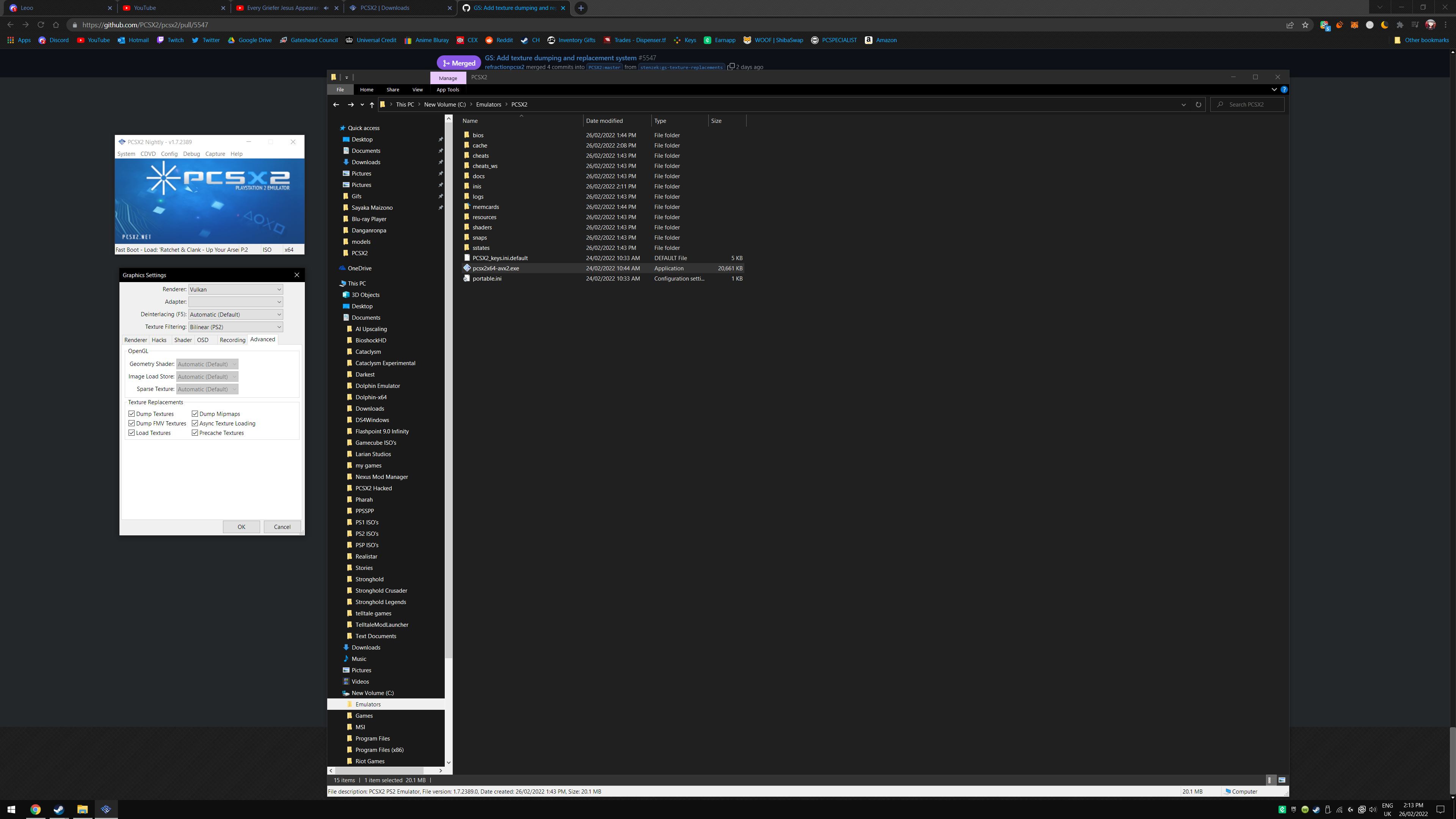

Hey. I've got all the settings on to dump textures under the Advanced Graphics tab, but it hasn't generated any folders for me.
I can see there's code that should check and create those though. Any assistance as to what I've done wrong?

[Mrlinkwii]

@SayakaMaizono see if creating atextures folder helps

[FuxorLuck]

Hey. I've got all the settings on to dump textures under the Advanced Graphics tab, but it hasn't generated any folders for me. I can see there's code that should check and create those though. Any assistance as to what I've done wrong?

Craete a folder inside pcsx2 called "textures"
This worked for me.

Also I think next pcsx2 build should come with an emptey folder called "textures"

[SayakaMaizono]

@SayakaMaizono see if creating atextures folder helps

Wow I swear I tried that before and it didn't work. That solved it, thanks!

[jlnhlfan]

There are two glitched textures here in NHL 09- one for Jaromir Jagr's portrait, and another for Avangard Omsk's logo- in fact, ALL of the logo and portrait textures appear to be glitched. The only ones that don't appear glitched for NHL 09 (and would likely apply to 2005 through 08 as well) when dumped are some UI elements and text.

[certainmorning]

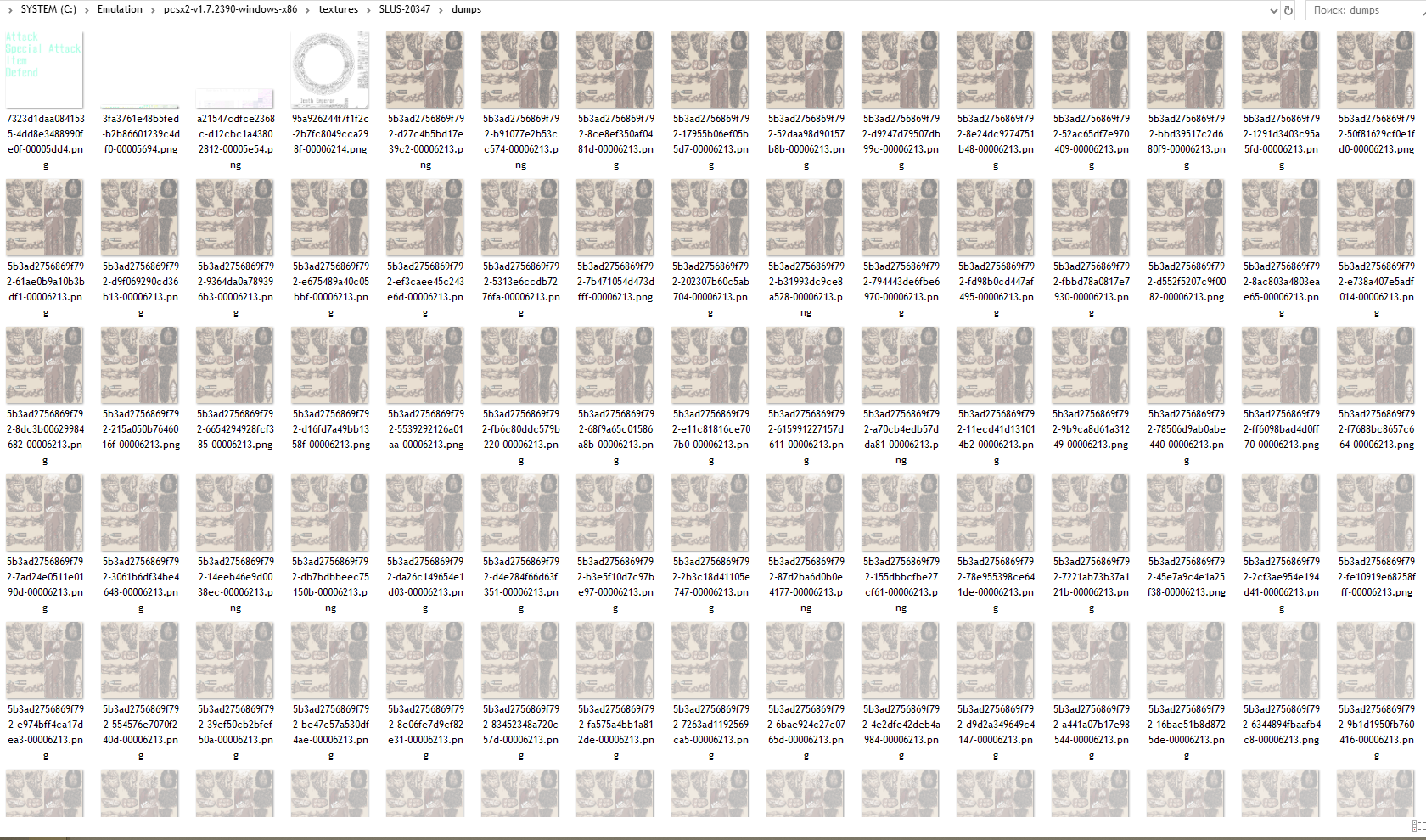

Trying this feature with Shadow Hearts (SLUS-20347), sadly it doesn't dump any 2d backgrounds.

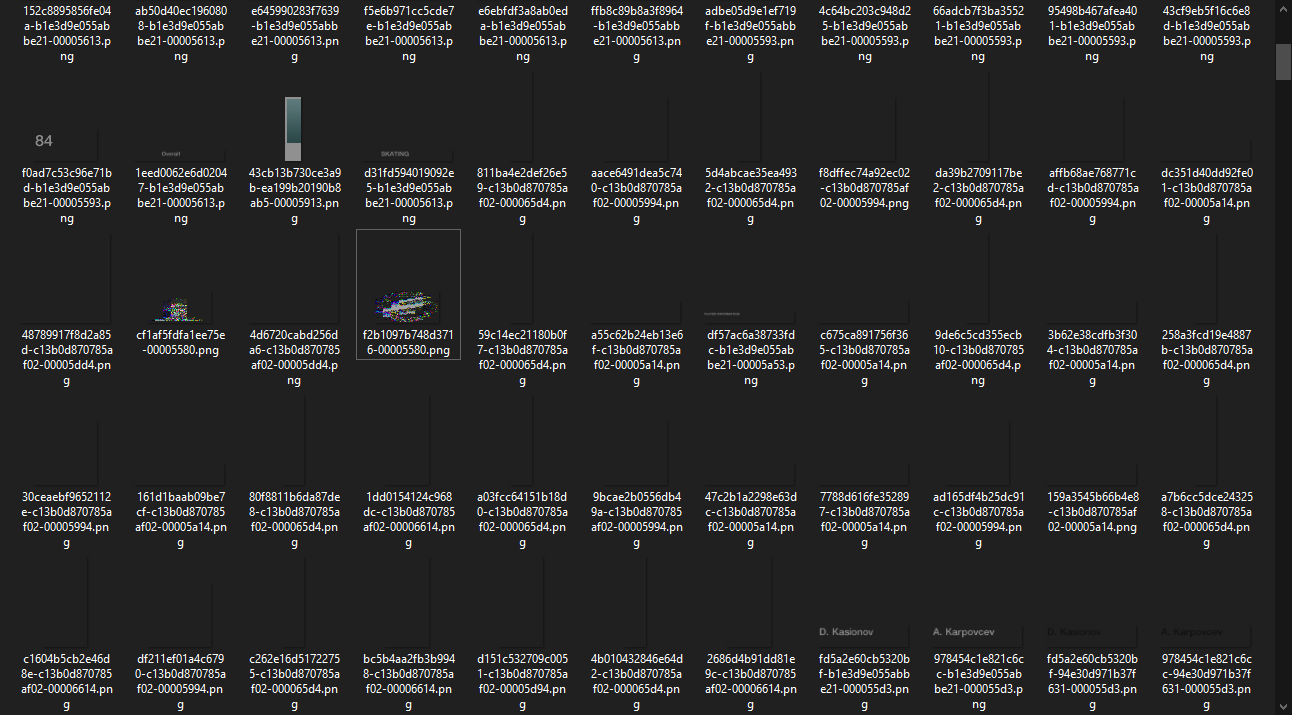

It also dumps like 100+ instances of every character and enemy texture with different alpha values, for example:

[TheKrzysiek]

Trying this feature with Shadow Hearts (SLUS-20347), sadly it doesn't dump any 2d backgrounds. It also dumps like 100+ instances of every character and enemy texture with different alpha values, for example:

Similar thing happens in some other games that I tried, mainly all Ace Combat games.
However i didn't notice any difference in alpha for them, and they just keep going if you dump while looking at terrain or any model.

[SayakaMaizono]

Would it be possible to detect and seperate any texture which has an alpha channel?

For bulk upscaling just to get an idea of how amazing this feature can become, It'd be nice to be able to seperate alpha textures or else they look broken without special care. Testing this on Ratchet and Clank 3 right now.

[Dogmander]

Trying this feature with Shadow Hearts (SLUS-20347), sadly it doesn't dump any 2d backgrounds. It also dumps like 100+ instances of every character and enemy texture with different alpha values, for example:

Similar thing happens in some other games that I tried, mainly all Ace Combat games. However i didn't notice any difference in alpha for them, and they just keep going if you dump while looking at terrain or any model.

Yeah, when I tried some textures were repeated multiple times, probably due to them moving in memory. It would be nice if the textures weren't repeated a crap ton of times, it would make finding the specific texture(s) you need easier and save your disk space.

[CelestePolo]

Hi,

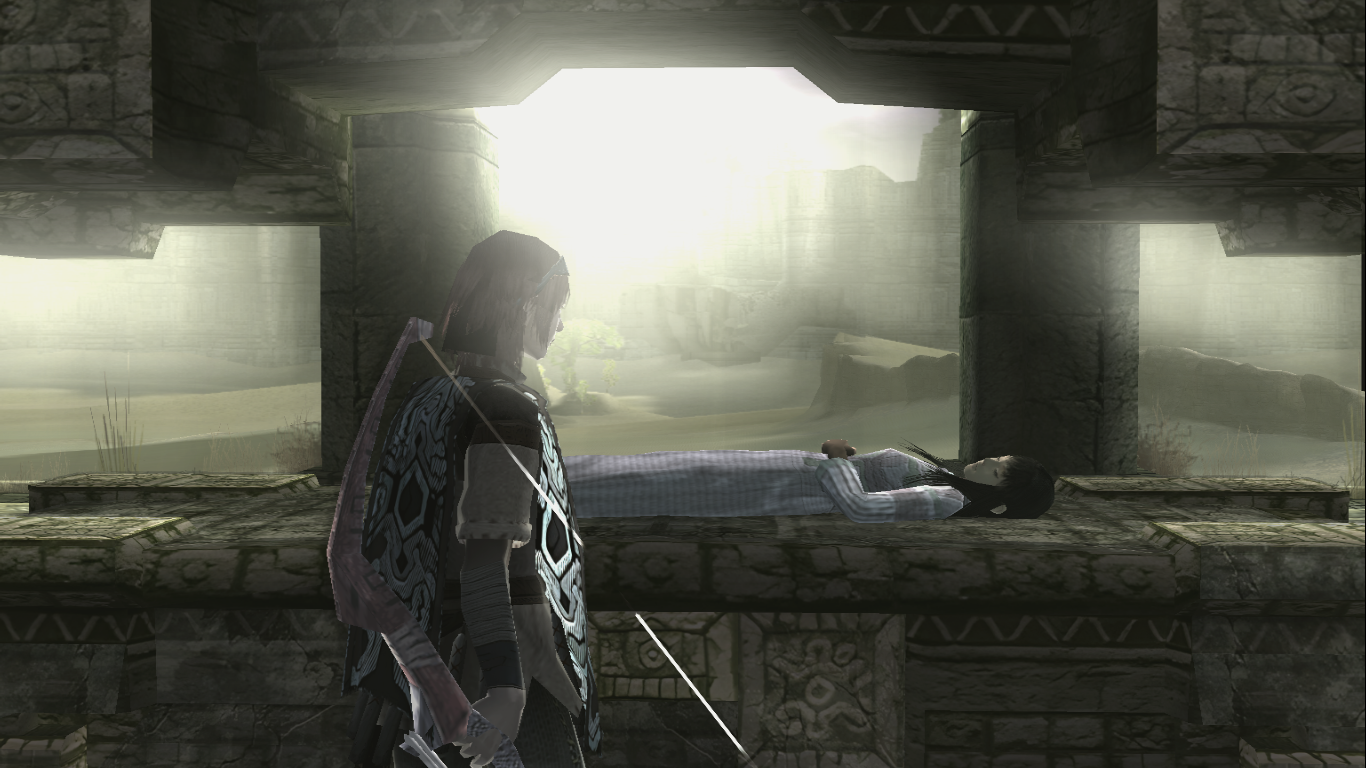

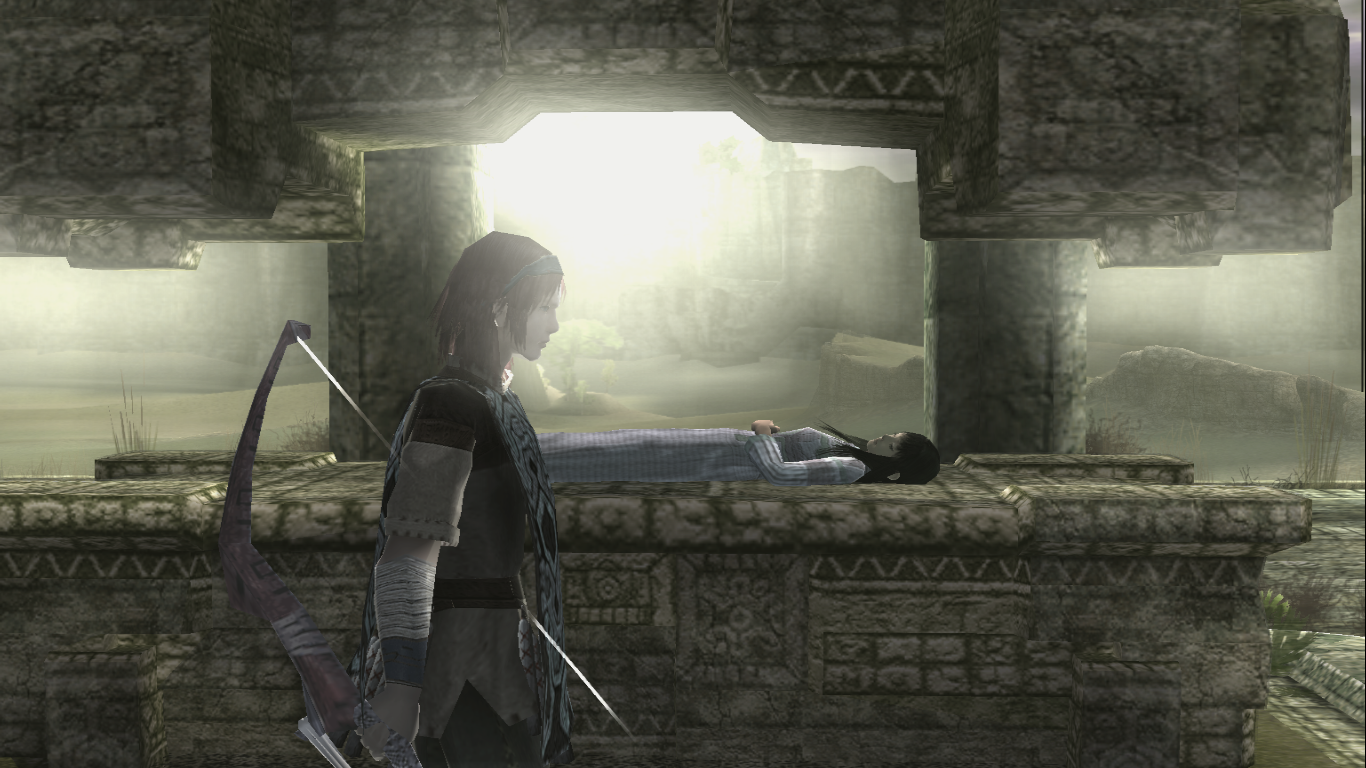

Thanks for the amazing feature ! I've AI upscaled almost all Shadow of the Colossus. (See some pictures below)
I noted these points and questions:

• Files named with only two hex number (hex-hex) are either junk (look like screenshots) OR correct texture/dumps. Although correct they can't be replaced. (In SotC there is only one texture worth upscaling in this case)
• Full mipmap (PS2) + Vulkan or D3D breaks the loaded textures, it is not the case with OpenGL. I didn't dump and replaced mipmaps perhaps this is the reason?
• Will a texture pack be compatible between different versions of the same game (EU, US, JPN) ?
• I have 20 000 files of an effect, could it be possible to avoid dumping these pictures again by specifying the first hex number ?
• Last hex number seems to be related to picture size.

https://ibb.co/ynhLk43
https://ibb.co/196gRhL (not upscaled for comp.)
https://ibb.co/Jn71x56
https://ibb.co/2SJxQMW (not upscaled for comp.)
https://ibb.co/YPKRd06
https://ibb.co/ZKjmj5P
https://ibb.co/SXQTCHW

[LuismaSP89]

Hi, Thanks for the amazing feature ! I've AI upscaled almost all Shadow of the Colossus. (See some pictures below) I noted these points and questions:

* Files named with only two hex number (hex-hex) are either junk (look like screenshots) OR correct texture/dumps. Although  correct they can't be replaced. (In SotC there is only one texture worth upscaling in this case)

* Full mipmap (PS2) + Vulkan or D3D breaks the loaded textures, it is not the case with OpenGL. I didn't dump and replaced mipmaps perhaps this is the reason?

* Will a texture pack be compatible between different versions of the same game (EU, US, JPN) ?

* I have 20 000 files of an effect, could it be possible to avoid dumping these pictures again by specifying the first hex number ?

* Last hex number seems to be related to picture size.

https://ibb.co/ynhLk43 https://ibb.co/196gRhL (not upscaled for comp.) https://ibb.co/Jn71x56 https://ibb.co/2SJxQMW (not upscaled for comp.) https://ibb.co/YPKRd06 https://ibb.co/ZKjmj5P https://ibb.co/SXQTCHW

Sorry, would you mind to share the upscaled textures? I tried mysefl using AI programs and online webs, but they're not free and I can just upload one image at the same time. Is there any website or program to do this with a lot of images at the same time?

Thanks!

[refractionpcsx2]

Sorry we're not allowing textures to be shared on our github, discord or forums due to the amount of copyrighted material that could be floating around, if you wish to share texture packs, you are all welcome to set up your own website and share them there, and if there is moderation and vetting to make sure no copyrighted assets are being used, we'll even link to it. But directly, we don't have the man power to deal with it, so please do not share them here.
