Tweaks and fixes for GA and Codecov configs by danielhollas · Pull Request #58 · PHOTOX/ABIN

danielhollas · 2021-01-20T15:50:38Z

Codecov reports with GFortran 8 and 9 were crashing because we were not setting the correct 'gcov' version.
Some caches were not used correctly.
The GA config is getting a bit unwieldy. :-(
GA: Pin Ubuntu version to 18.04:
Github will soon switch it's 'ubuntu-latest'
runner to 'ubuntu-20.04' and we're not ready:
1. Some tests are failing with minor numerical differences on 20.04
  Hopefully this get's solved with Stabilize tests #27.
2. Some jobs in GFortran CI config now rely on the fact
  that the default GCC/GFortran version is 7. We'll need to make that explicit
  if we want to switch to 20.04. We want to keep the default version = 7
  since that's the one we're using on the PHOTOX clusters.
3. Given our ancient Linux versions on PHOTOX clusters,
  it probably makes sense to stick to 18.04 for now.
  (and maybe in the future switch one job to 20.04)
GA: Separate unit tests from end-to-end tests
This is just for a convenience, to make it easier
to inspect Github Action workflows. This will matter more
as we'll add more unit tests. :-)
This also makes the Makefile a bit more consistent;
treating e2e and unit tests on equal footing.

codecov · 2021-01-20T17:33:09Z

Codecov Report

Merging #58 (2860c44) into master (4afc0e5) will decrease coverage by 0.11%.
The diff coverage is n/a.

@@            Coverage Diff             @@
##           master      #58      +/-   ##
==========================================
- Coverage   64.06%   63.95%   -0.12%
==========================================
  Files          37       37
  Lines        5661     5674      +13
==========================================
+ Hits         3627     3629       +2
- Misses       2034     2045      +11

Impacted Files	Coverage Δ
src/forces.F90	`82.63% <0.00%> (-0.60%)`	⬇️
src/potentials.F90	`18.26% <0.00%> (-0.09%)`	⬇️
src/force_tera.F90	`0.00% <0.00%> (ø)`
src/force_terash.F90	`0.00% <0.00%> (ø)`
src/remd.F90	`83.92% <0.00%> (+0.29%)`	⬆️

danielhollas · 2021-01-20T19:27:11Z

        sudo update-alternatives --install /usr/bin/gcc gcc /usr/bin/gcc-${GCC_V} 100 \
-        --slave /usr/bin/gfortran gfortran /usr/bin/gfortran-${GCC_V}
+        --slave /usr/bin/gfortran gfortran /usr/bin/gfortran-${GCC_V} \
+        --slave /usr/bin/gcov gcov /usr/bin/gcov-${GCC_V}


Code coverage for non-default GCC (8 and 9) was failing before this change.

danielhollas · 2021-01-20T19:29:15Z

      fail-fast: false
      matrix:
         plumed_v: [2.5.3, 2.6.2, 2.7.0]
+         gcc_v: [7]


Because the GGC_V variable was not specified, we weren't reusing the pFUnit cache.

danielhollas · 2021-01-20T19:30:18Z

 # Used for building Unit Tests
 libabin.a: compile_info.o
-	ar cru libabin.a ${C_OBJS} $(F_OBJS) compile_info.o && ranlib libabin.a
+	ar rcs libabin.a ${C_OBJS} $(F_OBJS) compile_info.o


According to man ranlib:

The GNU ranlib program is another form of GNU ar; running ranlib is completely equivalent to executing ar -s

danielhollas · 2021-01-27T17:30:49Z

      FC: gfortran
      FFLAGS: -O0 -fopenmp -Wall --coverage -ffpe-trap=invalid,zero,overflow,denormal
      GCC_V: ${{ matrix.gcc_v}}
+      CODECOV_NAME: ${{format('{0} GCC{1}', github.job, matrix.gcc_v)}}


This is needed to debug missing Codecov reports, otherwise I cannot distinguish in the Codecov UI which jobs uploaded reports successfully.

danielhollas · 2021-01-27T18:00:45Z

      with:
        path: ~/plumed/${{ env.PLUMED_V }}/install
-        key: ${{runner.os}}-plumed${{env.PLUMED_V}}-${{hashFiles('dev_scripts/install_plumed.sh')}}
+        key: ${{runner.os}}-plumed${{env.PLUMED_V}}-gcc${{ env.GCC_V }}-${{hashFiles('dev_scripts/install_plumed.sh')}}


To clear the cache in case we decide to change the GCC version in the future.

danielhollas · 2021-01-28T16:41:01Z

+
+    # TODO: Separate unit test coverage
+    - name: Upload code coverage to Codecov
+      run:  cd src && bash <(curl -s https://codecov.io/bash) $CODECOV_OPTIONS -U "$CURL_OPTS"


It looks like gcov is working better when running directly on the src/ directory. Before this change some builds were sometimes missing or empty (specifically for GCC-8 and GCC-9 builds).

danielhollas · 2021-01-28T17:40:13Z

@suchanj this is finally ready for review. 🎉

It took me a long time to stabilize the Codecov behavior, now it seems to do the trick, it seems that the BASH uploader needs to be from within the src/ directory.

The coverage changes are a bit puzzling, but I verified that all of them are correct, i.e. from the code that we do not currently test. I guess these lines were not picked up with gcov-7, and they showed up now that the coverage reports work when compiling with GCC8 and GCC9 (see comments inline).

- Codecov reports from with GFortran 8 and 9 were crashing because we were not setting the correct 'gcov' version. - Some caches were not used incorrectly. The GA config is getting a bit unwieldy. :-( - GA: Pin Ubuntu version to 18.04: Github will soon switch it's 'ubuntu-latest' runner to 'ubuntu-20.04' and we're not ready: 1. Some tests are failing with minor numerical differences on 20.04 Hopefully this get's solved with #27. 2. Some jobs in GFortran CI config now rely on the fact that the default GCC/GFortran version is 7. We'll need to make that explicit if we want to switch to 20.04. We want to keep the default version = 7 since that's the one we're using on the PHOTOX clusters. 3. Given our ancient Linux versions on PHOTOX clusters, it probably makes sense to stick to 18.04 for now. (and maybe in the future switch one job to 20.04) - GA: Separate unit tests from end-to-end tests This is just for a convenience, to make it easier to inspect Github Action workflows. This will matter more as we'll add more unit tests. :-) This also makes the Makefile a bit more consistent; treating e2e and unit tests on equal footing.

danielhollas · 2021-01-28T17:50:54Z

      FC: gfortran
      FFLAGS: -O0 -fopenmp -Wall --coverage -ffpe-trap=invalid,zero,overflow,denormal
      GCC_V: ${{ matrix.gcc_v}}
+      CODECOV_NAME: ${{format('{0} GCC-{1}', github.job, matrix.gcc_v)}}

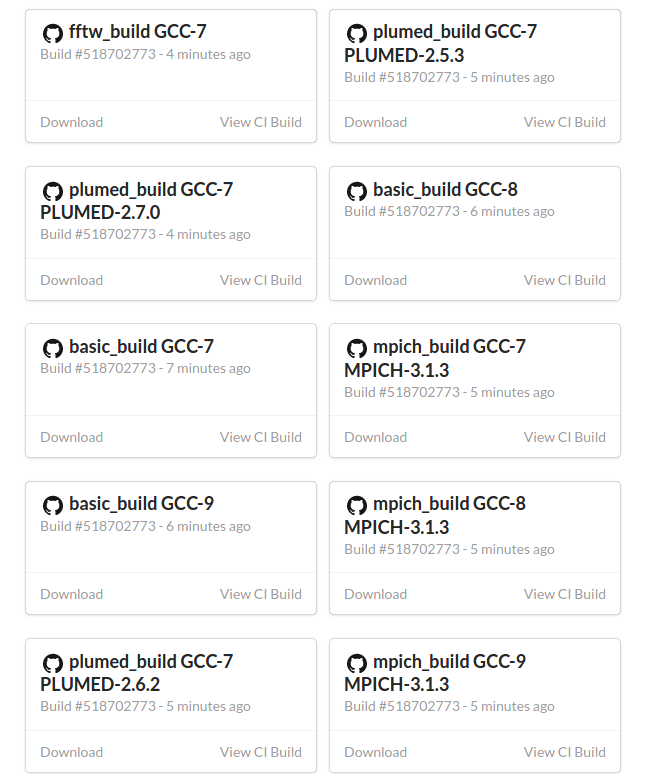

This is useful when debuggin builds uploaded from codecov. Otherwise, they are not distiguishable. Here's how it looks now, e.g.

https://codecov.io/gh/PHOTOX/ABIN/commit/2860c44af6aad41e4730f4b9bc75bc126b4f1e36/build

suchanj · 2021-02-01T09:03:14Z

Ok, it is getting harder to keep up :D, but I got the gist of it.

danielhollas self-assigned this Jan 20, 2021

danielhollas added the testing Any changes to Github Actions or testing scripts. label Jan 20, 2021

danielhollas force-pushed the separate-unittests branch 4 times, most recently from ffd8f7c to 5ff5cc8 Compare January 20, 2021 17:27

danielhollas force-pushed the separate-unittests branch from 5ff5cc8 to a35f188 Compare January 20, 2021 19:19

danielhollas commented Jan 20, 2021

View reviewed changes

danielhollas force-pushed the separate-unittests branch from a35f188 to c707b9e Compare January 20, 2021 20:17

danielhollas marked this pull request as ready for review January 20, 2021 20:28

danielhollas commented Jan 27, 2021

View reviewed changes

danielhollas force-pushed the separate-unittests branch 4 times, most recently from c52ec27 to 62145aa Compare January 28, 2021 16:30

danielhollas commented Jan 28, 2021

View reviewed changes

danielhollas force-pushed the separate-unittests branch from 62145aa to f800fc7 Compare January 28, 2021 16:46

danielhollas requested a review from suchanj January 28, 2021 16:50

danielhollas changed the title ~~Separate unit tests on GA~~ Tweaks and fixes for GA and Codecov configs Jan 28, 2021

danielhollas force-pushed the separate-unittests branch from f800fc7 to 8719070 Compare January 28, 2021 17:27

danielhollas force-pushed the separate-unittests branch from 8719070 to 2860c44 Compare January 28, 2021 17:41

danielhollas commented Jan 28, 2021

View reviewed changes

suchanj approved these changes Feb 1, 2021

View reviewed changes

danielhollas merged commit 20acee4 into master Feb 1, 2021

danielhollas deleted the separate-unittests branch February 1, 2021 09:12
