diff --git a/LAB6.md b/LAB6.md
deleted file mode 100644
index d63f0a075..000000000
--- a/LAB6.md
+++ /dev/null
@@ -1,62 +0,0 @@
-# 6
-
-## Ansible 2
-
-### 6 points
-
-In this lab you need to use ansible to prepare a CD process for your application.
-
-1. Create an ansible role for your application's docker image deployment.
-2. Update a playbook.
-3. Run your playbook (deploy the role) and provide 50 last lines of the output of the your deployment command in the `ANSIBLE.md` file.
-
-### 4 points
-
-1. Group tasks with blocks.
-2. For your web_app role set the role dependency - the `docker` role.
-3. Apply tags.
-4. Create a yml file with **Wipe** logic for your app (remove your docker container and all related files), test it. It should be enabled by a variable, like `web_app_full_wipe=true`.
-5. Use different tag for the **Wipe** part, so it should be possible to run it separately from the main tasks.
-6. Create a `docker-compose.yml` file for your app.
-7. Use a `template` module to deliver your `docker-compose.yml` file to a server.
-
-Suggested structure:
-
- ```sh
- .
- |-- defaults
- | `-- main.yml
- |-- meta
- | `-- main.yml
- |-- tasks
- | |-- 0-wipe.yml
- | `-- main.yml
- `-- templates
- `-- docker-compose.yml.j2
- ```
-
-## Bonus
-
-### 4 points
-
-CD improvement:
-
-1. Create an extra playbook for your bonus app, reuse your existing role.
-
-Suggested structure:
-
- ```sh
- .
- `--ansible
- `-- playbooks
- `-- dev
- |-- app_python
- | `-- main.yaml
- `-- app_go
- `-- main.yaml
- ```
-
-Application improvements:
-
-1. Implement any metrics to your app.
-2. Implement a healthcheck.
diff --git a/LAB7.md b/LAB7.md
new file mode 100644
index 000000000..f2762694c
--- /dev/null
+++ b/LAB7.md
@@ -0,0 +1,31 @@
+# 7
+
+## Monitoring: logging
+
+In this lab you need to get familiar with a logging stack - Promtail, Loki, Grafana. Then prepare a docker-compose file and config files to setup the stack.
+
+### 10 points
+
+1. Read about the logging stack:
+
+ * https://grafana.com/go/webinar/loki-getting-started/
+ * https://grafana.com/docs/loki/latest/overview/
+
+2. Prepare a docker-compose file with the stack and your app.
+
+ * [examples of docker-compose](https://github.com/grafana/loki)
+ * [example of promtail configuration](https://github.com/black-rosary/loki-nginx), but be smart
+
+3. Test that it works, prepare a `LOGGING.md` report.
+4. Create a monitoring folder, put report, docker-compose.yml and config files inside.
+5. Provide screenshots of your success in the report.
+6. Create a PR to the forked repo lab7 branch, ask your teammates to review it and review PRs of your teammates.
+7. Create a PR in your own repository from the lab7 branch to the lab6 one. It will help us with grading.
+
+## Bonus
+
+### 2 points
+
+1. Add your extra app to the `docker-compose.yml`.
+2. Configure stack to get logs from all containers from docker-compose.yml. Provide
+screenshots of your success in the report.
diff --git a/monitoring/LOGGING.md b/monitoring/LOGGING.md
new file mode 100644
index 000000000..0e437dfaf
--- /dev/null
+++ b/monitoring/LOGGING.md
@@ -0,0 +1,9 @@
+# Logging
+

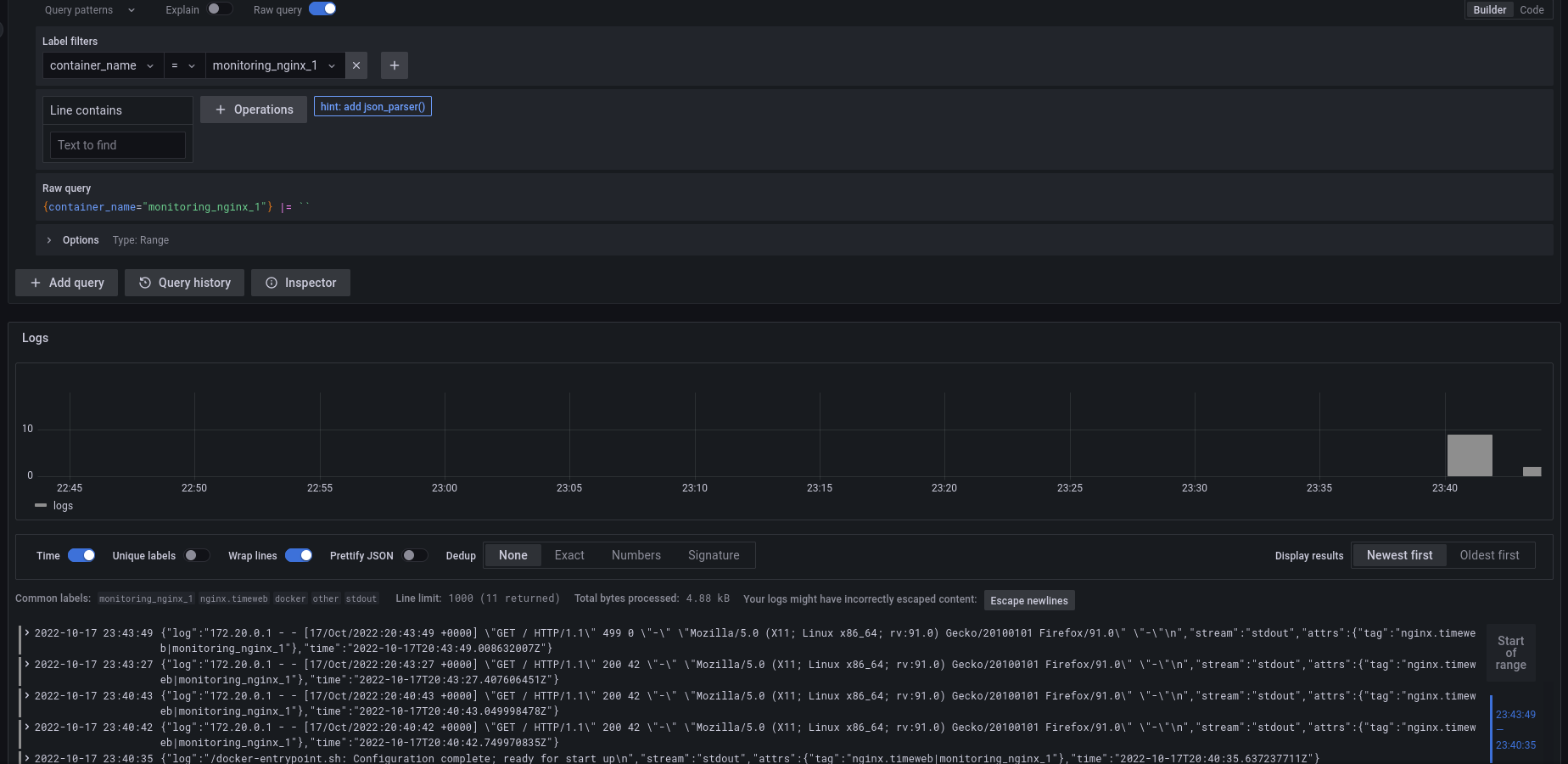

+Match timeweb proxy container logs:
+
+
+

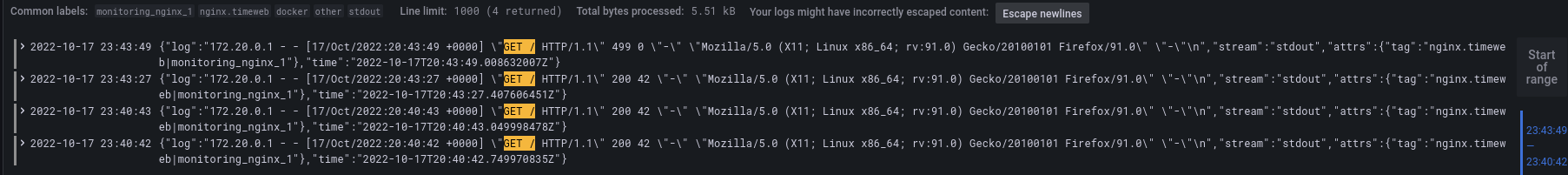

+Filter by `GET /`:
+
+
diff --git a/monitoring/docker-compose.yml b/monitoring/docker-compose.yml
new file mode 100644
index 000000000..765e6f30c
--- /dev/null
+++ b/monitoring/docker-compose.yml
@@ -0,0 +1,60 @@
+version: '3.3'
+services:
+ timeweb:
+ image: passkeyra/timeweb:latest
+ restart: unless-stopped
+
+ nginx:
+ build: ./nginx
+ image: nginx.timeweb
+ ports:
+ - "80:80"
+ restart: unless-stopped
+ logging:
+ driver: "json-file"
+ options:
+ max-size: "100m"
+ max-file: "10"
+ tag: "{{.ImageName}}|{{.Name}}"
+
+ grafana:
+ image: grafana/grafana
+ ports:
+ - 3000:3000
+ volumes:
+ - grafana_data:/var/lib/grafana
+ - ./grafana/provisioning/:/etc/grafana/provisioning/
+ env_file:
+ - ./grafana/config.monitoring
+ restart: unless-stopped
+
+ promtail:
+ image: grafana/promtail
+ expose:
+ - 9080
+ ports:
+ - "9080:9080"
+ volumes:
+ - /var/lib/docker/containers:/var/lib/docker/containers:ro
+ - promtail_data:/var/lib/promtail/positions
+ - ./promtail/promtail.yml:/etc/promtail/promtail.yml
+ command:
+ - '-config.file=/etc/promtail/promtail.yml'
+ restart: unless-stopped
+
+ loki:
+ image: grafana/loki
+ expose:
+ - 3100
+ ports:
+ - "3100:3100"
+ volumes:
+ - ./loki/loki-config.yml:/etc/loki-config.yml
+ - loki_data:/loki
+ command: -config.file=/etc/loki-config.yml
+ restart: unless-stopped
+
+volumes:
+ grafana_data: {}
+ loki_data: {}
+ promtail_data: {}
diff --git a/monitoring/grafana/config.monitoring b/monitoring/grafana/config.monitoring
new file mode 100644
index 000000000..798c14acf
--- /dev/null
+++ b/monitoring/grafana/config.monitoring
@@ -0,0 +1,3 @@
+GF_SECURITY_ADMIN_USER=admin
+GF_SECURITY_ADMIN_PASSWORD=gO/JrMlJorSkUJcg
+GF_USERS_ALLOW_SIGN_UP=false
diff --git a/monitoring/grafana/provisioning/dashboards/dashboard.yml b/monitoring/grafana/provisioning/dashboards/dashboard.yml
new file mode 100644
index 000000000..14716ee19
--- /dev/null
+++ b/monitoring/grafana/provisioning/dashboards/dashboard.yml
@@ -0,0 +1,11 @@
+apiVersion: 1
+
+providers:
+- name: 'Prometheus'
+ orgId: 1
+ folder: ''
+ type: file
+ disableDeletion: false
+ editable: true
+ options:
+ path: /etc/grafana/provisioning/dashboards
diff --git a/monitoring/grafana/provisioning/dashboards/monitor_services.json b/monitoring/grafana/provisioning/dashboards/monitor_services.json
new file mode 100644
index 000000000..3d955a407
--- /dev/null
+++ b/monitoring/grafana/provisioning/dashboards/monitor_services.json
@@ -0,0 +1,3412 @@
+{
+ "id": null,
+ "title": "Monitor Services",
+ "tags": [
+ "prometheus"
+ ],
+ "style": "dark",
+ "timezone": "browser",
+ "editable": true,
+ "hideControls": false,
+ "sharedCrosshair": true,
+ "panels": [
+ {
+ "cacheTimeout": null,
+ "colorBackground": false,
+ "colorValue": false,
+ "colors": [
+ "rgba(245, 54, 54, 0.9)",
+ "rgba(237, 129, 40, 0.89)",
+ "rgba(50, 172, 45, 0.97)"
+ ],
+ "datasource": "Prometheus",
+ "decimals": 1,
+ "editable": true,
+ "error": false,
+ "format": "s",
+ "gauge": {
+ "maxValue": 100,
+ "minValue": 0,
+ "show": false,
+ "thresholdLabels": false,
+ "thresholdMarkers": true
+ },
+ "gridPos": {
+ "h": 3,
+ "w": 6,
+ "x": 0,
+ "y": 0
+ },
+ "hideTimeOverride": true,
+ "id": 1,
+ "interval": null,
+ "links": [],
+ "mappingType": 1,
+ "mappingTypes": [
+ {
+ "name": "value to text",
+ "value": 1
+ },
+ {
+ "name": "range to text",
+ "value": 2
+ }
+ ],
+ "maxDataPoints": 100,
+ "nullPointMode": "connected",
+ "nullText": null,
+ "postfix": "s",
+ "postfixFontSize": "80%",
+ "prefix": "",
+ "prefixFontSize": "50%",
+ "rangeMaps": [
+ {
+ "from": "null",
+ "text": "N/A",
+ "to": "null"
+ }
+ ],
+ "sparkline": {
+ "fillColor": "rgba(31, 118, 189, 0.18)",
+ "full": false,
+ "lineColor": "rgb(31, 120, 193)",
+ "show": false
+ },
+ "tableColumn": "",
+ "targets": [
+ {
+ "expr": "(time() - process_start_time_seconds{instance=\"localhost:9090\",job=\"prometheus\"})",
+ "interval": "10s",
+ "intervalFactor": 1,
+ "legendFormat": "",
+ "refId": "A",
+ "step": 10
+ }
+ ],
+ "thresholds": "",
+ "timeFrom": "10s",
+ "timeShift": null,
+ "title": "Prometheus Uptime",
+ "type": "singlestat",
+ "valueFontSize": "80%",
+ "valueMaps": [
+ {
+ "op": "=",
+ "text": "N/A",
+ "value": "null"
+ }
+ ],
+ "valueName": "avg"
+ },
+ {
+ "cacheTimeout": null,
+ "colorBackground": false,
+ "colorValue": false,
+ "colors": [
+ "rgba(245, 54, 54, 0.9)",
+ "rgba(237, 129, 40, 0.89)",
+ "rgba(50, 172, 45, 0.97)"
+ ],
+ "datasource": "Prometheus",
+ "decimals": 2,
+ "editable": true,
+ "error": false,
+ "format": "bytes",
+ "gauge": {
+ "maxValue": 100,
+ "minValue": 0,
+ "show": false,
+ "thresholdLabels": false,
+ "thresholdMarkers": true
+ },
+ "gridPos": {
+ "h": 3,
+ "w": 6,
+ "x": 6,
+ "y": 0
+ },
+ "hideTimeOverride": true,
+ "id": 5,
+ "interval": null,
+ "links": [],
+ "mappingType": 1,
+ "mappingTypes": [
+ {
+ "name": "value to text",
+ "value": 1
+ },
+ {
+ "name": "range to text",
+ "value": 2
+ }
+ ],
+ "maxDataPoints": 100,
+ "nullPointMode": "connected",
+ "nullText": null,
+ "postfix": "",
+ "postfixFontSize": "50%",
+ "prefix": "",
+ "prefixFontSize": "50%",
+ "rangeMaps": [
+ {
+ "from": "null",
+ "text": "N/A",
+ "to": "null"
+ }
+ ],
+ "sparkline": {
+ "fillColor": "rgba(31, 118, 189, 0.18)",
+ "full": false,
+ "lineColor": "rgb(31, 120, 193)",
+ "show": false
+ },
+ "tableColumn": "",
+ "targets": [
+ {
+ "expr": "sum(container_memory_usage_bytes{container_label_org_label_schema_group=\"monitoring\"})",
+ "format": "time_series",
+ "interval": "10s",
+ "intervalFactor": 1,
+ "legendFormat": "",
+ "refId": "A",
+ "step": 10
+ }
+ ],
+ "thresholds": "",
+ "timeFrom": "10s",
+ "timeShift": null,
+ "title": "Memory Usage",
+ "type": "singlestat",
+ "valueFontSize": "80%",
+ "valueMaps": [
+ {
+ "op": "=",
+ "text": "N/A",
+ "value": "null"
+ }
+ ],
+ "valueName": "avg"
+ },
+ {
+ "cacheTimeout": null,
+ "colorBackground": false,
+ "colorValue": false,
+ "colors": [
+ "rgba(245, 54, 54, 0.9)",
+ "rgba(237, 129, 40, 0.89)",
+ "rgba(50, 172, 45, 0.97)"
+ ],
+ "datasource": "Prometheus",
+ "editable": true,
+ "error": false,
+ "format": "none",
+ "gauge": {
+ "maxValue": 100,
+ "minValue": 0,
+ "show": false,
+ "thresholdLabels": false,
+ "thresholdMarkers": true
+ },
+ "gridPos": {
+ "h": 3,
+ "w": 6,
+ "x": 12,
+ "y": 0
+ },
+ "hideTimeOverride": true,
+ "id": 3,
+ "interval": null,
+ "links": [],
+ "mappingType": 1,
+ "mappingTypes": [
+ {
+ "name": "value to text",
+ "value": 1
+ },
+ {
+ "name": "range to text",
+ "value": 2
+ }
+ ],
+ "maxDataPoints": 100,
+ "nullPointMode": "connected",
+ "nullText": null,
+ "postfix": "",
+ "postfixFontSize": "50%",
+ "prefix": "",
+ "prefixFontSize": "50%",
+ "rangeMaps": [
+ {
+ "from": "null",
+ "text": "N/A",
+ "to": "null"
+ }
+ ],
+ "sparkline": {
+ "fillColor": "rgba(31, 118, 189, 0.18)",
+ "full": false,
+ "lineColor": "rgb(31, 120, 193)",
+ "show": false
+ },
+ "tableColumn": "",
+ "targets": [
+ {
+ "expr": "prometheus_tsdb_head_chunks",
+ "interval": "10s",
+ "intervalFactor": 1,
+ "refId": "A",
+ "step": 10
+ }
+ ],
+ "thresholds": "",
+ "timeFrom": "10s",
+ "timeShift": null,
+ "title": "In-Memory Chunks",
+ "type": "singlestat",
+ "valueFontSize": "80%",
+ "valueMaps": [
+ {
+ "op": "=",
+ "text": "N/A",
+ "value": "null"
+ }
+ ],
+ "valueName": "avg"
+ },
+ {
+ "cacheTimeout": null,
+ "colorBackground": false,
+ "colorValue": false,
+ "colors": [
+ "rgba(245, 54, 54, 0.9)",
+ "rgba(237, 129, 40, 0.89)",
+ "rgba(50, 172, 45, 0.97)"
+ ],
+ "datasource": "Prometheus",
+ "editable": true,
+ "error": false,
+ "format": "none",
+ "gauge": {
+ "maxValue": 100,
+ "minValue": 0,
+ "show": false,
+ "thresholdLabels": false,
+ "thresholdMarkers": true
+ },
+ "gridPos": {
+ "h": 3,
+ "w": 6,
+ "x": 18,
+ "y": 0
+ },
+ "hideTimeOverride": true,
+ "id": 2,
+ "interval": null,
+ "links": [],
+ "mappingType": 1,
+ "mappingTypes": [
+ {
+ "name": "value to text",
+ "value": 1
+ },
+ {
+ "name": "range to text",
+ "value": 2
+ }
+ ],
+ "maxDataPoints": 100,
+ "nullPointMode": "connected",
+ "nullText": null,
+ "postfix": "",
+ "postfixFontSize": "50%",
+ "prefix": "",
+ "prefixFontSize": "50%",
+ "rangeMaps": [
+ {
+ "from": "null",
+ "text": "N/A",
+ "to": "null"
+ }
+ ],
+ "sparkline": {
+ "fillColor": "rgba(31, 118, 189, 0.18)",
+ "full": false,
+ "lineColor": "rgb(31, 120, 193)",
+ "show": false
+ },
+ "tableColumn": "",
+ "targets": [
+ {
+ "expr": "prometheus_tsdb_head_series",
+ "interval": "10s",
+ "intervalFactor": 1,
+ "refId": "A",
+ "step": 10
+ }
+ ],
+ "thresholds": "",
+ "timeFrom": "10s",
+ "timeShift": null,
+ "title": "In-Memory Series",
+ "type": "singlestat",
+ "valueFontSize": "80%",
+ "valueMaps": [
+ {
+ "op": "=",
+ "text": "N/A",
+ "value": "null"
+ }
+ ],
+ "valueName": "avg"
+ },
+ {
+ "aliasColors": {},
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "decimals": 2,
+ "editable": true,
+ "error": false,
+ "fill": 1,
+ "grid": {},
+ "gridPos": {
+ "h": 7,
+ "w": 24,
+ "x": 0,
+ "y": 3
+ },
+ "id": 6,
+ "legend": {
+ "alignAsTable": true,
+ "avg": true,
+ "current": false,
+ "max": true,
+ "min": true,
+ "rightSide": true,
+ "show": true,
+ "total": false,
+ "values": true
+ },
+ "lines": true,
+ "linewidth": 2,
+ "links": [],
+ "nullPointMode": "connected",
+ "percentage": false,
+ "pointradius": 5,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [],
+ "spaceLength": 10,
+ "stack": false,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "sum by (name) (rate(container_cpu_user_seconds_total{container_label_org_label_schema_group=\"monitoring\"}[1m]) * 100 / scalar(count(node_cpu{mode=\"user\"})))",
+ "format": "time_series",
+ "hide": true,
+ "intervalFactor": 10,
+ "legendFormat": "{{ name }}",
+ "refId": "A",
+ "step": 10
+ },
+ {
+ "expr": "sum by (name) (rate(container_cpu_user_seconds_total{container_label_org_label_schema_group=\"monitoring\"}[1m]) * 100 / scalar(count(node_cpu_seconds_total{mode=\"user\"})))",
+ "format": "time_series",
+ "intervalFactor": 10,
+ "legendFormat": "{{ name }}",
+ "refId": "B"
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "Container CPU Usage",
+ "tooltip": {
+ "msResolution": true,
+ "shared": true,
+ "sort": 2,
+ "value_type": "cumulative"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "format": "percent",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": true
+ },
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": true
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {},
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "decimals": 2,
+ "editable": true,
+ "error": false,
+ "fill": 1,
+ "grid": {},
+ "gridPos": {
+ "h": 7,
+ "w": 24,
+ "x": 0,
+ "y": 10
+ },
+ "id": 7,
+ "legend": {
+ "alignAsTable": true,
+ "avg": true,
+ "current": false,
+ "max": true,
+ "min": true,
+ "rightSide": true,
+ "show": true,
+ "total": false,
+ "values": true
+ },
+ "lines": true,
+ "linewidth": 2,
+ "links": [],
+ "nullPointMode": "connected",
+ "percentage": false,
+ "pointradius": 5,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [],
+ "spaceLength": 10,
+ "stack": false,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "sum by (name) (container_memory_usage_bytes{container_label_org_label_schema_group=\"monitoring\"})",
+ "format": "time_series",
+ "interval": "",
+ "intervalFactor": 10,
+ "legendFormat": "{{ name }}",
+ "metric": "container_memory_usage_bytes",
+ "refId": "A",
+ "step": 10
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "Container Memory Usage",
+ "tooltip": {
+ "msResolution": true,
+ "shared": true,
+ "sort": 2,
+ "value_type": "cumulative"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "format": "bytes",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": true
+ },
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": false
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {},
+ "bars": true,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "decimals": 0,
+ "editable": true,
+ "error": false,
+ "fill": 1,
+ "grid": {},
+ "gridPos": {
+ "h": 7,
+ "w": 24,
+ "x": 0,
+ "y": 17
+ },
+ "id": 73,
+ "legend": {
+ "alignAsTable": true,
+ "avg": false,
+ "current": true,
+ "max": false,
+ "min": false,
+ "rightSide": true,
+ "show": true,
+ "total": false,
+ "values": true
+ },
+ "lines": false,
+ "linewidth": 2,
+ "links": [],
+ "nullPointMode": "connected",
+ "percentage": false,
+ "pointradius": 5,
+ "points": true,
+ "renderer": "flot",
+ "seriesOverrides": [],
+ "spaceLength": 10,
+ "stack": false,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "sum(ALERTS{alertstate=\"firing\"}) by (alertname)",
+ "format": "time_series",
+ "interval": "30s",
+ "intervalFactor": 1,
+ "legendFormat": "{{ alertname }}",
+ "metric": "container_memory_usage_bytes",
+ "refId": "A",
+ "step": 10
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "Alerts",
+ "tooltip": {
+ "msResolution": true,
+ "shared": false,
+ "sort": 0,
+ "value_type": "cumulative"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": "0",
+ "show": true
+ },
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": false
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "collapsed": false,
+ "gridPos": {
+ "h": 1,
+ "w": 24,
+ "x": 0,
+ "y": 24
+ },
+ "id": 22,
+ "panels": [],
+ "repeat": null,
+ "title": "Prometheus Metrics",
+ "type": "row"
+ },
+ {
+ "aliasColors": {
+ "Max": "#e24d42",
+ "Open": "#508642"
+ },
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "fill": 1,
+ "gridPos": {
+ "h": 7,
+ "w": 8,
+ "x": 0,
+ "y": 25
+ },
+ "id": 18,
+ "legend": {
+ "alignAsTable": true,
+ "avg": true,
+ "current": true,
+ "max": true,
+ "min": true,
+ "show": true,
+ "total": false,
+ "values": true
+ },
+ "lines": true,
+ "linewidth": 2,
+ "links": [],
+ "nullPointMode": "null",
+ "percentage": false,
+ "pointradius": 5,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [],
+ "spaceLength": 10,
+ "stack": false,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "process_max_fds{job=\"prometheus\"}",
+ "format": "time_series",
+ "intervalFactor": 1,
+ "legendFormat": "Max",
+ "refId": "A"
+ },
+ {
+ "expr": "process_open_fds{job=\"prometheus\"}",
+ "format": "time_series",
+ "intervalFactor": 1,
+ "legendFormat": "Open",
+ "refId": "B"
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "File Descriptors",
+ "tooltip": {
+ "shared": true,
+ "sort": 0,
+ "value_type": "individual"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": true
+ },
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": false
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {
+ "Allocated bytes": "#7EB26D",
+ "Allocated bytes - 1m max": "#BF1B00",
+ "Allocated bytes - 1m min": "#BF1B00",
+ "Allocated bytes - 5m max": "#BF1B00",
+ "Allocated bytes - 5m min": "#BF1B00",
+ "Chunks": "#1F78C1",
+ "Chunks to persist": "#508642",
+ "Max chunks": "#052B51",
+ "Max to persist": "#3F6833",
+ "RSS": "#447EBC"
+ },
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "decimals": null,
+ "editable": true,
+ "error": false,
+ "fill": 1,
+ "gridPos": {
+ "h": 7,
+ "w": 8,
+ "x": 8,
+ "y": 25
+ },
+ "id": 58,
+ "legend": {
+ "alignAsTable": true,
+ "avg": true,
+ "current": true,
+ "max": true,
+ "min": true,
+ "show": true,
+ "total": false,
+ "values": true
+ },
+ "lines": true,
+ "linewidth": 2,
+ "links": [],
+ "nullPointMode": "null",
+ "percentage": false,
+ "pointradius": 5,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [
+ {
+ "alias": "/-/",
+ "fill": 0
+ }
+ ],
+ "spaceLength": 10,
+ "stack": false,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "process_resident_memory_bytes{job=\"prometheus\"}",
+ "format": "time_series",
+ "intervalFactor": 2,
+ "legendFormat": "RSS",
+ "metric": "process_resident_memory_bytes",
+ "refId": "B",
+ "step": 10
+ },
+ {
+ "expr": "prometheus_local_storage_target_heap_size_bytes{job=\"prometheus\"}",
+ "format": "time_series",
+ "intervalFactor": 2,
+ "legendFormat": "Target heap size",
+ "metric": "go_memstats_alloc_bytes",
+ "refId": "D",
+ "step": 10
+ },
+ {
+ "expr": "go_memstats_next_gc_bytes{job=\"prometheus\"}",
+ "format": "time_series",
+ "intervalFactor": 2,
+ "legendFormat": "Next GC",
+ "metric": "go_memstats_next_gc_bytes",
+ "refId": "C",
+ "step": 10
+ },
+ {
+ "expr": "go_memstats_alloc_bytes{job=\"prometheus\"}",
+ "format": "time_series",
+ "intervalFactor": 2,
+ "legendFormat": "Allocated",
+ "metric": "go_memstats_alloc_bytes",
+ "refId": "A",
+ "step": 10
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "Memory",
+ "tooltip": {
+ "msResolution": false,
+ "shared": true,
+ "sort": 0,
+ "value_type": "individual"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "format": "bytes",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": "0",
+ "show": true
+ },
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": false
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {
+ "Allocated bytes": "#F9BA8F",
+ "Chunks": "#1F78C1",
+ "Chunks to persist": "#508642",
+ "Max chunks": "#052B51",
+ "Max to persist": "#3F6833",
+ "RSS": "#890F02"
+ },
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "editable": true,
+ "error": false,
+ "fill": 1,
+ "gridPos": {
+ "h": 7,
+ "w": 8,
+ "x": 16,
+ "y": 25
+ },
+ "id": 60,
+ "legend": {
+ "alignAsTable": true,
+ "avg": true,
+ "current": true,
+ "max": true,
+ "min": true,
+ "show": true,
+ "total": false,
+ "values": true
+ },
+ "lines": true,
+ "linewidth": 2,
+ "links": [],
+ "nullPointMode": "null",
+ "percentage": false,
+ "pointradius": 5,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [],
+ "spaceLength": 10,
+ "stack": false,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "rate(go_memstats_alloc_bytes_total{job=\"prometheus\"}[1m])",
+ "format": "time_series",
+ "intervalFactor": 2,
+ "legendFormat": "Allocated",
+ "metric": "go_memstats_alloc_bytes",
+ "refId": "A",
+ "step": 10
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "Allocations",
+ "tooltip": {
+ "msResolution": false,
+ "shared": true,
+ "sort": 0,
+ "value_type": "individual"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "format": "Bps",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": "0",
+ "show": true
+ },
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": false
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {
+ "Chunks": "#1F78C1",
+ "Chunks to persist": "#508642",
+ "Max chunks": "#052B51",
+ "Max to persist": "#3F6833",
+ "Time series": "#70dbed"
+ },
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "editable": true,
+ "error": false,
+ "fill": 1,
+ "gridPos": {
+ "h": 7,
+ "w": 8,
+ "x": 0,
+ "y": 32
+ },
+ "id": 20,
+ "legend": {
+ "alignAsTable": true,
+ "avg": true,
+ "current": true,
+ "max": true,
+ "min": true,
+ "show": true,
+ "total": false,
+ "values": true
+ },
+ "lines": true,
+ "linewidth": 2,
+ "links": [],
+ "nullPointMode": "null",
+ "percentage": false,
+ "pointradius": 5,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [],
+ "spaceLength": 10,
+ "stack": false,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "prometheus_tsdb_head_series",
+ "format": "time_series",
+ "intervalFactor": 2,
+ "legendFormat": "Time series",
+ "metric": "prometheus_local_storage_memory_series",
+ "refId": "A",
+ "step": 10
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "Head Time series",
+ "tooltip": {
+ "msResolution": false,
+ "shared": true,
+ "sort": 0,
+ "value_type": "individual"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": "0",
+ "show": true
+ },
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": false
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {
+ "Chunks": "#1F78C1",
+ "Chunks to persist": "#508642",
+ "Max chunks": "#052B51",
+ "Max to persist": "#3F6833"
+ },
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "editable": true,
+ "error": false,
+ "fill": 1,
+ "gridPos": {
+ "h": 7,
+ "w": 8,
+ "x": 8,
+ "y": 32
+ },
+ "id": 24,
+ "legend": {
+ "alignAsTable": true,
+ "avg": true,
+ "current": true,
+ "max": true,
+ "min": true,
+ "show": true,
+ "total": false,
+ "values": true
+ },
+ "lines": true,
+ "linewidth": 2,
+ "links": [],
+ "nullPointMode": "null",
+ "percentage": false,
+ "pointradius": 5,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [],
+ "spaceLength": 10,
+ "stack": false,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "prometheus_tsdb_head_active_appenders",
+ "format": "time_series",
+ "intervalFactor": 2,
+ "legendFormat": "Head Appenders",
+ "metric": "prometheus_local_storage_memory_series",
+ "refId": "A",
+ "step": 10
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "Head Active Appenders",
+ "tooltip": {
+ "msResolution": false,
+ "shared": true,
+ "sort": 0,
+ "value_type": "individual"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": "0",
+ "show": true
+ },
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": false
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {
+ "samples/s": "#e5a8e2"
+ },
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "editable": true,
+ "error": false,
+ "fill": 1,
+ "gridPos": {
+ "h": 7,
+ "w": 8,
+ "x": 16,
+ "y": 32
+ },
+ "id": 26,
+ "legend": {
+ "alignAsTable": true,
+ "avg": true,
+ "current": true,
+ "max": true,
+ "min": true,
+ "show": true,
+ "total": false,
+ "values": true
+ },
+ "lines": true,
+ "linewidth": 2,
+ "links": [],
+ "nullPointMode": "connected",
+ "percentage": false,
+ "pointradius": 5,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [],
+ "spaceLength": 10,
+ "stack": false,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "rate(prometheus_tsdb_head_samples_appended_total[1m])",
+ "format": "time_series",
+ "intervalFactor": 2,
+ "legendFormat": "Samples",
+ "metric": "prometheus_local_storage_ingested_samples_total",
+ "refId": "A",
+ "step": 10
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "Samples Appended",
+ "tooltip": {
+ "msResolution": false,
+ "shared": true,
+ "sort": 0,
+ "value_type": "individual"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "format": "Bps",
+ "label": "",
+ "logBase": 1,
+ "max": null,
+ "min": "0",
+ "show": true
+ },
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": false
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {
+ "Chunks": "#1F78C1",
+ "Chunks to persist": "#508642",
+ "Max chunks": "#052B51",
+ "Max to persist": "#3F6833",
+ "To persist": "#9AC48A"
+ },
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "editable": true,
+ "error": false,
+ "fill": 1,
+ "gridPos": {
+ "h": 7,
+ "w": 8,
+ "x": 0,
+ "y": 39
+ },
+ "id": 28,
+ "legend": {
+ "alignAsTable": true,
+ "avg": true,
+ "current": true,
+ "max": true,
+ "min": true,
+ "show": true,
+ "total": false,
+ "values": true
+ },
+ "lines": true,
+ "linewidth": 2,
+ "links": [],
+ "nullPointMode": "null",
+ "percentage": false,
+ "pointradius": 5,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [
+ {
+ "alias": "/Max.*/",
+ "fill": 0
+ }
+ ],
+ "spaceLength": 10,
+ "stack": false,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "prometheus_tsdb_head_chunks",
+ "format": "time_series",
+ "intervalFactor": 2,
+ "legendFormat": "Chunks",
+ "metric": "prometheus_local_storage_memory_chunks",
+ "refId": "A",
+ "step": 10
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "Head Chunks",
+ "tooltip": {
+ "msResolution": false,
+ "shared": true,
+ "sort": 0,
+ "value_type": "individual"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": "0",
+ "show": true
+ },
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": false
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {
+ "Chunks": "#1F78C1",
+ "Chunks to persist": "#508642",
+ "Max chunks": "#052B51",
+ "Max to persist": "#3F6833"
+ },
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "editable": true,
+ "error": false,
+ "fill": 1,
+ "gridPos": {
+ "h": 7,
+ "w": 8,
+ "x": 8,
+ "y": 39
+ },
+ "id": 30,
+ "legend": {
+ "alignAsTable": true,
+ "avg": true,
+ "current": true,
+ "max": true,
+ "min": true,
+ "show": true,
+ "total": false,
+ "values": true
+ },
+ "lines": true,
+ "linewidth": 2,
+ "links": [],
+ "nullPointMode": "null",
+ "percentage": false,
+ "pointradius": 5,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [],
+ "spaceLength": 10,
+ "stack": false,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "rate(prometheus_tsdb_head_chunks_created_total[1m])",
+ "format": "time_series",
+ "intervalFactor": 2,
+ "legendFormat": "Created",
+ "metric": "prometheus_local_storage_chunk_ops_total",
+ "refId": "A",
+ "step": 10
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "Head Chunks Created",
+ "tooltip": {
+ "msResolution": false,
+ "shared": true,
+ "sort": 0,
+ "value_type": "individual"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "format": "ops",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": "0",
+ "show": true
+ },
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": false
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {
+ "Chunks": "#1F78C1",
+ "Chunks to persist": "#508642",
+ "Max chunks": "#052B51",
+ "Max to persist": "#3F6833",
+ "Removed": "#e5ac0e"
+ },
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "editable": true,
+ "error": false,
+ "fill": 1,
+ "gridPos": {
+ "h": 7,
+ "w": 8,
+ "x": 16,
+ "y": 39
+ },
+ "id": 32,
+ "legend": {
+ "alignAsTable": true,
+ "avg": true,
+ "current": true,
+ "max": true,
+ "min": true,
+ "show": true,
+ "total": false,
+ "values": true
+ },
+ "lines": true,
+ "linewidth": 1,
+ "links": [],
+ "nullPointMode": "null",
+ "percentage": false,
+ "pointradius": 5,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [],
+ "spaceLength": 10,
+ "stack": false,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "rate(prometheus_tsdb_head_chunks_removed_total[1m])",
+ "format": "time_series",
+ "intervalFactor": 2,
+ "legendFormat": "Removed",
+ "metric": "prometheus_local_storage_chunk_ops_total",
+ "refId": "B",
+ "step": 10
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "Head Chunks Removed",
+ "tooltip": {
+ "msResolution": false,
+ "shared": true,
+ "sort": 0,
+ "value_type": "individual"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "format": "ops",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": "0",
+ "show": true
+ },
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": false
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {
+ "Chunks": "#1F78C1",
+ "Chunks to persist": "#508642",
+ "Max": "#447ebc",
+ "Max chunks": "#052B51",
+ "Max to persist": "#3F6833",
+ "Min": "#447ebc",
+ "Now": "#7eb26d"
+ },
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "editable": true,
+ "error": false,
+ "fill": 1,
+ "gridPos": {
+ "h": 7,
+ "w": 8,
+ "x": 0,
+ "y": 46
+ },
+ "id": 34,
+ "legend": {
+ "alignAsTable": false,
+ "avg": false,
+ "current": false,
+ "max": false,
+ "min": false,
+ "show": true,
+ "total": false,
+ "values": false
+ },
+ "lines": true,
+ "linewidth": 2,
+ "links": [],
+ "nullPointMode": "null",
+ "percentage": false,
+ "pointradius": 5,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [
+ {
+ "alias": "Max",
+ "fillBelowTo": "Min",
+ "lines": false
+ }
+ ],
+ "spaceLength": 10,
+ "stack": false,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "prometheus_tsdb_head_min_time",
+ "format": "time_series",
+ "intervalFactor": 2,
+ "legendFormat": "Min",
+ "metric": "prometheus_local_storage_series_chunks_persisted_count",
+ "refId": "A",
+ "step": 10
+ },
+ {
+ "expr": "time() * 1000",
+ "format": "time_series",
+ "hide": false,
+ "intervalFactor": 2,
+ "legendFormat": "Now",
+ "refId": "C"
+ },
+ {
+ "expr": "prometheus_tsdb_head_max_time",
+ "format": "time_series",
+ "intervalFactor": 2,
+ "legendFormat": "Max",
+ "metric": "prometheus_local_storage_series_chunks_persisted_count",
+ "refId": "B",
+ "step": 10
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "Head Time Range",
+ "tooltip": {
+ "msResolution": false,
+ "shared": true,
+ "sort": 0,
+ "value_type": "individual"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "decimals": null,
+ "format": "dateTimeAsIso",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": true
+ },
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": false
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {
+ "Chunks": "#1F78C1",
+ "Chunks to persist": "#508642",
+ "Max chunks": "#052B51",
+ "Max to persist": "#3F6833"
+ },
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "editable": true,
+ "error": false,
+ "fill": 1,
+ "gridPos": {
+ "h": 7,
+ "w": 8,
+ "x": 8,
+ "y": 46
+ },
+ "id": 36,
+ "legend": {
+ "alignAsTable": true,
+ "avg": true,
+ "current": true,
+ "max": true,
+ "min": true,
+ "show": true,
+ "total": false,
+ "values": true
+ },
+ "lines": true,
+ "linewidth": 2,
+ "links": [],
+ "nullPointMode": "null",
+ "percentage": false,
+ "pointradius": 5,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [],
+ "spaceLength": 10,
+ "stack": false,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "rate(prometheus_tsdb_head_gc_duration_seconds_sum[1m])",
+ "format": "time_series",
+ "intervalFactor": 2,
+ "legendFormat": "GC Time",
+ "metric": "prometheus_local_storage_series_chunks_persisted_count",
+ "refId": "A",
+ "step": 10
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "Head GC Time/s",
+ "tooltip": {
+ "msResolution": false,
+ "shared": true,
+ "sort": 0,
+ "value_type": "individual"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "format": "s",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": "0",
+ "show": true
+ },
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": false
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {
+ "Chunks": "#1F78C1",
+ "Chunks to persist": "#508642",
+ "Max chunks": "#052B51",
+ "Max to persist": "#3F6833"
+ },
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "editable": true,
+ "error": false,
+ "fill": 1,
+ "gridPos": {
+ "h": 7,
+ "w": 8,
+ "x": 16,
+ "y": 46
+ },
+ "id": 38,
+ "legend": {
+ "alignAsTable": true,
+ "avg": true,
+ "current": true,
+ "max": true,
+ "min": true,
+ "show": true,
+ "total": false,
+ "values": true
+ },
+ "lines": true,
+ "linewidth": 2,
+ "links": [],
+ "nullPointMode": "null",
+ "percentage": false,
+ "pointradius": 5,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [
+ {
+ "alias": "Queue length",
+ "yaxis": 2
+ }
+ ],
+ "spaceLength": 10,
+ "stack": false,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "prometheus_tsdb_blocks_loaded",
+ "format": "time_series",
+ "intervalFactor": 2,
+ "legendFormat": "Blocks Loaded",
+ "metric": "prometheus_local_storage_indexing_batch_sizes_sum",
+ "refId": "A",
+ "step": 10
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "Blocks Loaded",
+ "tooltip": {
+ "msResolution": false,
+ "shared": true,
+ "sort": 0,
+ "value_type": "individual"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": "0",
+ "show": true
+ },
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": "0",
+ "show": false
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {
+ "Chunks": "#1F78C1",
+ "Chunks to persist": "#508642",
+ "Failed Compactions": "#bf1b00",
+ "Failed Reloads": "#bf1b00",
+ "Max chunks": "#052B51",
+ "Max to persist": "#3F6833"
+ },
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "editable": true,
+ "error": false,
+ "fill": 1,
+ "gridPos": {
+ "h": 7,
+ "w": 8,
+ "x": 0,
+ "y": 53
+ },
+ "id": 40,
+ "legend": {
+ "alignAsTable": false,
+ "avg": false,
+ "current": false,
+ "max": false,
+ "min": false,
+ "show": true,
+ "total": false,
+ "values": false
+ },
+ "lines": true,
+ "linewidth": 2,
+ "links": [],
+ "nullPointMode": "null",
+ "percentage": false,
+ "pointradius": 5,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [],
+ "spaceLength": 10,
+ "stack": false,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "rate(prometheus_tsdb_reloads_total[10m])",
+ "format": "time_series",
+ "interval": "",
+ "intervalFactor": 2,
+ "legendFormat": "Reloads",
+ "metric": "prometheus_local_storage_series_chunks_persisted_count",
+ "refId": "A",
+ "step": 10
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "TSDB Reloads",
+ "tooltip": {
+ "msResolution": false,
+ "shared": true,
+ "sort": 0,
+ "value_type": "individual"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "format": "ops",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": "0",
+ "show": true
+ },
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": false
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {
+ "Chunks": "#1F78C1",
+ "Chunks to persist": "#508642",
+ "Failed Compactions": "#bf1b00",
+ "Max chunks": "#052B51",
+ "Max to persist": "#3F6833",
+ "{instance=\"demo.robustperception.io:9090\",job=\"prometheus\"}": "#bf1b00"
+ },
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "editable": true,
+ "error": false,
+ "fill": 1,
+ "gridPos": {
+ "h": 7,
+ "w": 8,
+ "x": 8,
+ "y": 53
+ },
+ "id": 44,
+ "legend": {
+ "alignAsTable": true,
+ "avg": true,
+ "current": true,
+ "max": true,
+ "min": true,
+ "show": true,
+ "total": false,
+ "values": true
+ },
+ "lines": true,
+ "linewidth": 2,
+ "links": [],
+ "nullPointMode": "null",
+ "percentage": false,
+ "pointradius": 5,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [],
+ "spaceLength": 10,
+ "stack": false,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "rate(prometheus_tsdb_wal_corruptions_total[10m])",
+ "format": "time_series",
+ "interval": "",
+ "intervalFactor": 2,
+ "legendFormat": "WAL Corruptions",
+ "metric": "prometheus_local_storage_series_chunks_persisted_count",
+ "refId": "A",
+ "step": 10
+ },
+ {
+ "expr": "rate(prometheus_tsdb_reloads_failures_total[10m])",
+ "format": "time_series",
+ "interval": "",
+ "intervalFactor": 2,
+ "legendFormat": "Reload Failures",
+ "metric": "prometheus_local_storage_series_chunks_persisted_count",
+ "refId": "B",
+ "step": 10
+ },
+ {
+ "expr": "rate(prometheus_tsdb_head_series_not_found[10m])",
+ "format": "time_series",
+ "interval": "",
+ "intervalFactor": 2,
+ "legendFormat": "Head Series Not Found",
+ "metric": "prometheus_local_storage_series_chunks_persisted_count",
+ "refId": "C",
+ "step": 10
+ },
+ {
+ "expr": "rate(prometheus_tsdb_compactions_failed_total[10m])",
+ "format": "time_series",
+ "interval": "",
+ "intervalFactor": 2,
+ "legendFormat": "Compaction Failures",
+ "metric": "prometheus_local_storage_series_chunks_persisted_count",
+ "refId": "D",
+ "step": 10
+ },
+ {
+ "expr": "rate(prometheus_tsdb_retention_cutoffs_failures_total[10m])",
+ "format": "time_series",
+ "interval": "",
+ "intervalFactor": 2,
+ "legendFormat": "Retention Cutoff Failures",
+ "metric": "prometheus_local_storage_series_chunks_persisted_count",
+ "refId": "E",
+ "step": 10
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "TSDB Problems",
+ "tooltip": {
+ "msResolution": false,
+ "shared": true,
+ "sort": 0,
+ "value_type": "individual"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "format": "none",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": "0",
+ "show": true
+ },
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": false
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {
+ "Chunks": "#1F78C1",
+ "Chunks to persist": "#508642",
+ "Failed Compactions": "#bf1b00",
+ "Max chunks": "#052B51",
+ "Max to persist": "#3F6833"
+ },
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "editable": true,
+ "error": false,
+ "fill": 1,
+ "gridPos": {
+ "h": 7,
+ "w": 8,
+ "x": 16,
+ "y": 53
+ },
+ "id": 42,
+ "legend": {
+ "alignAsTable": true,
+ "avg": true,
+ "current": true,
+ "max": true,
+ "min": true,
+ "show": true,
+ "total": false,
+ "values": true
+ },
+ "lines": true,
+ "linewidth": 2,
+ "links": [],
+ "nullPointMode": "null",
+ "percentage": false,
+ "pointradius": 5,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [],
+ "spaceLength": 10,
+ "stack": false,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "rate(prometheus_tsdb_wal_fsync_duration_seconds_sum[1m]) / rate(prometheus_tsdb_wal_fsync_duration_seconds_count[1m])",
+ "format": "time_series",
+ "interval": "",
+ "intervalFactor": 2,
+ "legendFormat": "Fsync Latency",
+ "metric": "prometheus_local_storage_series_chunks_persisted_count",
+ "refId": "A",
+ "step": 10
+ },
+ {
+ "expr": "rate(prometheus_tsdb_wal_truncate_duration_seconds_sum[1m]) / rate(prometheus_tsdb_wal_truncate_duration_seconds_count[1m])",
+ "format": "time_series",
+ "interval": "",
+ "intervalFactor": 2,
+ "legendFormat": "Truncate Latency",
+ "metric": "prometheus_local_storage_series_chunks_persisted_count",
+ "refId": "B",
+ "step": 10
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "WAL Latencies",
+ "tooltip": {
+ "msResolution": false,
+ "shared": true,
+ "sort": 0,
+ "value_type": "individual"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "format": "s",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": "0",
+ "show": true
+ },
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": false
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {
+ "Chunks": "#1F78C1",
+ "Chunks to persist": "#508642",
+ "Failed Compactions": "#bf1b00",
+ "Max chunks": "#052B51",
+ "Max to persist": "#3F6833"
+ },
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "editable": true,
+ "error": false,
+ "fill": 1,
+ "gridPos": {
+ "h": 7,
+ "w": 8,
+ "x": 0,
+ "y": 60
+ },
+ "id": 46,
+ "legend": {
+ "alignAsTable": true,
+ "avg": true,
+ "current": true,
+ "max": true,
+ "min": true,
+ "show": true,
+ "total": false,
+ "values": true
+ },
+ "lines": true,
+ "linewidth": 2,
+ "links": [],
+ "nullPointMode": "null",
+ "percentage": false,
+ "pointradius": 5,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [],
+ "spaceLength": 10,
+ "stack": false,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "rate(prometheus_tsdb_compactions_total[10m])",
+ "format": "time_series",
+ "interval": "",
+ "intervalFactor": 2,
+ "legendFormat": "Compactions",
+ "metric": "prometheus_local_storage_series_chunks_persisted_count",
+ "refId": "A",
+ "step": 10
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "Compactions",
+ "tooltip": {
+ "msResolution": false,
+ "shared": true,
+ "sort": 0,
+ "value_type": "individual"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "format": "none",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": "0",
+ "show": true
+ },
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": false
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {
+ "Chunks": "#1F78C1",
+ "Chunks to persist": "#508642",
+ "Max chunks": "#052B51",
+ "Max to persist": "#3F6833"
+ },
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "editable": true,
+ "error": false,
+ "fill": 1,
+ "gridPos": {
+ "h": 7,
+ "w": 8,
+ "x": 8,
+ "y": 60
+ },
+ "id": 48,
+ "legend": {
+ "alignAsTable": true,
+ "avg": true,
+ "current": true,
+ "max": true,
+ "min": true,
+ "show": true,
+ "total": false,
+ "values": true
+ },
+ "lines": true,
+ "linewidth": 2,
+ "links": [],
+ "nullPointMode": "null",
+ "percentage": false,
+ "pointradius": 5,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [],
+ "spaceLength": 10,
+ "stack": false,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "rate(prometheus_tsdb_compaction_duration_seconds_sum[10m])",
+ "format": "time_series",
+ "intervalFactor": 2,
+ "legendFormat": "Compaction Time",
+ "metric": "prometheus_local_storage_series_chunks_persisted_count",
+ "refId": "A",
+ "step": 10
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "Compaction Time",
+ "tooltip": {
+ "msResolution": false,
+ "shared": true,
+ "sort": 0,
+ "value_type": "individual"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "format": "s",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": "0",
+ "show": true
+ },
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": false
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {
+ "Allocated bytes": "#F9BA8F",
+ "Chunks": "#1F78C1",
+ "Chunks to persist": "#508642",
+ "Max chunks": "#052B51",
+ "Max to persist": "#3F6833",
+ "RSS": "#890F02"
+ },
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "editable": true,
+ "error": false,
+ "fill": 1,
+ "gridPos": {
+ "h": 7,
+ "w": 8,
+ "x": 16,
+ "y": 60
+ },
+ "id": 50,
+ "legend": {
+ "alignAsTable": true,
+ "avg": true,
+ "current": true,
+ "max": true,
+ "min": true,
+ "show": true,
+ "total": false,
+ "values": true
+ },
+ "lines": true,
+ "linewidth": 2,
+ "links": [],
+ "nullPointMode": "null",
+ "percentage": false,
+ "pointradius": 5,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [],
+ "spaceLength": 10,
+ "stack": false,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "rate(prometheus_tsdb_retention_cutoffs_total[10m])",
+ "format": "time_series",
+ "intervalFactor": 2,
+ "legendFormat": "Retention Cutoffs",
+ "metric": "last",
+ "refId": "A",
+ "step": 10
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "Retention Cutoffs",
+ "tooltip": {
+ "msResolution": false,
+ "shared": true,
+ "sort": 0,
+ "value_type": "individual"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "format": "none",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": "0",
+ "show": true
+ },
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": false
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {
+ "Chunks": "#1F78C1",
+ "Chunks to persist": "#508642",
+ "Max chunks": "#052B51",
+ "Max to persist": "#3F6833"
+ },
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "editable": true,
+ "error": false,
+ "fill": 1,
+ "gridPos": {
+ "h": 7,
+ "w": 8,
+ "x": 0,
+ "y": 67
+ },
+ "id": 56,
+ "legend": {
+ "alignAsTable": true,
+ "avg": true,
+ "current": true,
+ "max": true,
+ "min": true,
+ "show": true,
+ "total": false,
+ "values": true
+ },
+ "lines": true,
+ "linewidth": 2,
+ "links": [],
+ "nullPointMode": "null",
+ "percentage": false,
+ "pointradius": 5,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [],
+ "spaceLength": 10,
+ "stack": false,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "rate(prometheus_tsdb_compaction_chunk_samples_sum[10m]) / rate(prometheus_tsdb_compaction_chunk_samples_count[10m])",
+ "format": "time_series",
+ "intervalFactor": 2,
+ "legendFormat": "Chunk Samples",
+ "metric": "prometheus_local_storage_series_chunks_persisted_count",
+ "refId": "A",
+ "step": 10
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "First Compaction, Avg Chunk Samples",
+ "tooltip": {
+ "msResolution": false,
+ "shared": true,
+ "sort": 0,
+ "value_type": "individual"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "format": "none",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": true
+ },
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": false
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {},
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "editable": true,
+ "error": false,
+ "fill": 1,
+ "grid": {},
+ "gridPos": {
+ "h": 7,
+ "w": 8,
+ "x": 8,
+ "y": 67
+ },
+ "id": 10,
+ "legend": {
+ "alignAsTable": false,
+ "avg": false,
+ "current": false,
+ "max": false,
+ "min": false,
+ "show": true,
+ "total": false,
+ "values": false
+ },
+ "lines": true,
+ "linewidth": 2,
+ "links": [],
+ "nullPointMode": "connected",
+ "percentage": false,
+ "pointradius": 5,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [],
+ "spaceLength": 10,
+ "stack": false,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "rate(prometheus_target_interval_length_seconds_count[5m])",
+ "format": "time_series",
+ "intervalFactor": 2,
+ "legendFormat": "{{ interval }}",
+ "refId": "A",
+ "step": 2
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "Target Scrapes",
+ "tooltip": {
+ "msResolution": true,
+ "shared": true,
+ "sort": 0,
+ "value_type": "cumulative"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": true
+ },
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": false
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {},
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "editable": true,
+ "error": false,
+ "fill": 1,
+ "grid": {},
+ "gridPos": {
+ "h": 7,
+ "w": 8,
+ "x": 16,
+ "y": 67
+ },
+ "id": 11,
+ "legend": {
+ "alignAsTable": false,
+ "avg": false,
+ "current": false,
+ "max": false,
+ "min": false,
+ "show": true,
+ "total": false,
+ "values": false
+ },
+ "lines": true,
+ "linewidth": 2,
+ "links": [],
+ "nullPointMode": "connected",
+ "percentage": false,
+ "pointradius": 5,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [],
+ "spaceLength": 10,
+ "stack": false,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "prometheus_target_interval_length_seconds{quantile!=\"0.01\", quantile!=\"0.05\"}",
+ "format": "time_series",
+ "intervalFactor": 2,
+ "legendFormat": "{{quantile}} ({{interval}})",
+ "refId": "A",
+ "step": 2
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "Scrape Duration",
+ "tooltip": {
+ "msResolution": true,
+ "shared": true,
+ "sort": 0,
+ "value_type": "cumulative"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": true
+ },
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": false
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {
+ "Chunks": "#1F78C1",
+ "Chunks to persist": "#508642",
+ "Max chunks": "#052B51",
+ "Max to persist": "#3F6833"
+ },
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "description": "",
+ "editable": true,
+ "error": false,
+ "fill": 1,
+ "gridPos": {
+ "h": 7,
+ "w": 8,
+ "x": 0,
+ "y": 74
+ },
+ "id": 62,
+ "legend": {
+ "alignAsTable": false,
+ "avg": false,
+ "current": false,
+ "max": false,
+ "min": false,
+ "show": true,
+ "total": false,
+ "values": false
+ },
+ "lines": true,
+ "linewidth": 2,
+ "links": [],
+ "nullPointMode": "null",
+ "percentage": false,
+ "pointradius": 5,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [],
+ "spaceLength": 10,
+ "stack": false,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "rate(prometheus_http_request_duration_seconds_count[1m])",
+ "format": "time_series",
+ "intervalFactor": 2,
+ "legendFormat": "{{handler}}",
+ "metric": "prometheus_local_storage_memory_chunkdescs",
+ "refId": "A",
+ "step": 10
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "HTTP requests",
+ "tooltip": {
+ "msResolution": false,
+ "shared": true,
+ "sort": 0,
+ "value_type": "individual"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "format": "reqps",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": "0",
+ "show": true
+ },
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": false
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {
+ "Chunks": "#1F78C1",
+ "Chunks to persist": "#508642",
+ "Max chunks": "#052B51",
+ "Max to persist": "#3F6833"
+ },
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "description": "",
+ "editable": true,
+ "error": false,
+ "fill": 1,
+ "gridPos": {
+ "h": 7,
+ "w": 8,
+ "x": 8,
+ "y": 74
+ },
+ "id": 64,
+ "legend": {
+ "alignAsTable": false,
+ "avg": false,
+ "current": false,
+ "max": false,
+ "min": false,
+ "show": true,
+ "total": false,
+ "values": false
+ },
+ "lines": true,
+ "linewidth": 2,
+ "links": [],
+ "nullPointMode": "null",
+ "percentage": false,
+ "pointradius": 5,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [],
+ "spaceLength": 10,
+ "stack": false,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "rate(prometheus_http_request_duration_seconds_sum[1m]) / rate(prometheus_http_request_duration_seconds_count[1m])",
+ "format": "time_series",
+ "intervalFactor": 2,
+ "legendFormat": "{{handler}}",
+ "metric": "prometheus_local_storage_memory_chunkdescs",
+ "refId": "A",
+ "step": 10
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "HTTP request latency",
+ "tooltip": {
+ "msResolution": false,
+ "shared": true,
+ "sort": 0,
+ "value_type": "individual"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "format": "s",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": "0",
+ "show": true
+ },
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": false
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {
+ "Chunks": "#1F78C1",
+ "Chunks to persist": "#508642",
+ "Max chunks": "#052B51",
+ "Max to persist": "#3F6833"
+ },
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "description": "",
+ "editable": true,
+ "error": false,
+ "fill": 1,
+ "gridPos": {
+ "h": 7,
+ "w": 8,
+ "x": 16,
+ "y": 74
+ },
+ "id": 66,
+ "legend": {
+ "avg": false,
+ "current": false,
+ "max": false,
+ "min": false,
+ "show": true,
+ "total": false,
+ "values": false
+ },
+ "lines": true,
+ "linewidth": 2,
+ "links": [],
+ "nullPointMode": "null",
+ "percentage": false,
+ "pointradius": 5,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [],
+ "spaceLength": 10,
+ "stack": true,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "rate(prometheus_http_request_duration_seconds_sum[1m])",
+ "format": "time_series",
+ "intervalFactor": 2,
+ "legendFormat": "{{handler}}",
+ "metric": "prometheus_local_storage_memory_chunkdescs",
+ "refId": "A",
+ "step": 10
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "Time spent in HTTP requests",
+ "tooltip": {
+ "msResolution": false,
+ "shared": true,
+ "sort": 0,
+ "value_type": "individual"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "format": "s",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": "0",
+ "show": true
+ },
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": false
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {
+ "Chunks": "#1F78C1",
+ "Chunks to persist": "#508642",
+ "Max chunks": "#052B51",
+ "Max to persist": "#3F6833"
+ },
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "description": "Time spent in each mode, per second",
+ "editable": true,
+ "error": false,
+ "fill": 1,
+ "gridPos": {
+ "h": 7,
+ "w": 8,
+ "x": 0,
+ "y": 81
+ },
+ "id": 68,
+ "legend": {
+ "alignAsTable": true,
+ "avg": true,
+ "current": true,
+ "max": true,
+ "min": true,
+ "show": true,
+ "total": false,
+ "values": true
+ },
+ "lines": true,
+ "linewidth": 1,
+ "links": [],
+ "nullPointMode": "null",
+ "percentage": false,
+ "pointradius": 5,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [],
+ "spaceLength": 10,
+ "stack": true,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "rate(prometheus_engine_query_duration_seconds_sum[1m])",
+ "format": "time_series",
+ "intervalFactor": 2,
+ "legendFormat": "{{slice}}",
+ "metric": "prometheus_local_storage_memory_chunkdescs",
+ "refId": "A",
+ "step": 10
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "Query engine timings",
+ "tooltip": {
+ "msResolution": false,
+ "shared": true,
+ "sort": 0,
+ "value_type": "individual"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "format": "s",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": "0",
+ "show": true
+ },
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": false
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {
+ "Chunks": "#1F78C1",
+ "Chunks to persist": "#508642",
+ "Max chunks": "#052B51",
+ "Max to persist": "#3F6833"
+ },
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "editable": true,
+ "error": false,
+ "fill": 1,
+ "gridPos": {
+ "h": 7,
+ "w": 8,
+ "x": 8,
+ "y": 81
+ },
+ "id": 70,
+ "legend": {
+ "alignAsTable": true,
+ "avg": true,
+ "current": true,
+ "max": true,
+ "min": true,
+ "show": true,
+ "total": false,
+ "values": true
+ },
+ "lines": true,
+ "linewidth": 2,
+ "links": [],
+ "nullPointMode": "null",
+ "percentage": false,
+ "pointradius": 5,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [],
+ "spaceLength": 10,
+ "stack": true,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "rate(prometheus_rule_group_iterations_missed_total[1m]) ",
+ "format": "time_series",
+ "intervalFactor": 2,
+ "legendFormat": "Rule group missed",
+ "metric": "prometheus_local_storage_memory_chunkdescs",
+ "refId": "B",
+ "step": 10
+ },
+ {
+ "expr": "rate(prometheus_rule_evaluation_failures_total[1m])",
+ "format": "time_series",
+ "intervalFactor": 2,
+ "legendFormat": "Rule evals failed",
+ "metric": "prometheus_local_storage_memory_chunkdescs",
+ "refId": "C",
+ "step": 10
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "Rule group evaulation problems",
+ "tooltip": {
+ "msResolution": false,
+ "shared": true,
+ "sort": 0,
+ "value_type": "individual"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": "0",
+ "show": true
+ },
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": false
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {
+ "Chunks": "#1F78C1",
+ "Chunks to persist": "#508642",
+ "Max chunks": "#052B51",
+ "Max to persist": "#3F6833"
+ },
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "editable": true,
+ "error": false,
+ "fill": 1,
+ "gridPos": {
+ "h": 7,
+ "w": 8,
+ "x": 16,
+ "y": 81
+ },
+ "id": 72,
+ "legend": {
+ "alignAsTable": true,
+ "avg": true,
+ "current": true,
+ "max": true,
+ "min": true,
+ "show": true,
+ "total": false,
+ "values": true
+ },
+ "lines": true,
+ "linewidth": 2,
+ "links": [],
+ "nullPointMode": "null",
+ "percentage": false,
+ "pointradius": 5,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [],
+ "spaceLength": 10,
+ "stack": false,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "rate(prometheus_rule_group_duration_seconds_sum[1m])",
+ "format": "time_series",
+ "intervalFactor": 2,
+ "legendFormat": "Rule evaluation duration",
+ "metric": "prometheus_local_storage_memory_chunkdescs",
+ "refId": "A",
+ "step": 10
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "Evaluation time of rule groups",
+ "tooltip": {
+ "msResolution": false,
+ "shared": true,
+ "sort": 0,
+ "value_type": "individual"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "format": "s",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": "0",
+ "show": true
+ },
+ {
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": false
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ }
+ ],
+ "time": {
+ "from": "now-15m",
+ "to": "now"
+ },
+ "timepicker": {
+ "refresh_intervals": [
+ "5s",
+ "10s",
+ "30s",
+ "1m",
+ "5m",
+ "15m",
+ "30m",
+ "1h",
+ "2h",
+ "1d"
+ ],
+ "time_options": [
+ "5m",
+ "15m",
+ "1h",
+ "6h",
+ "12h",
+ "24h",
+ "2d",
+ "7d",
+ "30d"
+ ]
+ },
+ "templating": {
+ "list": []
+ },
+ "annotations": {
+ "list": []
+ },
+ "refresh": "10s",
+ "schemaVersion": 12,
+ "version": 22,
+ "links": [],
+ "gnetId": null
+}
\ No newline at end of file
diff --git a/monitoring/grafana/provisioning/dashboards/projects.json b/monitoring/grafana/provisioning/dashboards/projects.json
new file mode 100644
index 000000000..ed6bb8002
--- /dev/null
+++ b/monitoring/grafana/provisioning/dashboards/projects.json
@@ -0,0 +1,563 @@
+{
+ "annotations": {
+ "list": [
+ {
+ "$$hashKey": "object:819",
+ "builtIn": 1,
+ "datasource": "-- Grafana --",
+ "enable": true,
+ "hide": true,
+ "iconColor": "rgba(0, 211, 255, 1)",
+ "name": "Annotations & Alerts",
+ "type": "dashboard"
+ }
+ ]
+ },
+ "description": "All project's stats",
+ "editable": true,
+ "gnetId": null,
+ "graphTooltip": 0,
+ "id": 2,
+ "iteration": 1592956283025,
+ "links": [],
+ "panels": [
+ {
+ "cacheTimeout": null,
+ "datasource": "LokiAsPrometheus",
+ "gridPos": {
+ "h": 4,
+ "w": 15,
+ "x": 0,
+ "y": 0
+ },
+ "id": 4,
+ "links": [],
+ "options": {
+ "colorMode": "value",
+ "fieldOptions": {
+ "calcs": [
+ "max"
+ ],
+ "defaults": {
+ "mappings": [],
+ "thresholds": {
+ "mode": "absolute",
+ "steps": [
+ {
+ "color": "green",
+ "value": null
+ },
+ {
+ "color": "red",
+ "value": 10
+ }
+ ]
+ }
+ },
+ "overrides": [],
+ "values": false
+ },
+ "graphMode": "area",
+ "justifyMode": "auto",
+ "orientation": "vertical"
+ },
+ "pluginVersion": "6.7.3",
+ "targets": [
+ {
+ "expr": "max by (status) (count_over_time({virtual_host=\"$vhost\",status=~\"(5.+)|(4.+)\"}[5m]))",
+ "format": "time_series",
+ "instant": false,
+ "interval": "",
+ "intervalFactor": 1,
+ "legendFormat": "{{status}}",
+ "refId": "A"
+ }
+ ],
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "Error status",
+ "transparent": true,
+ "type": "stat"
+ },
+ {
+ "content": " $vhost
\n\n\n",
+ "datasource": null,
+ "gridPos": {
+ "h": 4,
+ "w": 9,
+ "x": 15,
+ "y": 0
+ },
+ "id": 14,
+ "mode": "html",
+ "timeFrom": null,
+ "timeShift": null,
+ "title": "",
+ "type": "text"
+ },
+ {
+ "aliasColors": {},
+ "bars": true,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "LokiAsPrometheus",
+ "fill": 1,
+ "fillGradient": 0,
+ "gridPos": {
+ "h": 7,
+ "w": 24,
+ "x": 0,
+ "y": 4
+ },
+ "hiddenSeries": false,
+ "id": 2,
+ "legend": {
+ "alignAsTable": true,
+ "avg": true,
+ "current": true,
+ "hideEmpty": false,
+ "hideZero": false,
+ "max": true,
+ "min": true,
+ "rightSide": true,
+ "show": true,
+ "total": true,
+ "values": true
+ },
+ "lines": false,
+ "linewidth": 1,
+ "nullPointMode": "null as zero",
+ "options": {
+ "dataLinks": []
+ },
+ "percentage": false,
+ "pointradius": 2,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [],
+ "spaceLength": 10,
+ "stack": true,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "sum by (status) (count_over_time({virtual_host=\"$vhost\"}[1m]))",
+ "interval": "",
+ "legendFormat": "Status {{status}}",
+ "refId": "A"
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeRegions": [],
+ "timeShift": null,
+ "title": "Total requests",
+ "tooltip": {
+ "shared": true,
+ "sort": 0,
+ "value_type": "individual"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "$$hashKey": "object:100",
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": true
+ },
+ {
+ "$$hashKey": "object:101",
+ "decimals": null,
+ "format": "short",
+ "label": "",
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": true
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {
+ "95 percentile": "red"
+ },
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": null,
+ "fill": 1,
+ "fillGradient": 4,
+ "gridPos": {
+ "h": 6,
+ "w": 24,
+ "x": 0,
+ "y": 11
+ },
+ "hiddenSeries": false,
+ "id": 6,
+ "legend": {
+ "alignAsTable": true,
+ "avg": true,
+ "current": true,
+ "max": true,
+ "min": true,
+ "rightSide": true,
+ "show": true,
+ "total": false,
+ "values": true
+ },
+ "lines": true,
+ "linewidth": 1,
+ "nullPointMode": "null as zero",
+ "options": {
+ "dataLinks": []
+ },
+ "percentage": false,
+ "pointradius": 2,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [],
+ "spaceLength": 10,
+ "stack": false,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "histogram_quantile(0.95, sum(rate(promtail_custom_http_nginx_response_time_bucket{virtual_host=\"$vhost\"}[30s])) by (le))",
+ "interval": "",
+ "intervalFactor": 1,
+ "legendFormat": "95 percentile",
+ "refId": "A"
+ },
+ {
+ "expr": "histogram_quantile(0.75, sum(rate(promtail_custom_http_nginx_response_time_bucket{virtual_host=\"$vhost\"}[30s])) by (le))",
+ "interval": "",
+ "legendFormat": "75 percentile",
+ "refId": "B"
+ },
+ {
+ "expr": "histogram_quantile(0.5, sum(rate(promtail_custom_http_nginx_response_time_bucket{virtual_host=\"$vhost\"}[30s])) by (le))",
+ "interval": "",
+ "legendFormat": "median",
+ "refId": "E"
+ },
+ {
+ "expr": "histogram_quantile(0.25, sum(rate(promtail_custom_http_nginx_response_time_bucket{virtual_host=\"$vhost\"}[30s])) by (le))",
+ "interval": "",
+ "legendFormat": "25 percentile",
+ "refId": "C"
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeRegions": [],
+ "timeShift": null,
+ "title": "Response time",
+ "tooltip": {
+ "shared": true,
+ "sort": 0,
+ "value_type": "individual"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "$$hashKey": "object:161",
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": true
+ },
+ {
+ "$$hashKey": "object:162",
+ "format": "none",
+ "label": "seconds",
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": true
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {},
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "decimals": null,
+ "fill": 1,
+ "fillGradient": 2,
+ "gridPos": {
+ "h": 7,
+ "w": 24,
+ "x": 0,
+ "y": 17
+ },
+ "hiddenSeries": false,
+ "id": 8,
+ "legend": {
+ "alignAsTable": true,
+ "avg": true,
+ "current": true,
+ "hideEmpty": false,
+ "hideZero": false,
+ "max": true,
+ "min": true,
+ "rightSide": true,
+ "show": true,
+ "sideWidth": null,
+ "total": true,
+ "values": true
+ },
+ "lines": true,
+ "linewidth": 1,
+ "nullPointMode": "null as zero",
+ "options": {
+ "dataLinks": []
+ },
+ "percentage": false,
+ "pointradius": 2,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [],
+ "spaceLength": 10,
+ "stack": false,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "sum(increase(promtail_custom_http_nginx_response_bytes_sum{virtual_host=\"$vhost\"}[10m]))",
+ "format": "time_series",
+ "interval": "",
+ "legendFormat": "bytes total",
+ "refId": "A"
+ },
+ {
+ "expr": "sum(increase(promtail_custom_http_nginx_response_bytes_sum[10m])) by (request_type)",
+ "interval": "",
+ "legendFormat": "{{request_type}}",
+ "refId": "B"
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeRegions": [],
+ "timeShift": null,
+ "title": "Bytes out",
+ "tooltip": {
+ "shared": true,
+ "sort": 0,
+ "value_type": "individual"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "$$hashKey": "object:559",
+ "format": "bytes",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": true
+ },
+ {
+ "$$hashKey": "object:560",
+ "format": "deckbytes",
+ "label": "",
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": false
+ }
+ ],
+ "yaxis": {
+ "align": true,
+ "alignLevel": null
+ }
+ },
+ {
+ "aliasColors": {},
+ "bars": false,
+ "dashLength": 10,
+ "dashes": false,
+ "datasource": "Prometheus",
+ "fill": 1,
+ "fillGradient": 0,
+ "gridPos": {
+ "h": 6,
+ "w": 24,
+ "x": 0,
+ "y": 24
+ },
+ "hiddenSeries": false,
+ "id": 16,
+ "legend": {
+ "alignAsTable": true,
+ "avg": true,
+ "current": true,
+ "max": true,
+ "min": true,
+ "rightSide": true,
+ "show": true,
+ "sort": "max",
+ "sortDesc": true,
+ "total": false,
+ "values": true
+ },
+ "lines": true,
+ "linewidth": 1,
+ "nullPointMode": "null as zero",
+ "options": {
+ "dataLinks": []
+ },
+ "percentage": false,
+ "pointradius": 2,
+ "points": false,
+ "renderer": "flot",
+ "seriesOverrides": [],
+ "spaceLength": 10,
+ "stack": false,
+ "steppedLine": false,
+ "targets": [
+ {
+ "expr": "topk(4, sum(increase(promtail_custom_http_nginx_response_time_sum{virtual_host=\"$vhost\",request_type=\"api\"}[30s]) / increase(promtail_custom_http_nginx_response_time_count{virtual_host=\"$vhost\",request_type=\"api\"}[30s])) by (api_request))",
+ "interval": "",
+ "legendFormat": "{{api_request}}",
+ "refId": "B"
+ }
+ ],
+ "thresholds": [],
+ "timeFrom": null,
+ "timeRegions": [],
+ "timeShift": null,
+ "title": "Top slow request",
+ "tooltip": {
+ "shared": true,
+ "sort": 0,
+ "value_type": "individual"
+ },
+ "type": "graph",
+ "xaxis": {
+ "buckets": null,
+ "mode": "time",
+ "name": null,
+ "show": true,
+ "values": []
+ },
+ "yaxes": [
+ {
+ "$$hashKey": "object:1598",
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": true
+ },
+ {
+ "$$hashKey": "object:1599",
+ "format": "short",
+ "label": null,
+ "logBase": 1,
+ "max": null,
+ "min": null,
+ "show": true
+ }
+ ],
+ "yaxis": {
+ "align": false,
+ "alignLevel": null
+ }
+ }
+ ],
+ "refresh": "10s",
+ "schemaVersion": 22,
+ "style": "dark",
+ "tags": [],
+ "templating": {
+ "list": [
+ {
+ "allValue": null,
+ "current": {
+ "text": "nginx.test",
+ "value": "nginx.test"
+ },
+ "datasource": "LokiAsPrometheus",
+ "definition": "label_values(virtual_host)",
+ "hide": 0,
+ "includeAll": false,
+ "index": -1,
+ "label": "vhost",
+ "multi": false,
+ "name": "vhost",
+ "options": [],
+ "query": "label_values(virtual_host)",
+ "refresh": 1,
+ "regex": "",
+ "skipUrlSync": false,
+ "sort": 0,
+ "tagValuesQuery": "",
+ "tags": [],
+ "tagsQuery": "",
+ "type": "query",
+ "useTags": false
+ }
+ ]
+ },
+ "time": {
+ "from": "now-30m",
+ "to": "now"
+ },
+ "timepicker": {
+ "refresh_intervals": [
+ "5s",
+ "10s",
+ "30s",
+ "1m",
+ "5m",
+ "15m",
+ "30m",
+ "1h",
+ "2h",
+ "1d"
+ ]
+ },
+ "timezone": "",
+ "title": "Projects",
+ "uid": "2",
+ "variables": {
+ "list": []
+ },
+ "version": 1
+}
\ No newline at end of file
diff --git a/monitoring/grafana/provisioning/datasources/loki.yml b/monitoring/grafana/provisioning/datasources/loki.yml
new file mode 100644
index 000000000..9bf0b3467
--- /dev/null
+++ b/monitoring/grafana/provisioning/datasources/loki.yml
@@ -0,0 +1,10 @@
+apiVersion: 1
+
+datasources:
+ - name: Loki
+ type: loki
+ access: proxy
+ url: http://loki:3100
+ basicAuth: false
+ isDefault: false
+ editable: true
diff --git a/monitoring/loki/loki-config.yml b/monitoring/loki/loki-config.yml
new file mode 100644
index 000000000..745f1bff7
--- /dev/null
+++ b/monitoring/loki/loki-config.yml
@@ -0,0 +1,57 @@
+auth_enabled: false
+
+server:
+ http_listen_port: 3100
+ log_level: warn
+
+ingester:
+ wal:
+ enabled: true
+ dir: /loki/wal
+ lifecycler:
+ address: 127.0.0.1
+ ring:
+ kvstore:
+ store: inmemory
+ replication_factor: 1
+ final_sleep: 0s
+ chunk_idle_period: 1m
+ chunk_retain_period: 5m
+ max_chunk_age: 2m
+
+#persistence:
+# enabled: true
+# accessModes:
+# - ReadWriteOnce
+# size: 10Gi
+# existingClaim: pvc-loki
+# mountPath: "/loki/"
+
+schema_config:
+ configs:
+ - from: 2020-04-01
+ store: boltdb
+ object_store: filesystem
+ schema: v11
+ index:
+ prefix: index_
+ period: 168h
+
+storage_config:
+ boltdb:
+ directory: /loki/index
+ filesystem:
+ directory: /loki/chunks
+
+limits_config:
+ enforce_metric_name: false
+ reject_old_samples: false
+ reject_old_samples_max_age: 168h
+
+chunk_store_config:
+ max_look_back_period: 0
+
+table_manager:
+ # if you need delete logs
+ retention_deletes_enabled: false
+ retention_period: 0
diff --git a/monitoring/nginx/Dockerfile b/monitoring/nginx/Dockerfile
new file mode 100644
index 000000000..4019b8b59
--- /dev/null
+++ b/monitoring/nginx/Dockerfile
@@ -0,0 +1,3 @@
+FROM nginx:1.19.1-alpine
+
+COPY default.conf /etc/nginx/conf.d/default.conf
diff --git a/monitoring/nginx/default.conf b/monitoring/nginx/default.conf
new file mode 100644
index 000000000..75a0b54e6
--- /dev/null
+++ b/monitoring/nginx/default.conf
@@ -0,0 +1,14 @@
+server {
+ listen 80;
+ listen [::]:80;
+ server_name localhost;
+
+ location / {
+ proxy_pass http://timeweb:50000/;
+ }
+
+ error_page 500 502 503 504 /50x.html;
+ location = /50x.html {
+ root /usr/share/nginx/html;
+ }
+}
diff --git a/monitoring/promtail/promtail.yml b/monitoring/promtail/promtail.yml
new file mode 100644
index 000000000..f612384a1
--- /dev/null
+++ b/monitoring/promtail/promtail.yml
@@ -0,0 +1,86 @@
+server:
+ http_listen_port: 9080
+ grpc_listen_port: 0
+ log_level: "warn"
+positions:
+ filename: /var/lib/promtail/positions/positions.yaml
+client:
+ url: http://loki:3100/api/prom/push
+scrape_configs:
+ - job_name: containers
+
+ static_configs:
+ - targets:
+ - localhost
+ labels:
+ job: docker
+ __path__: /var/lib/docker/containers/*/*log # For linux only
+
+ # ### waiting the next settings in logging
+ # logging:
+ # driver: "json-file"
+ # options:
+ # max-size: "200k"
+ # max-file: "10"
+ # tag: "{{:ImageName}}|{{:Name}}"
+
+ pipeline_stages:
+ - json:
+ expressions:
+ stream: stream
+ attrs: attrs
+ tag: attrs.tag
+ time: time
+ - timestamp:
+ source: time
+ format: RFC3339Nano
+ - regex:
+ expression: ^(?P([^|]+))\|(?P([^|]+))$
+ source: "tag"
+ - labels:
+ image_name:
+ container_name:
+
+ - match:
+ # drop all logs for all containers that don't have --log-opt: tag: "{{:ImageName}}|{{:Name}}"
+ selector: '{job="docker",container_name="",image_name=""}'
+ action: drop
+
+ - match:
+ selector: '{image_name="nginx.timeweb"}'
+ stages:
+ - json:
+ expressions:
+ row: log
+ - regex:
+ # suppress forego colors
+ expression: .+nginx.+\|.+\[0m(?P[a-z_\.-]+) +(?P.+)
+ source: row
+ - regex:
+ source: nginx_log_row
+ expression: ^(?P[\w\.]+) - (?P[^ ]*) \[(?P[^ ]+).*\] "(?P[^ ]*) (?P[^ ]*) (?P[^ ]*)" (?P[\d]+) (?P[\d]+) "(?P[^"]*)" "(?P[^"]*)"( "(?P[\d\.]+)")?
+ - regex:
+ source: request_url
+ expression: ^.+\.(?Pjpg|jpeg|gif|png|ico|css|zip|tgz|gz|rar|bz2|pdf|txt|tar|wav|bmp|rtf|js|flv|swf|html|htm)$
+ - regex:
+ source: request_url
+ expression: ^/photo/(?P[^/\?\.]+).*$
+ - regex:
+ source: request_url
+ expression: ^/api/(?P[^/\?\.]+).*$
+ - template:
+ source: request_type
+ template: "{{if .photo}}photo{{else if .static_type}}static{{else if .api_request}}api{{else}}other{{end}}"
+ - labels:
+ api_request:
+ virtual_host:
+ request_type:
+ status:
+ - output:
+ source: nginx_log_row
+ - match:
+ selector: '{image_name="nginx.timeweb"}'
+ stages:
+ - labels:
+ filename:
+ stream:
